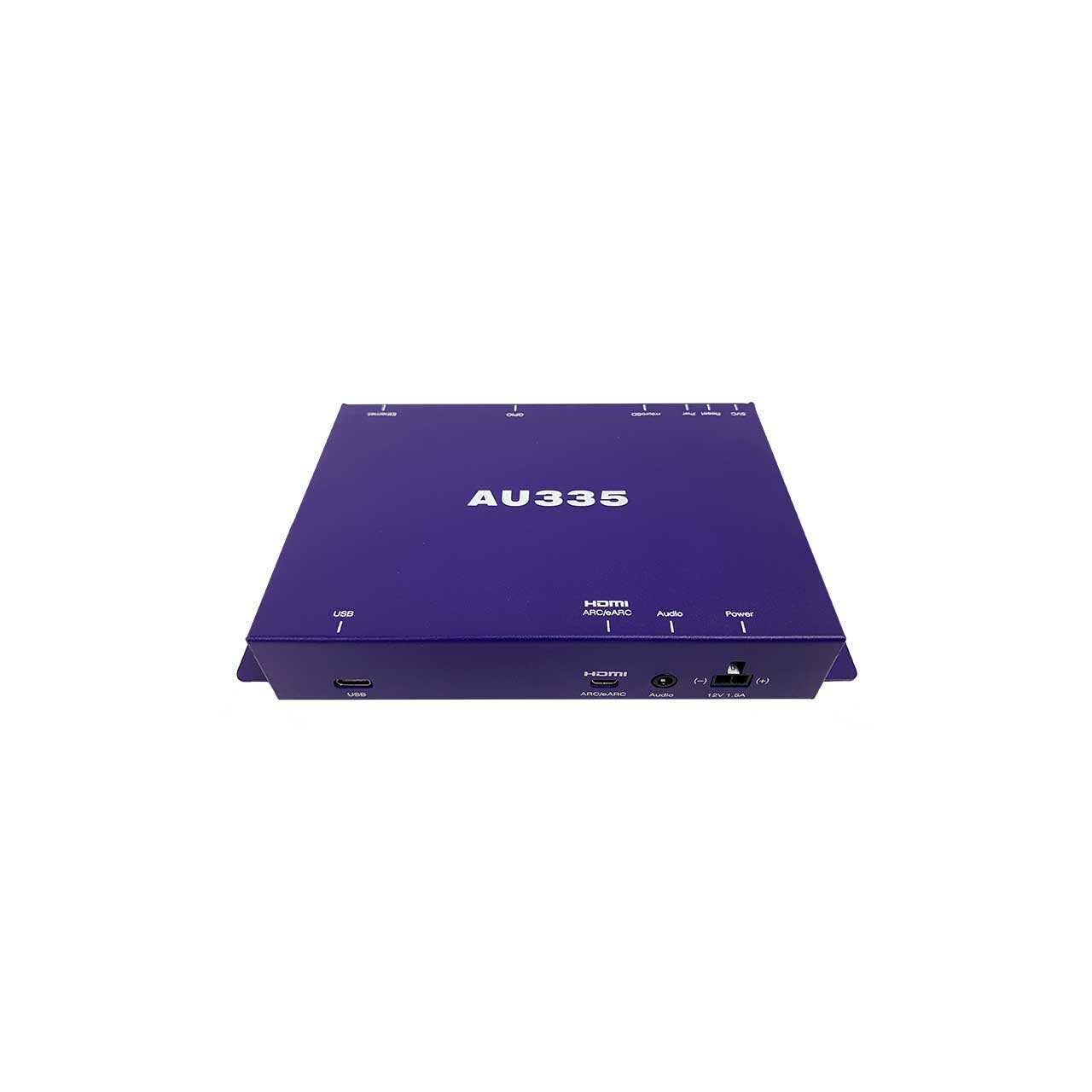

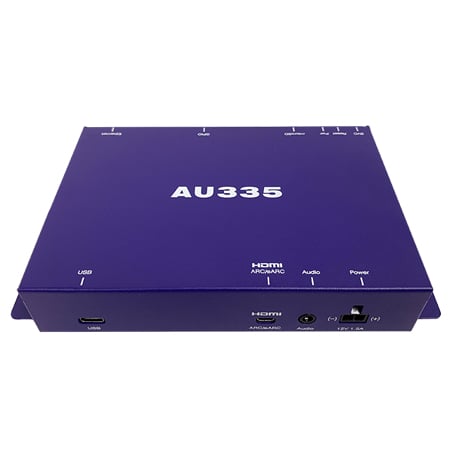

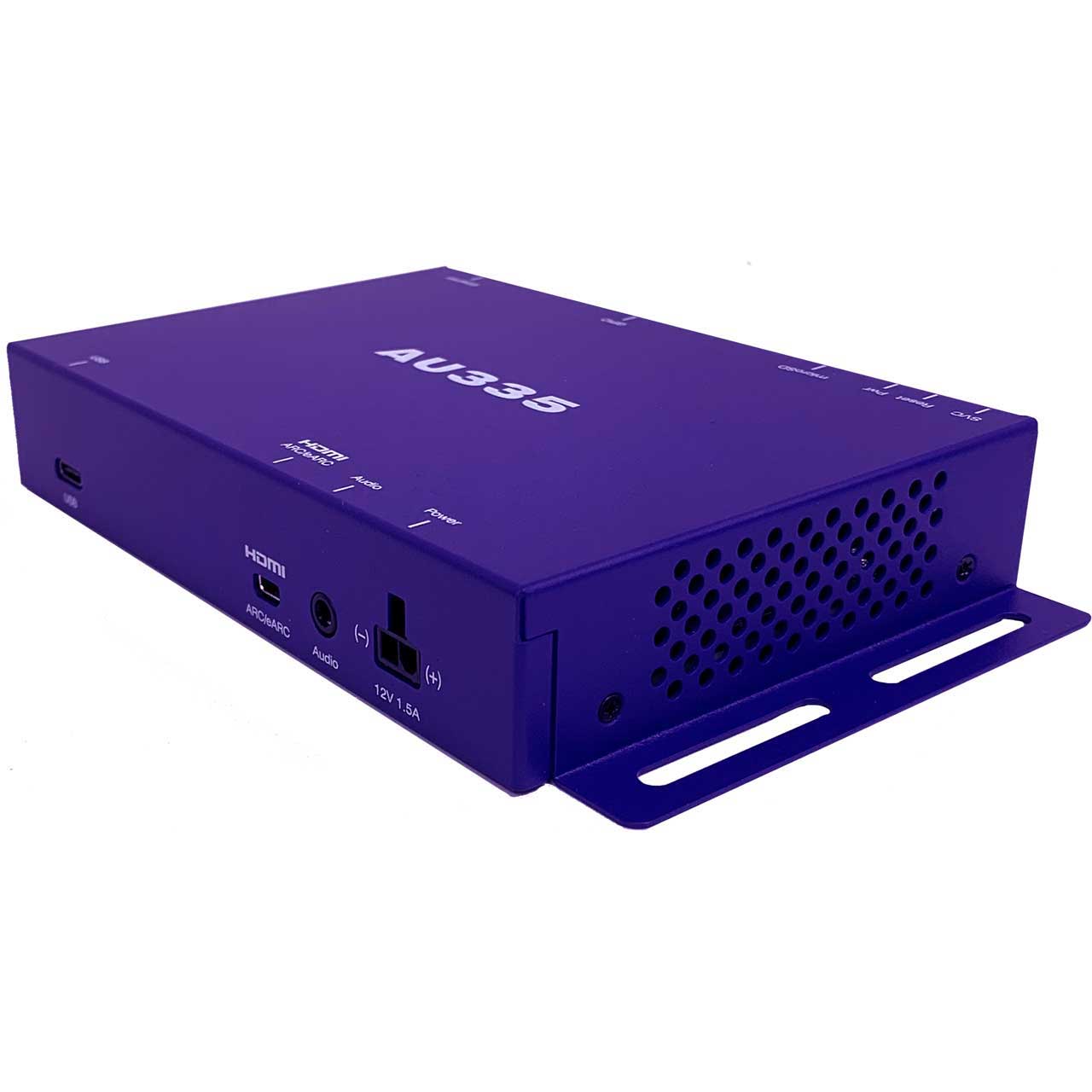

BrightSign AU335 ARC/eARC/Analog/Audio Player for Digital Signage

ITEM #: BRI-AU335 MFG #: AU335

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$165.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AU335 - Overview

    The BrightSign AU335 delivers the latest sound technologies required to play quality, high-bandwidth audio on an ultra-affordable, cloud-based platform. Its ARC/eARC support streamlines distribution of high bandwidth, 24-bit audio including Dolby Atmos™ while also supporting audio routing, audio mixing, CEC commands and interactive controls to deliver sound experiences for any application.

    Retail Soundbar Product Demos
    Create engaging retail soundbar displays to show off the latest in audio technology. The AU335 has ARC and eARC support that supports playback of up to 3 audio files at once including high bandwidth, 24-bit sound to play Dolby Atmos®, Dolby Audio™ and PCM audio. Audio routing and audio mixing are also supported along with interactive controls through USB, GPIO, and Ethernet to engage your audience, while CEC command support simplifies the solution with its volume and input controls. The USB port also operates in host mode to deliver updates to connected soundbars and AV receiver devices.

    Music Distribution
    Distribute background audio and music to any venue using the ultra-affordable AU335 which supports stereo audio alongside ARC/eARC, Audio routing is supported which allows you to play different audio tracks simultaneously via the left and right audio channels. You can also perform audio mixing to deliver voice messages overlaid on top of background music. Extend your audio distribution by synchronizing multiple AU335 players together. The free Control Cloud subscription to BSN.cloud gives access to real time player health and controls allowing you to easily monitor players remotely.

    Interactive Audio Exhibits
    Deploy engaging audio museum exhibits with a plethora of interactive controls that can connect to USB, GPIOs or Ethernet. Control lighting and other devices to create unique experiences and even synchronize to other BrightSign players that are running digital signage. Presentation authoring is done via free BrightAuthor:connected, BrightScript, JavaScript, and node applications, or your choice of an integrated CMS solution.

    • Features:

      • Distributes quality high bandwidth, 24-bit audio including Dolby Atmos®, Dolby Audio™ and PCM audio to ARC/eARC soundbars & AV receivers
      • Performs audio routing for individual audio file playback via the left or right channel*
      • Supports simultaneous playback of up to 3 audio files with audio mixing. Please note: Requires OS 8.3.46 & BrightAuthor:connected version 1.6.44 or higher, and some advanced mixing can only be implemented via JavaScript.
      • Controls interactive devices via USB, GPIO & Ethernet (USB host mode supports firmware updates on connected devices)
      • Provides soundbar volume control and input switching via CEC commands
      • Synchronizes with additional BrightSign players, lighting and other devices to create unique experiences
      • Includes a free Control Cloud subscription to BSN.cloud for access to real time player health and remote player controls
      • Supports presentation authoring through free BrightAuthor:connected, BrightScript, JavaScript, and node applications
      • Integrates with your choice of a partner CMS solution

    • Specifications:

      • Media Formats
      • Audio decoding: WAV, AAC, TS, MP2, MP3, MP4, MOV, MP2TS
      • Audio pass through: EAC3, AC3
      • Scripting: JavaScript & Node.js

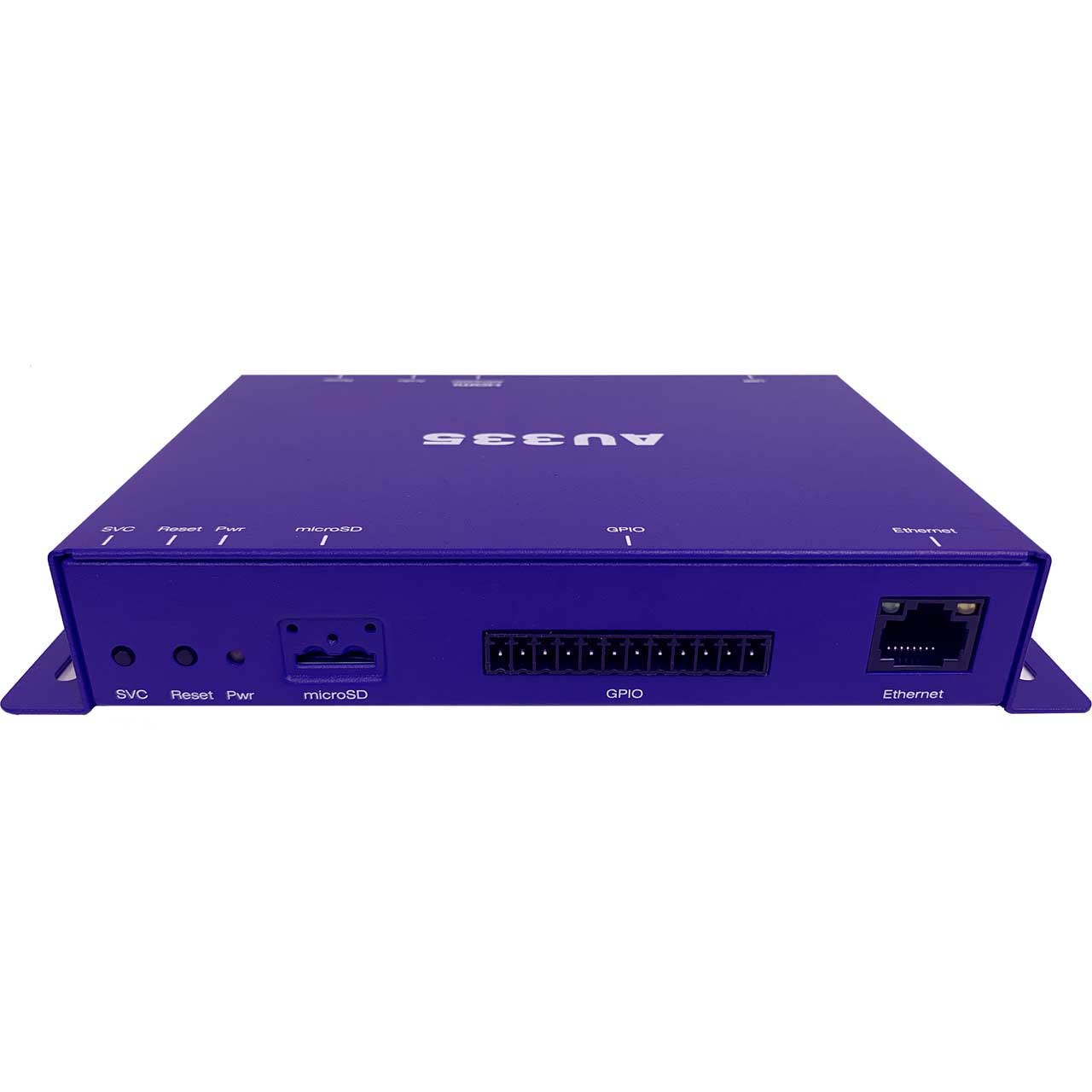

        Hardware Interfaces
      • Locking Power Connector
      • External micro SD Slot (SDHC and SDXC); SDHC Storage via
      • SDXC (up to 2TB)
      • USB High Speed Host Port (also supports content updates) (Type C)
      • 12-pin Phoenix GPIO port with 8 bi-directional GPIOs
      • 3.5mm Audio Out (analog) ARC/eARC (Micro-HDMI)
      • Ethernet 100baseT
      • Status LED
      • Reset and Services Button
      • Real Time Clock

        Software
      • Free BrightAuthor:connected Software
      • BSN.cloud Networking Options

        Accessories
      • USB Button Pads
      • Wireless Module
      • MicroSD Class 10 Cards (various capacities)

        Miscellaneous
      • Dimensions (WxHxD): 6.83 x 1.10 x 3.93" (173.4 x 27.9 x 99.9mm)
      • Weight: 13.3 oz
      • Power: 12V / 3A (36 Watts)
      • Multi-Country Power & Regulatory Approvals
      • Built-in Wall Mounting Brackets

    • Item Includes:

      • 1x BrightSign audio player
      • 1x International power supply with plugs for USA, UK, Australia and EU
      • 1x MicroSD slot cover with screw
      • 1x Getting Started flyer

    • Warranty:

      • 1 year warranty, parts and labor
