Barnfind BTF1-41 Rackmount BarnOne Frame - Provides 16 SFP+ Ports/12G Capable

ITEM #: BRN-BTF1-41 MFG #: BTF1-41

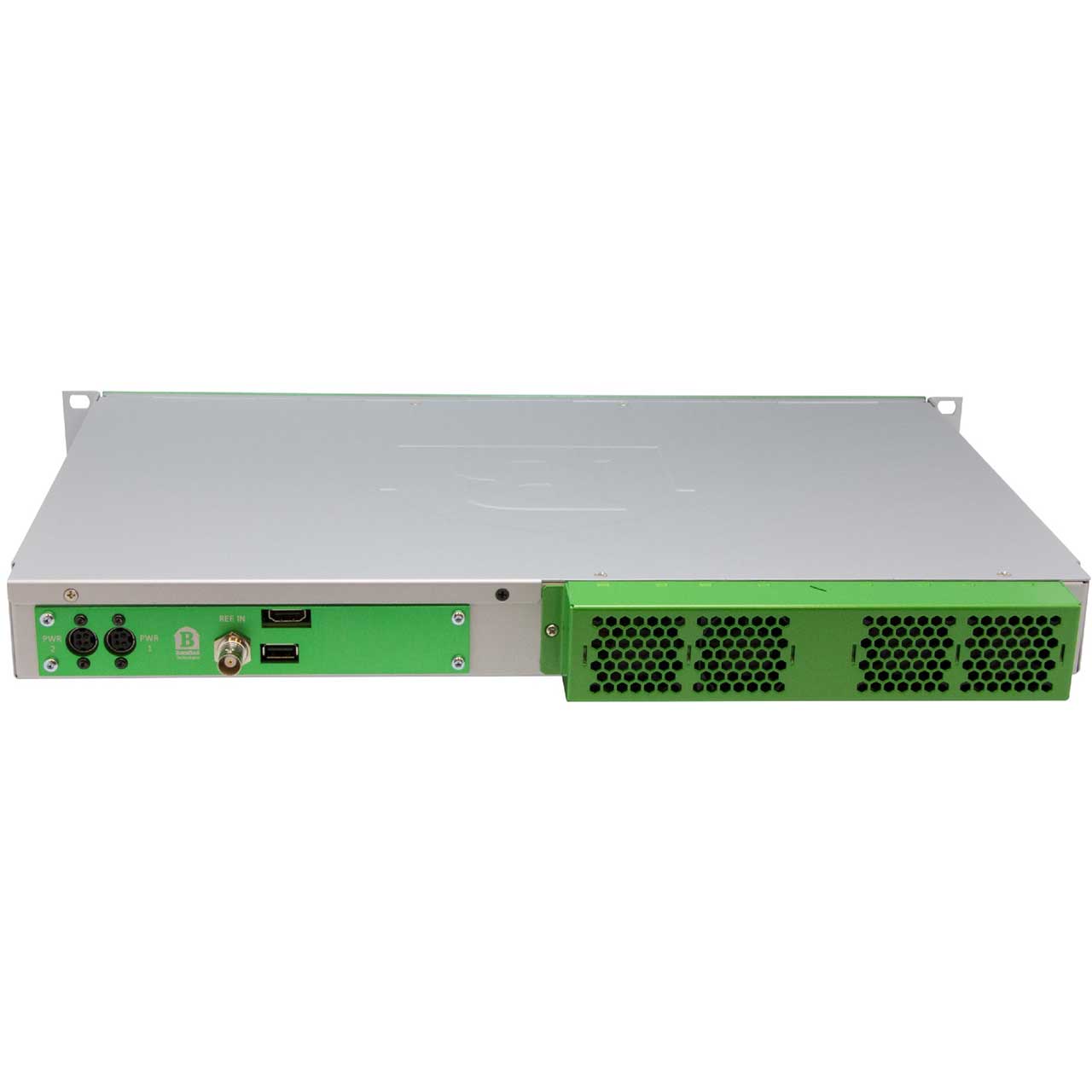

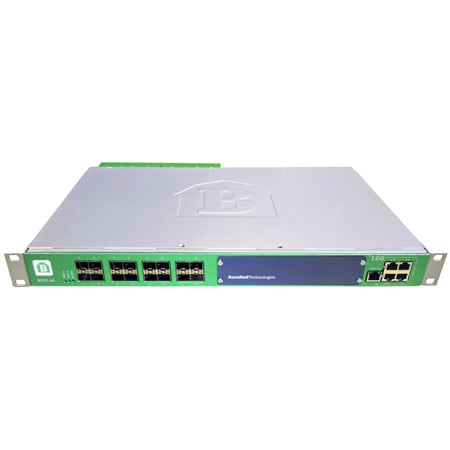

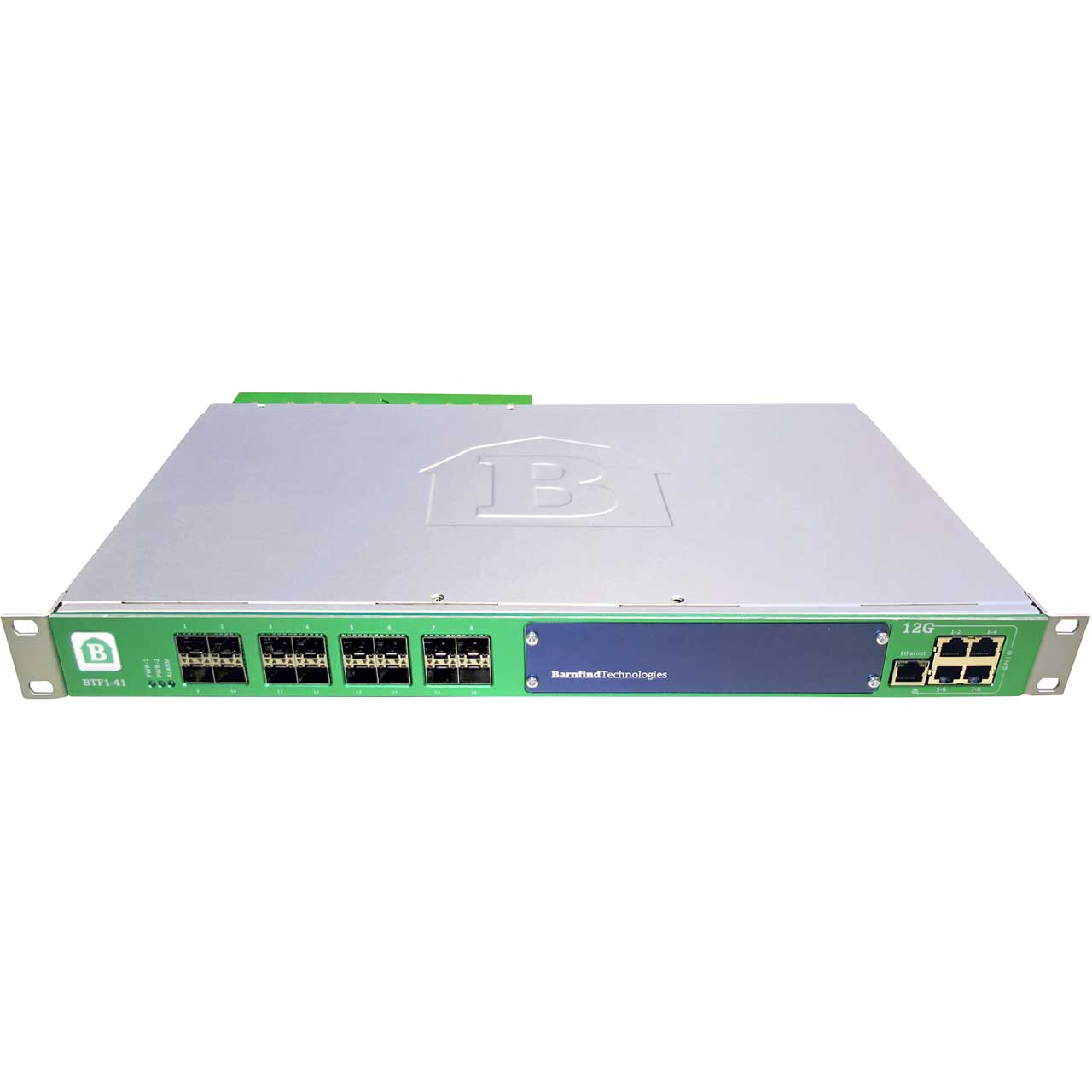

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$9,200.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BTF1-41 - Overview

    Barnfind BTF1-41 is designed to be the most flexible, rack-space saving and affordable infrastructure platform in the audio, video and communication businesses. Highly compact and equipped with an up to 32x32 cross-point router. Barnfind offer a number of configurations to combine BNC, SFP and CWDM fiber optical multiplexing.

    This BarnOne frame accepts both MSA and non-MSA SFPs including optical, SDI copper, HDMI and RJ-45 Ethernet style SFP modules.

    Multirate compability with maximum bitrate of up to 12G-SDI and 10G-Ethernet. This meets the demand for 4K video transmissions.

    Ideal for optical signal transmission, remote stage box application and small studio style productions.

    Next to the control port on the front panel locate 8x GPIO interfaces. GPOs can be driven by matrix changes, Loss Of Service of a SFP module or by a GPI which is received via the front panel or the control network (TSL protocol). GPIs are converted to an IP protocol (TSL Tally/UMD) which is available through the control network.

    The fans of BTF1-41 are controllable in their speed depending on temperature inside the frame.

    Optionally BTF1-41 can house a 1Gbps Ethernet switch which internally connects to the matrix, not reducing the 32 bi-directional ports which are be dsiplayed to the outside. Another port of the switch connects to the CPU, one to the open slot for control of future implementations.

    Another option is the sync transport, extracting analog sync signals from SDI or converting Blackburst and TriLevelSync to SDI in order to transport it. The sync option houses the signal analyser for SDI and ASI signals

    Please Note: BarnFind BARNSTUDIO controller software is required to operate this and all BarnOne Frames.

    • Specifications:

      • SFP Ports
      • 16x SFP+ ports (enhanced small formfactor pluggable) for transceivers, MSA and non-MSA compliant, up to 12Gbps
      • SMPTE 259M, 292M, 372M, 424M, 297M, ST 2081, ST 2082, DVB-ASI
      • SFP modules are hot pluggable/swappable
      • Single-mode, multi-mode or media-converter SFP modules
      • Multirate reclocking of outputs 125Mbps - 12Gbps

        Extension Section
      • Slot for extension boards
      • Available extension modules: BTF1-41-SFP-16
      • 3rd party integrations welcome, please contact [email protected]

        Power supply
      • 12V DC 120W power supply included
      • Redundant power supply optional

        Physical size
      • 17.5" x 11" x 1.7"
      • 8.37lb

    • Item Includes:

      • 1x BTF1-41 mainframe
      • 1x Power supply 12V DC
