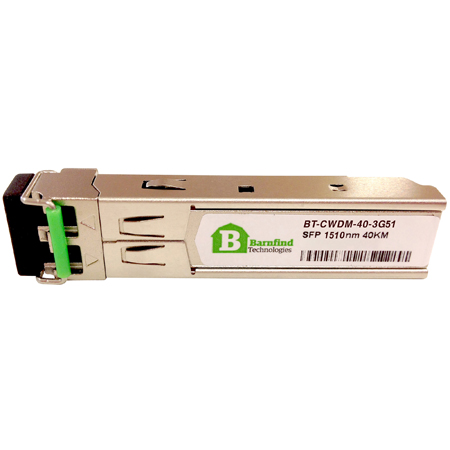

Barnfind BT-CWDM-40-3G51 SDI/HDSDI/3G CWDM Transceiver Module/Singlemode SFP Max Data Rate 3Gbps Distance 40km - 1510nm

ITEM #: BRN-BTCWDM403G51 MFG #: BT-CWDM-40-3G51

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$285.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    BT-CWDM-40-3G51 - Overview

    Barnfind BT-CWDM-40-3G51 is an SFP CWDM Module with Maximum Data Rate of 2.5 Gbps and a Distance of 24.8 Miles at a wavelength of 1510nm. The CWDM Mux/Demux is a passive technology that allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. HD over fiber at 1570nm transported alongside 3Gbps SDI at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

    Barnfind CWDM Mux/Demux can support up to 18 wavelengths between 1270nm to 1610nm in 20nm increments when com fiber is ITU-T G.694.2, however if com fiber is ITU-T G.652, we recommend adopt 1270nm and 1290nm instead of 1390nm and 1410nm because of water peak loss.

    Barnfind provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications.

    • Features:

      • CWDM Mux/Demux is a flexible, low-cost solution that enables the expansion of existing fiber capacity.
      • The CWDM Mux/Demux lets operators make full use of available fiber bandwidth in local loop and enterprise architectures.
      • Barnfind CWDM Mux/Demux is a universal device capable of combining up to 18 optical signals into a fiber pair or single fiber.
      • It is designed to support a broad range of architectures, ranging from scalable point-to-point links to two fiber-protected rings.

    • Specifications:

      • Channel Center Wavelength: 1510nm
      • Channel Clear Passband: ITU ±7 nm
      • Insertion Loss 8-Channel: -2.5dBm; 16ch/18ch: -3.5dBm (max)
      • Passband Ripple: 0.5dBm (max)
      • Adjacent Channel Isolation: 30dBm (min)
      • Non-Adjacent Channel Isolation: 45dBm (min)
      • Return Loss: 45dBm (min)
      • Directivity: 45dBm (min)
      • Polarization Dependent Loss: 0.1dBm (max)
      • Operating Temperature Range: -4° to 158°F (-20° to 70°C)
      • Storage Temperature Handling: -40° to 185° (-40° to 85°C)
      • Maximum Power Handling: 300mW
