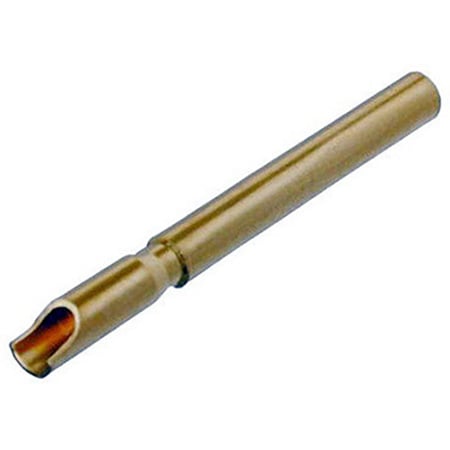

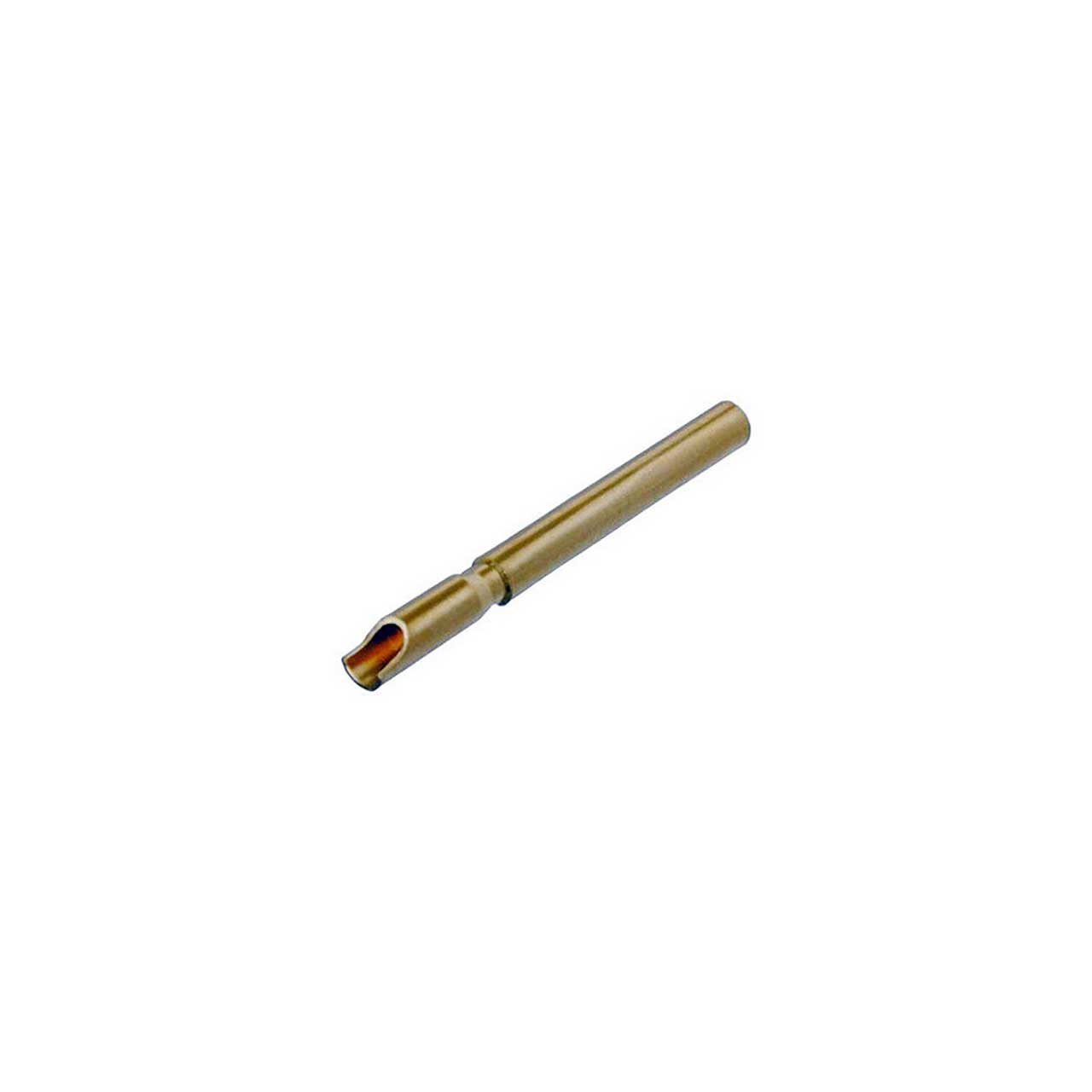

Neutrik BS1 neutriCON Contact Bushing (Solder)

ITEM #: BS1 MFG #: BS1

free ship

List Price:

$0.80

Our Price:

$0.69

Availability: In Stock
iAvailability Description Popup


    BS1 - Overview

    Versatile Circular Connector. Modular system - few parts, many variations. Contact configuration can be selected from 1 to 8 contacts. Easy, fast and screwless assembly. Push-pull self locking system. Very robust, all metal housing.

    • Specifications:

      • Number of contacts: 1 - 8 user selectableRated current
      • - solder contact: 7.5 A
      • - crimp contact: 5 A
      • Rated voltage (VDE 0110, section A): 50 V ac
      • Dielectric strength: 1500 V dc
      • Contact resistance: = 2 mOhm
      • Insulation resistance after damp heat test (IEC 68-2-30): = 5*108 Ohm
      • Retention method: self-locking
      • Latching / Disengagement force: < 25 N (8 contacts)
      • Cable anchoring: NEUTRIKr chuck principle
      • Cable OD range: 3 - 7 mm
      • Cable retention force: = 150 N for cable dia 5 mm
      • - solder contact: max. 1.0 mm2 / 18 AWG
      • - crimp contact: 0.14 - 0.34 mm2 / 22 - 26 AWG
      • Protective system (mated): IP 50 (higher classes on request)
      • Solderability: complies with IEC 68-2-20
      • Shell: ZnAI4Cu1, gal Cu / Ni (+ black Cr)
      • Insert: PBTP 15% GR
      • Contacts: CuZn39Pb3 / CuZn35Pb2, 0.3 æm hard gold over Ni
      • Blank contact: PBTP 15% GR
      • Strain relief chuck: POM (Polyacetal)
      • Bushing: POM (+ PUR)
      • Temperature range: -30°C to +80°C

    • GTIN:

      7613187001529
