Bosch PRAESENSA Ethernet Switch with 8x Gigabit PoE Ports and 2x Gigabit Combo Ports with SFP

ITEM #: BSH-PRA-ES8P2S MFG #: PRA-ES8P2S

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,155.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRA-ES8P2S - Overview

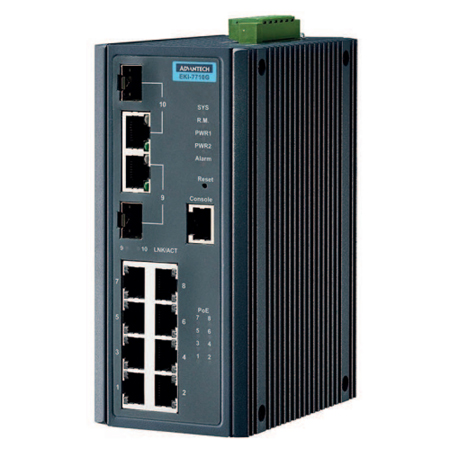

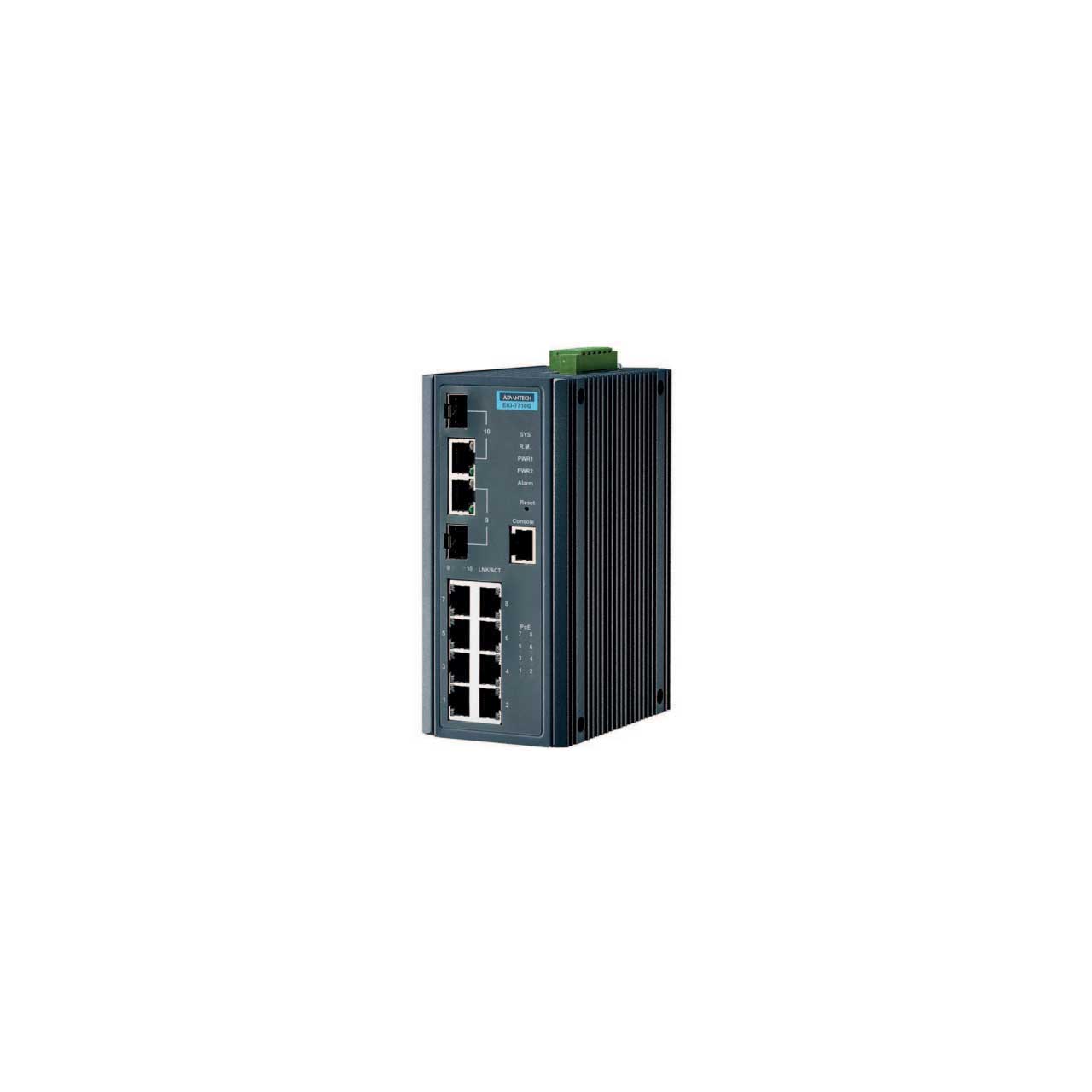

    The Bosch PRA-ES8P2S is a compact DIN-rail mounted Ethernet switch with eight Gigabit copper ports, supporting Power over Ethernet (PoE) and two Gigabit SFP combo ports. This Ethernet switch is an OEM switch, made for Bosch by Advantech for use in Bosch Public Address and Voice Alarm systems. It is a preconfigured version of the EKI-7710G-2CPI-AE switch, optimized for PRAESENSA. The PRA-ES8P2S is certified for EN 54-16 in combination with PRAESENSA systems. It can be used in addition to the switch ports of the PRAESENSA system controller and multifunction power supply. This is especially convenient in large systems where more SFP ports are needed for long distance interconnections on glass fiber or more PoE-enabled ports are needed to power PRAESENSA call stations.

    • Features:

      • 8 x Gigabit ports with PoE
      • 2 x Gigabit combo ports with SFP sockets for glassfiber transceivers
      • Network redundancy via STP/MSTP/RSTP
      • Dual power supply connections
      • Fault relay

    • Specifications:

      • Operating voltage (VDC): 16.80 VDC - 62.40 VDC
      • Power consumption (W): 140 W maximum
      • PoE/PoE + power budget: 120 W maximum
      • PoE/PoE + power per port: 20 W maximum
      • PoE/PoE + standard: IEEE 802.3 af/at
      • Switch type: Managed
      • Number of RJ45 ports: 10
      • Number of RJ45 connections with PoE: 8
      • Number of SFP ports: 2
      • MAC table size: 8k
      • Fault output: Relay
      • Additional features: Pre-configured for PRAESENSA
      • Ethernet type: 100BASE-TX; 1000BASE-T
      • Cooling: Convection
      • Mounting type: Rail-mounted; Wall mounted
      • Protection: Watchdog; RSTP; Rate limiting; Storm control
      • Degree of protection (IEC 60529): IP30
      • Operating temperature: -40 to 167 °F
      • Storage and Transport Temperature: -40 to 185 °F
      • Dimension (HxWxD): 6.0 x 2.9 x 4.1 In
      • Weight: 2.7 lbs

    • Item Includes:

      • 1x 10-port industrial Ethernet switch
      • 1x Screw connector
      • 2x Wall-mounting bracket
      • 1x DIN-rail mounting bracket and screws
      • 1x Startup manual

    • GTIN:

      0800549891707
