Blonder Tongue Clearview 4:2 SD 24 Program SD Transcoder with Audio Passthrough & COM3000

ITEM #: BT-CLEARV-42-SD MFG #: CLEARVIEW 4:2-SD

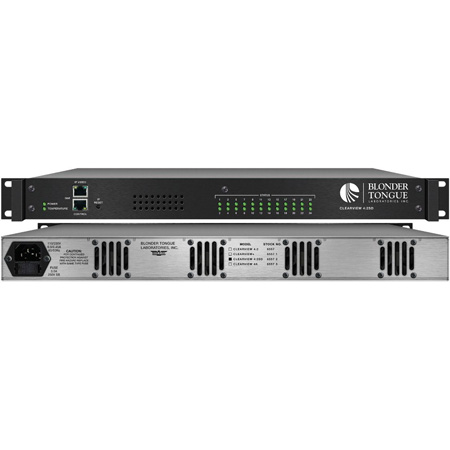

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

List Price:

$7,644.00

Our Price:

$5,805.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    CLEARVIEW 4:2-SD - Overview

    The Clearview 4:2 SD is a professional grade low-cost-per-stream video Transcoder, designed to Transcode up to (24) HD or SD programs from H.264/MPEG-4 sources to SD MPEG-2 output in a 1RU form factor. The unit accepts Unicast H.264 video, over IP transport streams and re-encodes the video content to SD MPEG-2 transport streams for IP Unicast delivery.

    Clearview 4:2 SD can be configured to receive up to (24) H.264 AES-128 encrypted IP channels from Technicolor's COM3000/2000 satellite receivers. The Clearview 4:2 SD decrypts the AES-128 content, Transcodes the decrypted HD or SD H.264 content into SD MPEG-2, while preserving DirecTV "forensic watermarking" and returns the content to the Technicolor COM3000/2000 devices.

    • Features:

      • Decrypts Technicolor's AES-128 encrypted H.264 video content.
      • Unicast IP input that supports up to 24 SPTS H.264 HD programs
      • Unicast IP output supports up to 24 SPTS MPEG-2 SD programs
      • Preserves Technicolor's embedded watermarking on outbound MPEG-2 video content
      • Compatible with Technicolor's COM3000 DirecTV receivers
      • Easy-to-use GUI for monitoring & control
      • 24 front panel Status LEDs (one for each program stream) and 1 front panel Temperature LED


    • Specifications:

      • Input
      • Connectors: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
      • Standard Protocols Supported: UDP/IP
      • Standard: 1000Base-T (GbE)
      • TS Packet Length: 188 bytes
      • Sync Byte: 0x47
      • Decryption: AES-128
      • TS Supported: 24 SPTS
      • Video Resolution:
        480i (30 FPS);
        720p (60 FPS);
        1080i (30 FPS);
        1080p (30/60 FPS);
      • Audio: Pass-through
      • Routing Protocol: Unicast

        Alarms & Monitoring
      • Local Monitoring:
        1x Power LED
        1x Temperature LED
        24x Status LEDs
        1x IP Reset button
      • Local Control: 1x RJ45 (1000Base-T GbE)
      • Remote Control: GUI-based menu via, internal web server

        Output
      • Connector: 1 x Front Panel RJ45 (IP Video Port, Input/Output)
      • Standard: 1000Base-T (GbE)
      • Protocols Supported: UDP
      • Standard: ISO/IEC 13818-1 Systems
      • TS Packet Length: 188 bytes
      • Sync Byte: 0x47
      • Bit Rate: Constant
      • # of TS Supported: 24 SPTS
      • CODEC: MPEG-2
      • Output Resolution: 480i (30 FPS)
      • Audio: Pass-through
      • Routing Protocol: Unicast

        General Specifications
      • Dimensions: 19.0 x 19.2 x 1.75" (483 x 488 x 45 mm)
      • Unit Weight: 9.5 lbs. (4.31 kg)
      • Shipping Weight: 12 lbs. (5.44 kg)
      • Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
      • Power Consumption: 64 W
      • Operating Temperature: 32 to 122 °F (0 to 50 °C)
      • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
      • Operating/Storage: 0 to 95% RH @ 35 °C max,
      • Humidity: non-condensation
