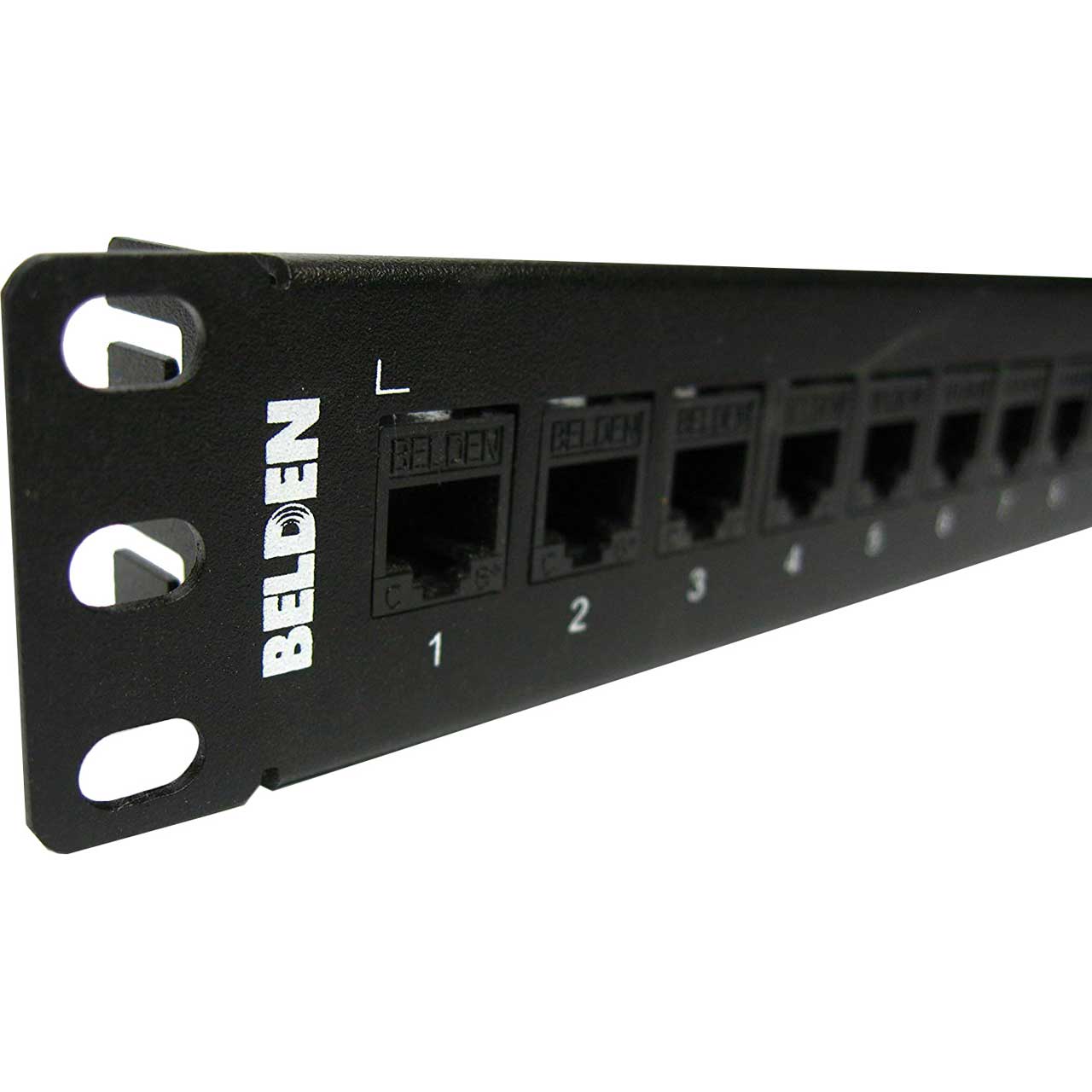

Belden AX-103253 1U CAT6plus KeyConnect 24-Port Patch Panel - Black

ITEM #: BL-AX-103253 MFG #: AX-103253

free ship

List Price:

$301.16

Our Price:

$276.62

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AX-103253 - Overview

    Belden AX-103253 1U CAT6+ KeyConnect 24-Port Patch Panel. Suitable for IBDN System 4800, 3600, 2400, TIA Category 6, ISO Class E, 1000BASE-T applications.

    • Specifications:

      • Related Parts: CAT6+ Modular Cords
      • Max. Capacity: 24 connectors ( Patch Panel is already loaded )
      • Front Connection: Flush
      • Termination Area: Rear
      • Height (in.): 1.750
      • Width (in.): 19.000
      • Depth (in.): 1.300
      • Color: Black
      • Weight: 1.350 lbs.
      • Packaging: Individually packaged in a cardboard box.
      • Footprint/Type: KeyConnect
      • Plug / Jack Compatibility: RJ45
      • Storage Temperature Range: -40°C To +70°C
      • Installation Temperature Range: -10°C To +60°C
      • Operating Temperature Range: -10°C To +60°C
      • Tool Compatibility: Gigaflex Connecting Tool (AX100749)
      • Dielectric Strength: 1,000 V RMS @ 60Hz for 1 minute
      • Current Rating: 1.500 A
      • Insulation Resistance: 500 M-Ohm Minimum
      • Max. Contact Resistance: 20 m-Ohm
      • Termination Resistance: 2.5 m-Ohm

    • Item Includes:

      • x4 Screws (10x32)
      • x4 Screws (12x24)
      • x1 Label Holder
      • x1 Printable LabelFlex Half-Sheet
      • x2 Velcro Straps
      • x2 Rear Cable Management Bracket
      • x1 Installation Guide
      • x1 kit Termination Bar


    AX-103253 - Required Accessories

      AX-103253 - Recommended Accessories
