BrightSign XT1145 Digital Signage Player with Expanded HDMI I/O Package and GB Ethernet Supporting POE+/GPIO

ITEM #: BRI-XT1145 MFG #: XT1145

Primary Image

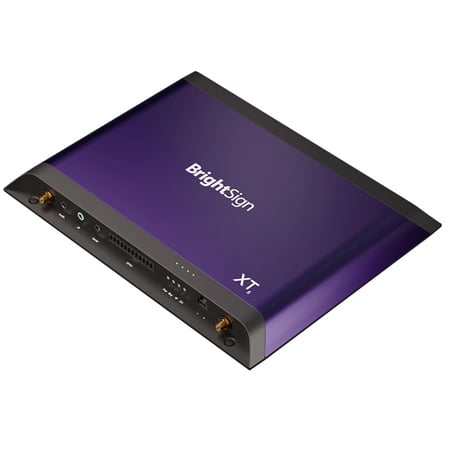

  • Product Image Thumbnail 1 of 3

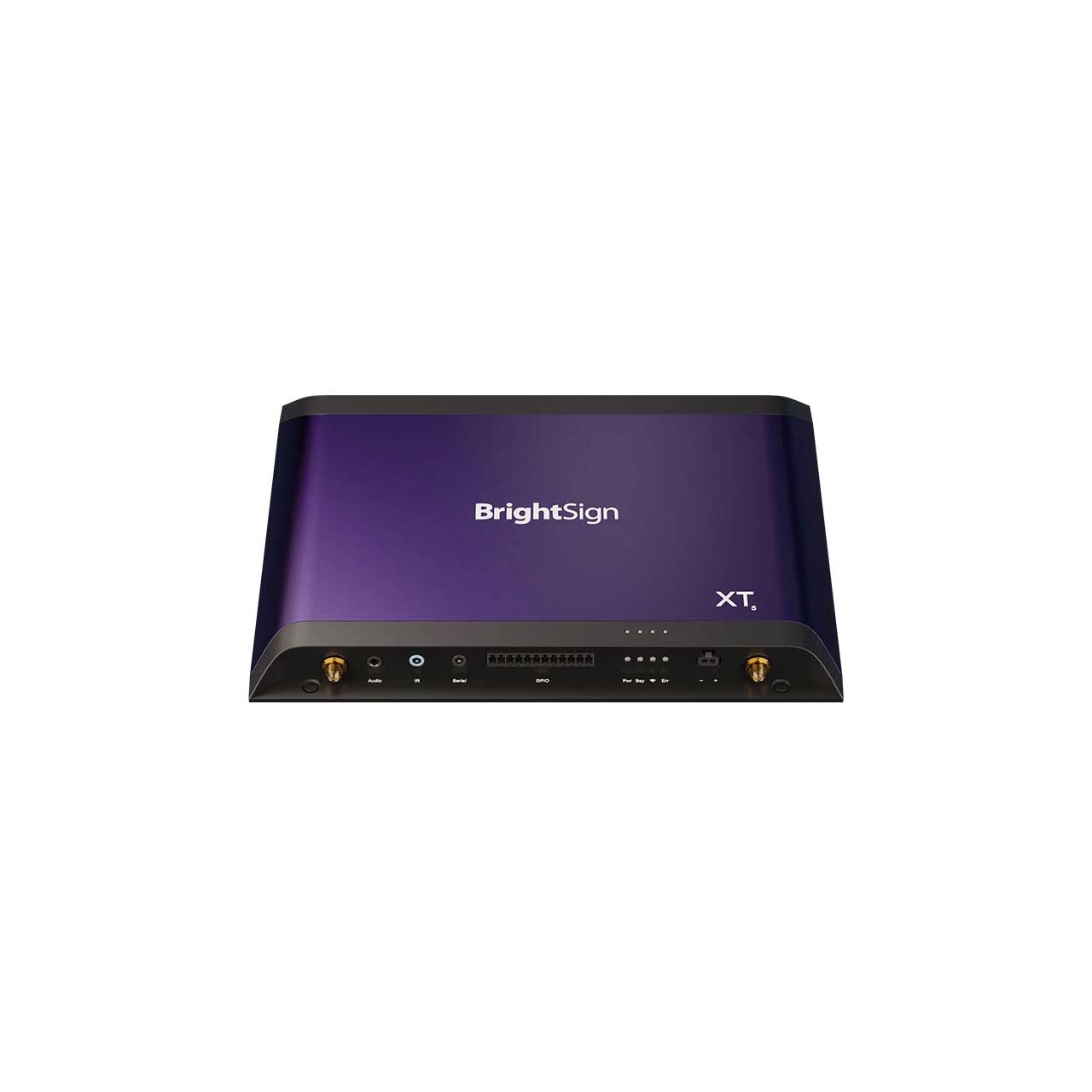

  • Product Image Thumbnail 2 of 3

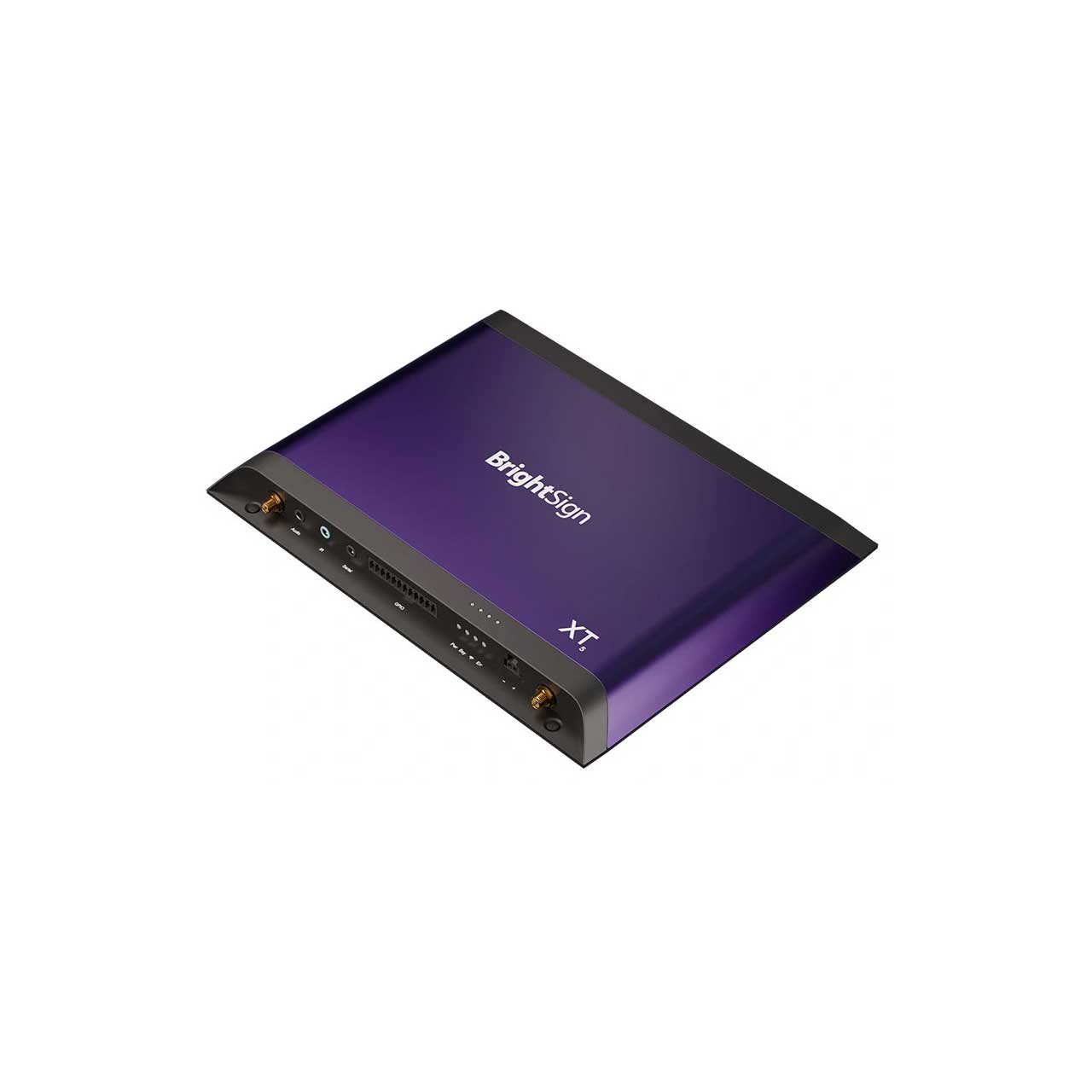

  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$900.00

Our Price:

$809.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    XT1145 - Overview

    BRIGHTSIGN XT5 - Future-Proof Performance

    The BrightSign XT1145 future proofs deployments with confidence by delivering power, performance, and flexibility to create captivating experiences. Capable of playing the highest quality video up to 8K resolution and running sophisticated HTML motion graphics with remarkable performance. XT5 offers the most extensive set of HDMI and connectivity ports. Its HDMI input option plays live TV or video from outside sources. Dual HDMI outputs can power two screens simultaneously for video walls or dual-screen signage applications. Streamline installations with Power over Ethernet (PoE+) and utilize a comprehensive set of I/Os for add-on devices and engagement. BrightSign XT5's versatility and power guarantees exceptional signage experiences for years to come.

    • Features:

      • Delivers the highest quality video in resolutions from 1080p to brilliant 8K0p 10-bit video
      • Supports dual 4K video decoding to drive two screens at once
      • Runs highly responsive motion graphics at high frame rates
      • Power over Ethernet (POE+)
      • Dual USB, serial, GPIO, IR, digital/analog audio
      • HDMI Input for live TV
      • Dual HDMI 4K outputs
      • Ultra-thin design with anodized aluminum enclosure
      • Runs BrightSignOS delivering security, reliability & longevity

    • Specifications:

      • Input/Output: Expanded
      • HTML Performance Level: Powers challenging 3D WebGL motion graphics
      • Video Decoding Single 8K60p and 4K60p (10-bit), Dual 4K and Full HD
      • Video Codecs: 8K: H.265 at 60p, 4K: H.265 & H.264 at 60p
      • HDMI 1 Output: HDMI 2.1a
      • HDMI In: HDMI 2.0a
      • Media Formats: 8K & 4K VIDEO: .ts, .mov, .mp4, .mkv
      • Gigabit Power over Ethernet (PoE+): Yes
      • Audio 3.5mm Output (Analog or SPDIF): Yes
      • USB-A: provides 5V/1A power to peripheral devices: Yes
      • USB-C: supports high-speed host mode & provides 5V/1A power to peripheral devices: Yes
      • 3.5mm RS-232 Serial Port: Yes
      • Dimensions (WxDxH): 9.39" x 7.31" x .75" (238.62 mm x 185.9 mm x 19.19 mm)

    • Item Includes:

      • 1x BrightSign XT1145 Digital Signage Player

    • Warranty:

      • 1-Year Limited Warranty


    XT1145 - Required Accessories
