Burst BG3 Pattern Generator w/Color OSD/ID NTSC/PAL


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

BG3 - Overview

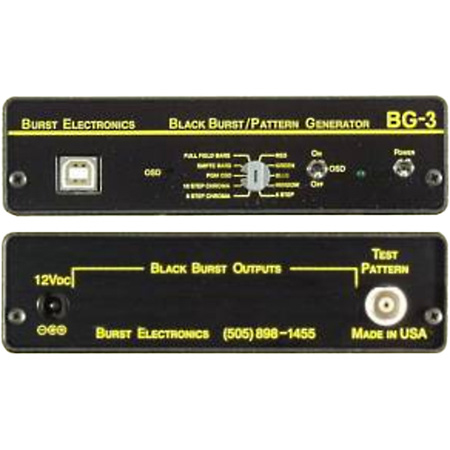

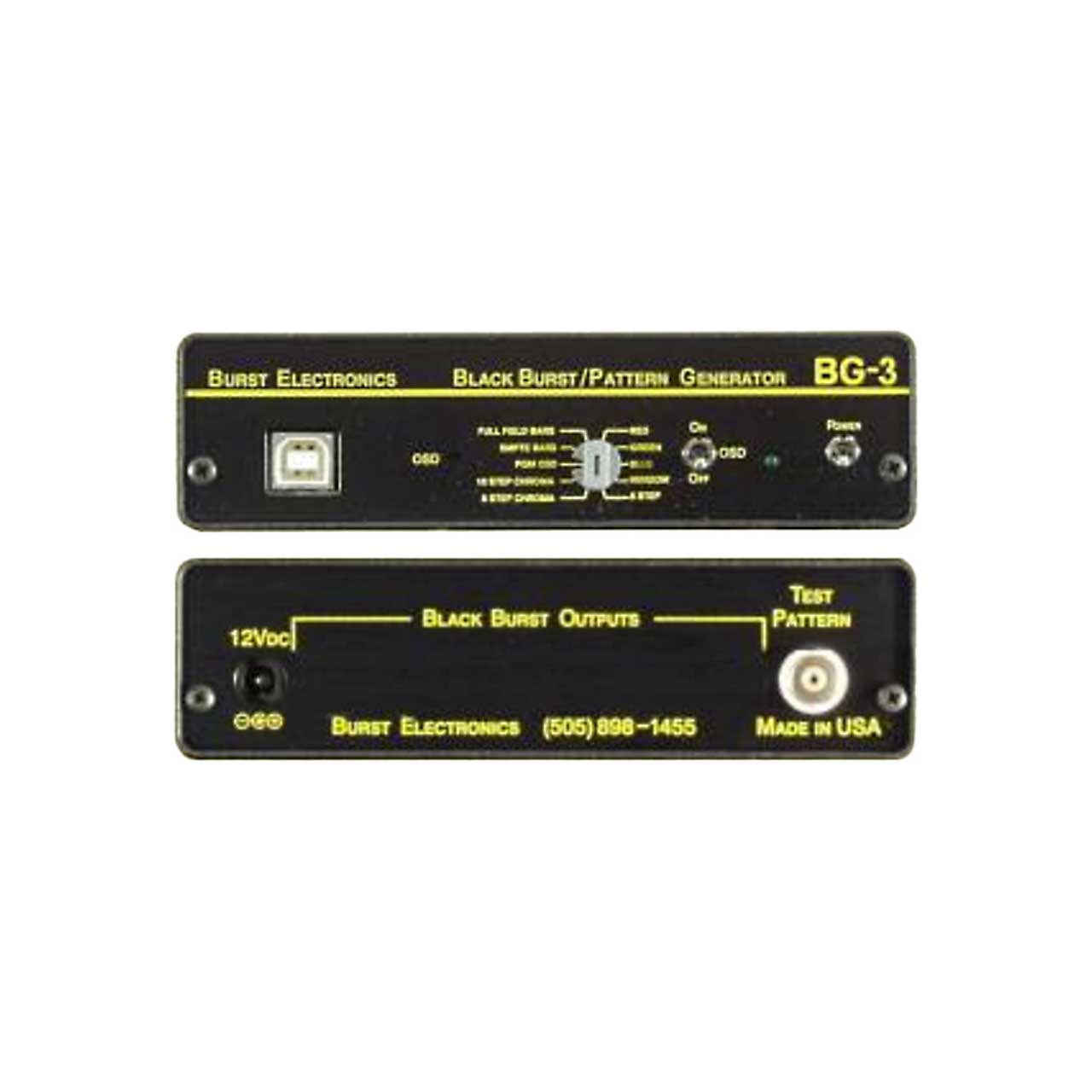

The BG-3 (single output) and the BG-7 (single pattern output plus 6 black burst outputs) are video multi-pattern generators with the ability for the user to import a graphics file and overlay that image on the pattern output.

Applications include source ID in studio and mobile applications.
A 24-bit full color graphic is created with any paint program and loaded into the BG-3/7 via a front-panel USB 2.0 port. Once stored in the unit, the graphic image is overlaid on the pattern output. There is an On/Off switch to control the insertion of the image.

The image can be a digital photo, logo, station call letters, etc. Size is 720x480 for NTSC, 720x578 for PAL. File format is BMP.
The BG-3 and BG-7 are dual standard, NTSC/PAL, jumper selectable (front panel switch optional.) They offer full frame image support in both NTSC and PAL.

  • Features:

    • SMPTE Color Bars Window
    • Full Field Bars 5 Step Luma
    • Red 5 Step Chroma
    • Green 10 Step Chroma
    • Blue Black Burst
  • Specifications:

    • Output: 1 volt standard video 75 Ohms 1%
    • Sync at -40 IRE
    • Burst at +/-20 IRE (3.579545 MHz NTSC, 4.433619 MHz PAL)
    • Setup: 7.5 IRE NTSC (0 IRE PAL)
    • Fully saturated 75% bars (gray, yellow, cyan, green, magenta, red, blue, black)
    • 12 Vdc, center positive (optional 5 Vdc)
    • Tone 1 kHz (0dB unbalanced phono jack, +4dB balanced miniXLR)
    • Dimensions: 5.6W x 1.5H x 7.3D (inches)
    • Wall module (included): 120 Vac 60 Hz, 12 Vdc 500 mA, UL listedor 100-240 Vac 50/60 Hz, 5 Vdc 1A, UL listed.
    • Warranty: One Year Parts and Labor
  • Options


    • Rackmount
    • Tone (balanced or unbalanced)
    • Front panel NTSC/PAL switch
    • 5 Vdc power
