Beyerdynamic TGH56BK Mini Condenser Neckworn Microphone (OmniDirectional) - Black

ITEM #: BYD-TGH56BK MFG #: TGH56BK

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-TGH56BK

TGH56BK - Overview

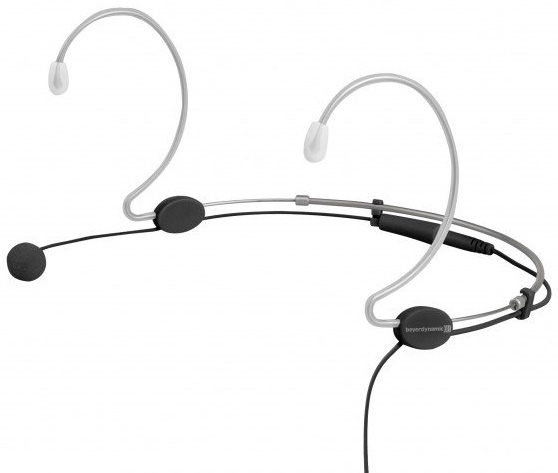

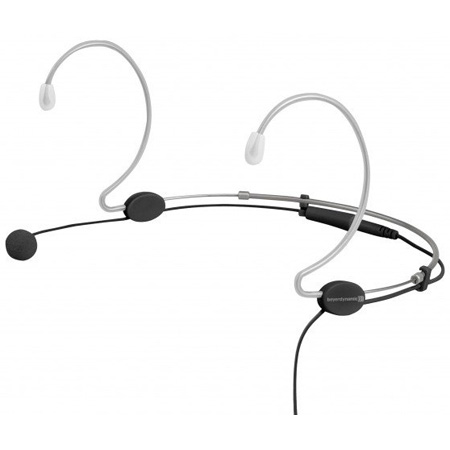

The Beyerdynamic TG H56BK microphone commands but does not attract attention - in other words, a commanding and balanced sound meets a subtle appearance. The splash- and sweat-proof omnidirectional microphone can be mounted on either side and, thanks to the variable microphone arm, can be positioned with precision - benefits that come into their own when the microphone is used for musicals, theater or sport. The connecting cable is detachable due to a screwed fitting and can be replaced by another cable at any time.

The TG H56 microphone is available in two versions: as Opus version it can be connected to the Opus series beltpack transmitters; as TG version it can be used with the wireless microphone systems of the TG series. For wired applications with phantom power sources the TG H56 must be used with an optional power adapter. Available in black or beige.

  • Features:

    • High-quality miniature condenser microphone (omnidirectional)
    • Splash-proof capsule design
    • Lightweight adjustable neckband
    • Microphone boom can be worn on the left or right hand side
    • Flexible and rugged construction

  • Specifications:

    • Transducer Type: Condenser (back electret)
    • Operating Principle: Pressure
    • Polar Pattern: Omnidirectional
    • Frequency Response: 20 - 20,000 Hz
    • Open Circuit Voltage: 4 mV/Pa (-48 dBV)* ±3 dB
    • Nominal Impedance: 1 kΩ
    • Max. SPL: 127 dB SPL*
    • Signal-to-Noise Ratio: 47 dB [CCIR, Q-Peak]*
    • Equivalent SPL: 35 dB [A, RMS]*
    • Power Supply: Direct current
    • Max. Power Consumption: 0.5 mA
    • Supply Voltage: 2 - 9 V
    • Connector: Mini-XLR, 4-pin, female
    • Capsule Diameter: 0.12" (3mm)
    • Cable Length: 3.94' (1.2m)
    • Weight (with Cable/Connector): 0.04LBs (18g)
    • Note: *measured with MA-PVA

  • Warranty:

    • 2 Years

  • GTIN:

    4010118705885
