Beyerdynamic Unite AP4 Digital 4-Channel Access Point Transceiver with Integrated Antennas/Ethernet/USBC - North America

ITEM #: BYD-UNITE-AP4 MFG #: UNITE-AP4

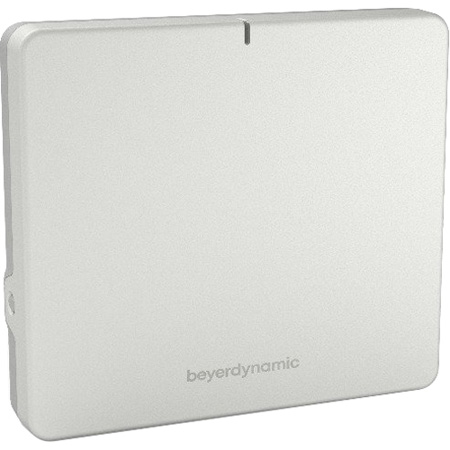

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BYD-UNITE-AP4

UNITE-AP4 - Overview

The Beyerdynamic UNITE AP4 is a digital 4-channel access point with integrated antennas, network connection, USB-C, Dante® interface (PoE), 4 analogue inputs and outputs integrated wall and stand mounting, incl. power supply, variant for North America 1920 - 1930MHz

Applications:
The Unite AP4 access point is a multi-functional device with which various applications can be realized. With one Unite access point 4 audio channels can be wirelessly transmitted. For a maximum of 32 channels 8 Unite AP 4 can be synchronized in one network. Depending on the configuration, the device works as a transmitter(Broadcast mode) or a receiver with back (Full Duplex mode).

As a transmitter, the Unite AP4 transmits the audio signals of an external audio source on a maximum of 4 DECT channels. Typical applications are e.g. interpreting services in conjunction with an interpreting system, assistive listening and wireless microphone applications. When using several Unite AP4 devices in different operating modes, almost any applications can be combined. Via the Ethernet connection, a maximum of 8 Unite AP4 devices can be integrated into a network consisting of many Unite components. One or more Unite AP4 devices can be configured using the free Unite Manager PC Software. This also enables additional functionalities in the Unite network such as monitoring, maintenance, comprehensive configuration, pairing and setup of transmitters, receivers, chargers and Unite AP4 access points.

  • Features:

    • 4-channel access point
    • High range
    • Integrated antennas
    • Digital Dante® interface (4 In / 4 Out)
    • Ethernet interface (network)
    • 4 analogue inputs and outputs (Phoenixr)
    • Power supply via PoE (Power over Ethernet)
    • With 8 synchronized access points a maximum of 32 audio channels can be transmitted
    • Removable mounting plate for wall or ceiling mounting, on a tripod or via VESA adapter plate


  • Specifications:

    • Power Supply
    • Input voltage: 100 - 240 V AC, 47-63 Hz
    • Input current: max. 0,8 A
    • Output voltage: 12 V DC
    • Output current: 3 A
    • Power cable: supplied depending on the region
    • Cable length: AC: 2 m [2.19 yds.]
    • DC: 1.5 m [1.64 yds.]

      Unite AP4
    • DECT RF frequency range: 1880 - 1930 MHz, depending on the country
    • DECT transmission power.: up to 250 mW (peak), depending on the country
    • DECT operating range: up to 300 m outside (line of sight); the actual operating range depends upon the
    • RF output settings, the surroundings, the signal absorption, signal reflection and signal interference
    • RF coverage: up to 10,000 m2; the actual coverage depends upon the RF output settings, the surroundings, the signal absorption, signal reflection and signal interference

      Audio bandwidth
    • High quality (HD): 50 Hz - 14 kHz (-3 dB)
    • Operating mode: Broadcast (4 channels)
    • Encryption: AES-256 bit encryption
    • Antenna: Diversity, internal
    • Polar pattern of antennas: two omnidirectional antennas with front-facing main lobe
    • Minimum distance between several Unite AP4 devices. . 2 m [2.19 yds.]
    • Connections:
      Ethernet (RJ 45)
      USB-C (currently not implemented)
      DC input, DC 12 V, power consumption max. 12 W
      Sync input (RJ 45)
      Sync output (RJ 45)
      Digital: Dante® (RJ 45; PoE: 12 W IEEE 802.3af-2003, 36 V - 57 V)
      Analogue: Phoenix® socket, balanced, contact spacing 3.5 mm [0.14"], two-rowed, 6-pin, balanced and shielded connecting cables required
      Input level (4-channel In): max. +7 dBu
      Input level for 0 dBFS @ 0 dB
      Gain: +5 dBu
    • Required cable features for RJ 45 Ethernet, Dante® and Sync connectors
    • Cable type: Cat 5e AWG 24/1 F/UTP, shielded, assignment 1:1
    • Cable length for Ethernet, Dante® and Sync: 100m [109 yds.]
    • Total length of all Sync cables: max. 700m [766 yds.]
    • Reset button: to restore the factory settings (network, audio, DECT)
    • Network default: DHCP (IP)
    • Indicator: Status LED
    • Mounting for Vesa mount: 2.95 x 2.95" (75 x 75mm)
    • Mounting holes for secondary safety rope: available (safety rope not included in the delivery)
    • Temperature Range:
      Operation: 32° to 104°F (0° to +40°C)
      Storage: -4° to 122°F (-20° to +50°C)
    • Relative humidity: 0 to 90%
    • Dimensions (LxWxH): 10.2 x 9.92 x 1.89" (260 x 252 x 48mm)
    • Weight: 1.90LBs (860g)


  • Item Includes:

    • 1x External 36W power supply with power cable and mains plug (EU: CEE7/16, NA & JP: NEMA 1-15, 2-pin) and C7 device plug
    • 1x Thread adapter 1/2" - 3/8" for tripod mounting
    • 2x Phoenix® connectors (FMCD 1,5/6-ST-3,5), contact spacing 3.5 mm, two rows, 6-pin
    • 4x cover plates for cable feed-through of the wall mount (pre-assembled)
    • 4x M5x10 screws (for Vesa adapter plate)
    • 4x M5 nut (for Vesa adapter plate)
    • 1x Installation instructions


  • GTIN:

    4010118710483
