Canon CR-N400 4K UHD 12-SDI/3G-SDI Indoor PTZ Camera with 20x Zoom - HDMI/IP/USB/POE++ - NDI HX2 and SRT - Black

ITEM #: CAN-CR-N400-BK MFG #: CR-N400 BLACK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$6,249.00

Our Price:

$5,699.00

Availability: Preorder – Expected Availability Feb 2026
iAvailability Description Popup


CR-N400 BLACK - Overview

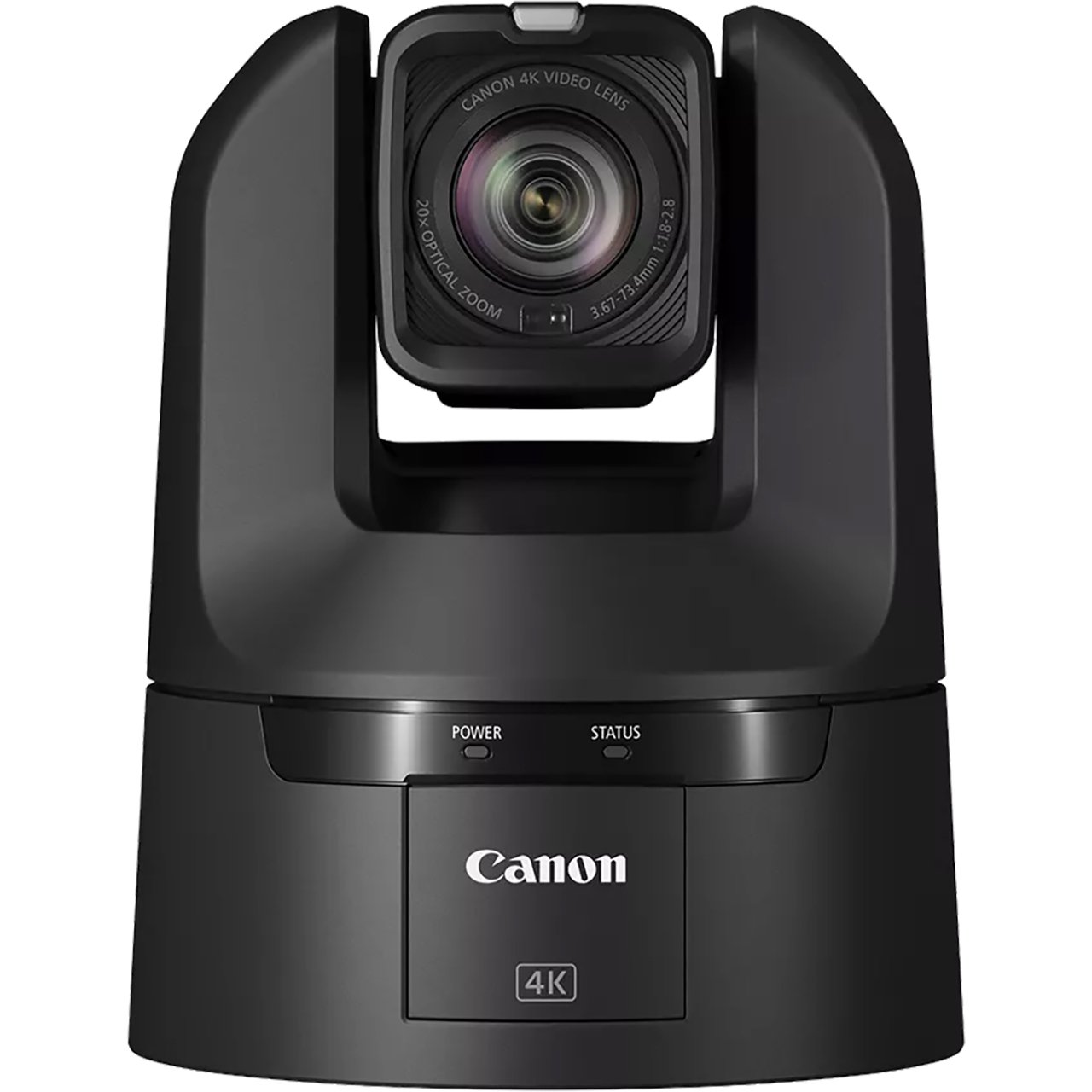

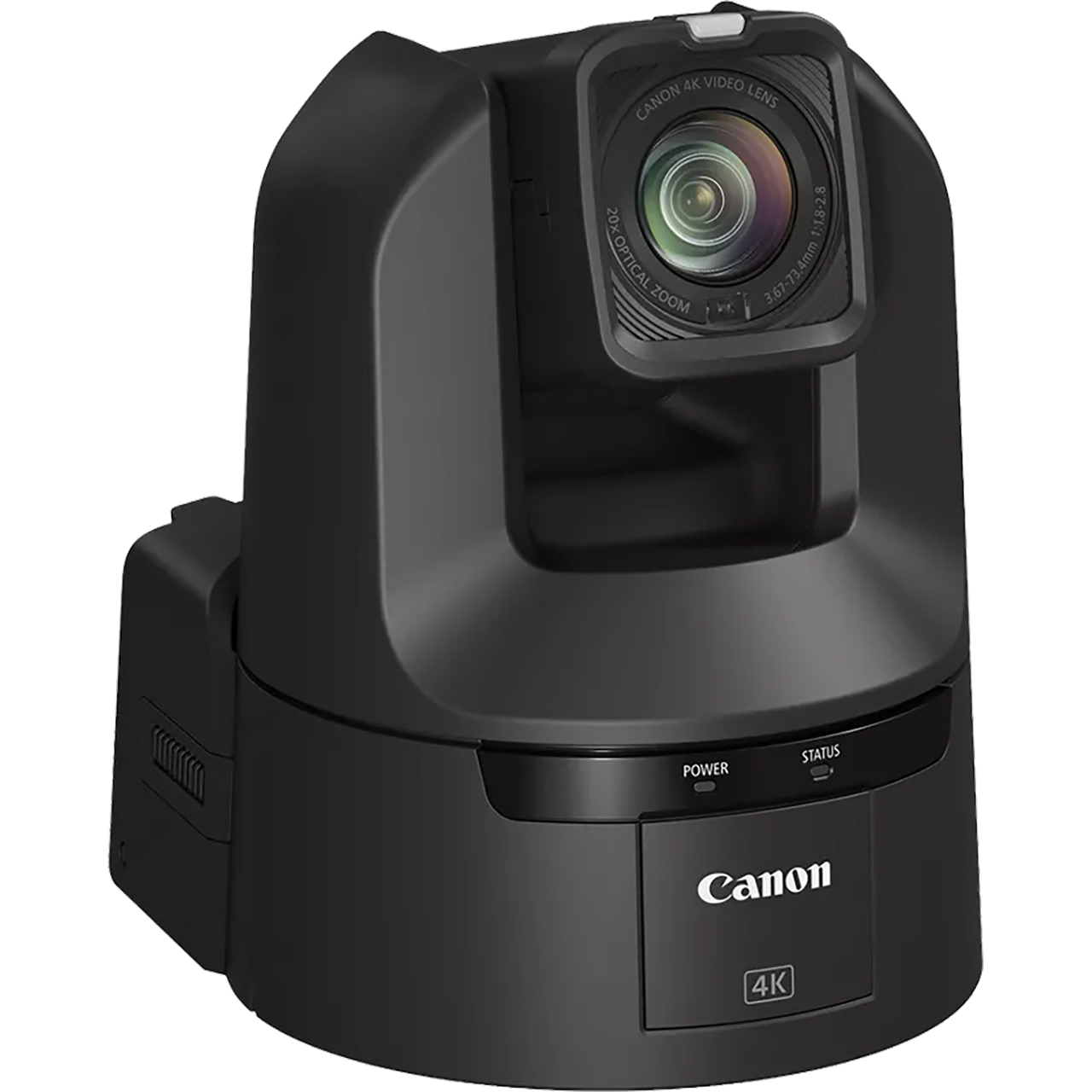

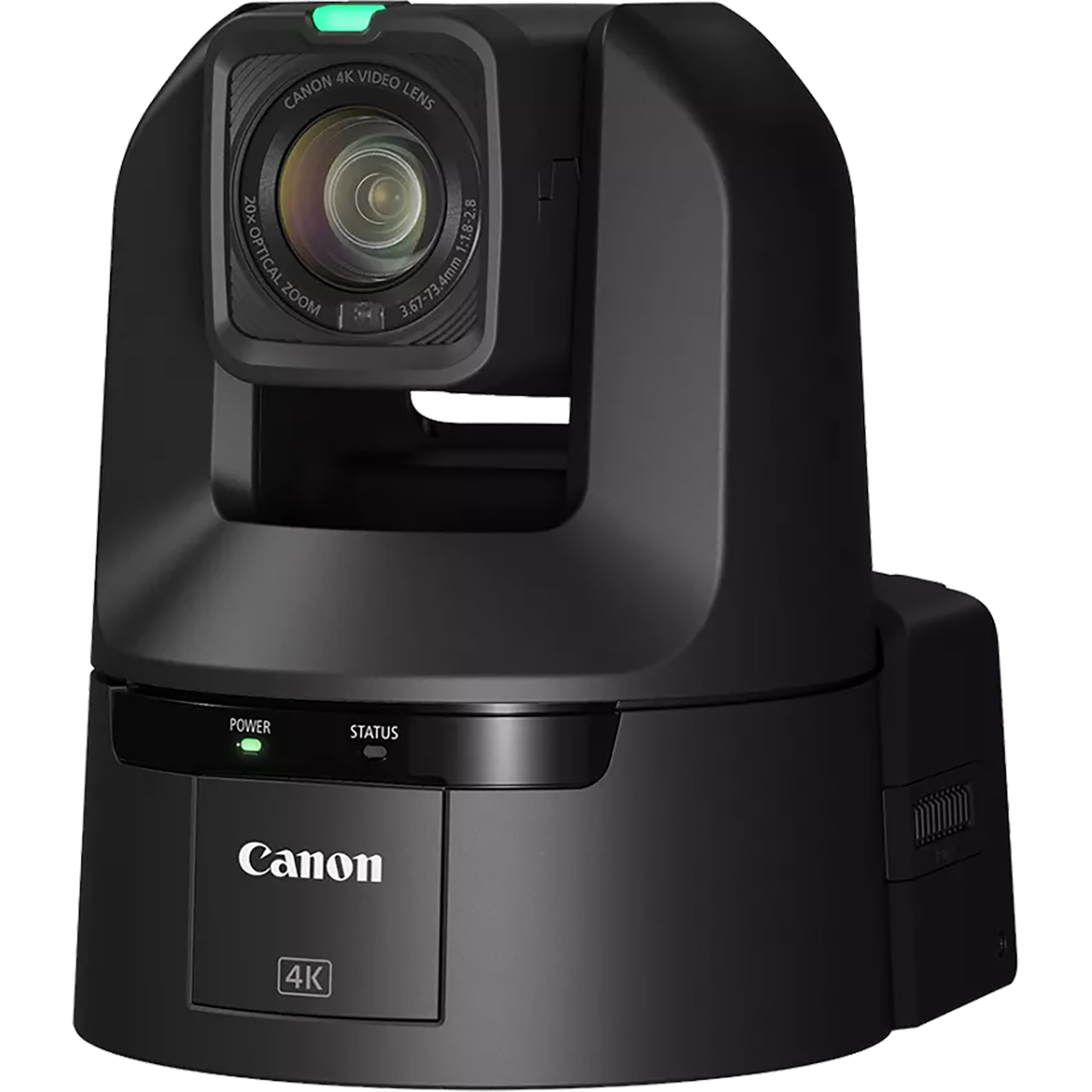

Canon's CR-N400 PTZ camera produces outstanding image quality and is equipped with powerful features and functions to be utilized in many industries including House of Worship, Education, Broadcast, Corporate, Events and more.

The CR-N400 PTZ camera produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 7 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. The CR-N400 can also provide 40x Advanced Zoom when in Full HD.

The CR-N400 PTZ camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI® HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as SRT, RTSP/RTP, as well as RTMP/RTMPS to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N400 can be controlled remotely by IP, Serial, or IR. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol for easy connectivity to a wide range of compatible 3rd party hardware controllers.

Stunning Optical Precision
The CR-N400's high-performance lens has a 20x optical zoom (29.3*mm - 601mm, 35mm equivalent) plus a 40x Advanced Zoom when shooting in Full HD. When conditions are unstable, Canon's renowned Optical Image Stabilization allows you to still capture steady footage.

Over Sampling HD Processing
The full HD recording (over sampling HD processing) takes full advantage of the image information acquired by the 4K sensor to generate beautiful high-definition full HD video.

Face, Eye, and Head Detection Auto Focus
The CR-N400's amazing Hybrid Auto Focus supports focusing on a subjects Face, Eye, and Head, helping ensure highly accurate focus even when the subject turns out around.

  • Features:

    • 1/2.3" CMOS Sensor with Hybrid Auto Focus
    • High Quality 4K 60P Video
    • 20x Optical Zoom Lens (40x FHD) with Optical Image Stabilization
    • Renowned Canon Color Science
    • 12G-SDI, 3G-SDI, HDMI & IP Video Out
    • Genlock, Dual XLR & 3.5mm Audio input
    • Auto Tracking Lite
    • Built-in Built-in NDI HX2 & SRT
    • FreeD for AR/VR system
    • Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration

  • Specifications:

      Camera
    • Image Sensor:
      - 1/2.3", CMOS
      - Total Pixels:. 21.14MP
      - 29.97/25.00/23.98Hz - 8.29MP
      - 59.94/50.00Hz - 7.88MP
    • Lens:
      - f=3.67mm - 73.4mm, F/1.8 - 2.8, 20x optical zoom, 8-bladed iris diaphragm
      - 59.94/50Hz - 35mm equivalent focal length: 30mm - 616mm
      - 29.97/25.00/23.98Hz - 35mm equivalent focal length: 29.3mm - 601mm
    • Zoom:
      - Optical: 20x
      - Digital: 20x
    • Advanced Zooom (FullHD): 40x
    • Lens Configuration: 10 groups of 12 lenses
    • Angle of View:
      - 59.94/50.00Hz - Horizontal: 63.3° - 3.5° - Vertical: 38.9° - 2.0°
      - 29/97/25.00/23.98Hz - Horizontal: 65.6° - 3.6° - Vertical: 39.8° - 2.0°
    • Shutter Speed: 1/3 - 1/2000 sec
    • Iris: Manual/Automatic
    • Gain: 0.0db - 36.0db
    • ND Filter: Built-in, motor operated
    • White Balance: AUTO, Set A, Set B, preset settings, color temperature setting, Manual
    • Focus:
      - Focus Mode: Manual, Continuous AF, Face Detection & Tracking, Face only AF, Eye Detection.
      - AF Type: Hybrid AF, Contrast AF
    • Gamma: BT.709 Wide DR, BT.709 Standard, Canon Log 3, Canon 709, HDR (PQ), HDR(HLG)
    • Image Stabilizer: Optical
    • Min. Subject Illumination - Frame Freq. 59.94/29.97Hz:
      - Approx. 3 lux
      - Approx. 1.5
    • Min. Subject Illumination - Frame Freq. 50.00/25.00Hz:
      - Approx. 2.5 lux
      - Approx. 1.3 lux
    • Pan/Tilt:
      - Pan Range: Horizontal ±170°
      - Pan Speed: 0.1° - 100°/sec
      - Tilt Range: Vertical -30° - 90°
      - Tilt Operation Speed: 0.1° - 100°/sec

      Video Output Format
    • 3G-SDI:
      - 1920x1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p
      - 1280x720: 59.94p/50.00p
    • 12G-SDI:
      - 3840x2160: 59.94p/50.00p/29.97p/25.00p/23.98p
      - 1920x1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p
      - 1280x720: 59.94p/50.00p
      - 720x576: 50.00i
      - 720x480: 59.94i
    • HDMI:
      - 3840x2160: 59.94p/50.00p/29.97p/25.00p/23.98p
      - 1920x1080: 59.94p/59.94i/50.00p/50.00i/29.97p/25.00p/23.98p
      - 1280x720: 59.94p/50.00p
      - 720x576: 50.00p
      - 720x480: 59.94p
    • IP:
      - 3840x2160: 59.94fps, 50.00fps, 29.97fps, 25.00fps, 23.98fps, 14.99fps, 12.50fps, 11.99fps, 5.99fps, 5.00fps
      - 1920x1080: 59.94fps, 50.00fps, 29.97fps, 25.00fps, 23.98fps, 14.99fps, 12.50fps, 11.99fps, 5.99fps, 5.00fps
      - 1280x720: 59.94fps, 50.00fps, 29.97fps, 25.00fps, 23.98fps, 14.99fps, 12.50fps, 11.99fps, 5.99fps, 5.00fps
      - 640x360: 59.94fps, 50.00fps, 29.97fps, 25.00fps, 23.98fps, 14.99fps, 12.50fps, 11.99fps, 5.99fps, 5.00fps

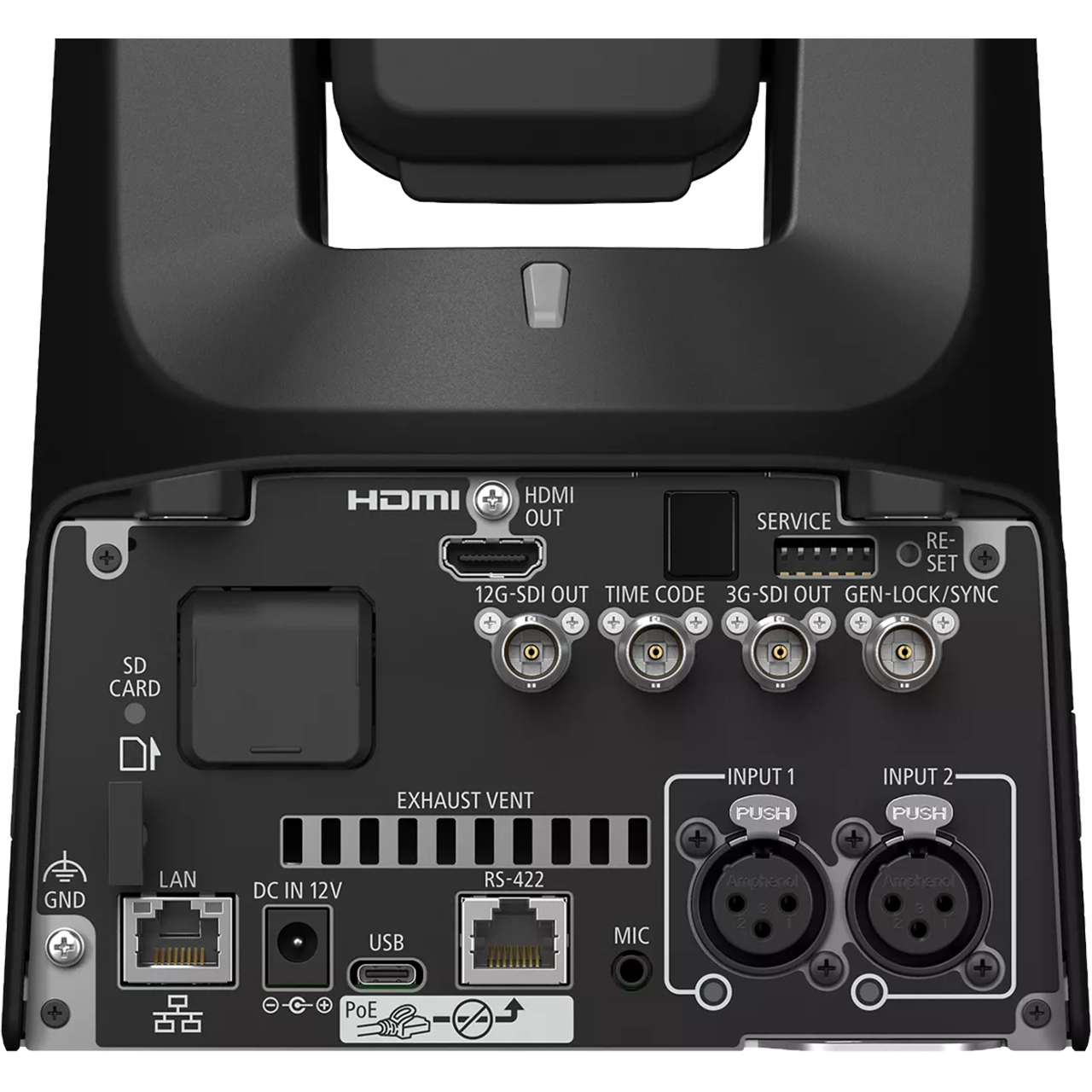

      Interface
    • Control: LAN, Wi-Fi, Serial, IR, USB
    • Network Terminal: 1x LAN, RJ45, 1000Base-T
    • 12G/3G-SDI OUT Terminal:
      - 1x BNC 12G-SDI & 1x 3G-SDI, 0.8 Vp-p/75Ω
      - SMPTE ST 259, SMPTE ST 292, SMPTE ST 424/425, SMPTE ST2081, SMPTE ST 2082, SMPTE ST 272, SMPTE ST 299
      - Embedded audio, Time code
    • GEN-LOCK Terminal: 1x BNC, 1.0 Vp-p/75Ω
    • Time Code Terminal: 1x BNC, 1.3 Vp-p/50Ω or less
    • HDMI OUT Terminal: 1x HDMI, output only
    • RS-422 Terminal: 1x RJ45
    • Audio Input 1/Input 2 Terminals:
      - INPUT (3-pin jack): 2 sets, balanced
      - Sensitivity (MIC): -60dBu/1k&Ω/Att.: 20dB
      - Sensitivity (LINE): +4dBu/1kΩ or more
      - Supply Voltage: 48V DC
    • Mic Terminal:
      - 3.5mm stereo mini jack
      - Sensitivity (MIC): -72dBV/1kΩ or more/Att.: 20dB
      - Sensitivity (LINE): -12dBV/1kΩ or more
    • Voltage: 2.4V DC
    • Media Slot: 1x SD Card

      Other
    • Operating & Storage Environment: 32°F - 104°F
    • Humidity: 10% - 90%
    • Power Supply:
      - PoE: PoE++ power supply via LAN
      - External Power Source: 12V DC
    • Power Consumption:
      - PoE++ Input: Approx. 34.4W max
      - DC Input: Approx. 33.8W max
    • Quietness: NC35 or lower
    • Dimensions: 6.93" x 8.66" x 7.64"
    • Weight: 6.8lbs
    • Supported Controllers: RC-IP100, RC-IP1000

  • Item Includes:

    • 1x CR-N400
    • 1x IR Remote Controller w/ batteries
    • 1x Power ssupply
    • 1x Mounting Bracket
    • 1x Safety Wire, Screws
    • 1x Manual

  • GTIN:

    0013803391350
