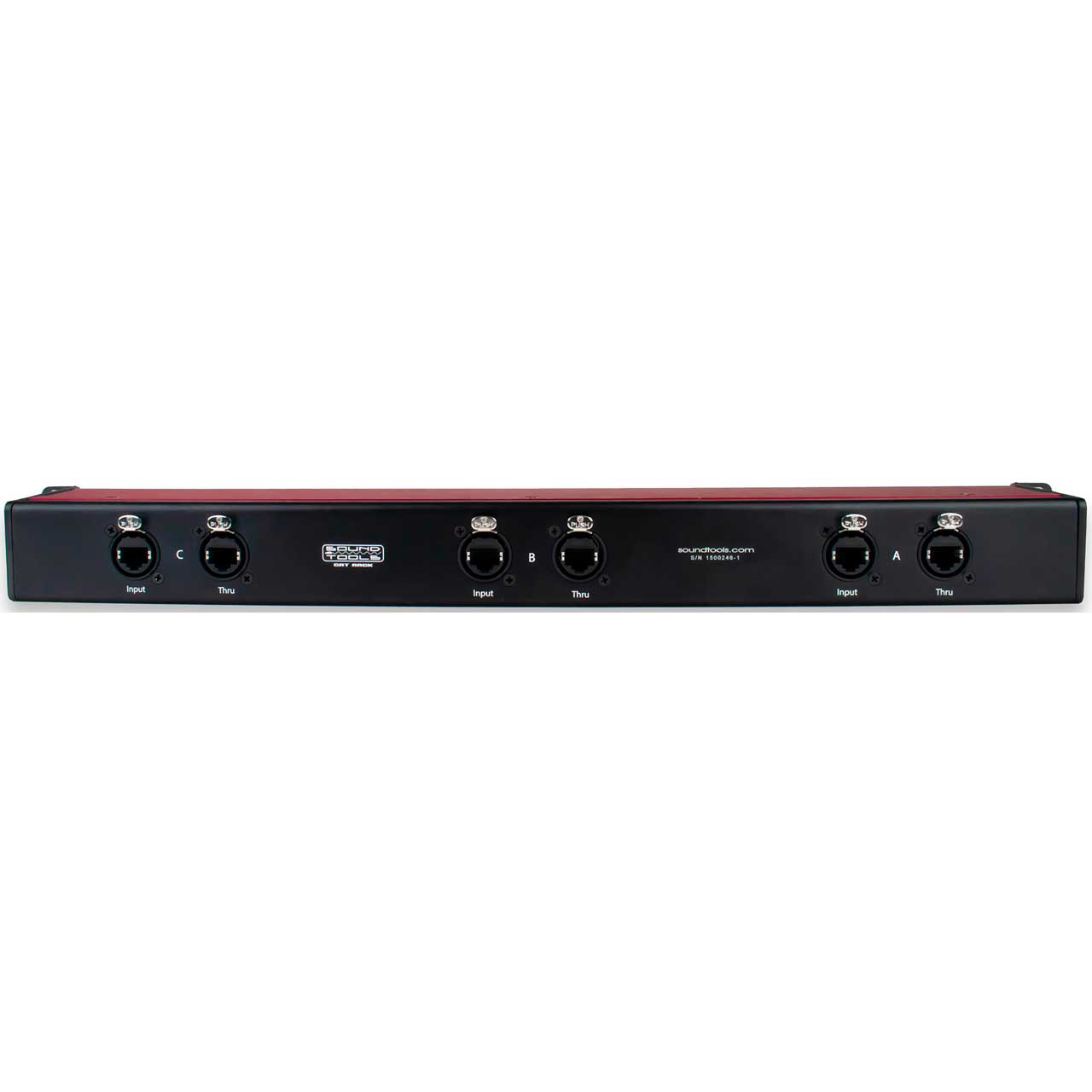

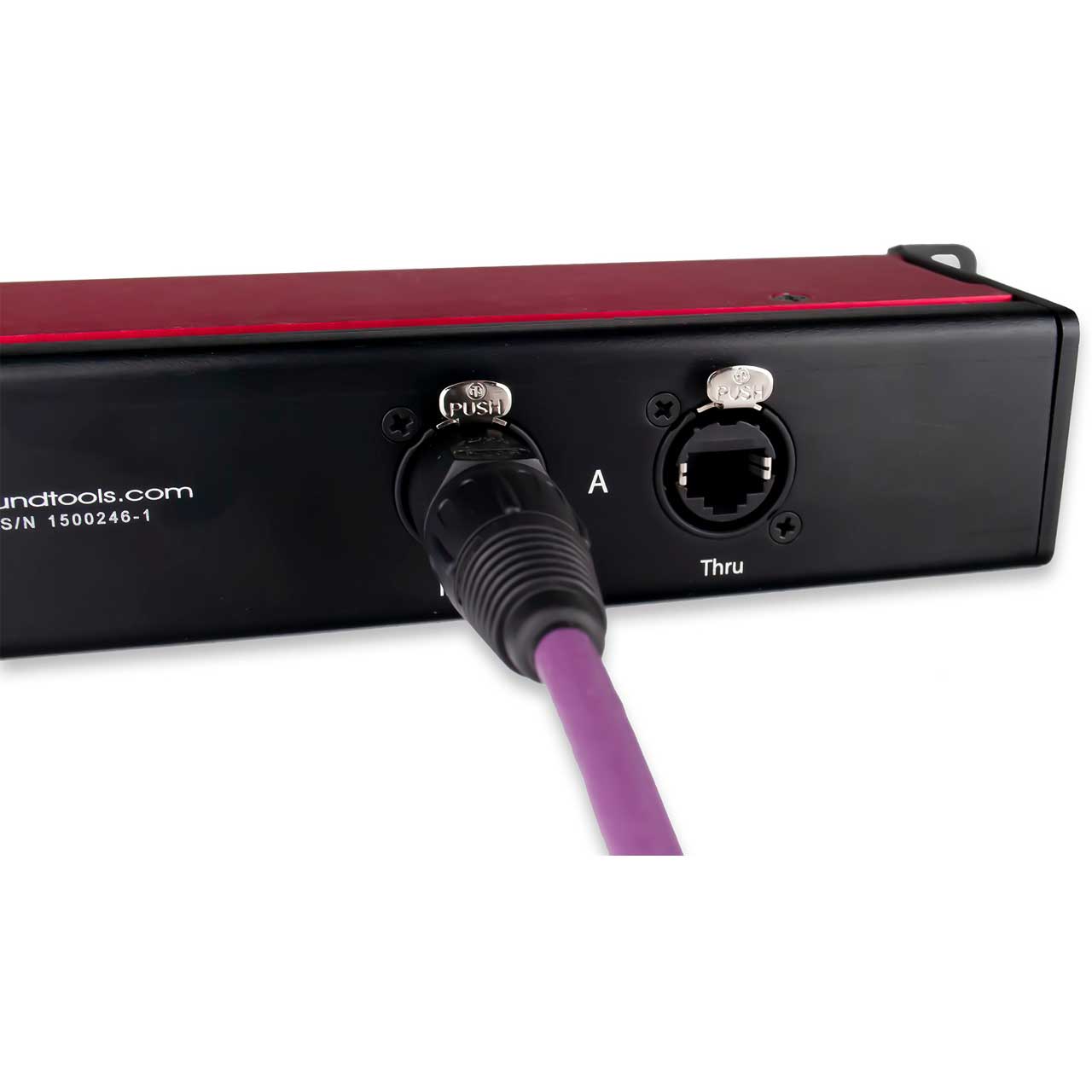

The SoundTools CAT Rack MX is a 1RU 12 male XLR rack unit with Main and Parallel etherCON connectors capable of receiving up to 12 lines of balanced analog audio down 3 shielded CAT5 cables.

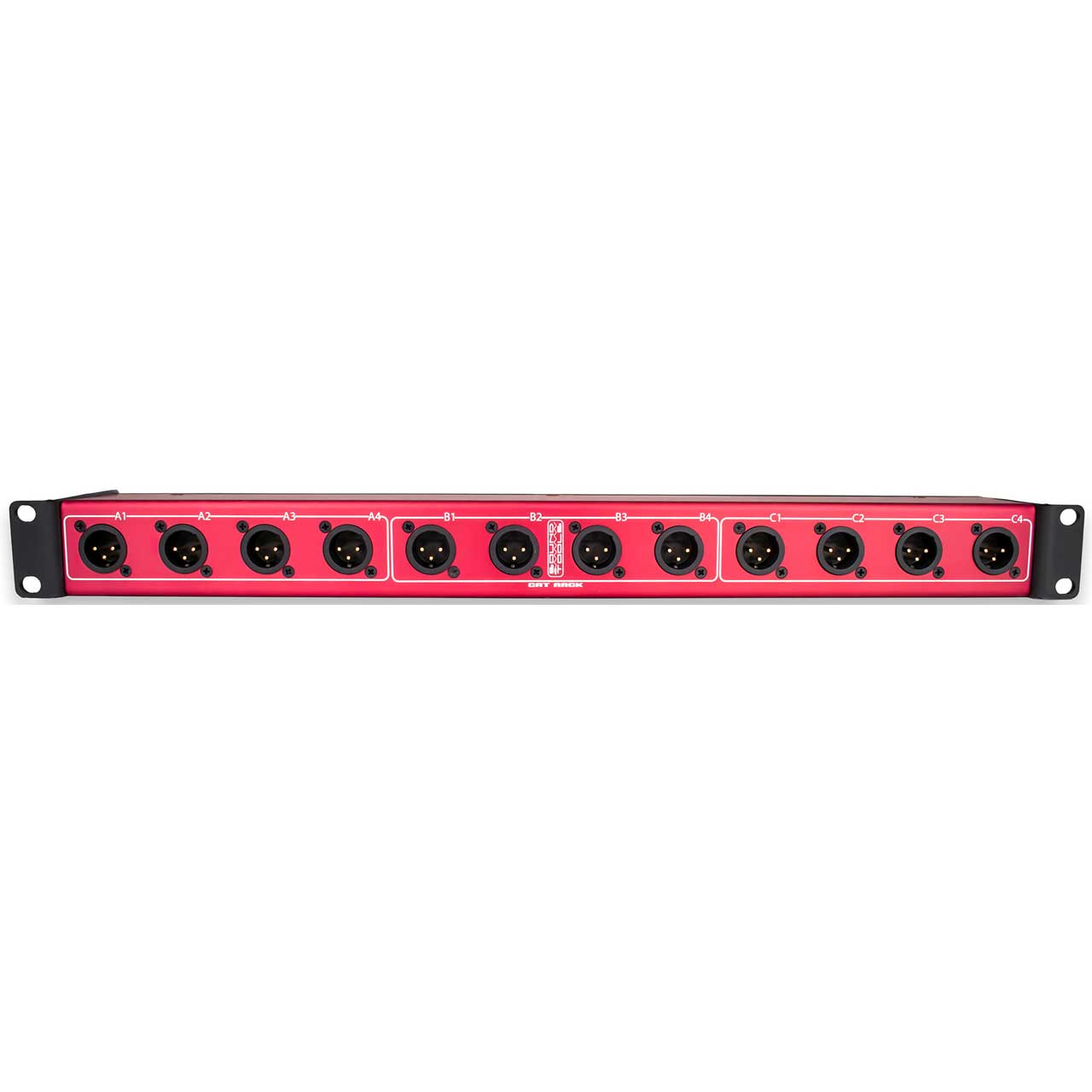

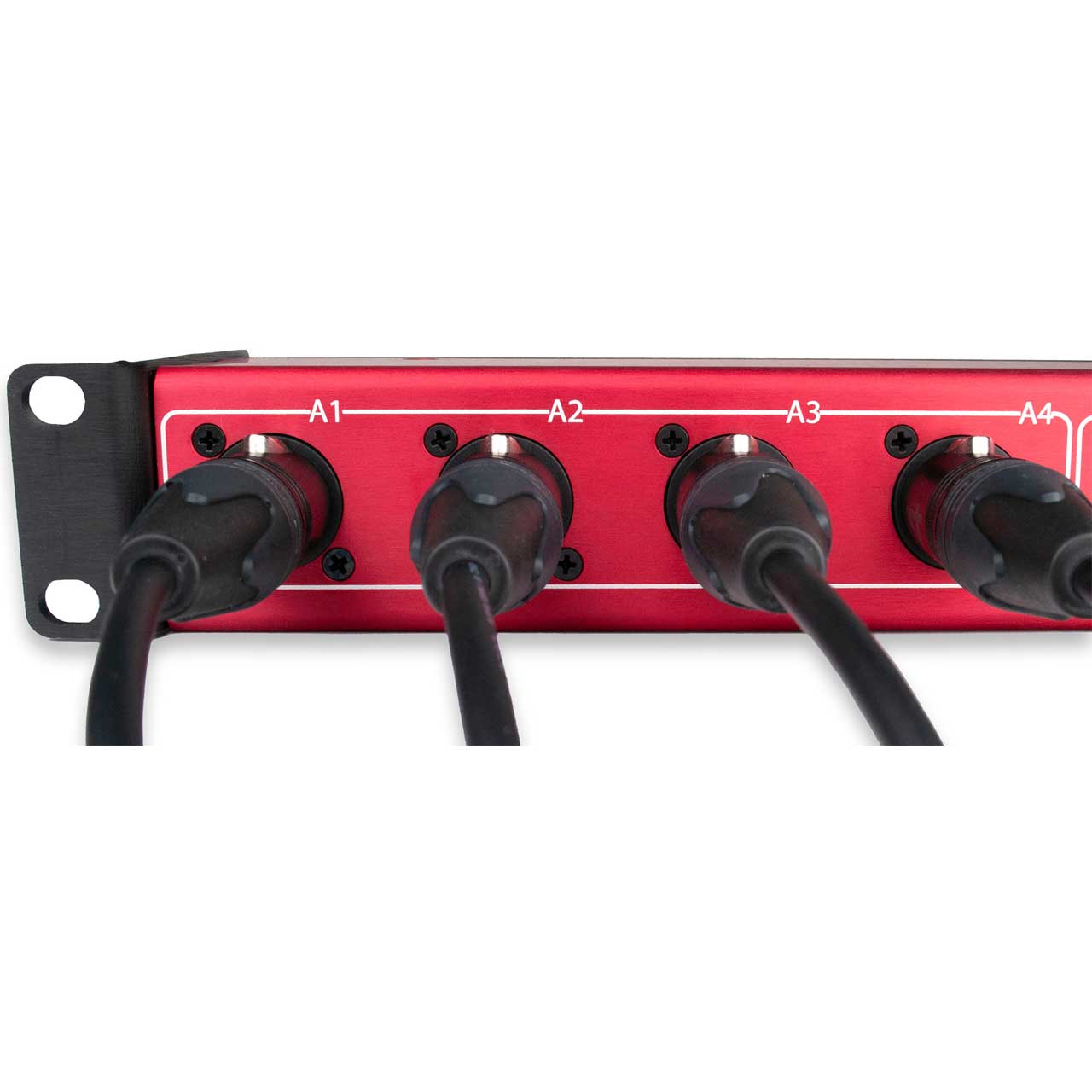

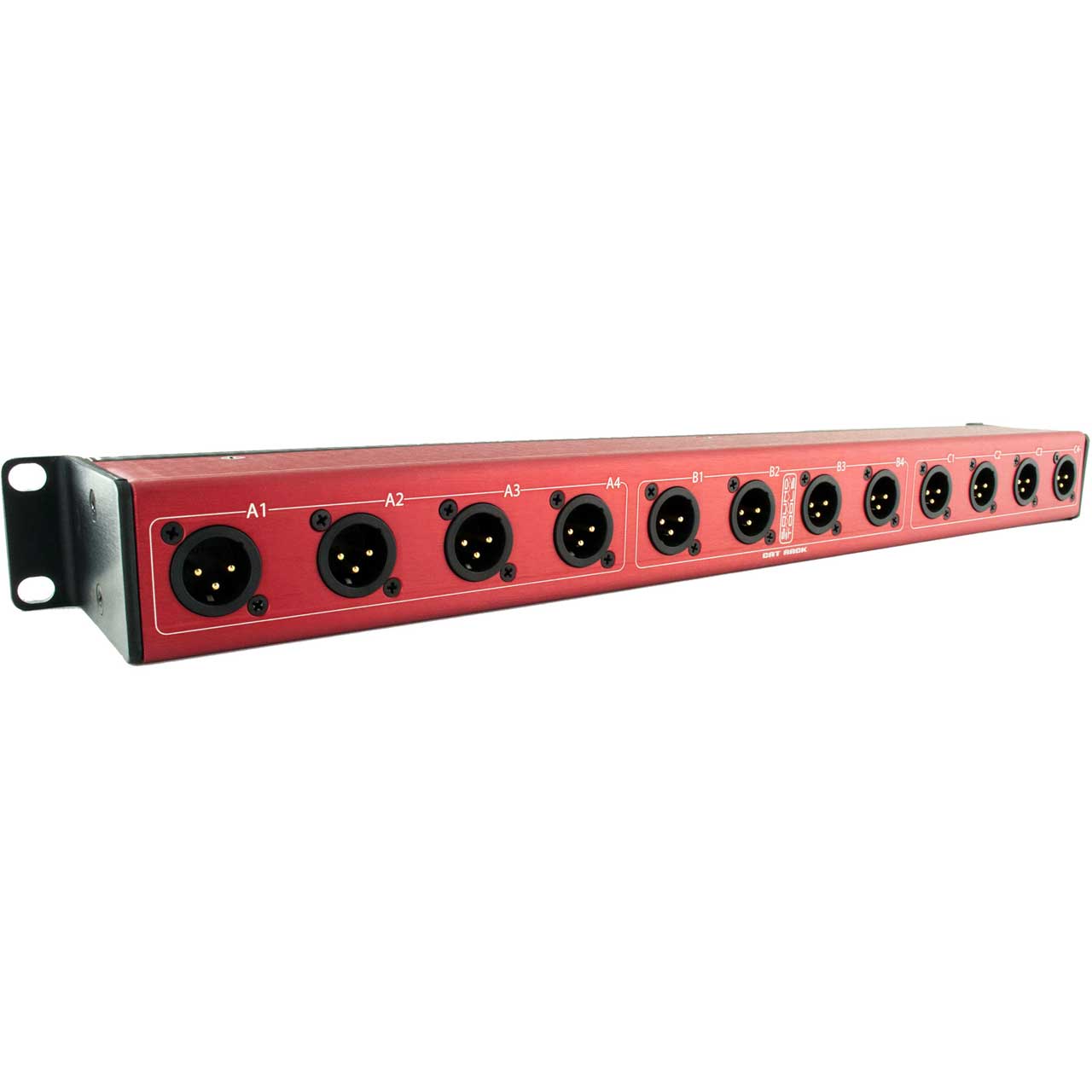

The CAT Rack consists of 12 Neutrik XLR connectors and 6 Neutrik etherCON connectors. The 12 channels are broken down into three sets of 4 channels marked A, B, and C, which are transported down a shielded CAT5 cable. Each line can carry balanced analog, AES/EBU, DMX, and Clear-Com signals hundreds of feet away. The CAT Rack is a fully passive unit which can input directly into analog or digital consoles. Multiple CAT Racks can be daisy chained to allow the same channels to be dropped in multiple locations and you can combine them with the SuperCAT cables, CAT Boxes and CAT Tails for fully customizable snakes with multiple drop locations.
PLEASE NOTE: SoundTools CAT branded products REQUIRE shielded CAT5, CAT5e, CAT6 or CAT7 cable. Also note that ALL Rat Sound Category 5/6/7 extender products ( i.e. CAT Rack, CAT Box. Wall CAT, etc.) will travel 328ft (100m) and are all compatible with balanced analog, digital, AES/EBU (110 Ohm), DMX and Clear-Com signals.
