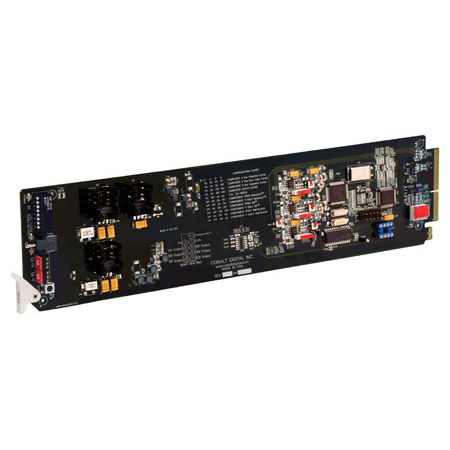

Cobalt Digital 9021 Standard Def A/D Analog Composite - Y/C - Component to 10-bit SDI openGear Card

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cobalt Digital 9021 Standard Def A/D Analog Composite - Y/C - Component to 10-bit SDI openGear Card

    Manufacturer: Cobalt Digital

    Item #: CB-9021   •   MFG #: 9021



    List Price:$995.00
    Our Price:$933.00

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The 9021 is an analog to 10 bit SDI converter. The 9021 accepts composite, Y/C and component YPbPr analog input signals and provides an SMPTE 259M-C 270 Mbit SDI output. Differential inputs are included for common mode noise rejection.

      A 4, 3 or 2-line comb or notch filter is user-configurable for Y/C separation in composite mode. All modes have 2X 8:4:4 input oversampling. An output jitter VCXO reduces 270 Mbit jitter down to 2Hz. Full video proc control with user memory allows adjustment of white level, color gain, and color phase.

      Rear modules are sold separately as RM-9021-X for the 10-slot 8310 openGear frame, and RM20-9021-X for the 20-slot 8321 openGear frame. Also available is the RM20-9021-A/S high density split rear module (5 BNCs per module) for the 20-slot frame.


      • Features

        • Composite, component YPbPr and Y/C inputs
        • Supports component BetaCam, MII and SMPTE/N10
        • Differential analog video inputs for power hum rejection
        • 10-bit A to D and digital video path
        • User selectable (on/off) 75 ohm termination
        • 4 or 3-line adaptive comb filter for composite mode
        • Seven 270 Mbit SDI outputs
        • Internal color bar generator
        • User proc. configuration control
        • Manual or automatic input gain control
        • Remote monitoring via DashBoard software or OGCP-9000 remote control panel
        • Five year warranty

      • Specifications

        • Input: Composite, Y/C or component (YPbPr)
        • Output: Seven SDI SMPTE 259M-C
        • Input Type: Differential - all inputs
        • Analog Gain: Auto or manual mode
        • Output Jitter: < 0.14 UI measured with color bar input
        • A/D Process: 8:4:4 2X over sampled
        • Frequency Response: 5 MHz ± 0.25 dB
        • SNR: > 52 dB
        • Comb Filter: 4, 3 or 2-line adaptive / non-adaptive User selectable
        • Power: 7 watts
        • Size: 12.9" x 3" (330mm x 76mm)
        • For use in openGear frames
