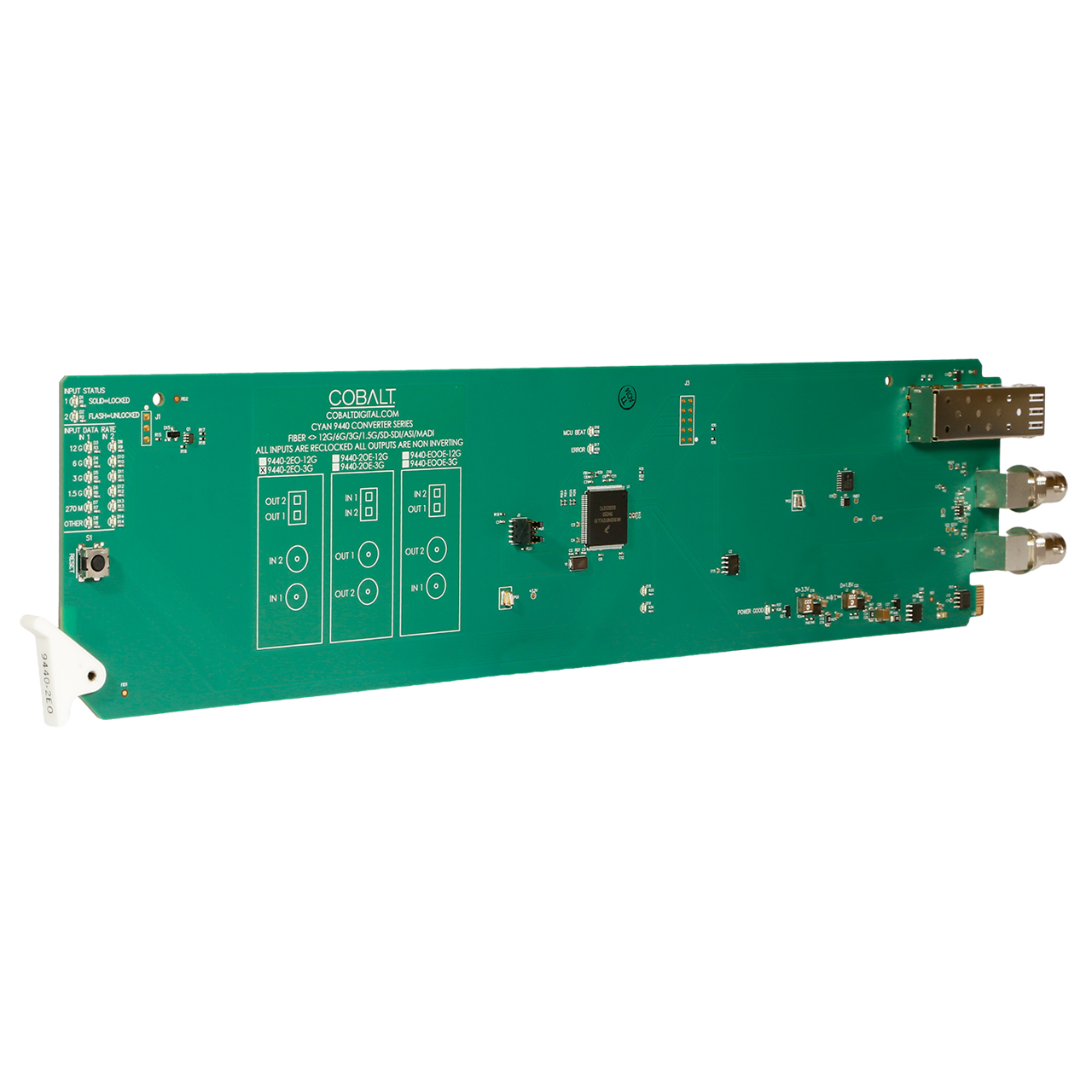

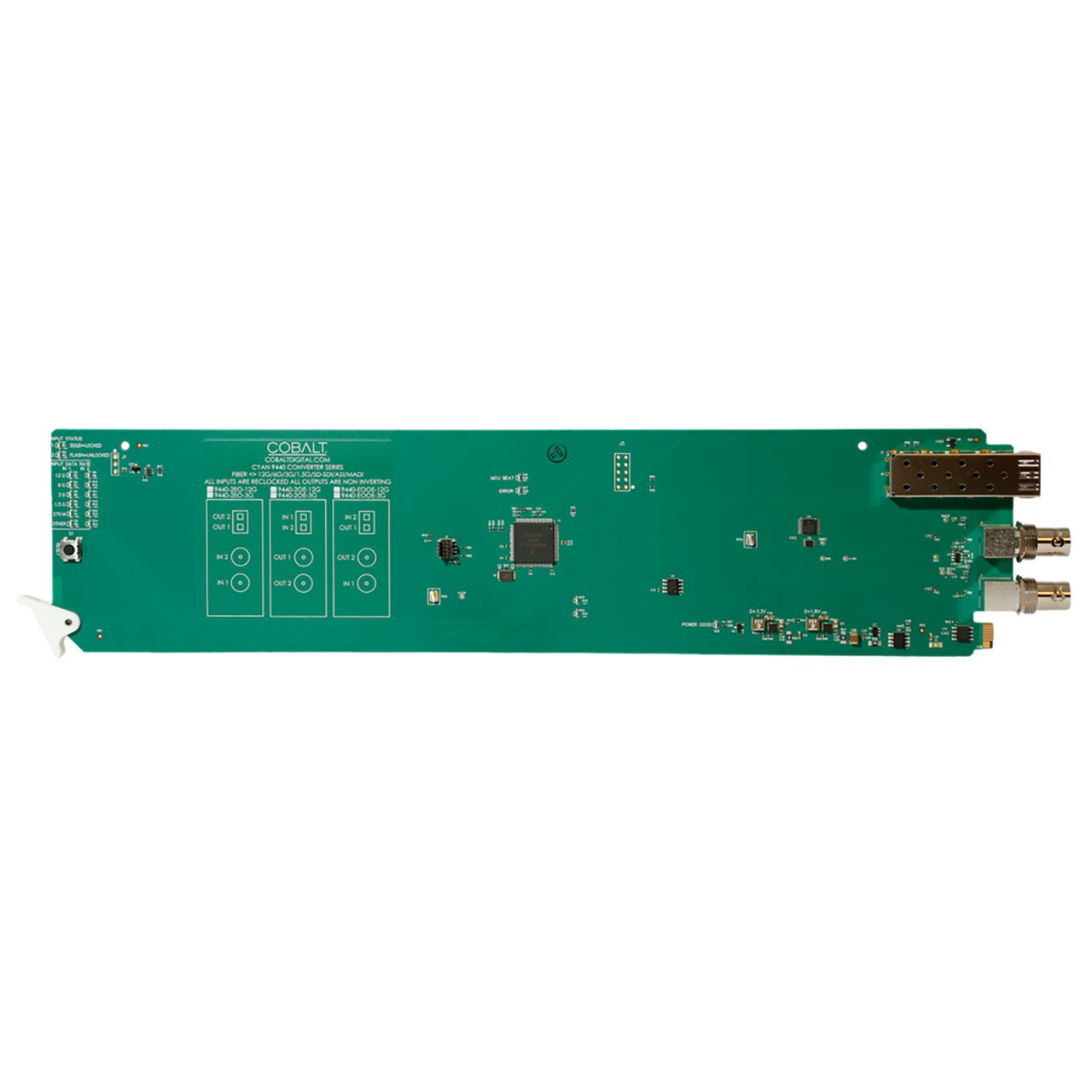

Cobalt Digital 9440-2EO-3G openGear 2-Channel 3G/HD / SD-SDI / ASI / MADI Fiber TX Card with Rear I/O Module

9440-2EO-3G - Overview

• Features:

  • Dual fiber-to-coax paths. Full support of transport conversions, with seamless auto-mode EQ/reclocking.
  • On-card indicators provide input lock status and data rates. The fiber connector is attached to the card providing a reliable and secure connection.
  • Reclocked inputs reduce jitter and improve signal integrity. Remote control and monitoring via DashBoard software.
  • HDR compatible
  • Hot-swappable
  • Passes all ancillary data including closed captioning
  • Supports any bit depth and pixel format that can be carried over SDI


• Specifications:

  • Inputs: 2x 75Ω independent BNC channels SMPTE-259/292/424
  • Outputs: 2x independent LC Fiber channels SMPTE-297
  • Reclocking: 125Mbps, 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select All other rates are passed through
  • Environment:
    - Operating temperature: 32°F - 104°F (0°C - 40°C)
    - Relative Humidity: 10-90% noncondensing
  • Power: 2.5W max per card
  • Dimensions (LxWxH): 8" x 8" x 16"
  • Weight: 8lbs


• Item Includes:

  • 1x 9440-2EO-3G Transmitter


• Warranty:

  • 5 Year Limited Warranty
