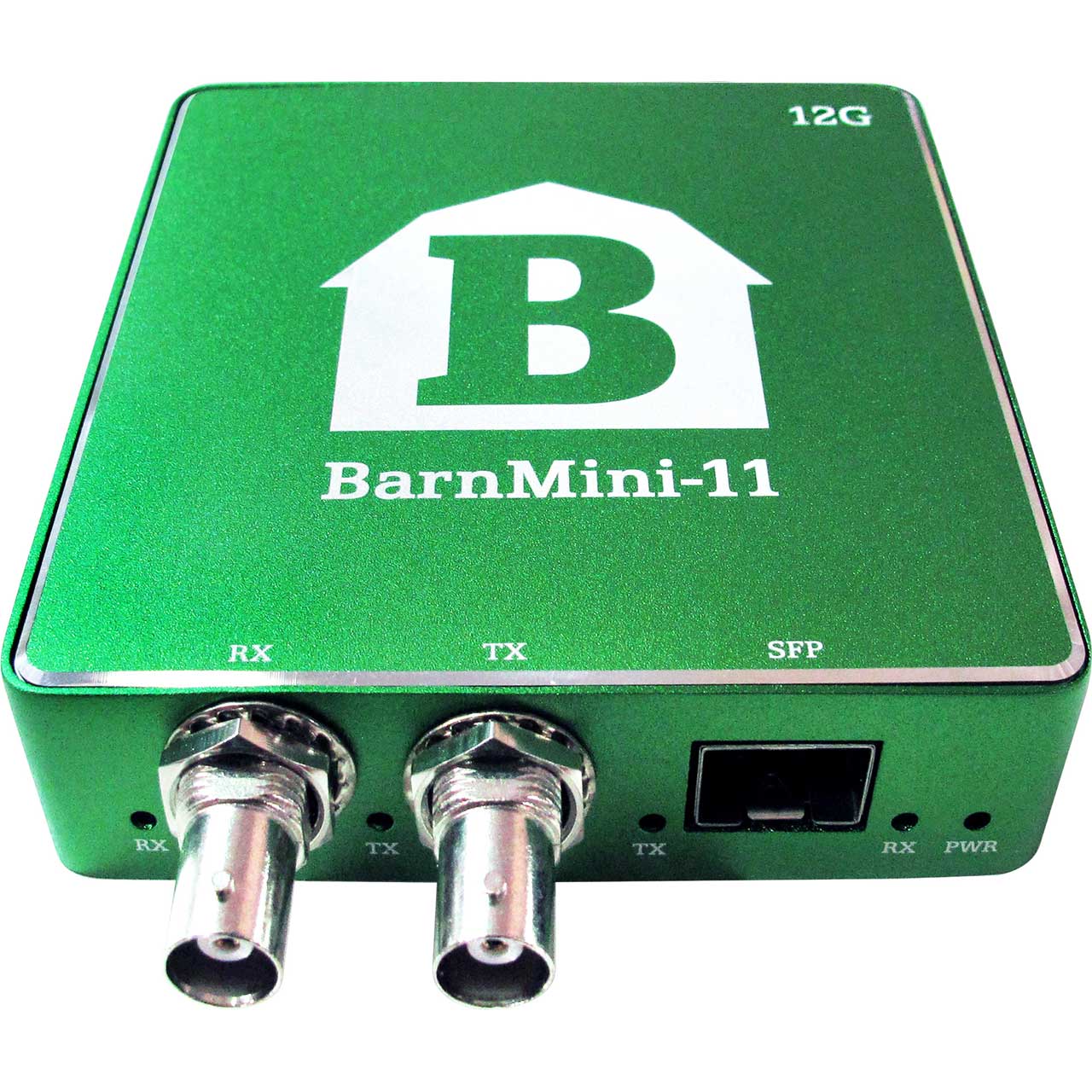

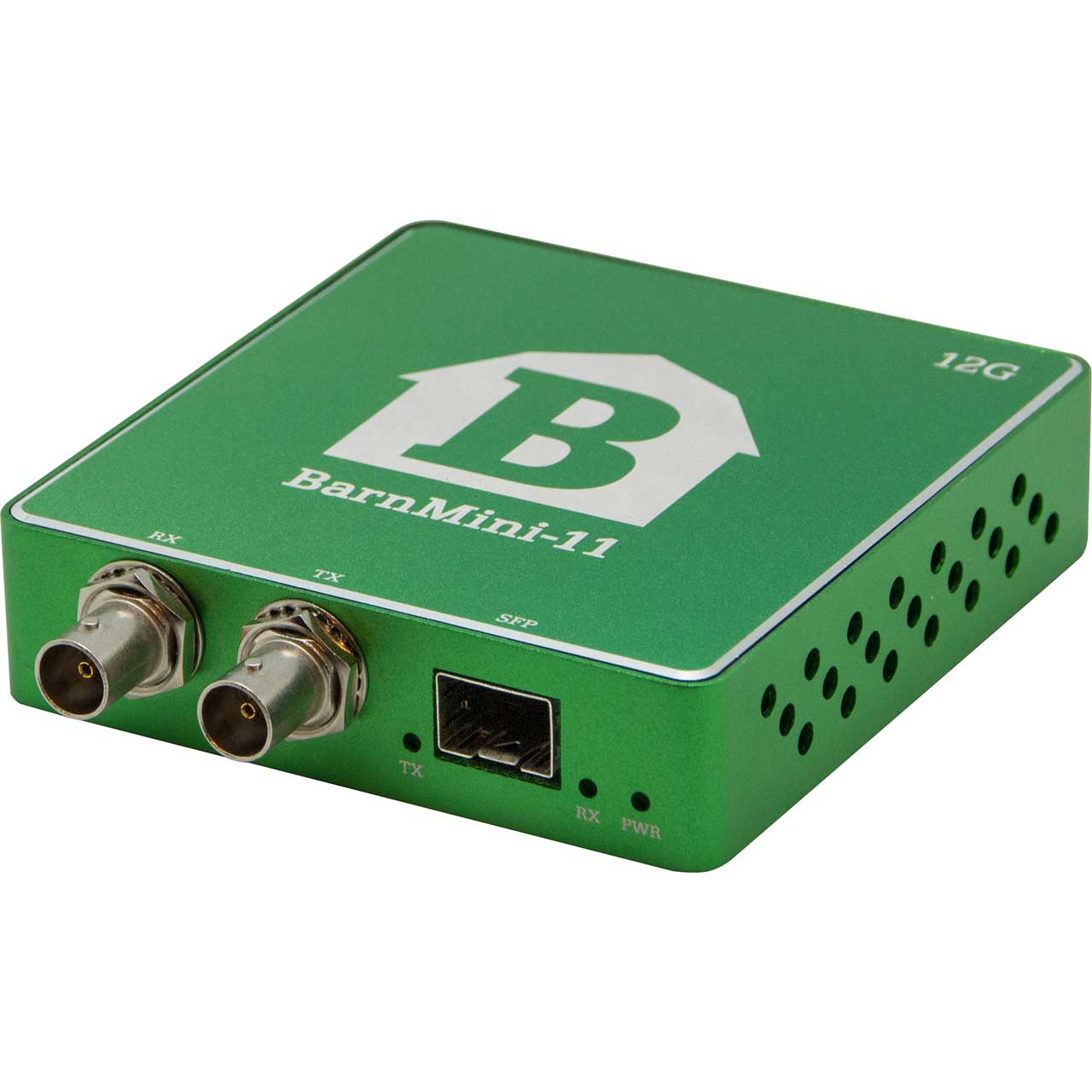

Barnfind BARNMINI-11 12G BNC Transmitter Receiver with Open SFP Port


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Special Price:


Availability: In Stock
iAvailability Description Popup

    BARNMINI-11 - Overview

    These standalone solutions are ideal for smaller jobs where the BarnOne frames may not be required - they represent the "Swiss army knife" of the conversion and signal transport part of the industry.

    A rackmount solution is available allowing you to mount several units together or, you can use these little boxes as "throw-downs" behind racks and inside ceilings and floors to solve conversion and signal transport challenges as needed.

    The BarnMinis are ideal standalone solutions where no control is required and solve everything from a simple task to more comprehensive solutions where the BarnMini s are used in conjunction with BarnOne' frames to empower complete distributed systems in lager facilities.

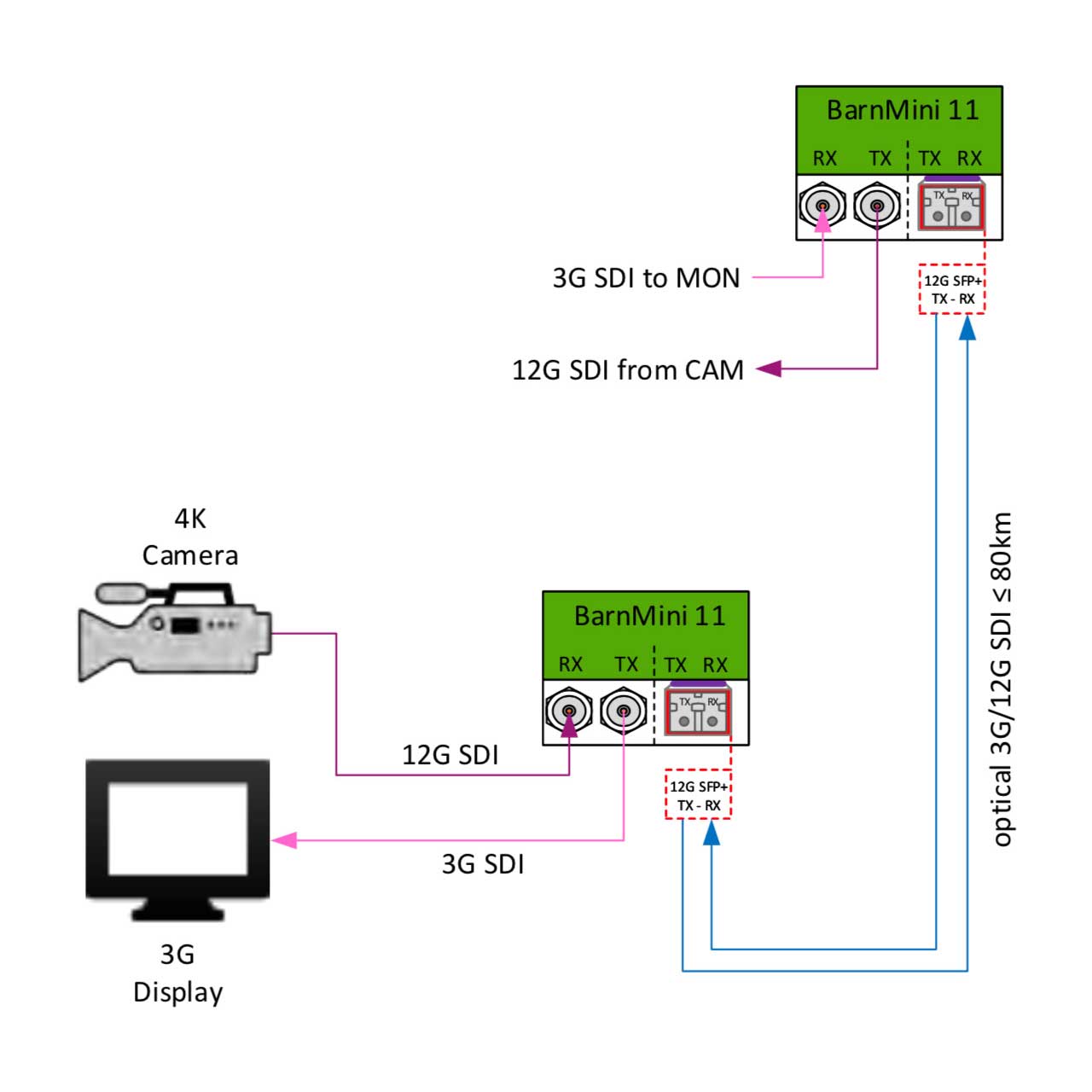

    The BarnMini-11 is the big brother to the popular BarnMini-01 solution that delivers simple and reliable point-to-point digital extension. BarMini-11 offers support for up to 12G bit/s bandwidth. It can handle 12G, 10G, 6G and any other video/data format with a lower data rate than 12 Gbit/s. BarnMini-11 is equipped with a re-clocker. And as any other BarnMini module it is flexible and with comprehensive video specifications.

    • Features:

      • Use any SFPs from Barnfind or any other SFP supplier as long as they are MSA compatible.

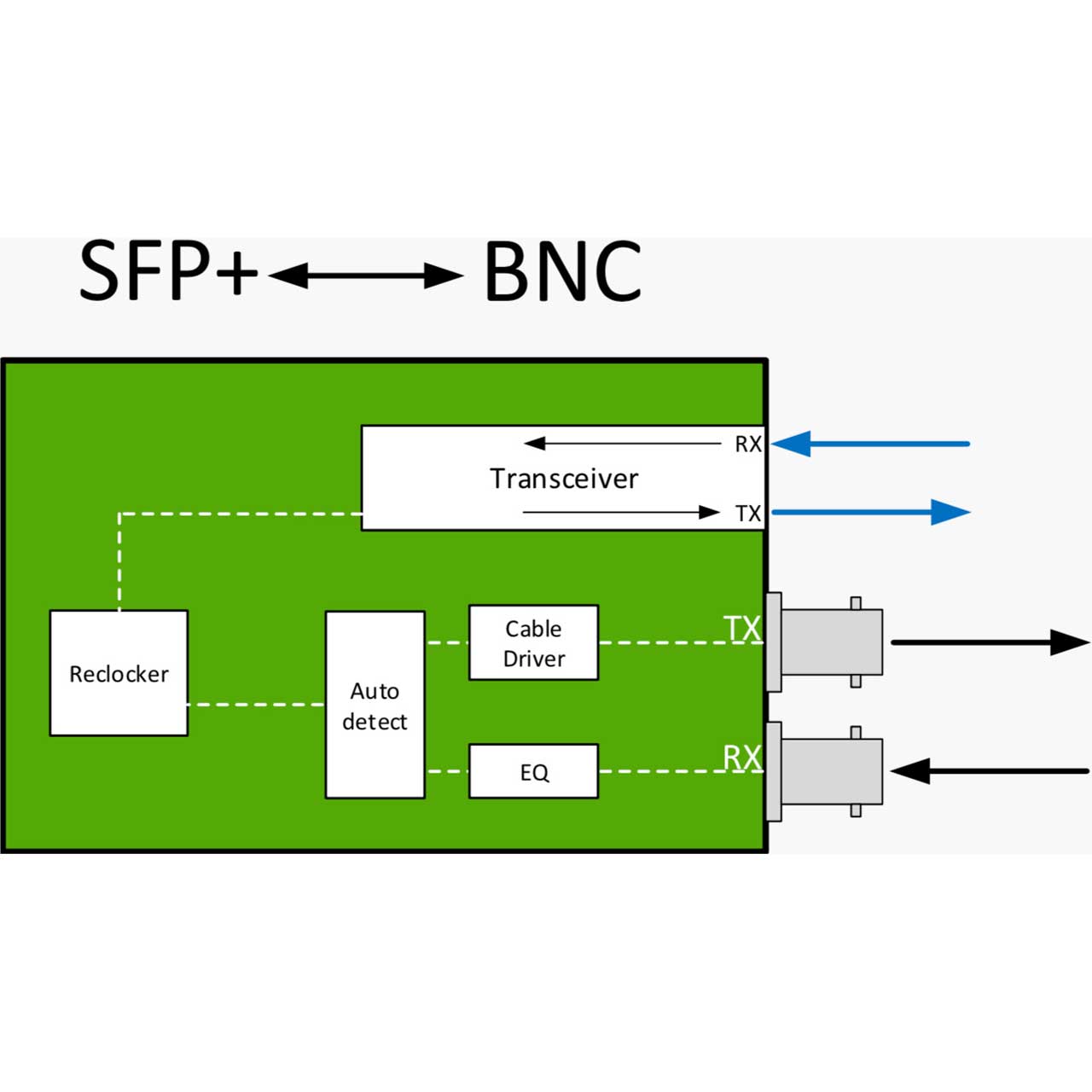

      • All BNCs and SFP outputs are re-clocked.
      • Unique HDMI to SDI solutions with any fiber distance depending on SFP selection.
      • Multimode to Singlemode conversion in one Mini.
      • BarnMini Housing in 2.5RU for up to 16 x different BarnMinis.
      • All BarnMini modules are operational from 5V to 24V.
      • Can be used as a standalone box or in advanced systems with
      • BarnOne or any 3rd party solution.
      • AC adapter is included.
      • Rock solid mechanics and technology. The BarnMinis are designed to work in harsh environments.
    • Specifications:

      • Electrical ports
      • 1x transceiver BNC port
      • 1x receiver BNC port
      • 75 OHM BNC connector
      • SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082
      • Multirate reclocking of outputs 270Mbit/s - 12Gbit/s

        Optical ports
      • Fiberoptical port (SFP) , Duplex transcievers , LC/PC connectors (optional HDMI, HD-BNC, RJ45)
      • SMPTE 259M, 292M, 372M 424M, 297M, DVB-ASI, SMPTE ST-2081, ST-2083
      • Multirate reclocking of outputs 270Mbit/s - 12Gbit/s
      • Hot pluggable/swappable
      • Singlemode and/or Multimode
      • 16 CWDM wavelength selections - ITU-T G.694.2

        Power supply

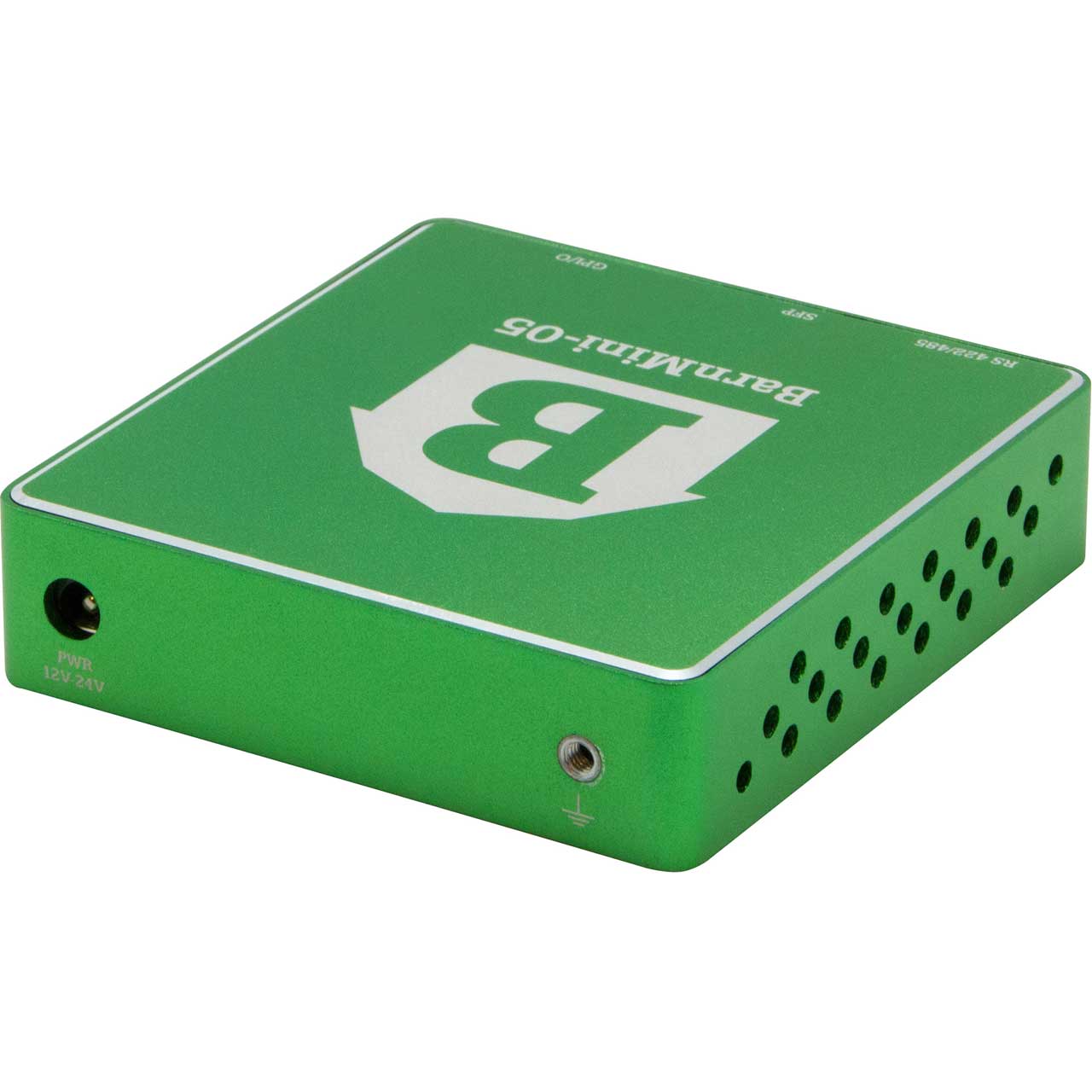

      • 12-24V DC. Power supply included

        Physical size
      • 3.6 inch x 3.8 inch x 0.8 inch (92mm x 98mm x 22mm)
      • 0.4lbs (200g)
    • Item Includes:

      • 12-24V DC. Power supply included
