Cobalt 9924-4FS-12G Quad-Channel openGear 12G-SDI Frame Sync with Audio Embedding / De-Embedding of AES and MADI

9924-4FS-12G - Overview

• Features:

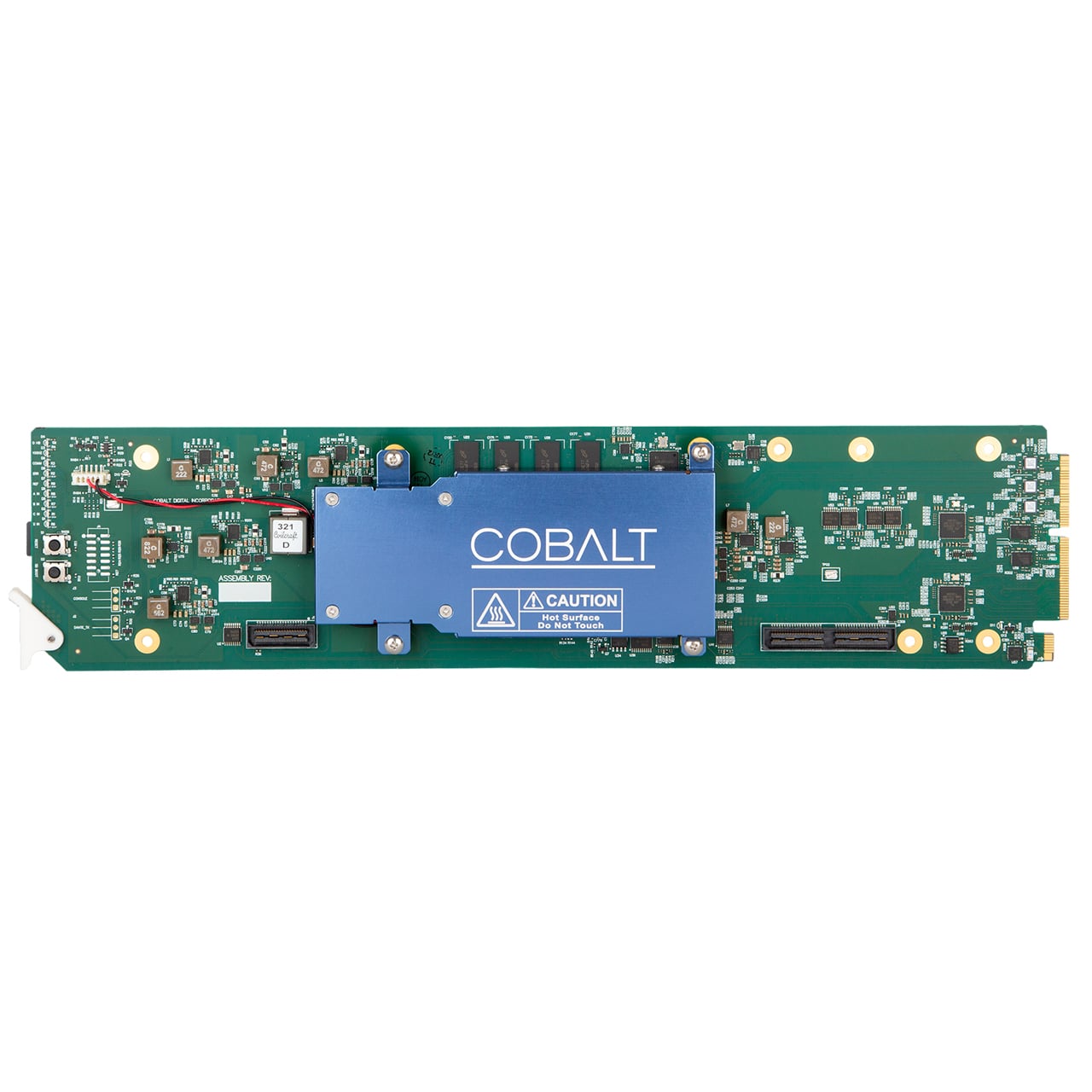

  • 9924-4FS-12G card: 4x SDI Inputs and Outputs, capable of up to 12G-SDI operation
  • Full routing and mixing between SDI, MADI, and AES
  • 1x MADI Input and 1x MADI Output
  • SDI Crosspoints - Connect any Input to any Processing Path and any Processing Path to any Output.
  • 8x AES inputs/outputs - each block of 4 ports is software-configurable as Input or Output
  • 2x Gigabit Ethernet ports for network communication
  • Simultaneous embedding and de-embedding 64x64 matrix size
  • Dual Gigabit Ethernet ports for robust network connectivity.
  • Support for up to multiple independent video paths, making it ideal for multi-channel workflows in live events, studios, or post-production.
  • These cards streamline complex audio routing and ensures compatibility across IP and traditional audio systems, ultimately saving time and simplifying setups.


• Specifications:

  • AES Audio Inputs/Outputs: 8 75Ω coaxial ports; each block of 4 ports is software-configurable as Input or Output
  • 12G/6G/3G/HD/SD-SDI Input/Outputs
    - 4x 75Ω Inputs
    - 4x 75Ω Outputs
  • Supports resolutions of: 525i, 625i, 720p, 1080i, 1080psf, 1080p, and 2160p
  • Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
  • Return Loss:
    - > 5dB up to 12GHz
    - > 7dB up to 6GHz
    - > 10dB up to 3GHz
    - > 15dB up to 1.485GHz
  • Input Cable Length:
    - 45m Belden 1694A cable at 11.88 Gbps
    - 120m Belden 1694A cable at 2.97 Gbps
    - 240m Belden 1694A cable at 1.485 Gbps
    - 400m Belden 1694A cable at 270 Mbps
  • Output Signal Level: 800 mV ±10%
  • DC Offset: 0 V ± 50 mV
  • Rise and Fall Time @ 11.88 Gbps: < 45 ps
  • Alignment Jitter (12G/6G/3G/HD/SD): < 0.3/0.3/0.3/0.2/0.2 UI
  • MADI Audio Inputs/Outputs
    - 1x 75Ω Input
    - 1x 75Ω Output
  • Frame Reference Input: 2x reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"
  • Power Inputs: < 30 Watts


• Item Includes:

  • 1x 9924-4FS-12G


• Warranty:

  • 5 Year Limited Warranty
