COBALT BBG-2110-2Hi2Ho/4Sio Dual-Channel SMPTE ST 2110/IPMX to HDMI/SDI Converter Unit

SAPPHIRE BBG-2110-2HI2HO/4 - Overview

• Features:

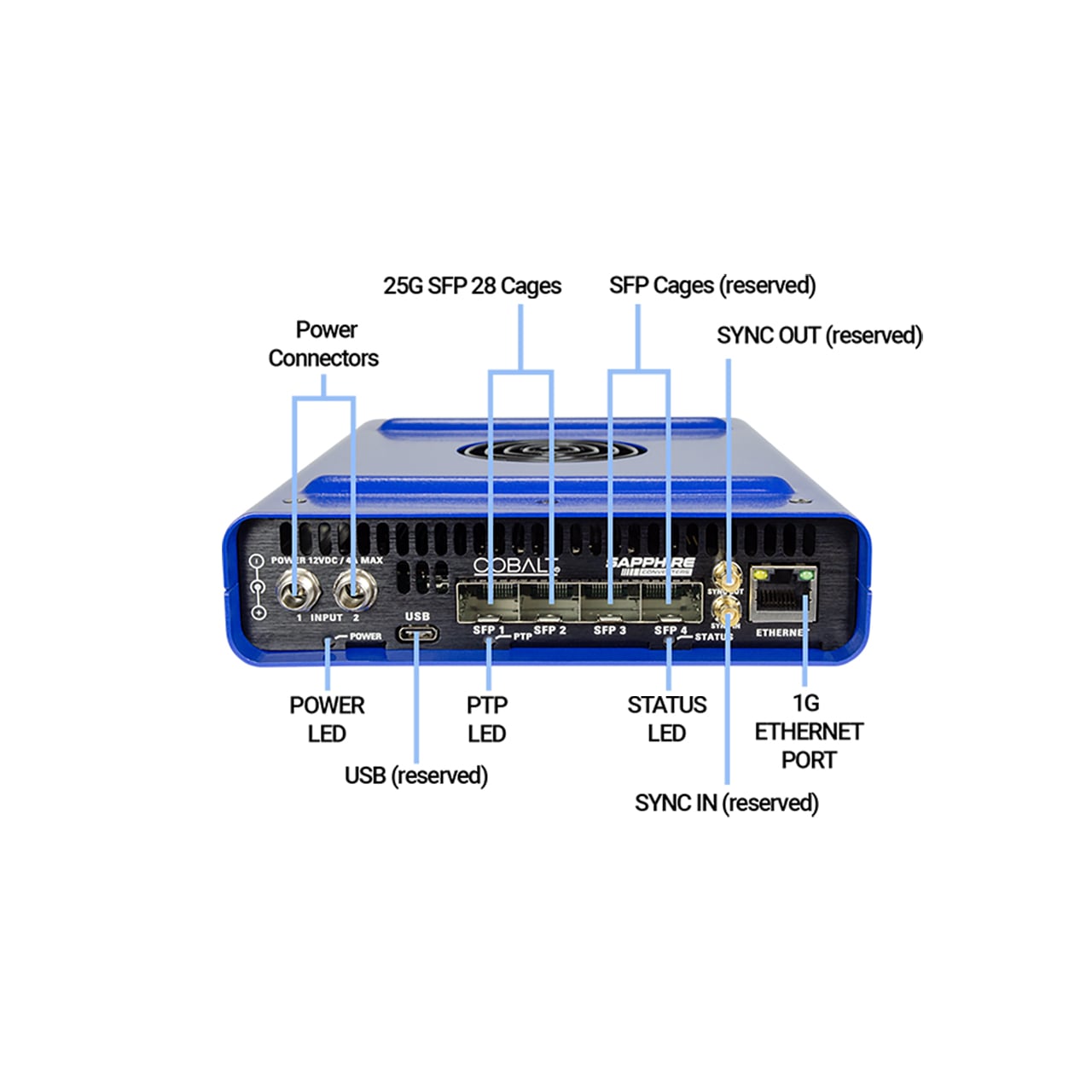

  • 4x SFP cages - 2x 10/25G IP transport and 2x reserved for future use
  • 2x SDI In and 2x SDI out
  • 2x HDMI 2.0 Inputs and 2x HDMI 2.0 Outputs
  • 1x RJ45 Ethernet Port 100/1000 for communication and control
  • Supports NMOS IS-04/IS-05 control, both in-band and out-of-band and SMPTE ST 2022-7 Seamless Redundancy up to Class C for WAN operation
  • Supports resolutions of: 720p, 1080i, 1080p, and 2160p (2160p is available on the first path only)
  • Supports frame rate of: 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
  • Asynchronous operation and IPMX-ready
  • 2x 12VDC/4A Redundant Inputs Typical Power Consumption <35 watts
  • Active cooling fan


• Specifications:

  Inputs

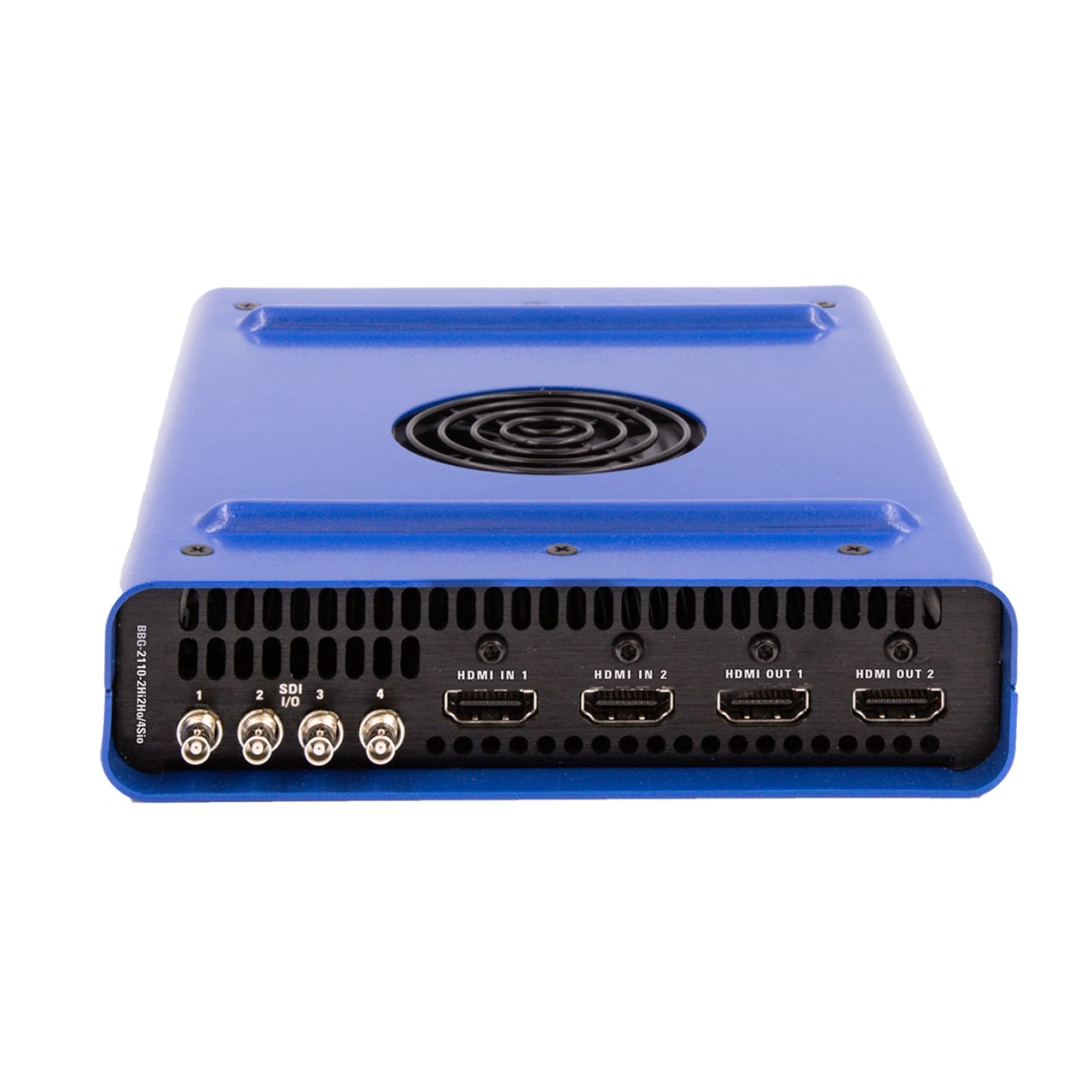

  • 2x HDMI 2.0 Inputs Type A standard connectors
  • 4x HDBNC Bidirectional SDI I/O, either all inputs or all outputs
  • 4x 25G SFP28 cage receptacles (2x of the SFP cages are reserved for future use.)
  • 1x HDBNC reference Input (Reserved for future use.)


  Outputs
  • 2x HDMI 2.0 Output Type A standard connector
  • 4x HDBNC Bidirectional SDI I/O, either all inputs or all outputs
  • 1x HDBNC reference Output (Reserved for future use.)
  • 8-channel Analog Audio (unbalanced) (Analog Audio requires the factory installed BBG-2110-2Hi2Ho/4Sio-AUD option.)


  Control
  • 1x RJ45 Ethernet Port 100/1000


  Power
  • 2x 12VDC/4A Redundant Inputs
  • Typical Power Consumption < 35 Watts


  Dimensions
  • 5.8" x 7.85" x 1.6"


  Weight
  • 1.43 lb, 2.43 lb with power supply and power cord (PS-40W-761K)


  Other
  • Active cooling fan


• Item Includes:

  • 1x BBG- Mounting Adapter


• Warranty:

  • 5 Year Limited Warranty
