P-AVN-4D - Overview

The PlexusAV P-AVN-4D IPMX Decoder is a versatile, high-performance AV-over-IP device that receives IPMX streams and outputs them over HDMI. Built to support open standards like IPMX, the P-AVN-4D integrates cleanly into existing networked AV designs and stays ready for future system expansion.

With support for JPEG-XS up to 4K60, along with HDR and built-in video scaling, it delivers high-quality, ultra low-latency video into a wide range of ProAV and live production workflows. Beyond video, the P-AVN-4D also brings audio and control onto the same network, with USB, serial, and balanced audio connectivity for a single, installation-ready endpoint.

Applications:
• Educational and Corporate AV
• Digital Signage
• Live Production
• Virtual Events and eSports
• Broadcast and Production

What Is IPMX? (Internet Protocol Media Experience)
IPMX is the only true open standard for AV-over-IP, allowing products to be spec'd from multiple manufacturers. Being locked into a single ecosystem is the old-tech way of doing things, and that's why with PlexusAV, you never have to worry about spec'ing the wrong or right product - it just works thanks to IPMX. PlexusAV means 100% compatibility, reliability and performance.Is a proposed set of open standards and specifications to enable the carriage of compressed and uncompressed video, audio and data over IP networks for the pro AV market. It includes provisions for control, copy protection, connection management and security.

IPMX takes an open-standards approach to ensure that accessibility, ease of use, and implementation are available to all. The authors of its components come from organizations that represent the best interests of the pro AV market as a whole, rather than the interests of the few. This is in contrast to other solutions that, while calling themselves standards, are owned by a single entity that controls their intellectual property and usage, whether it is in the form of hardware, software, or a combination of the two. IPMX builds on foundational work from SMPTE, AWMA, and VSF.

  • Features:

    • Built on IPMX Protocols for Future-Proof AVoIP Deployment
    • Up to 4K60 with JPEG XS compression for ultra low-latency, high-quality video.
    • Two gigabit network ports, including dual RJ45, for use across copper, and PoE+ network environments.
    • Support for Dante, AES67, and Linear PCM provides professional-grade audio routing
    • Small, installation-ready design that fits cleanly behind displays, under tables, or into rackmount kits.
    • P-AVN-4D user interface is designed for quick deployment and simple configuration. With its advanced API, the P-AVN-4D can be controlled and managed by PlexusAV Visual Array or integrated into existing network management and control systems.
    • Flexible Network Connectivity
    • Versatile Output Options
    • Codec Support
    • Compact Design


  • Specifications:

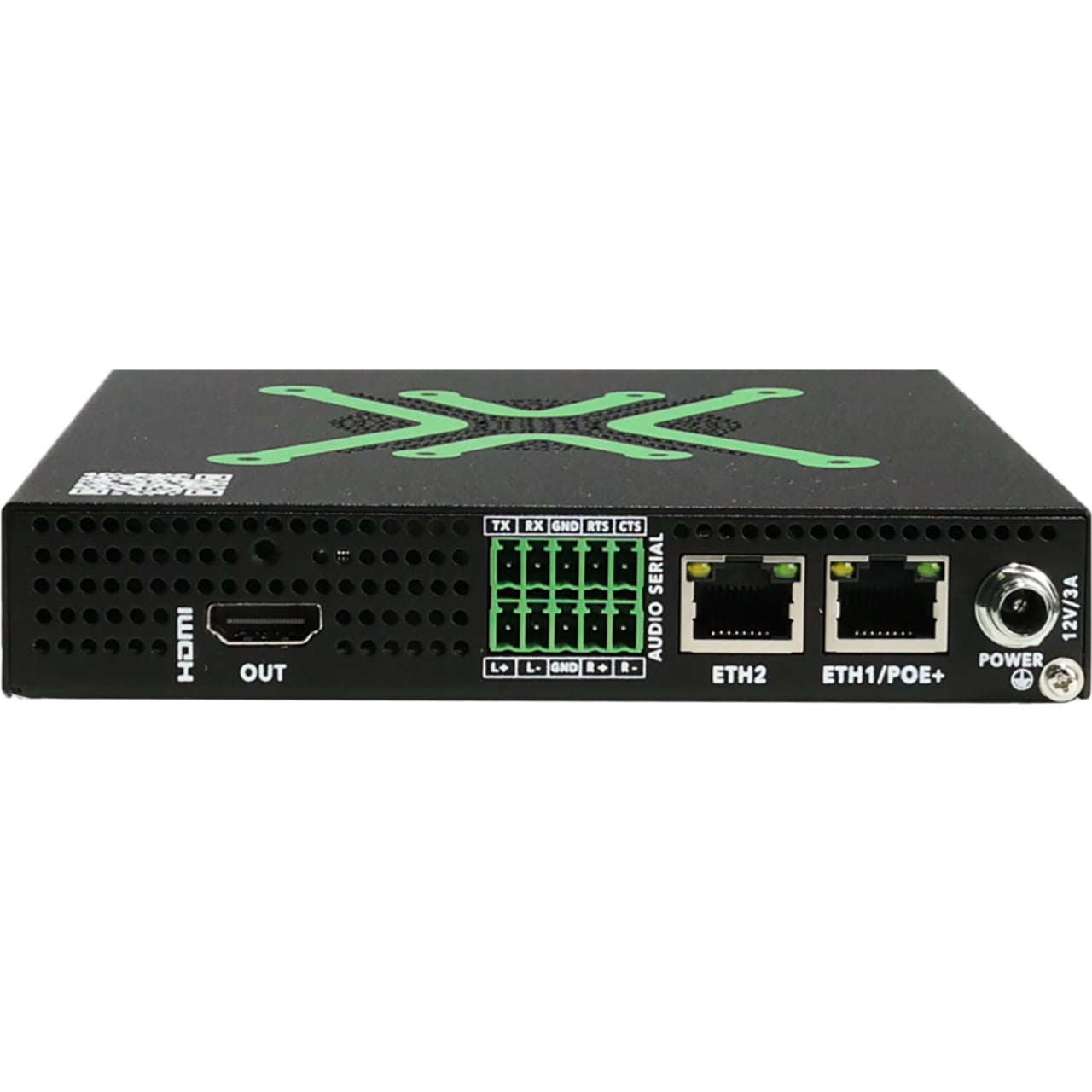

      Rear Panel Ports
    • HDMI Output:
      - Type-A Female, HDMI 2.1/1.4b
      - Content Protection - up to HDCP 2.3
      - EDID Control - Auto, Presets or Manual
      - Consumer Electronics Control (CEC
    • Analog Audio Input Support:
      - Connector: 5-Pin Phoenix
      - Channels: Stereo Pair, Balanced, or Unbalanced
      - Volume Adjust: Slider in web-interface (+/- volume)
      - Pinouts: Printed on chassis silk screen
    • Serial Communication:
      - Connector: 5-Pin Phoenix
      - Protocol: RS-232 "Serial"
      - Pinouts: Printed on chassis silk screen
    • Network Interfaces:
      - Ethernet 1: RJ-45/PoE+ (100/1000 Auto-Negotiating)
      - Ethernet 2: RJ-45 (100/1000 Auto-Negotiating)
      - Cable Type: CAT6 or CAT6A shielded cable recommended
    • Power Port:
      - Power Specifications: 12V/3A DC
      - Polarity: Center-Positive

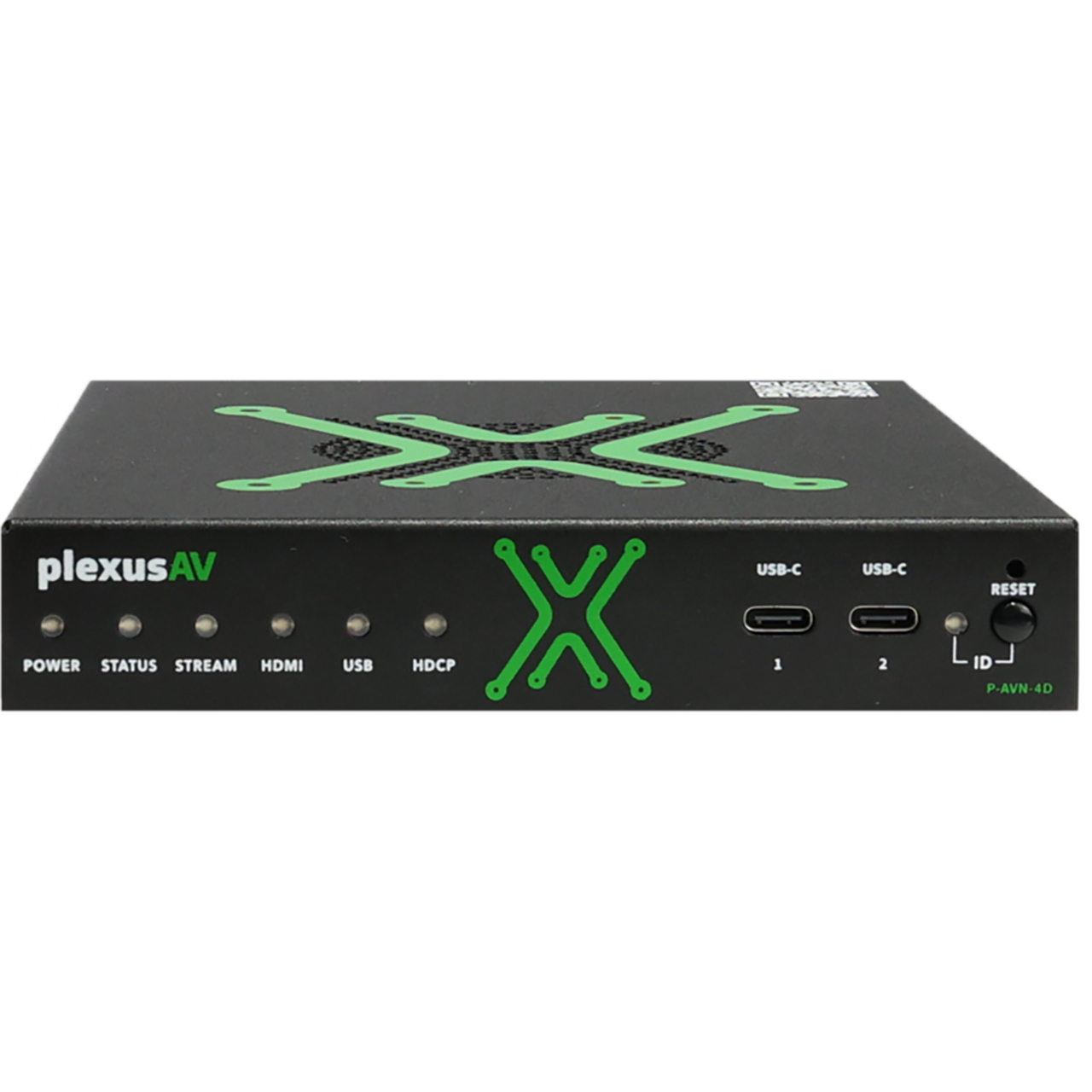

      Front Panel Ports
    • USB-C Ports:
      - USB-C (1): USB 2.0 - Keyboard/Mouse/UVC Webcam Extension
      - USB-C (2): USB 2.0 - Keyboard/Mouse/UVC Webcam Extension
    • ID Push Button: One-Click
    • ID Light: When ID mode is on, LED is lit and HDMI output shows system information
    • Factory Reset: Press and hold recessed button for 10 seconds

      IPMX Support
    • TR-10-1: System Timing and Definitions
    • TR-10-3: PCM Digital Audio
    • TR-10-5: HDCP Key Exchange Protocol
    • TR-10-7: Compressed Video
    • TR-10-8: NMOS Requirements
    • TR-10-11: Constant Bit-Rate Compressed Video

      Video Scaling
    • Decoder Video Scaling: Upscale (up to 3840x2160)
    • Aspect Ratio Adjustment:
      - Maintain Aspect Ratio (no change)
      - Stretch (fill screen)

      Audio Support
    • Audio Signal Type: Linear PCM and Pass-Through
    • AAC Bitrate Range: 96/112/128/160/192/224/256 Kbps
    • Sample Rate: 32/44.1/48/96/192/384 kHz

      Audio/Video
    • Dynamic Range: HDR10, SDR
    • Color Formats (IPMX JPEG-XS stream output):
      - 8/10-bit, RGB/YUV 4:4:4
      - 8/10-bit, YUV 4:2:2
    • Color Formats (HDMI output):
      - 8-bit, RGB/YUV 4:4:4
      - 8/10-bit, YUV 4:2:0
      - 12-bit, YUV 4:2:2
    • Color Gamut: BT.2020, BT.709, BT.601
    • Codec Support:
      - Video Codecs: JPEG-XS
      - Audio Codecs: PCM
    • IPMX Stream Output: Auto: Follow Input
    • HDMI Output Formats:
      - 3840x2160P @ 60, 50, 30, 25fps
      - 1920x1080P @ 60, 50, 30, 25fps
      - 1280x720P @ 60, 50fps
    • Video Support (IPMX Input Formats):
      - 4096x2160P @ 60, 59.94, 50, 30, 29.97, 25fps
      - 3840x2160P @ 60, 59.94, 50, 30, 29.97, 25fps
      - 1920x1080P @ 60, 59.94, 50, 30, 29.97, 25fps
      - 1280x720P @ 60, 59.94, 50, 30, 29.97, 25fps
      - 720X576P @ 60, 59.94, 50, 30, 29.97, 25fps
      - 2560x1600P @ 60fps
      - 2560X1440P @ 60fps
      - 2560X1080P @ 60fps
      - 2160x1440P @ 60fps
      - 1920x1200P @ 60fps
      - 1680X1050P @ 60fps
      - 1600x1200P @ 60fps
      - 1440x900P @ 60fps
      - 1280x1024P @ 60fps
      - 1024x768P @ 60fps
      - 800x600P @ 60fps
      - 640x480P @ 60fps

      Management and Control
    • Web Interface: Browser-based HTTPS Web-UI and Control
    • HTTPS API: REST API, GraphQL
    • NMOS Support: IS-04, IS-05, IS-11 and BCP-003.
    • LED Indicators:
      - (1) Power
      - (2) Status
      - (3) Stream
      - (4) HDMI-IN
      - (5) USB
      - (6) HDCP

      Dimensions and Power
    • Size: 6.37 x 5.63 x 1.02" (162 mm x 143 mm x 26 mm)
    • Weight: 1.3 lbs (0.6 kg)
    • PoE+: IEEE 802.3at Type 2 Class 4 compliant
    • Power Consumption (Operational Mode): 15W Typical
    • Power Consumption (Eco Mode) FW 1.4: 11.9W

      Environmental Conditions
    • Operating Temperature: -13° to 113° F (-25° to 45° C)
    • Storage Temperature: -40° to 113° F (-40° to 45° C)
    • Operating Humidity: Less than 95% (non-condensing)
    • Acoustic Noise: 33 dBA typical


  • Warranty:

    • 3 Year Limited Warranty
