Cobalt HPF-9000-N 20-slot High Power Frame - 2 Rack Units with Fan Single PSU-9000 Power Supply and HPF-FC Network Card

ITEM #: CB-HPF-9000-N MFG #: HPF-9000-N

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

HPF-9000-N - Overview

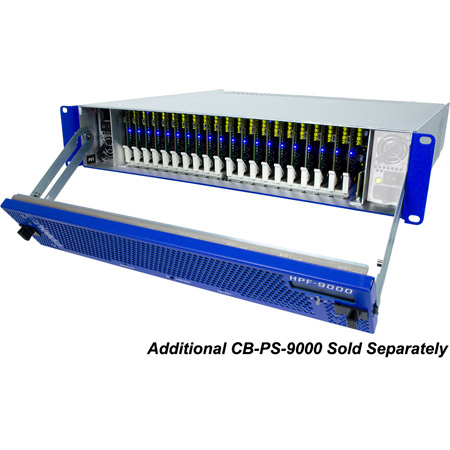

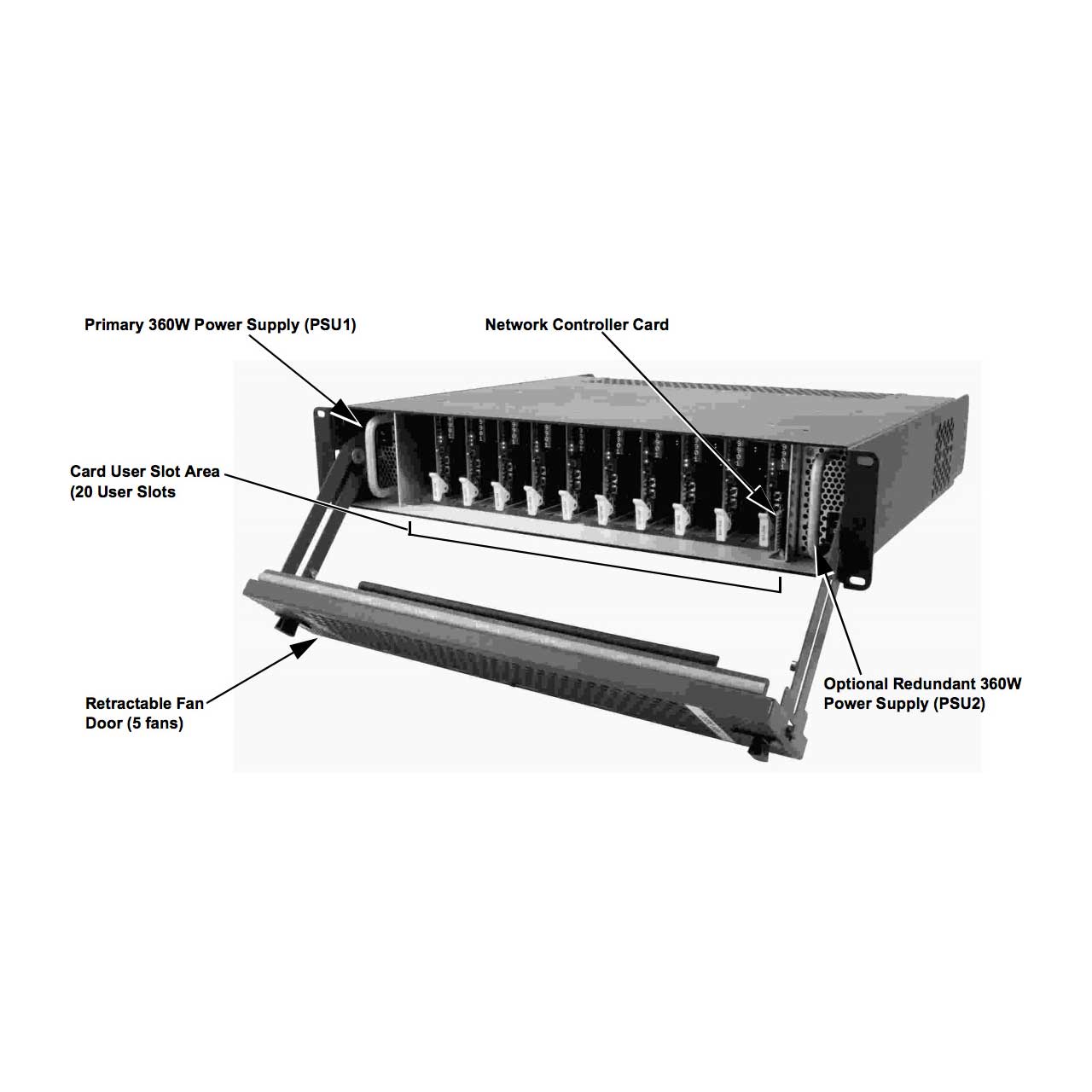

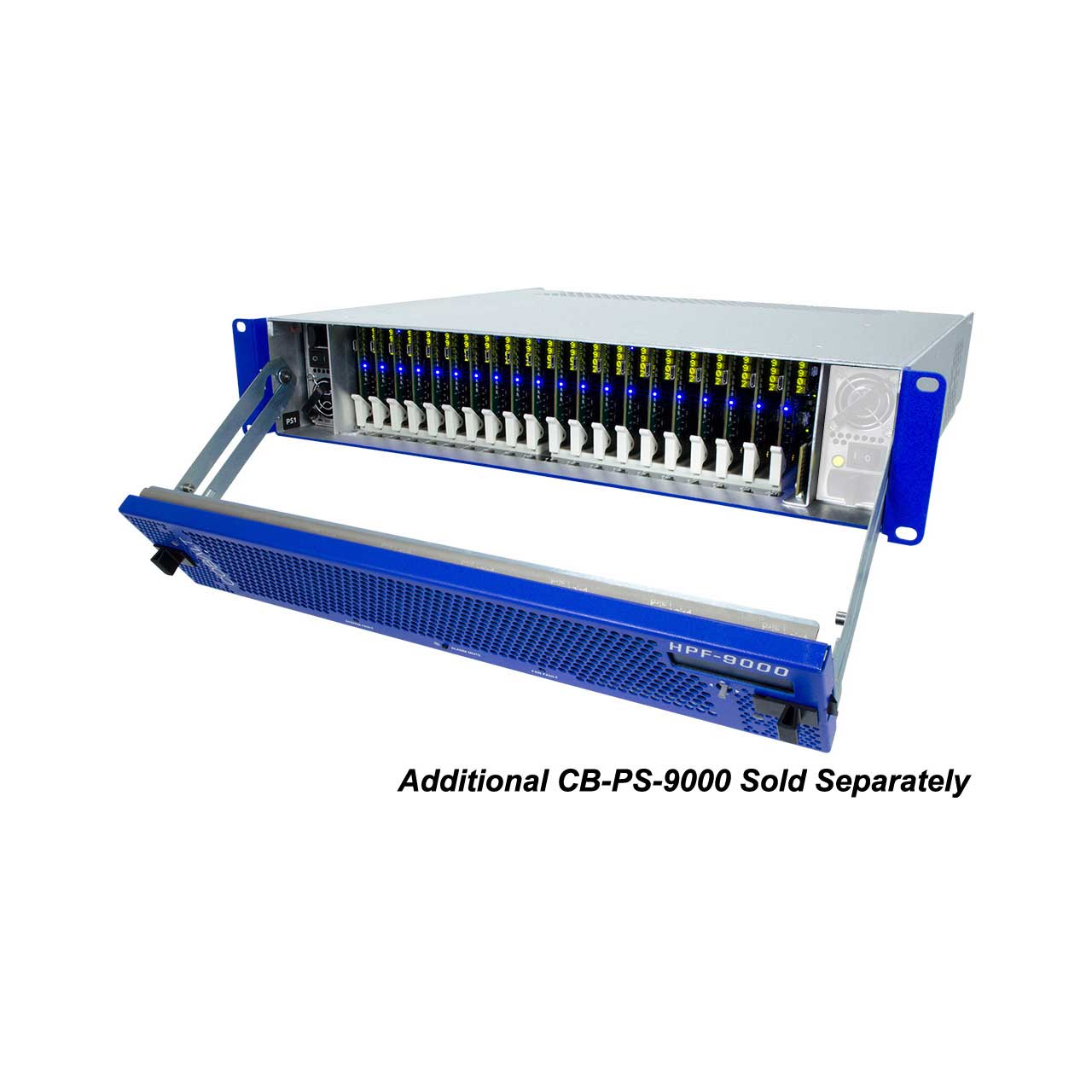

The Cobalt HPF-9000-N is a 20-slot openGear High 2 RU Power Frame with a single PS-9000 Power Supply and an HPF-FC Network Controller Card.

The Cobalt HPF-9000-N high-density openGear® compatible modular frame is a unit which offers 360W of the net (user) available power in a high-power 20-slot format. The HPF-9000- N is a 2RU rack with fan, a single PSU-9000 power supply and HPF-FC network card. It utilizes the same form factor and DashBoard™ remote control as Cobalt's other 20-slot frames. It also supports all openGear compatible cards and rear Input/Output modules but provides significantly more available user power (3 times the available user power of the 8321 frame). The HPF-9000-N is ideal for high-density use with our Fusion3G®, Obsidian3G®, and other Cobalt® cards. The HPF-9000-N utilizes the same rear Input/Output modules as our current 20-slot frames, enabling a flawless transition from a current 20-slot frame to the HPF-9000-N.

The HPF-9000 uses the same rear I/O modules as the current 20-slot frames, allowing a seamless transition from a current 20-slot frame to the HPF-9000. These rear modules offer a broad selection for a flexible and wide array of interfaces such as BNC, twisted-pair audio, and fiber. Special high-density/high-ventilation rear I/O modules offer even greater packaging density when used with compatible Cobalt cards.

  • Features:

    • Full openGear® compatibility supporting openGear-compatible cards as well as latest and legacy 20-slot frame openGear rear modules
    • Two independent looping references internally routed to all user card slots
    • Power supply is hot-swappable for 24/7 operation
    • Power switch/supplies accessible from the front of the frame
    • Separate power cords to each power supply for power redundancy
    • Network Controller Card enables multiple copies of DashBoard™ for seamless remote setup, monitoring, and control. SNMP option can further be added.
    • Fan status and error indicator LEDs on front of the frame
    • Hinged, pull-away front door panel lowers to allow quick, easy card insertion
    • Optional Frame Support Bracket kit provides frame rear support for mobile applications
    • Remote control/monitoring via Ethernet using free DashBoard™ software, or optional OGCP-9000 remote control panel
    • Five year warranty
  • Specifications:

    • AC Line Input: (per each of 2 (max) PSU IEC inputs) 100-240 VAC, 48-63 Hz, 500 Watts maximum
    • Available User Card Slots: 20 maximum
    • Available User (Net) Power: 360 Watts continuous-operation maximum
    • Frame Communication: 100/1000 Mbps Ethernet with Auto-MDIX
    • Reference Video Input: Two non-terminating (looping) Frame Reference inputs
    • Dimensions (WxHxD): 19" x 3.5" (2RU) x 17" (48 cm x 9 cm x 43 cm)
    • (Dimensions include any component projections such as mounting tabs, etc.)
    • Weight (with standard power supply PSU1): 13.9 lbs (6.3 kg)
