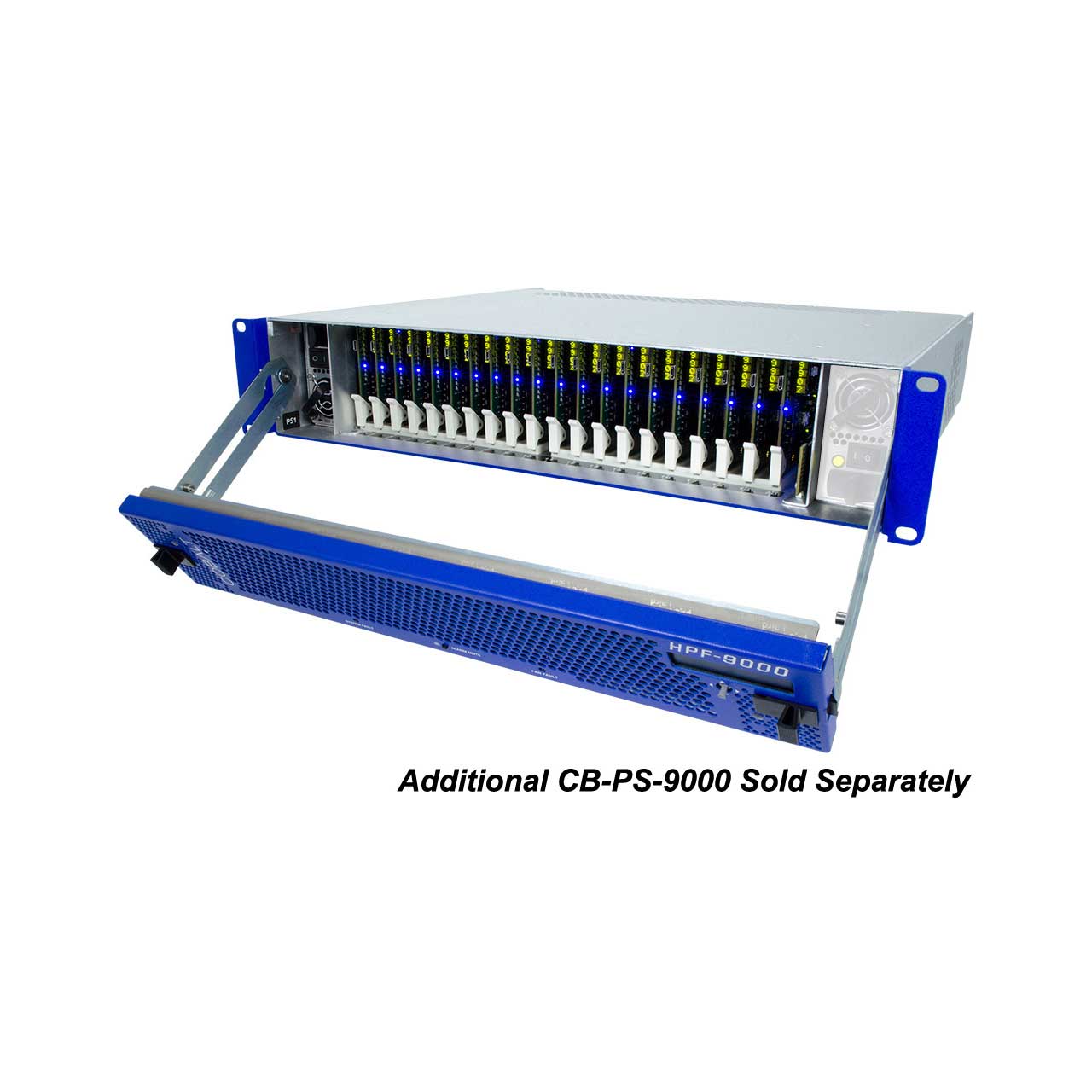

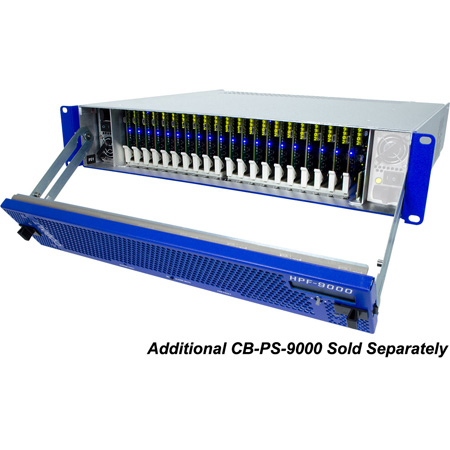

The Cobalt HPF-9000-NS is a 20-slot openGear High Power 2 RU Frame with a single PS-9000 Power Supply and HPF-FC Network Control Card with the SNMP option.
The HPF-9000 is a high-density openGear compatible modular frame offering 360 Watts of net (user) available power in a high-capacity 20-slot format. The HPF-9000-NS It uses the same form factor and DashBoard™ remote control as our other 20-slot frames and supports all openGear compatible cards and rear I/O modules, but offers significantly more available user power (3x the available user power of the 8321 frame). This makes the HPF-9000 perfectly suited for high-density utilization.

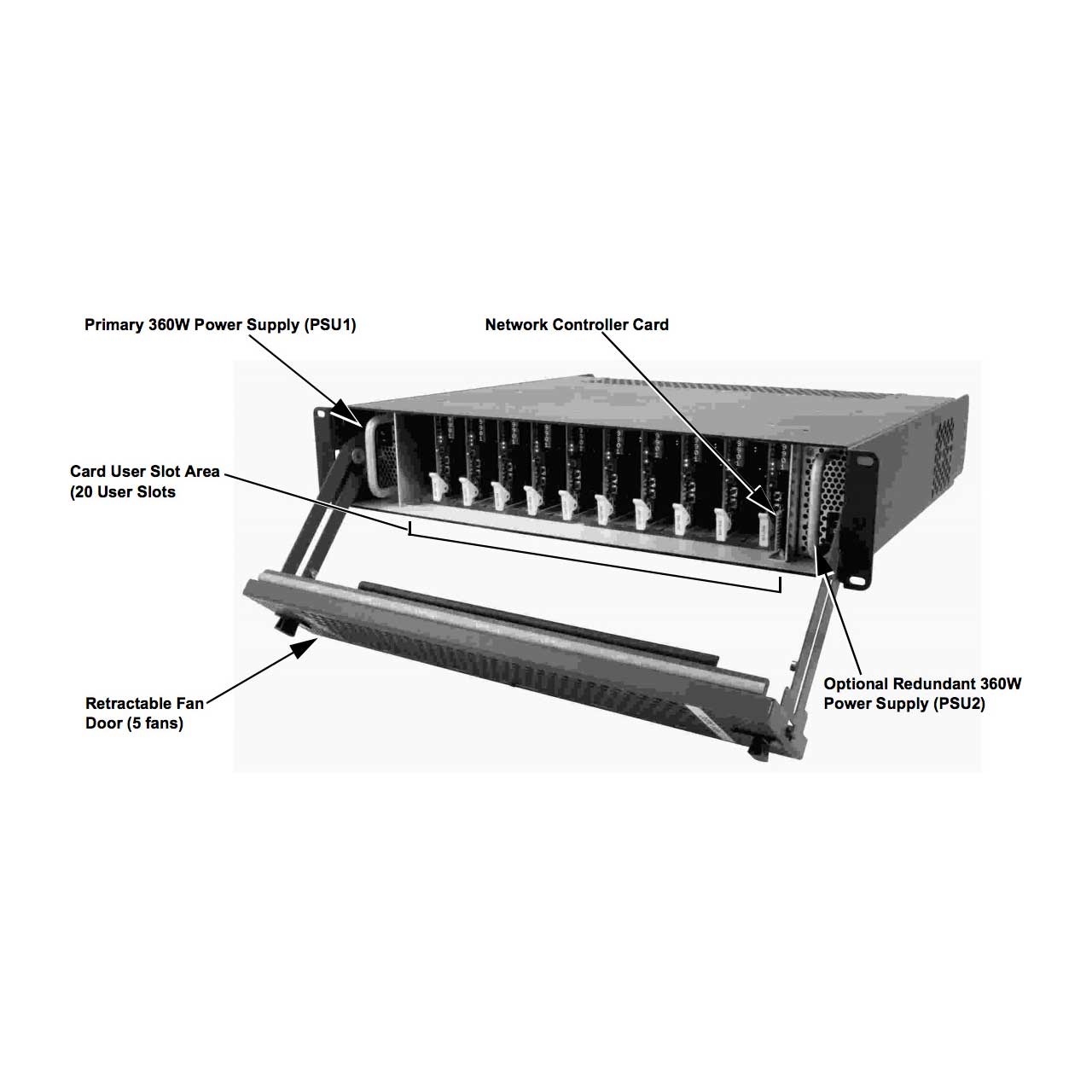

The HPF-9000 is a High-Power 20-Slot openGear® Frame - 2RU with fans and cover plates for unused slots. This unit includes one PSU-9000 Power Supply Module and HPF-FC Network Controller Card with SNMP. (Network Controller Card allows multiple connection network control through DashBoard™ software or Cobalt OGCP-9000 Remote Control Panel.)

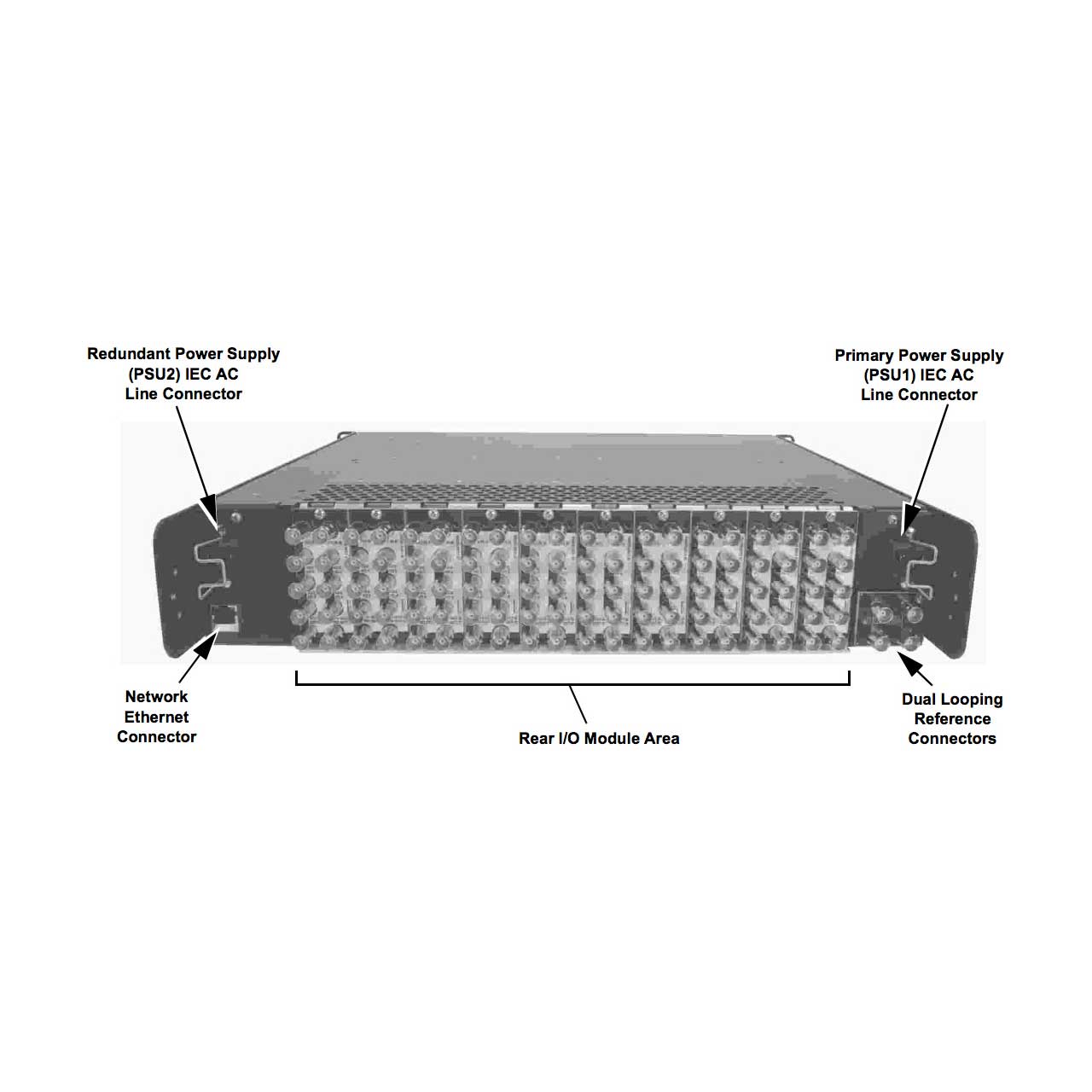

The HPF-9000 uses the same rear I/O modules as our current 20-slot frames, allowing a seamless transition from a current 20-slot frame to the HPF-9000. These rear modules offer a broad selection for a flexible and wide array of interfaces such as BNC, twisted-pair audio, and fiber. Special high-density/high-ventilation rear I/O modules offer even greater packaging density when used with compatible Cobalt® cards.
