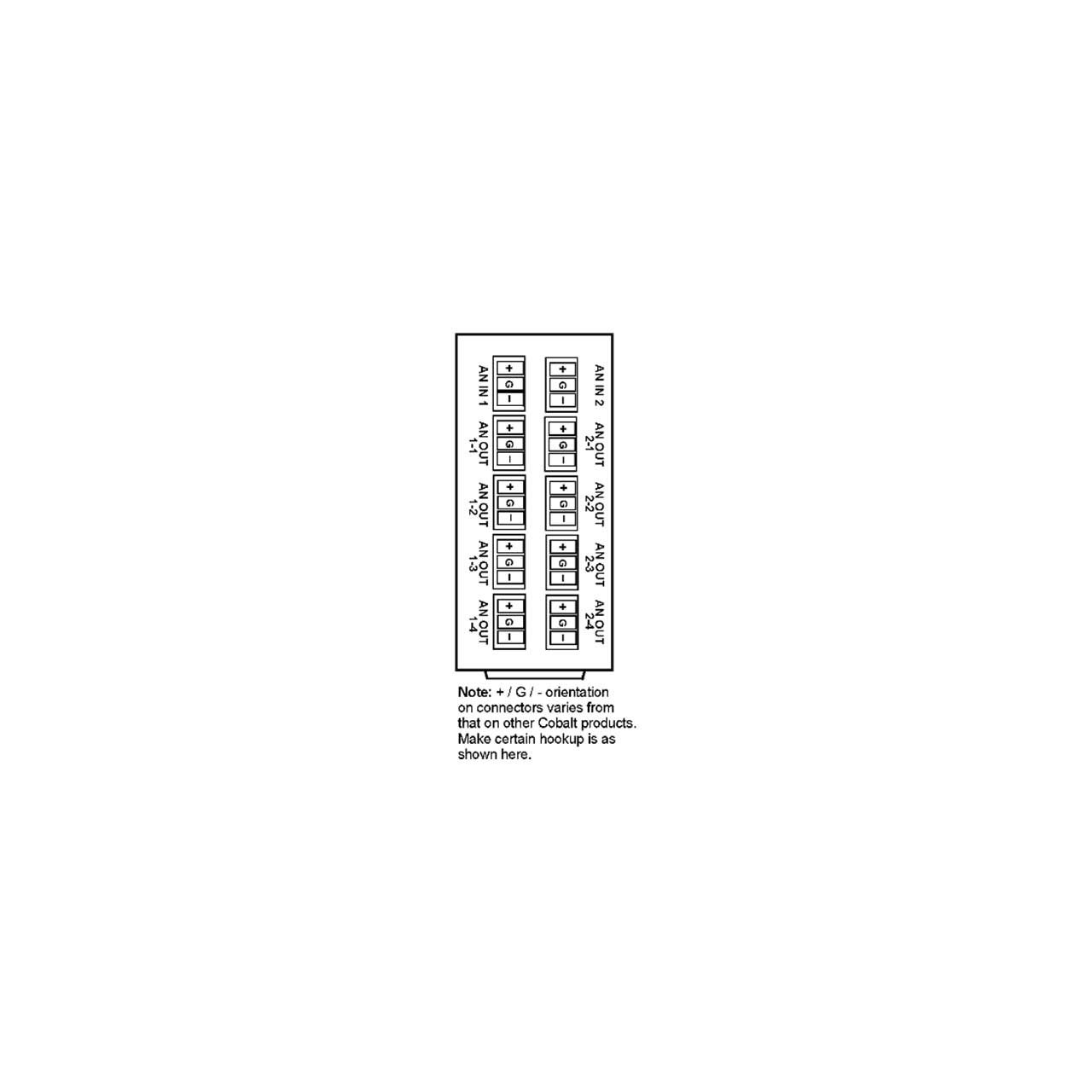

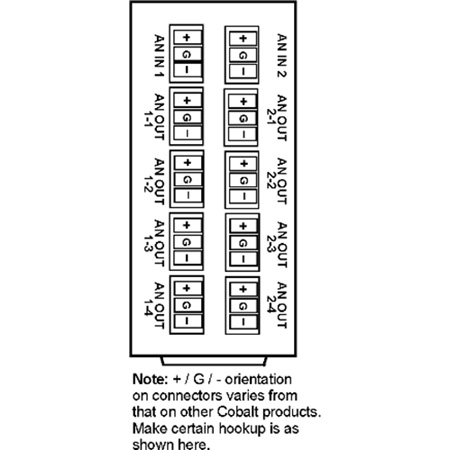

Cobalt RM20-9242-B 20-Slot OpenFrame Rear I/O Module (Standard) 2 Balanced Analog Audio In / 8 Balanced Analog Audio Out

ITEM #: CB-RM20-9242-B MFG #: RM20-9242-B

Free Shipping with Minimum Order Banner

List Price:

$225.00

Our Price:

$215.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    RM20-9242-B - Overview

    The Colbalt RM20-9242-B Analog Audio Distribution Amplifier with Remote Gain Control is a broadcast-quality balanced analog audio DA with stereo 2x4, mono 1x8, and stereo sum L+R x 8 selectable output modes. Unlike most analog audio DAs, the 9242 electronic attenuators allow overall gain (stereo ganged) and per-channel trim (offset) via DashBoardT remote control.

    The space-saving design and very low power consumption of the 9242 provides for high density, allowing two cards to be collocated in adjacent slots and served by a single, standard-width "split" rear module.

    • Features:

      • Full remote control of operating mode and gain control
      • Multiple modes - stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs
      • Full broadcast-grade balanced signal capability with 27.5 dBu maximum input level support. Low-impedance outputs.
      • Selectable card switch control or DashBoard™ remote control (usable with DashBoard™ and Cobalt OGCP-9000 remote control panels)
      • Hot-swappable
      • Five year warranty

    • Specifications:

      • Power
      • < 5 Watts

        Analog Audio Input
      • Number of Inputs: Two, balanced
      • Impedance: > 20 kΩ, balanced
      • Maximum Input Level: +27.5 dBu
      • Connector Type: WECO® removable modular

        Performance
      • Gain: -15 dB to +15 dB
      • Frequency Response: 20 - 20 kHz ±0.1 dB
      • Noise: < -85 dBu, 10 - 22 kHz at unity gain
      • Harmonic Distortion: < 0.01%

        Analog Audio Output
      • Number of Outputs: Eight, balanced; available as stereo 2x4, mono 1x8, and stereo sum L+R x 8 outputs
      • Impedance: 60 Ω, balanced
      • Output Isolation: > 60 dB
      • Connector Type: WECO® removable modular

    • Item Includes:

      • 1x Cobalt RM20-9242-B 20-Slot OpenFrame Rear I/O Module (Standard) 2 Balanced Analog Audio In / 8 Balanced Analog Audio Out
