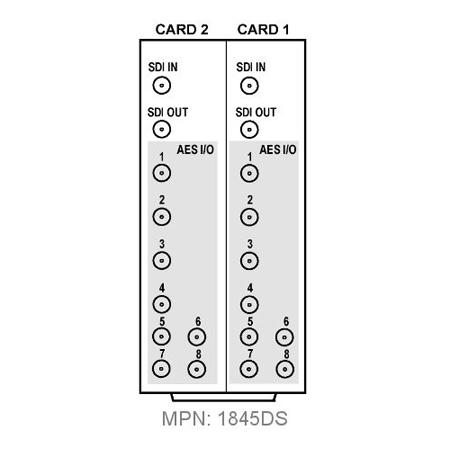

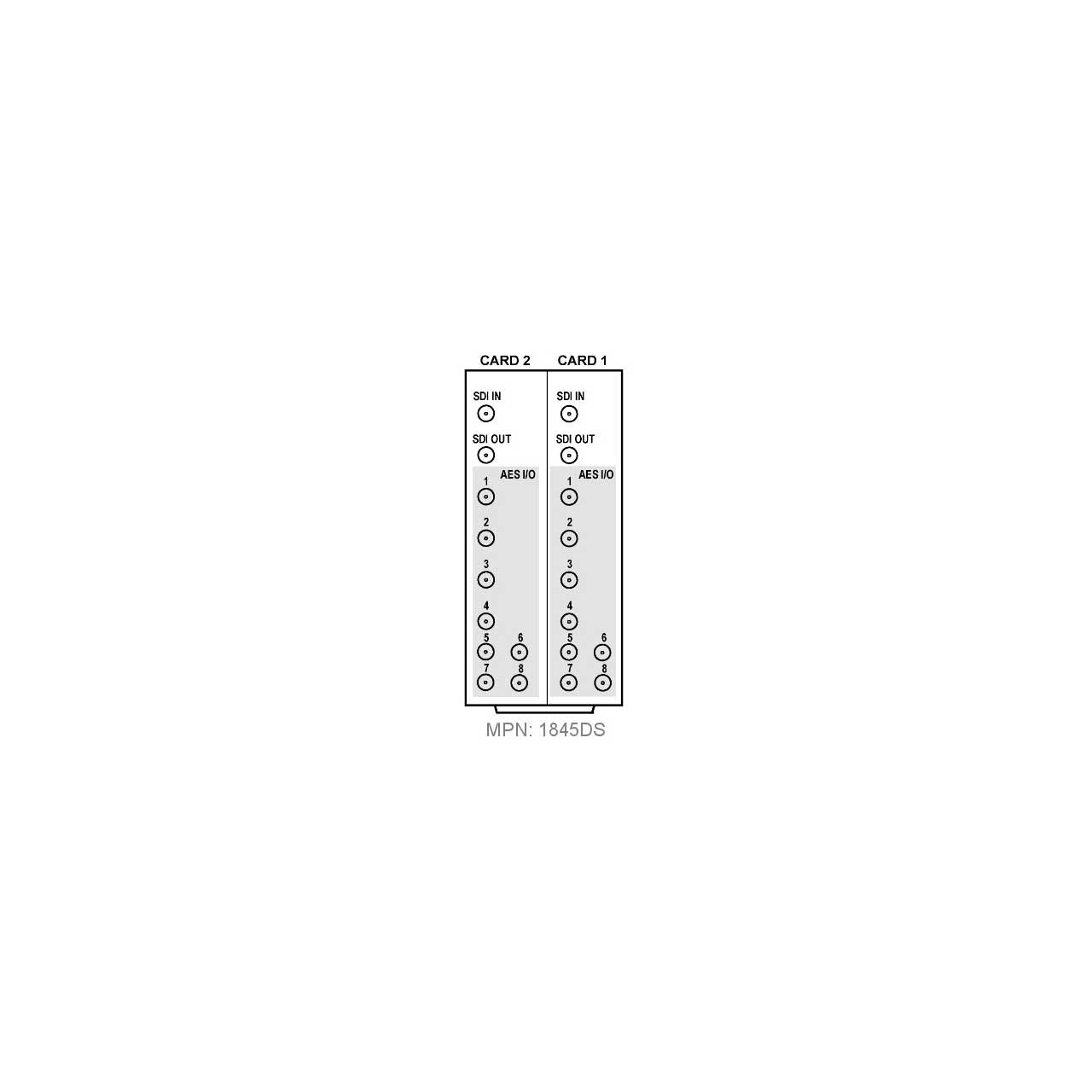

The Cobalt Digital RM20-9933EMDE-C/S-DIN is a rear module option for the The Cobalt 9933-EMDE-ADDA Audio Embedder / De-Embedder openGear card!
The Cobalt 9933-EMDE-ADDA 3G/HD/SD-SDI 16-Channel AES / 8-Channel Analog Audio Embedder / De-Embedder offers full-flexibility AES and analog audio embedding/de-embedding in a basic, economical, high-efficiency openGearr card.
The 9933-EMDE-ADDA provides full 16-channel embed / de-embed between AES, 8-channel analog audio, and all four groups of embedded audio. Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with program video 48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair. Analog embed/de-embed conforms with professional balanced audio at 0 dBFS to pro 24 dBu levels using full 24-bit conversion.
Full audio crosspoint allows per-channel gain and routing controls, as well as built-in tone generators.
Full user DashBoard or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
