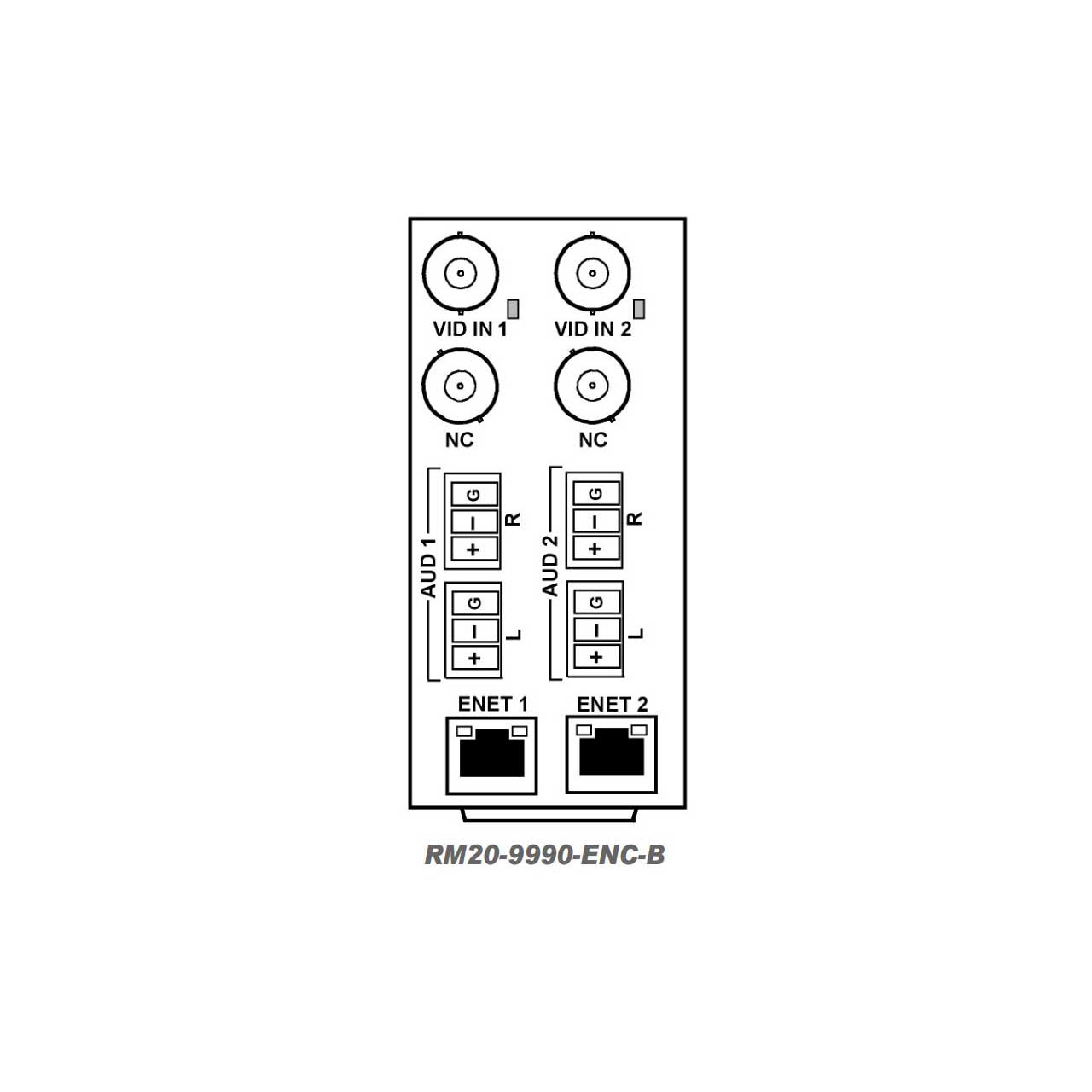

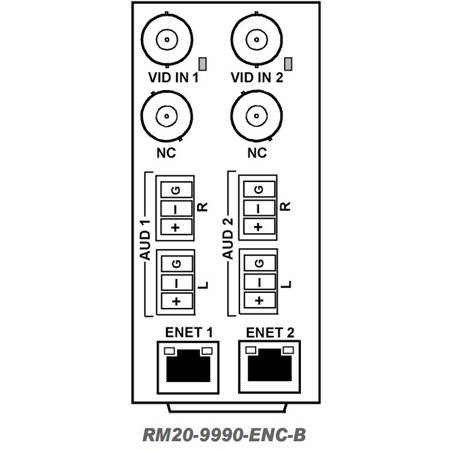

The Cobalt Digital RM20-9990-ENC-B is a 20-slot Frame Rear I/O Module (Standard Width) for the 9990-ENC-H264-IP openGear Encoder card. It consists of (2) 3G/HD/SD-SDI/SD BNC Composite In, (4) Balanced Analog Audio In, (2) 100/1000Base-T RJ-45 Ethernet ports.
The 9990-ENC-H264-IP encoder is designed specifically for distribution, with cost savings of offering only streaming IP instead of IP and DVB-ASI which is not needed for distribution. The 9990-ENC-H264-IP is perfectly suited for IP video distribution over the Internet or over a dedicated IP link. Utilizing the openGearr open-architecture platform, the 9990-ENC-H264-IP offers easy-to-use DashBoardT setup and control operator interface. Up to 10 of the cards can be installed in a 20-slot frame, using less than 150W total, for reduced operating expenses. In addition to HD/SD-SDI inputs, the 9990-ENC-H264-IP provides the flexibility of supporting SD analog composite video and an analog audio stereo pair per input channel.
