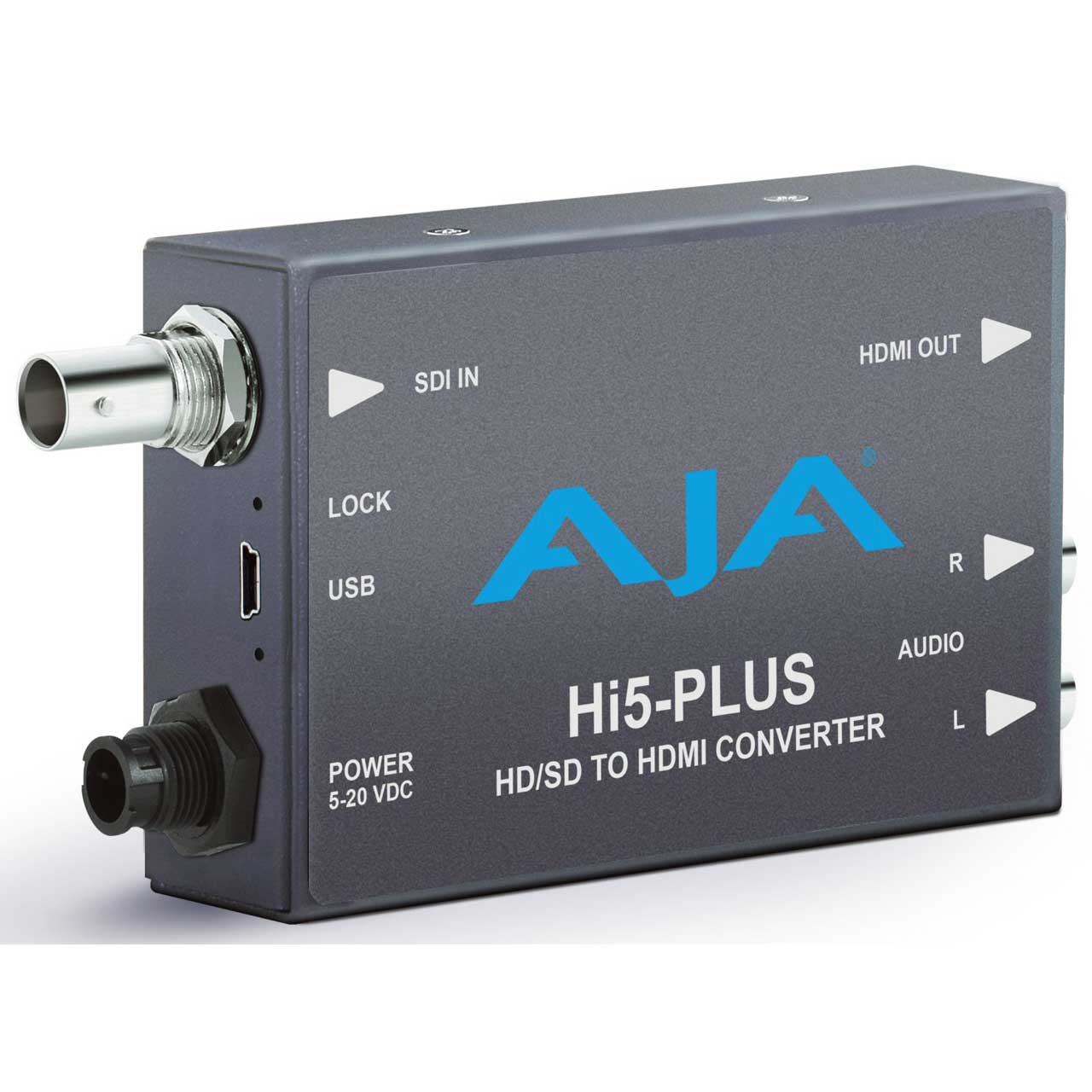

AJA HI5-PLUS 3G-SDI to HDMI Mini-Converter with PsF to P Support - 3.2 Foot HDMI Cable Included

ITEM #: AJA-HI5-PLUS MFG #: HI5-PLUS

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$505.00

Availability: In Stock
iAvailability Description Popup


    HI5-PLUS - Overview

    3G-SDI to HDMI Mini-Converter!

    Bring HDMI and 3G-SDI devices together with AJA's Hi5-Plus for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Hi5-Plus is AJA's next generation SDI-to-HDMI Mini-Converter for integrating HDMI monitors into professional SDI workflows with USB setup. When used with a compatible HDMI monitor, Hi5-Plus outputs a 30-bit Deep Color RGB signal that allows for incredible color representation. The 3G-SDI input on Hi5-Plus allows extremely high-quality signal representation through to the HDMI output for use with RGB workflows where image quality is critical.

    The Hi5-Plus integrates up to 16-channels of embedded SDI audio that are supported on input and can pass 8-channels of embedded HDMI audio on the output with audio delay from 0 to 7 frames for synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

    HDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF so the Hi5-Plus converts any incoming 1080PsF signals to1080p for compatibility with modern HDMI monitors.

    • Features:

      • 3G-SDI to HDMI 1.4
      • Easily integrate HDMI devices into SDI workflows
      • 3G capability for high data rate signals

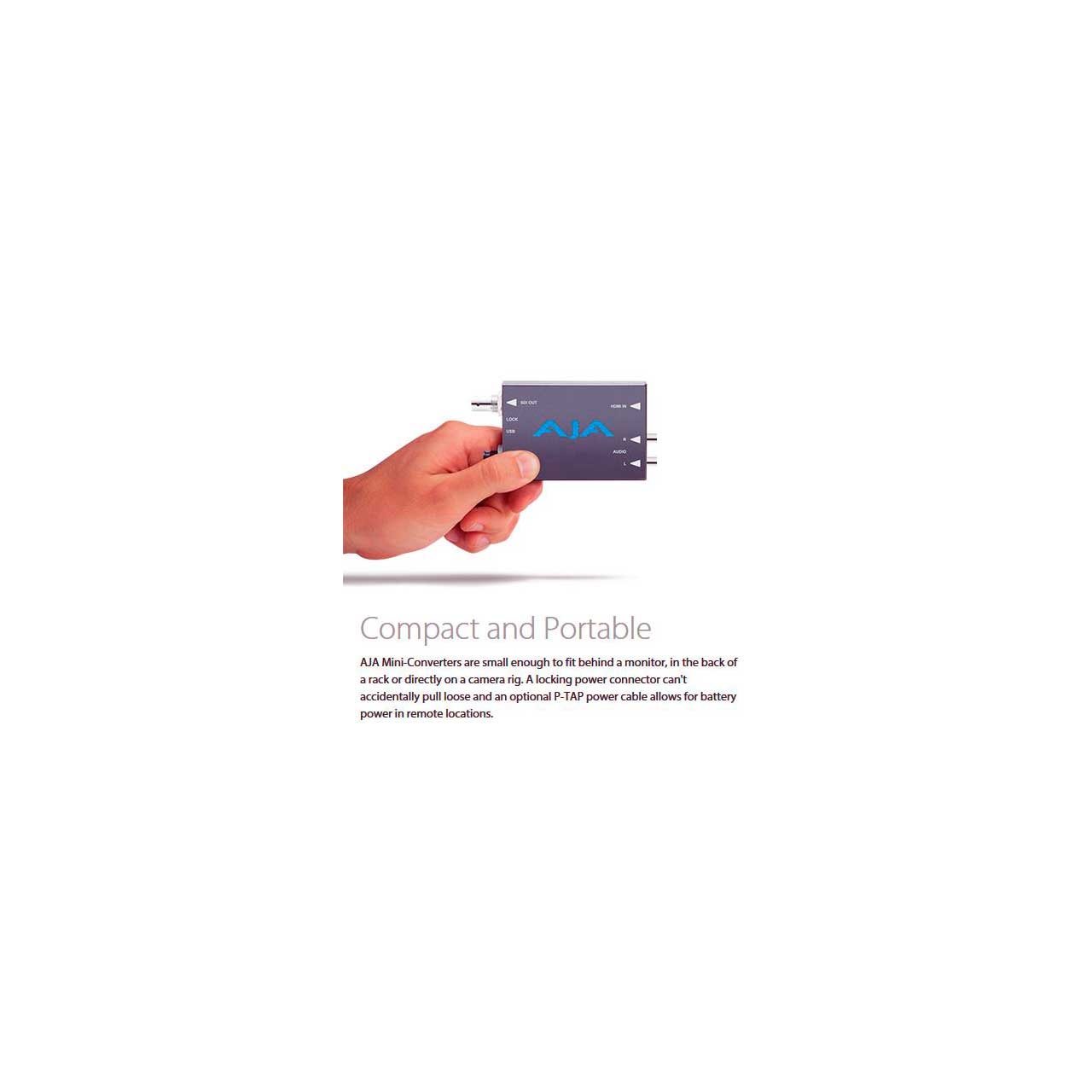

      • Compact size fits easily in small spaces
      • 16-channel embedded SDI and 8-channel HDMI audio
      • 2-channel RCA analog audio output
      • Configure via USB port and supplied Mini-Config software

    • Specifications:

      • Video Formats:
        - (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        - (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30
        - (HD) 1080i 50, 59.94, 60
        - (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        - (HD) 1080PsF* 23.98, 24, 25, 29.97, 30
        - (HD) 720p 50, 59.94, 60
        - (SD) 625i
        - (SD) 525i
        *Note: Converts to progressive
      • Video Input: 3G-SDI with embedded audio

        Video Outputs
      • HDMI with embedded audio up to 8-Channels
      • (selectable by Mini-Config)
      • 8-bit RGB 4:4:4
      • 10-bit YCbCr 4:2:2
      • 12-bit

      • Audio Input: SDI embedded audio, select from 16-Channels
      • Audio Output: 2-Channel RCA style (-10dBu nominal)
      • Dimensions (WxDxH): 4.6" x 2.4" x 1.0" (117mm x 61mm x 25mm)

        Power

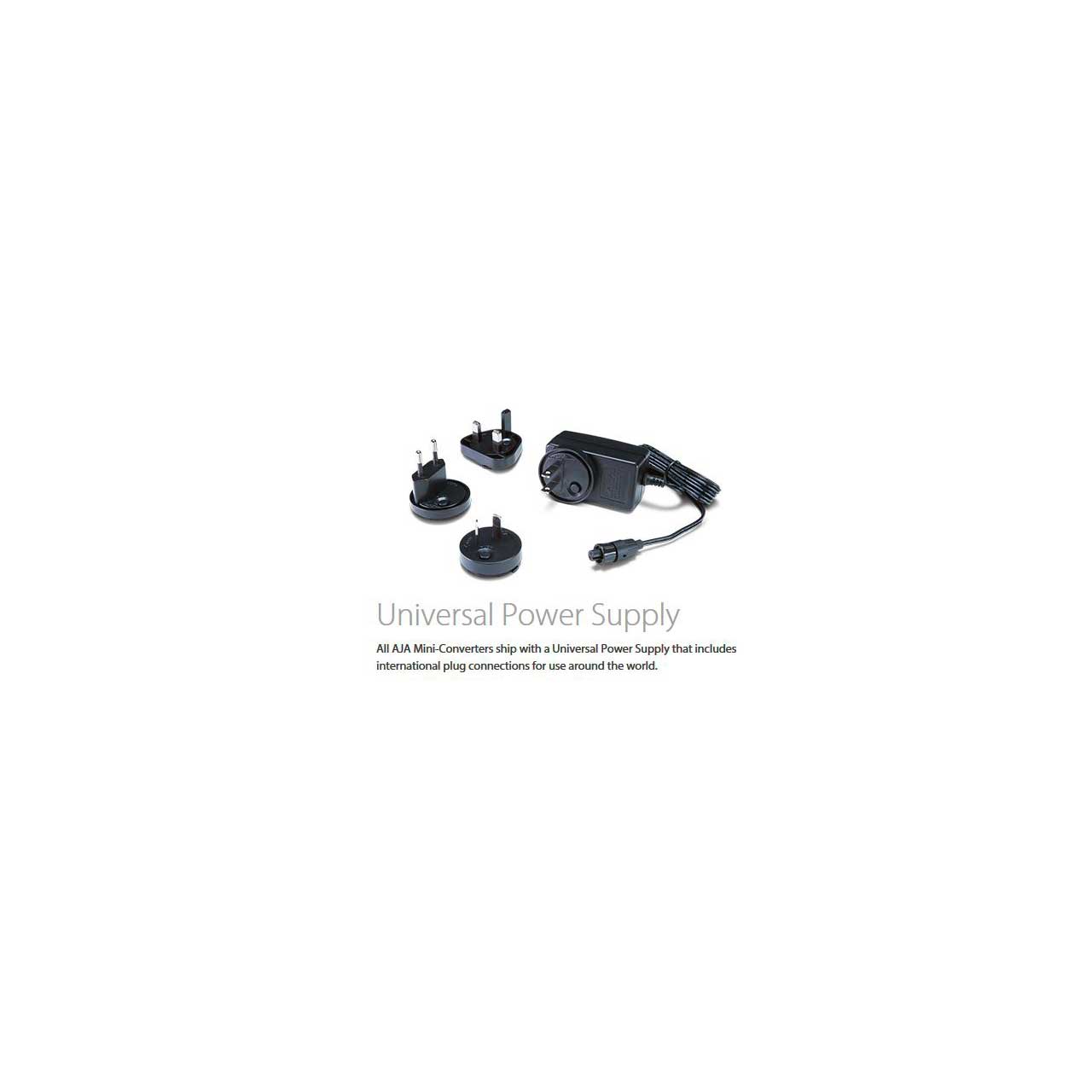

      • Uses AJA power supply model DWP-U-R1, included with purchase
      • 100-240V, 50/60 Hz universal input
      • +5V DC regulated, 7.5 watt capacity

        Environment
      • Safe Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Safe Storage Temperature (Power OFF): -40° - 140°F (-40°C - 60°C)
      • Operating Relative Humidity: 10% - 90% non-condensing
      • Operating Altitude: <10,000 feet (<3,000 meters)

    • Warranty:

      • All AJA Mini-Converters are covered by a 5-year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

    • GTIN:

      0892448000236
