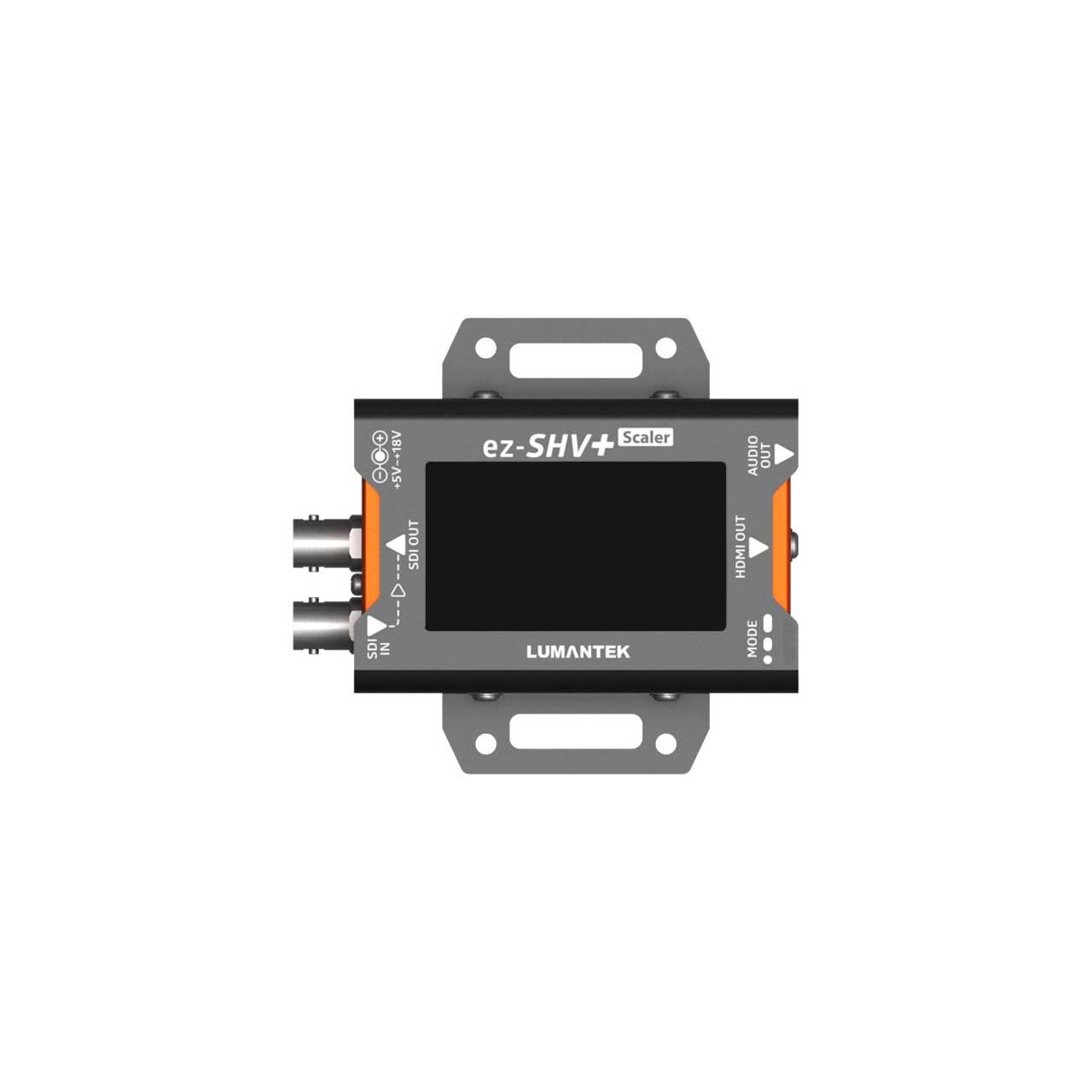

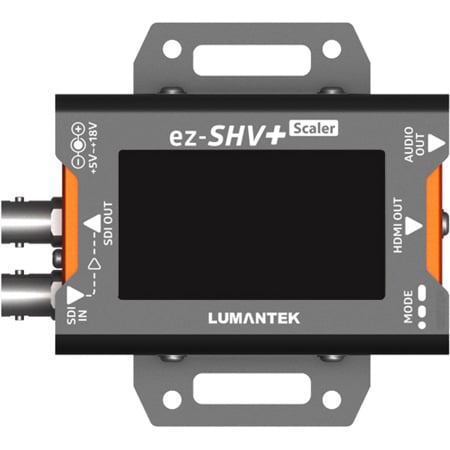

Lumantek ez-SHVPLUS SDI to HDMI Converter with Display and Scaler


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    EZ-SHV+ - Overview

    LUMANTEK's ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the 'dip switch', you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio. Through the 2.7 inch TFT LCD screen, you can monitoring Eye-Pattern, In/output source resolution, and Cable length at immediately. It is easy to check what is being played on the LCD screen. You can also check the sound through the audio level meter on the screen what is being played. ez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket. ez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as 'SHORT', 'MEDIUM' and 'LONG'. The Maximum power consumption of ez-SHV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity. It can be vertically flip(mirrored) the HDMI output by pressing the mode switch for more than 6 seconds while the LCD OFF. It is perfect to used for teleprompter and supports only HD resolutions.

    • Features:

      • 24/7 Video Monitoring
      • Eye-pattern (Eye-Diagram)
      • Mirrored output for teleprompter
      • Audio Level Meter
      • Detect Cable Length Automatically
      • Wall mountable
    • Specifications:

      • Data Input
      • SDI Video Input: SD/HD/3G-SDI (BNC 75&Omega) x1
      • Video Formats: - [email protected]/60 - 720x576i@50 - 1280x720p@50/59.94/60 - 1920x1080i@50/59.94/60 - [email protected]/24/25/29.97/30 - 1920x1080p@50/59.94/60 (3G-SDI Level-B not supported)

        Data Output
      • SDI LOOP Output: SD/HD/3G-SDI (BNC 75Ω)x1
      • Audio Output: Stereo Jack x1
      • HDMI Video Output: SD/HD/3G (HDMI Type A) x1

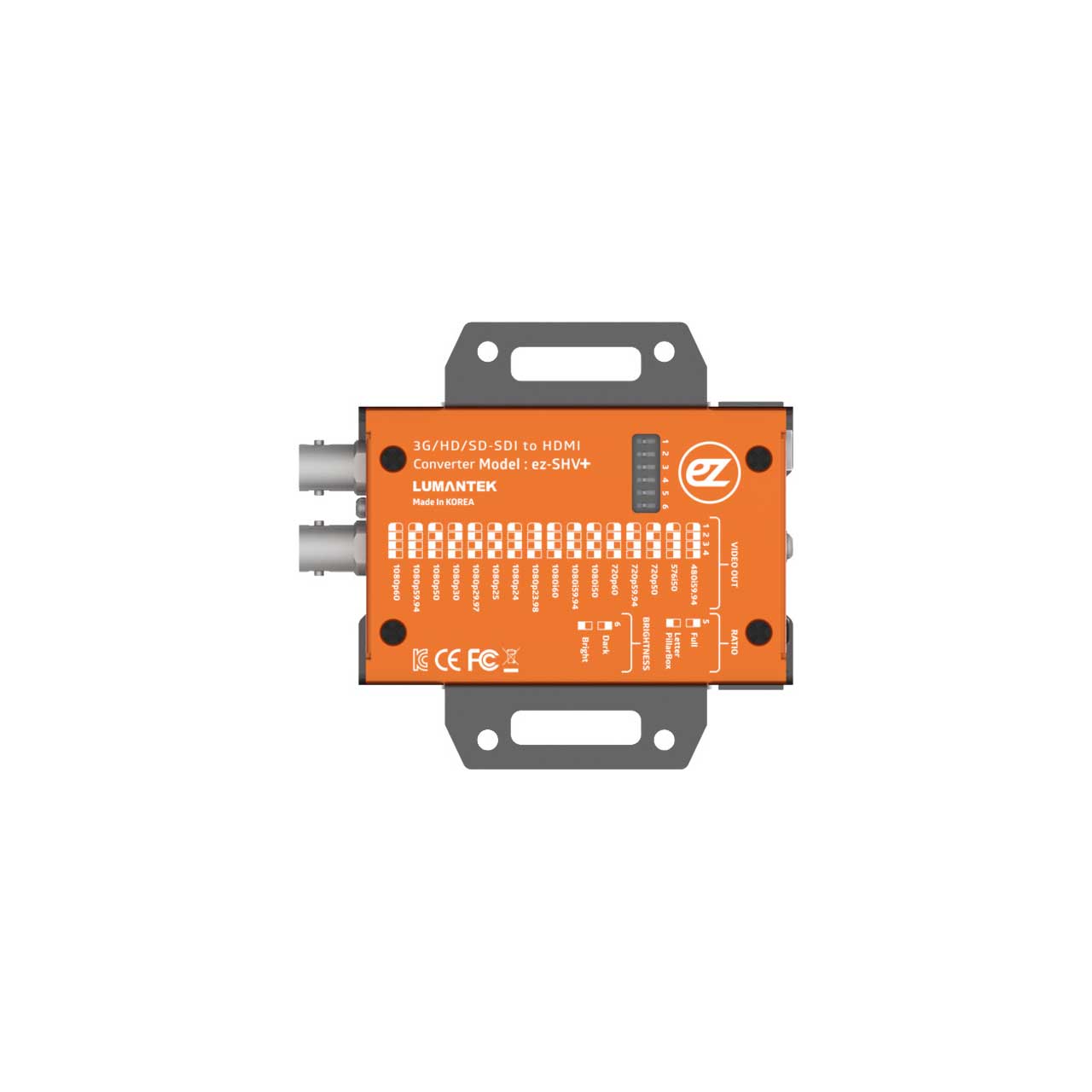

      • Video Formats: - [email protected] (DIP SW : 1111) - 720x576i@50 (DIP SW : 0111) - 1280x720p@50 (DIP SW : 1011) - [email protected] (DIP SW : 0011) - 1280x720p@60 (DIP SW : 1101) - 1920x1080i@50 (DIP SW : 0101) - [email protected] (DIP SW : 1001) - 1920x1080i@60 (DIP SW : 0001) - [email protected] (DIP SW : 1110) - 1920x1080p@24 (DIP SW : 0110) - 1920x1080p@25 (DIP SW : 1010) - [email protected] (DIP SW : 0010) - 1920x1080p@30 (DIP SW : 1100) - 1920x1080p@50 (DIP SW : 0100) - [email protected] (DIP SW : 1000) - 1920x1080p@60 (DIP SW : 0000)

      • Power : DC Power Input (DC Jack) x1, (Global Power Adapter) DIP Switch : (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, LCD Brightness MODE : (Push Switch) x1 LCD ON/OFF, Menu Selection
      • 2.7 inch TFT LCD: Input Video Display, Input SDI Eye Pattern,In/Output Video Resolution Display, Input Cable Length, Audio level meter

      • Power Input: DC +5V to +18V Power Consumption: 3W(max.)
      • Operation Temperature: 0~45°C

      • Dimension: 86.3x57.2x26.6 mm (include connector)
      • Weight: 0.3 kg (0.66 lbs)
    • GTIN:
