Cobalt RM20-9992-ENC-INDIGO 20-Slot Frame Rear I/O Module for PACIFIC 9992-ENC-INDIGO with 12G and 3G Coaxial Inputs

ITEM #: CB-RM209992ENCIG MFG #: RM20-9992-ENC-INDIGO

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$479.00

Our Price:

$454.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RM20-9992-ENC-INDIGO - Overview

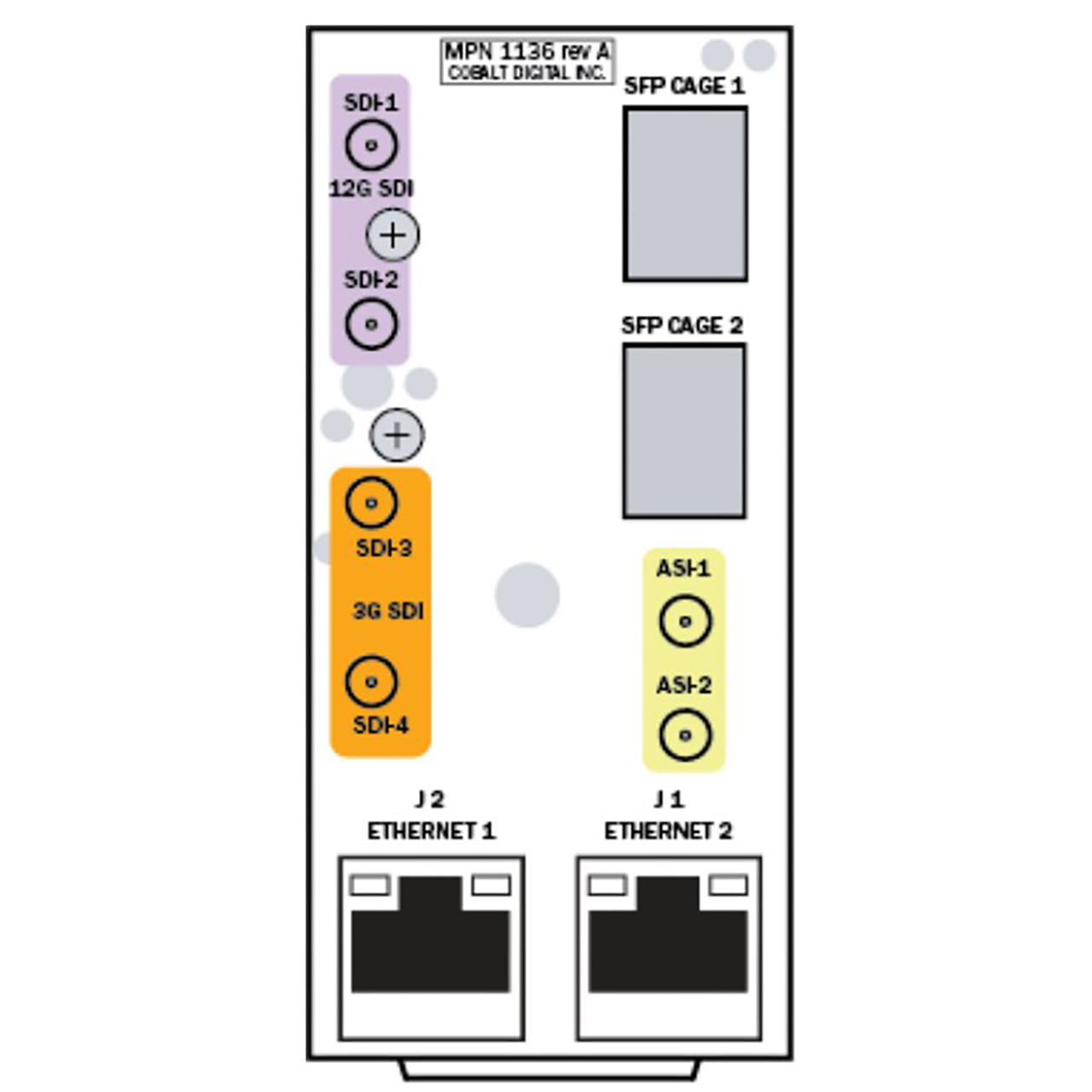

The Cobalt RM20-9992-ENC-INDIGO is a 20-Slot Frame Rear I/O Module for the Cobalt PACIFIC 9992-ENC-INDIGO openGear card with two 12G/6G/3G/HD-SD-SDI Coaxial Inputs, two 3G/HD/SD-SDI Coaxial Inputs, two ASI Output BNCs, two GigE Ethernet Media Ports, and one COMM/GPIO Port (All SDI coaxial connectors HD-BNC.)

The Cobalt Digital PACIFIC 9992-ENC-INDIGO is a Software Definable Encoder in openGear card format that is capable of handling up to 4 channels of 1080p encoding with additional +AVC licenses. The +AVC licenses can be upgraded to HEVC with the +HEVC license.

(Includes one +AVC, two +MP1L2-AAC licenses-2 pairs and SMPTE ST 2110 Integrated Support Hardware).

If a card has four +AVC and four +HEVC licenses, it can be upgraded to 4K using the +4K license.

  • Specifications:

    • 2x 12G/6G/3G/HD-SD-SDI Coaxial Inputs
    • 2x 3G/HD/SD-SDI Coaxial Inputs
    • 2x ASI Output BNCs
    • 2x GigE Ethernet Media Ports
    • 2x 25G SFP 28 cage receptacles
      (All coaxial connectors HDBNC)

  • Item Includes:

    • 1x PACIFIC 9992-ENC-INDIGO Software Definable Encoder

  • Warranty:

    • 5-Year Limited Warranty
