Blackmagic Design BDLKDUO2 DeckLink Duo 2 PCIe 3G-SDI Capture and Playback Card

ITEM #: BMD-BDLKDUO2 MFG #: BDLKDUO2

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$495.00

Availability: In Stock
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.


BDLKDUO2 - Overview

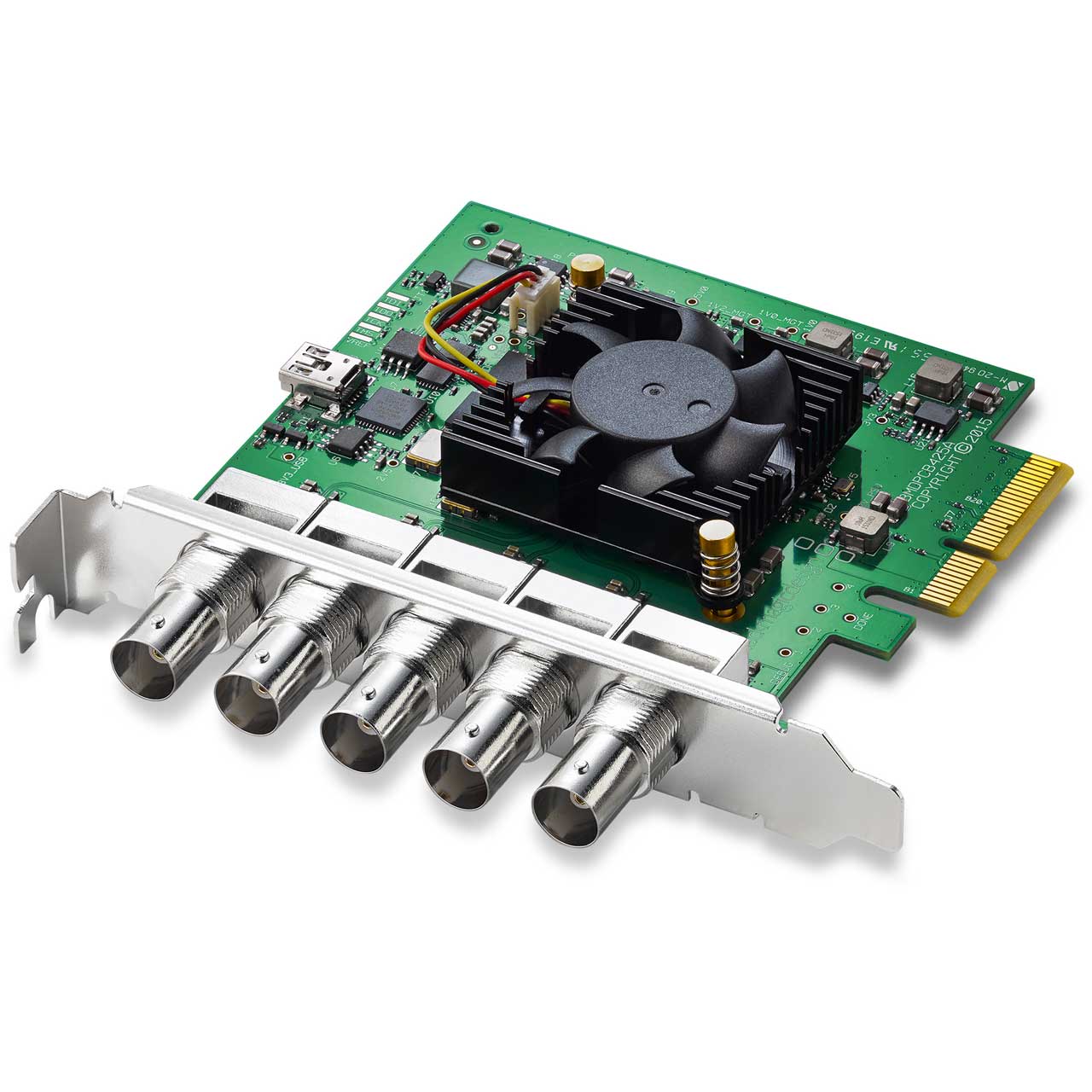

The Blackmagic Design DeckLink Duo 2 is a PCI Express capture and playback card that features 4 independent 3G-SDI connections and supports SDI formats in SD and HD up to 1080p60. You get the flexibility of 4 separate capture or playback cards in one! Plus, it's completely customizable so it's perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!

  • Features:

    • Supported Applications Include: The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom.

  • Specifications:

    • SDI Video Inputs: 4x bidirectional 12-bit SD/HD independently configurable as either Input or Output
    • SDI Video Outputs: 4x bidirectional 12-bit SD/HD independently configurable as either Input or Output
    • SDI Audio Inputs: 16 channels embedded in SD and HD
    • SDI Audio Outputs: 16 channels embedded in SD and HD
    • Sync Input: Tri-Sync or Black Burst
    • Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots
    • Supported Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes, 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4
    • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
    • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
    • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
    • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
    • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback
    • SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback
    • Color Space: REC 601, REC 709
    • Colorspace Conversion: Hardware based real time
    • HD Down Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
    • HD Up Conversion: Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
    • Cross Conversion: Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback
    • Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
    • OS Needed: Mac 10.15 Catalina,Mac 11.1 Big Sur or later, Windows 8.1 and 10, both 64-bit., Linux
    • Power Draw: 10 Watts

  • Item Includes:

    • DeckLink Duo 2
    • SD card with software and manual

  • Warranty:

    • 3 Year Limited Manufacturer's Warranty.

  • GTIN:

    9338716003796
