Magewell 11090 Pro Capture Quad SDI 4-Channel PCIe 2.0 SD/HD/3G/2K SDI Capture Card

ITEM #: MGW-11090 MFG #: 11090

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

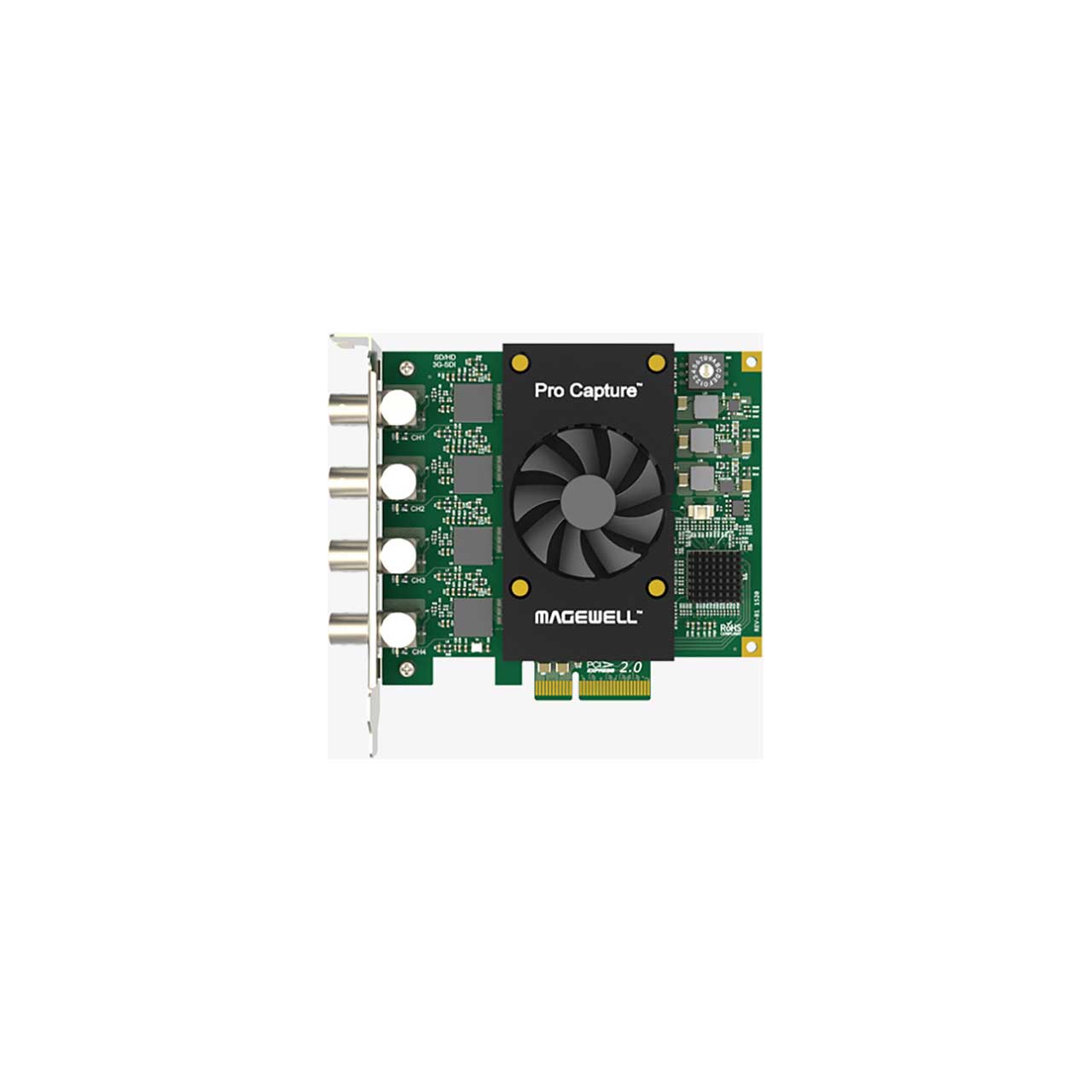

    11090 - Overview

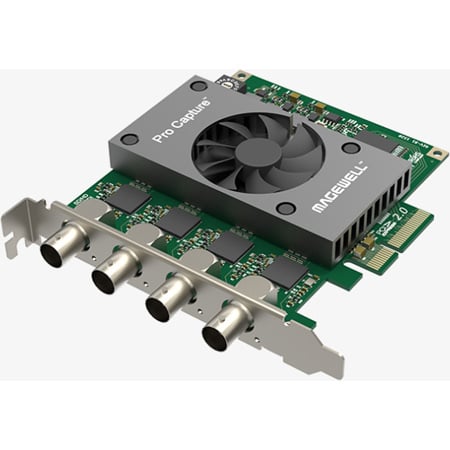

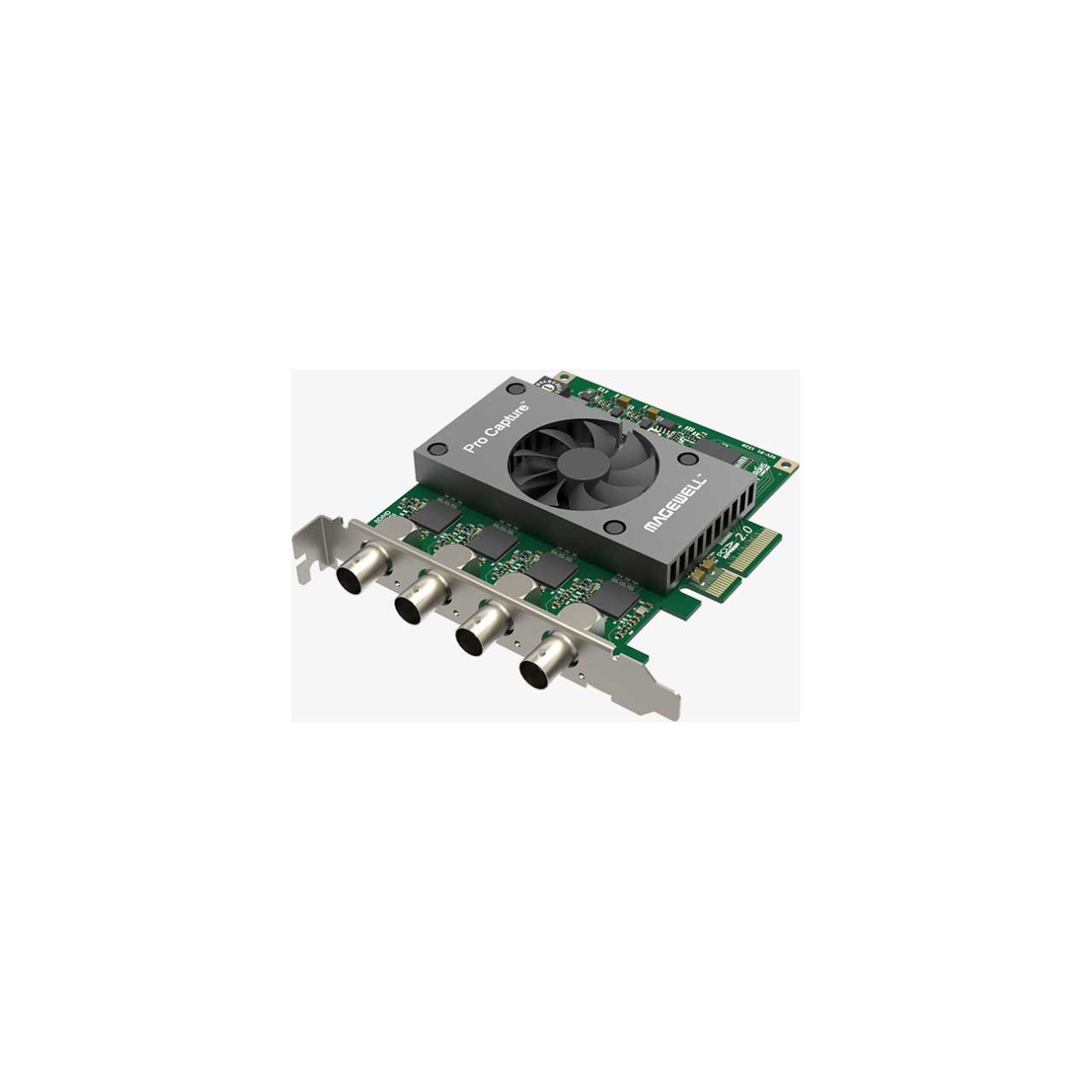

    The Magewell 11090 Pro Capture Quad SDI is a 4-channel HD PCIe 2.0 capture card that captures 4 SD/HD/3G/2K SDI signals with embedded audio.

    You can have multiple cards per system which allows multiple capture streams with ultra low latency. This card has an integrated cable equalizer that supports cable lengths of up to 755ft for HD signals. It has support for 10/12-bit color depth and up to 8 mono audio channels at 48kHz. It allows for capture image resolutions of up tp 2048 x 2160 pixels and frame rates of up to 144fps and offers full 10-bit video processing, timestamp and A/V synchronization with video processing features such as independent cropping, scaling, de-interlacing, OSD composition and aspect ratio, color format and frame rate conversion for each individual stream. With an on-board rotary switch, you can set the card number with 16 positions from 0 to F. The video and audio device names will be displayed in your software and will include the card number set by the rotary switch.

    It supports multiple Windows, Linux and Mac operating systems, Windows and Linux APIs and multiple software platforms such as vMix, Wirecast and Adobe Flash Media Encoder.

    • Features:

      • SDI
      • Integrated cable equalizer supporting cable lengths up to 230M for HD signals
      • Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
      • Support for 2K (2048x1080) mode
      • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
      • Support for 10/12-bit color depth
      • Support for extraction of SMPTE 352 payload identifier
      • Support for up to 8 (mono) audio channels at 48KHz (channels 1-8 from the 16 available in the SDI spec)
      • Support for extraction of audio formation information & channel status data
      • Limited support of 3Gb-DS: only the first stream can be captured
      • Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit: captured as 4:2:2; RGB 4:4:4: R/B sub-sampled
      • Support for Closed Caption

      • Ultra Low Latency Mode
      • High-Speed Memory
      • LED Status Indicator
      • Rotary Switch
      • Auto or manual selection of input and capture aspect ratio
      • Auto or manual selection of input color format & quantization range
      • Auto or manual selection of capture color format, quantization range & saturation range
      • Support for input video resolutions up to 2048 x 2160 pixels
      • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
      • Full 10-bit video processing
      • Multiple cards per system and multiple capture streams
      • Timestamp and A/V synchronization
      • Multiple cards in one system can have Firmware upgrades done simultaneously and without a system power shutdown
    • Specifications:

      • Supported OS
      • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
        Linux (support x86, x64 & ARM architecture)
      • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
      • CentOS 6.5/7 (x86 & x64)
      • Fedora 25/26/27 (x86 & x64)
      • Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
      • OS X 10.9/10.10/10.11
      • macOS 10.12/10.13

        Supported APIs
      • DirectShow
      • DirectKS
      • Wave API/DirectSound/WASAPI
      • V4L2
      • ALSA

        Supported Software
      • VLC
      • VirtualDub
      • OBS
      • XSplit
      • vMix
      • VidBlaster
      • Wirecast
      • Microsoft Media Encoder
      • Adobe Flash Media Encoder
      • Any other DirectShow/V4L2 encoding/streaming software

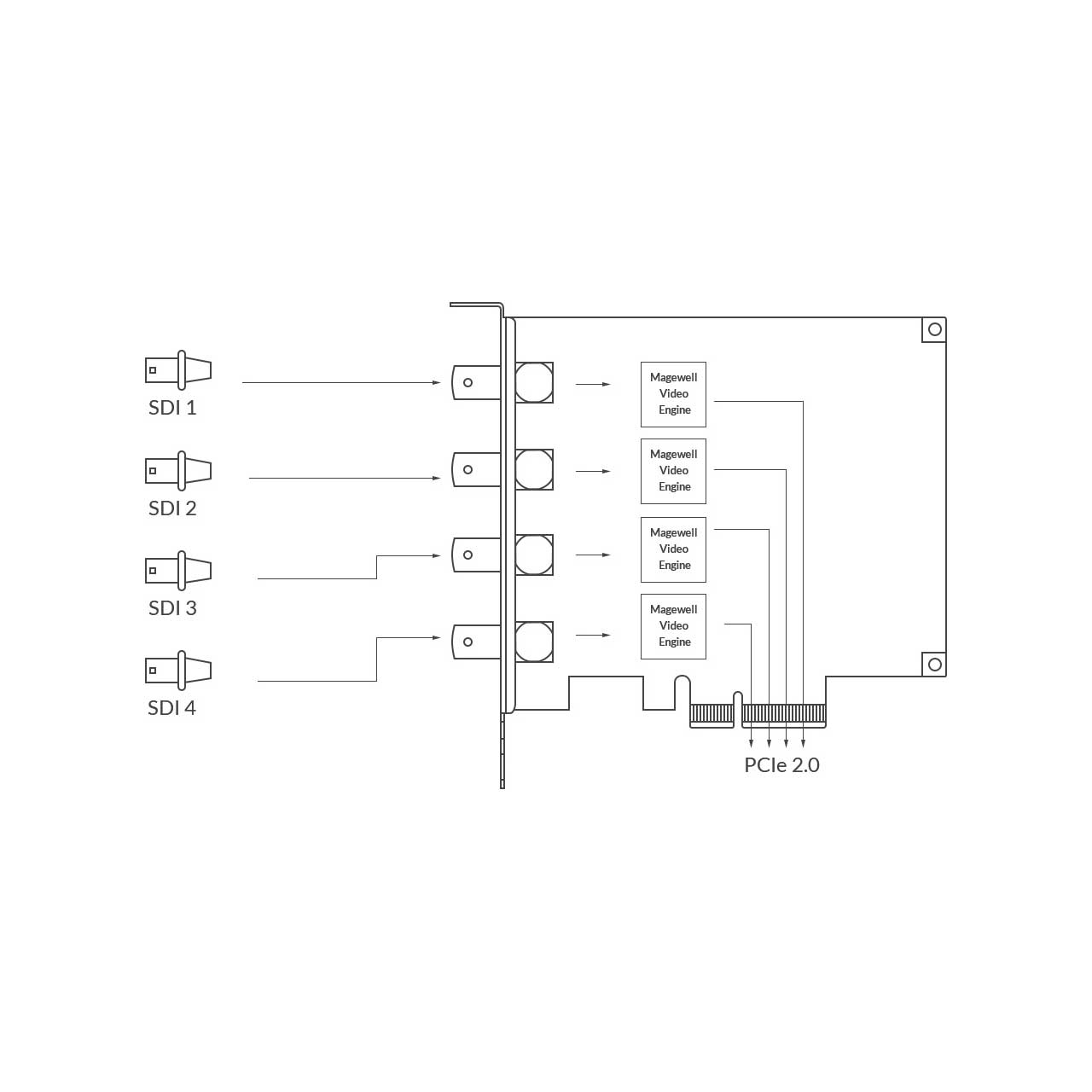

        Input Interfaces

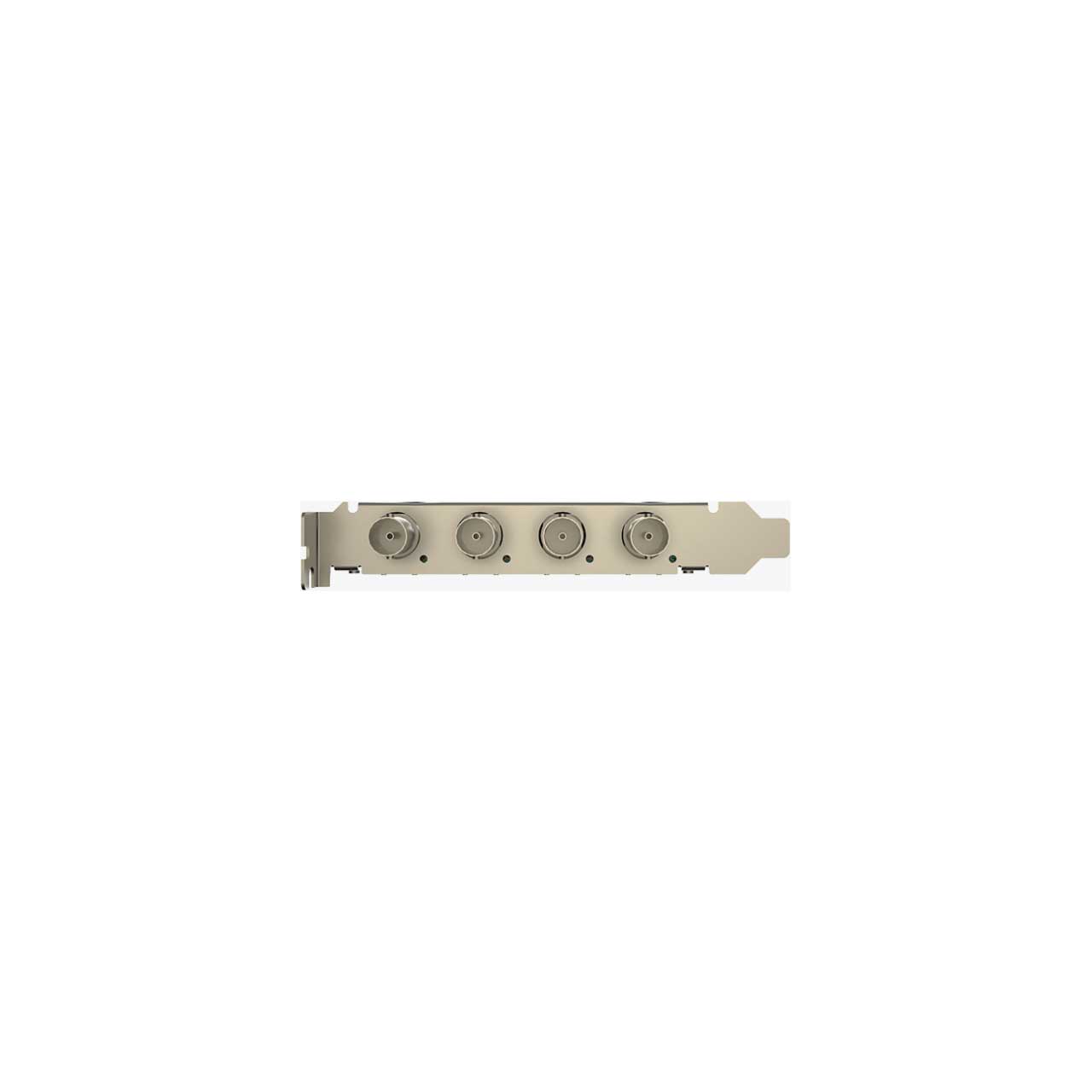

      • BNC: SD/HD/3G SDI
      • Host Interfaces: PCIe Gen2 x4

        Video Engine
      • 10-bit video processing
      • Deinterlace
      • Cropping
      • Color Adjustment
      • Hardware Timestamp
      • Color Space Conversion
      • Up/down Conversion
      • Aspect Ratio Conversion
      • OSD
      • SG-DMA Transmission mode

        Video Capture Formats
      • Support for capture image resolutions up to 2048 x 2160 pixels
      • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280 x 1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920 x 1080 = ~80fps)
      • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
      • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
      • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
      • Support for 4:4:4 10-bit capture formats: V410, Y410
      • More capture formats are supported via Magewell Capture SDK for DirectKS

        Video Capture SG-DMA
      • ~400MB/s per channel DMA bandwidth in PCIe 2.0 system
      • ~200MB/s per channel DMA bandwidth in PCIe 1.0 system
      • Support for auto detection of Intel tiled GPU surface
      • Support for DirectGMA for AMD video adapter chipsets
      • Support for GPUDirect for Nvidia video adapter chipsets

      • Magewell Capture SDK for DirectShow for easy integration (Windows)
      • Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

        Physical & Power
      • Form Factor: Normal profile PCIe x4 Add-on Card, 112.15mm x 102.92mm (without PCI bracket)
      • Max Current @ 12V: ~ 0.77A
      • Max Current @ 3.3V: ~ 2.52A
      • Max Power Consumption: ~ 17.1W
      • Operating Temperature: 32°F - 104°F
      • Storage Temperature: -4°F - 158°F
      • Relative Humidity: 5% to 90% non-condensing
    • Warranty:

      • 2 year
