    WAVE RTR-32X32 - Overview

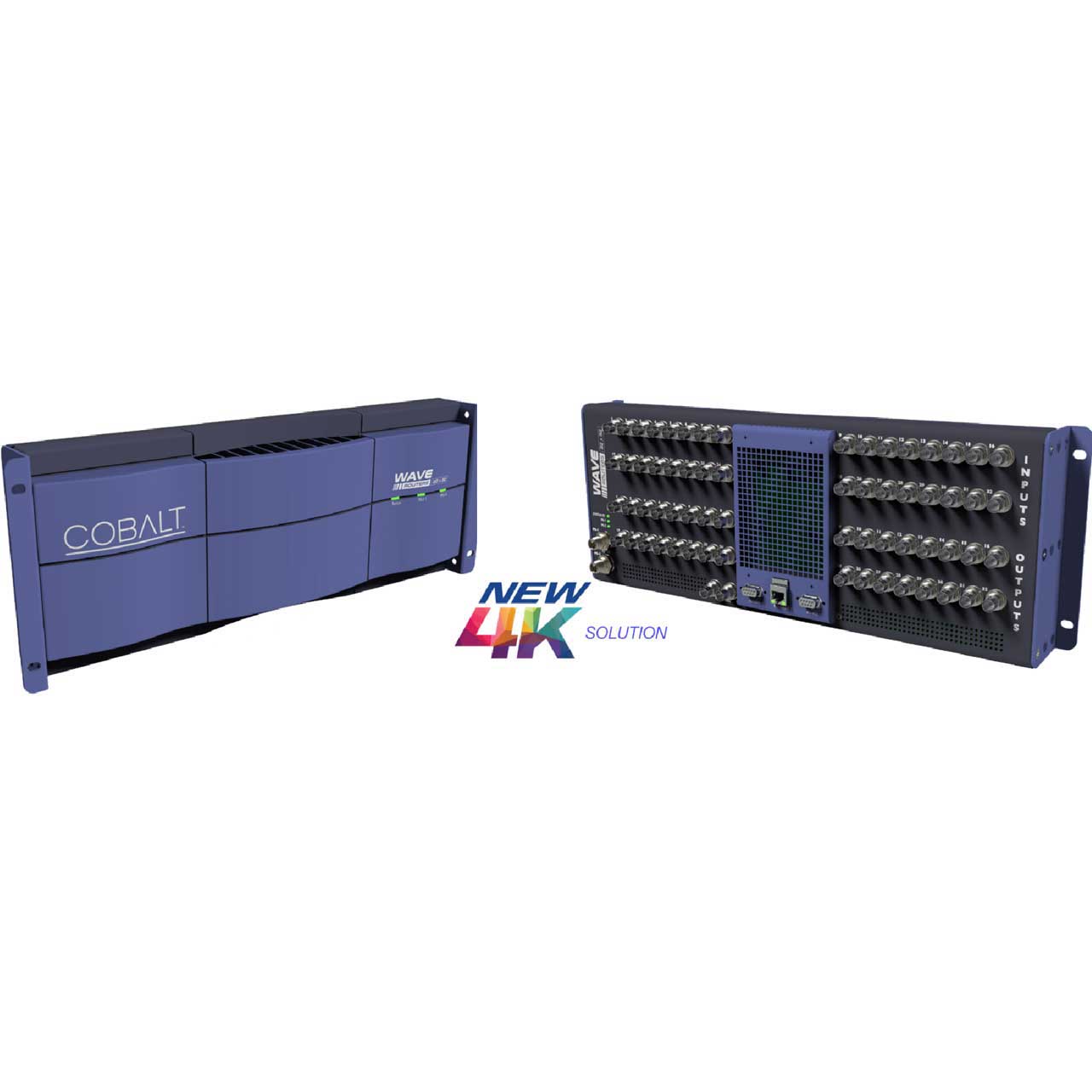

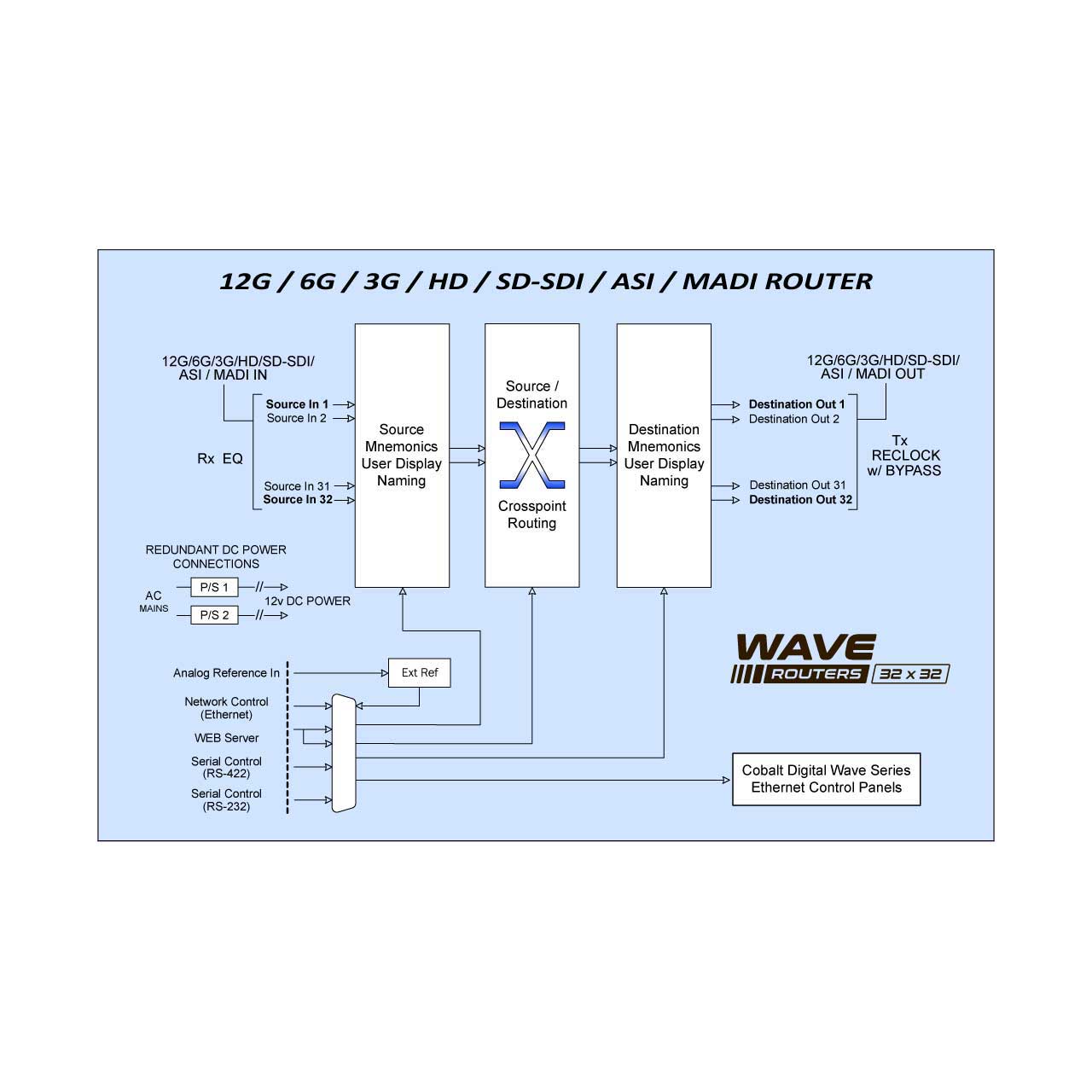

    Cobalt Digital introduces the WAVE RTR-32x32 12G SDI/ASI/MADI router. It is a 32x32 Crosspoint solution contained within a compact 4RU (7 inch) tall frame that is a thin 3.75 inch deep chassis.

    This router offers unprecedented flexibility and ease of use and integration. This unit has a single Ethernet port for IP-based protocols such as SW-P-08 and PESA PNET.

    The WAVE series also offers RS 422 and a RS 232 9pin serial communication ports. The integrated web server supports browser control and system setups which can be saved and recalled quickly.

    Routing setups can be saved as presets, allowing one-button engage with WAVE Series remote control panels.

    This compact design is specifically optimized for 12G SDI operation but handles lower SDI rates with ease.

    • Features:

      • Compact 4RU solution
      • Direct interface compatibility SW-P-08 & PESA PNET protocol
      • Compatibility with other brands of control panels (conforming with SW-P-08 or PESA PNET protocol)
      • Design specifically optimized for 12G support
      • Web browser remote control status monitoring, setup and controls
      • External analog reference for RP-168 switch point timing


    • Specifications:

      • 12G / 6G / 3G / HD / SD SDI / ASI / MADI

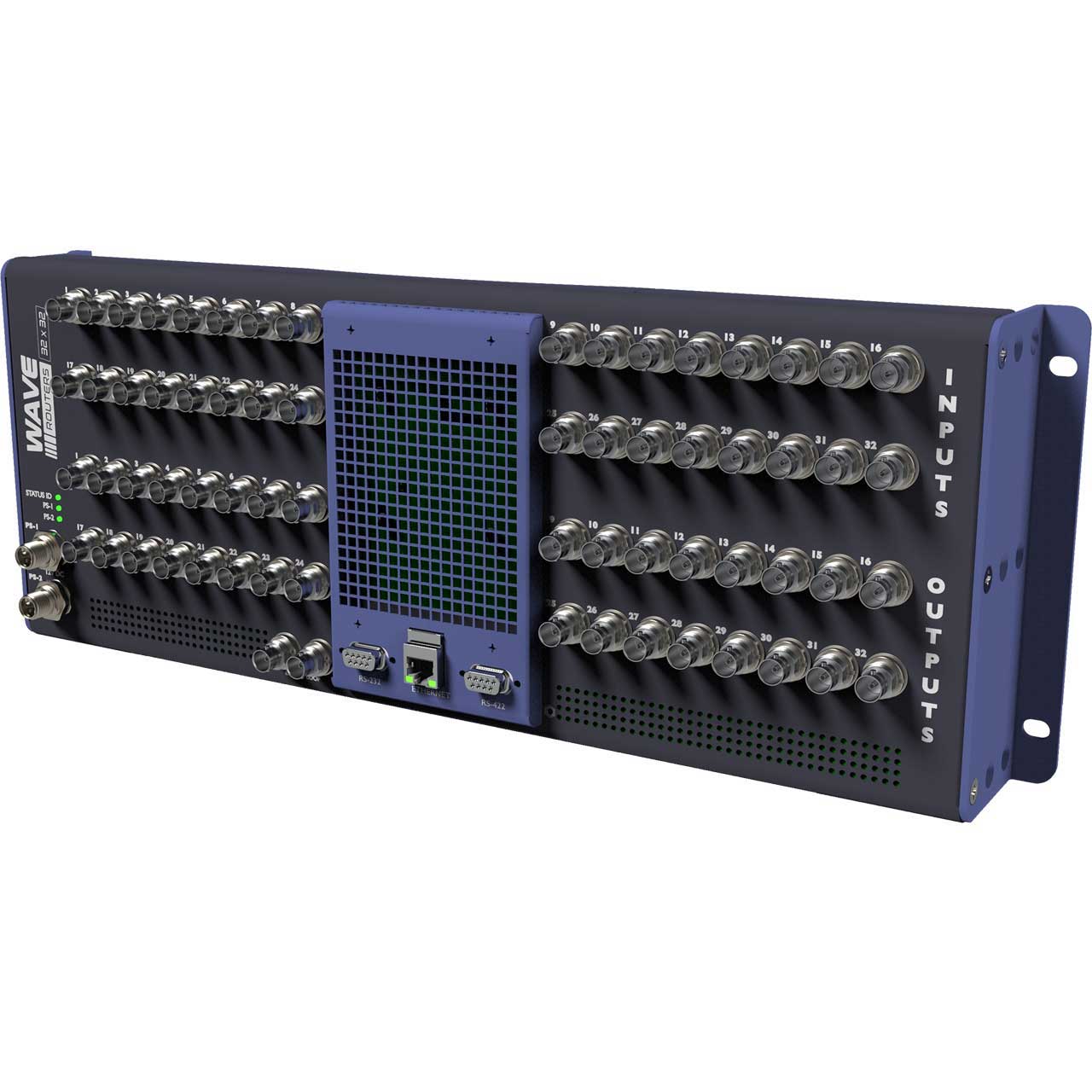

      • (32) SDI / ASI / MADI INPUTS
      • (32) SDI / ASI / MADI OUTPUTS
      • Full size 75 ohm BNC connectors
      • Quite fan-less operation w/Fan option for operation in environments above 50°C
      • 9-PIN COMM PORTS (RS232 & RS422)
      • (1) 10/100/1000 BaseT Ethernet Port
      • Redundant power supply connections
      • All coaxial connectors full size BNC
      • Weight: < 11 lbs
      • 19 inch rack mount - 7 inch tall - 3.75 inch deep chassis including front bezel and rear connectors


    • Item Includes:

      • 1x Cobalt Digital WAVE RTR 4RU 32x32 SDI/ASI/MADI Router Crosspoint


    • Warranty:

      • Five year
