The ClearCom RSC-2700 is an Encore Intercom System 8-source by 24-destination Assignment Station Panel that offers remote switching of partyline assignments for medium to large-size systems. Encore™ is a 2-wire analog partyline system with intuitive plug-and-play design and superior "Clear-Com Sound" audio clarity.
The sources are the channels from a main station or paryline interface from a matrix or similar system. The destinations are the channels from a beltpack or another interface. Once programmed, different presets can be selected with either a contact closure, PC, or directly from the front panel. The front panel can be locked to prevent unauthorized tampering. Up to six RCS-2700 panels can be wired together in various configurations for up to a 15-source by 72-destination system. By utilizing RS-232 data connections, the PC can be located up to 300 ft (90 m) away from the RCS-2700's location.

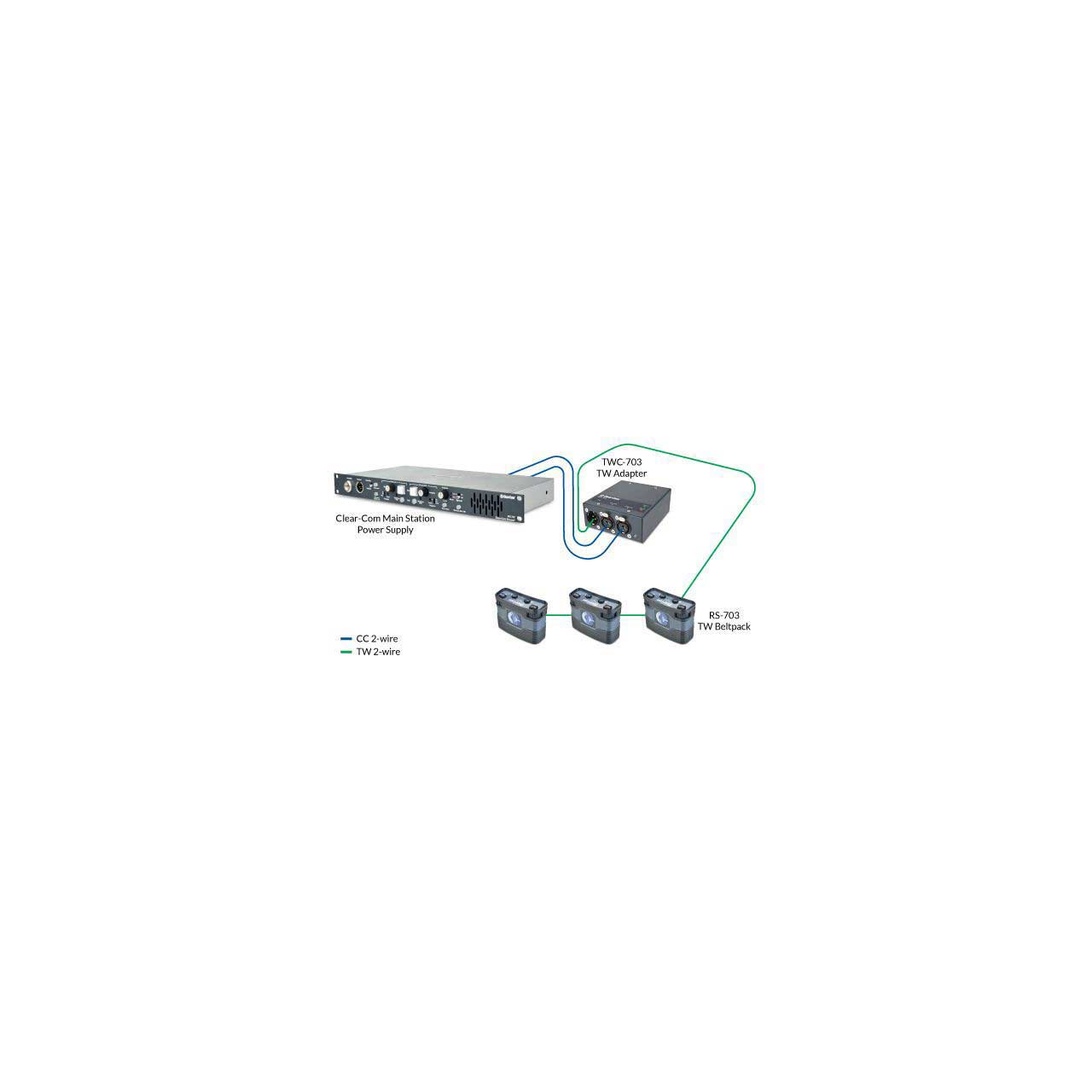

Please Note! This item is just one component of a larger system. Please refer to the diagrams for ideas and recommendations on how to build a Clear-Com intercom system to suit your needs.
