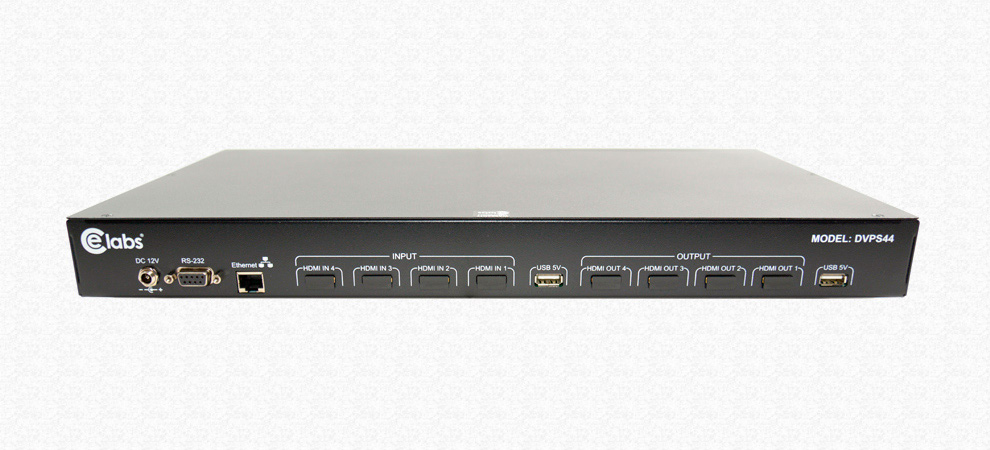

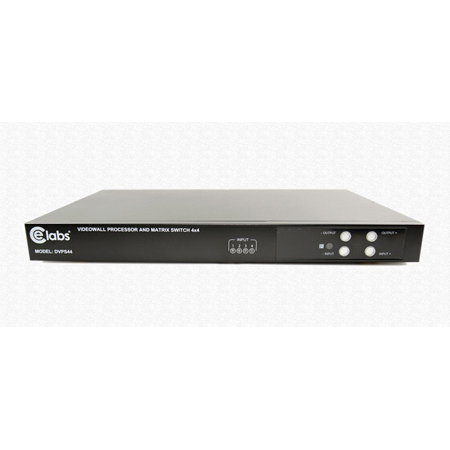

CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor
  • CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor
  • CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor
  • CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor
  • CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor
  • CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor
Questions? Ask a Markertek Expert:
800-522-2025 Email

CE Labs DVPS44 4x4 HDMI Matrix Video Wall Processor

Manufacturer: CE Labs

Item #: CEL-DVPS44   •   MFG #: DVPS44


List Price:$3,250.00
Our Price:$2,524.15

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -


    The DVPS44 4×4 HDMI Matrix TV Wall Processor, provides the most flexible and cost effective solution in the market to route high definition video sources, plus multi-channel (up to 7.1-channel) digital audio, from any of the four HDMI sources to remote displays. Can be used as a Matrix Switch (4 Inputs/4 Outputs), or as a wall processor.

    • Features

      • Allows any HDMI display to view any HDMI source at any time like a Matrix Switch or Wall Processor
      • Supports 7.1 channel digital audio
      • Supports default HDMI EDID and learns the EDID of displays
      • Can switch any output channels to any HDMI inputs by push-in button, IR remote control, RS-232 control and Ethernet control
      • Easy installation with rack-mounting & wall-mounting designs
      • Fast response time for channel switch
      • Four user-selectable HDMI outputs from 640x480 to 1920x1200
      • Supports HDMI/DVI input, from 640x480 to [email protected], interlaced or progressive
      • Resize, position, zoom, rotation, fade-in, fade-out to scale output video
      • Each HDMI output has an independent controllable display area
      • HDMI and HDCP compliant
      • Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
      • Several Image parameters and layouts can be saved in computers and can be loaded for later use
      • Software control through RS-232 and Ethernet
      • Firmware upgradable for support of new features and technology enhancements
    • Specifications

      • Video Format Support: HDMI / DVI
      • Resolution: 480i/480p/720p/1080i/1080p60/[email protected] 36-bit color
      • PCB stack-up: 8-layer board [impedance control – differential 100Ω ; single 50Ω]
      • Video Loop-out: NO
      • Video Bandwidth: Single Link 225MHz [6.75Gbps]
      • Supported Resolution: 640x480 to [email protected] Progressive or Interlaced
      • Audio Support: Surround sound (up to 7.1ch) or stereo digital audio
      • System Control: RS–232 / IR / Front Panel
      • Input TMDS Signal: 1.2 Volts (peak-to-peak)
      • EDS Protection: [1] Human body model - Ý 19kV, [air-gap discharge] & Ý12kV [contact discharge]
      • Input: 4 x HDMI, 1 x RS-232, 1 x Ethernet, IR lent receiver
      • Output: 4 x HDMI, 2 x USB
      • HDMI Connector Type: Type A (19-pin female)
      • USB Connector Type: Type A
      • RS232 Connector: DE-9 (9- pin D-sub female)
      • RJ45 Connector: WE/SS 8P8C with 2 LED indicators
      • Dimensions (LxWxH): 440x247x42mm [17.3”x9.7”x1.7”]
      • Power Supply: 12V 5A DC
      • Operating Temperature: 0 to 40°C [32~104°F]
      • Storage Temperature: -20~60°C [-4~140°F]
      • Relative humidity: 20 to 90% RH [no condensation]
    • GTIN:
