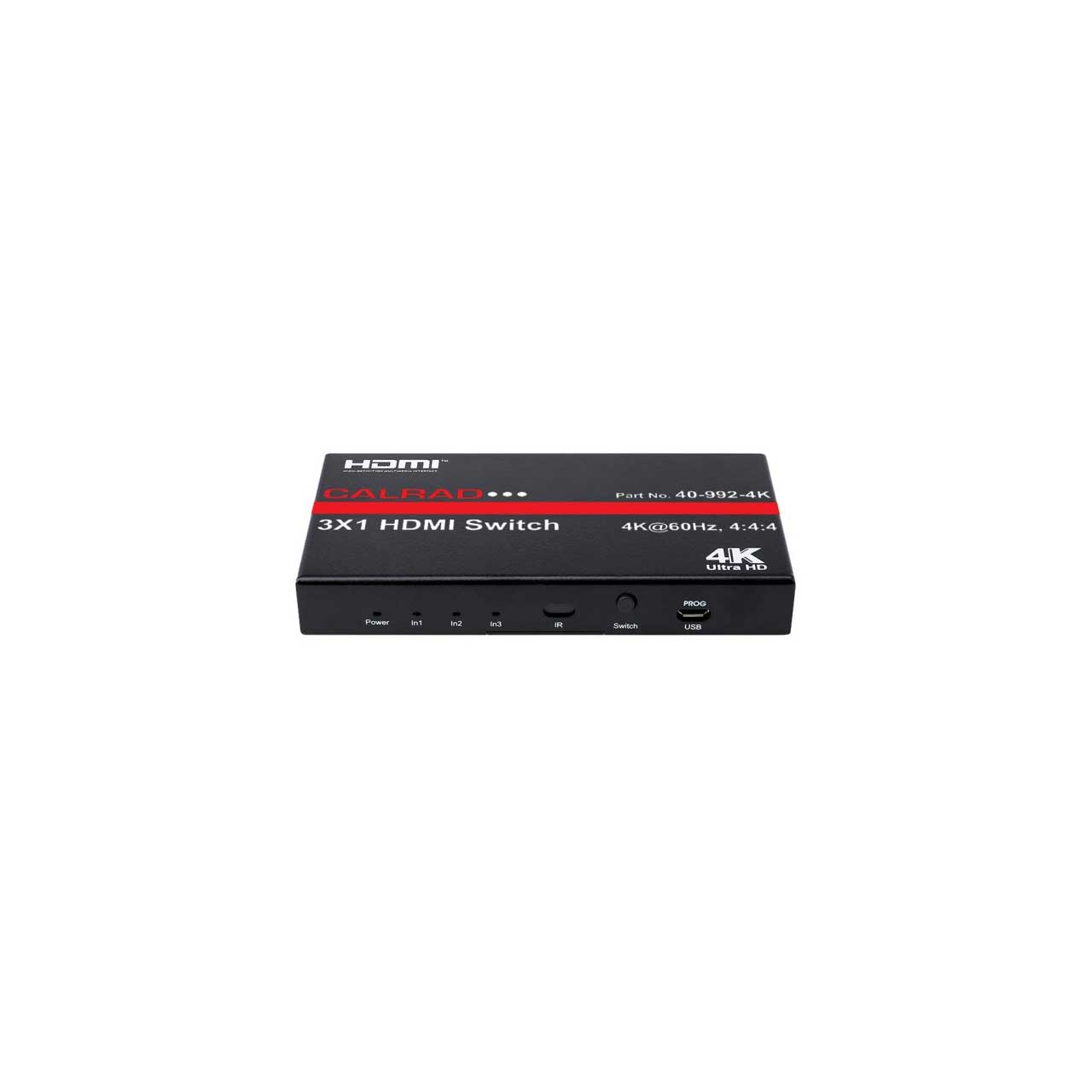

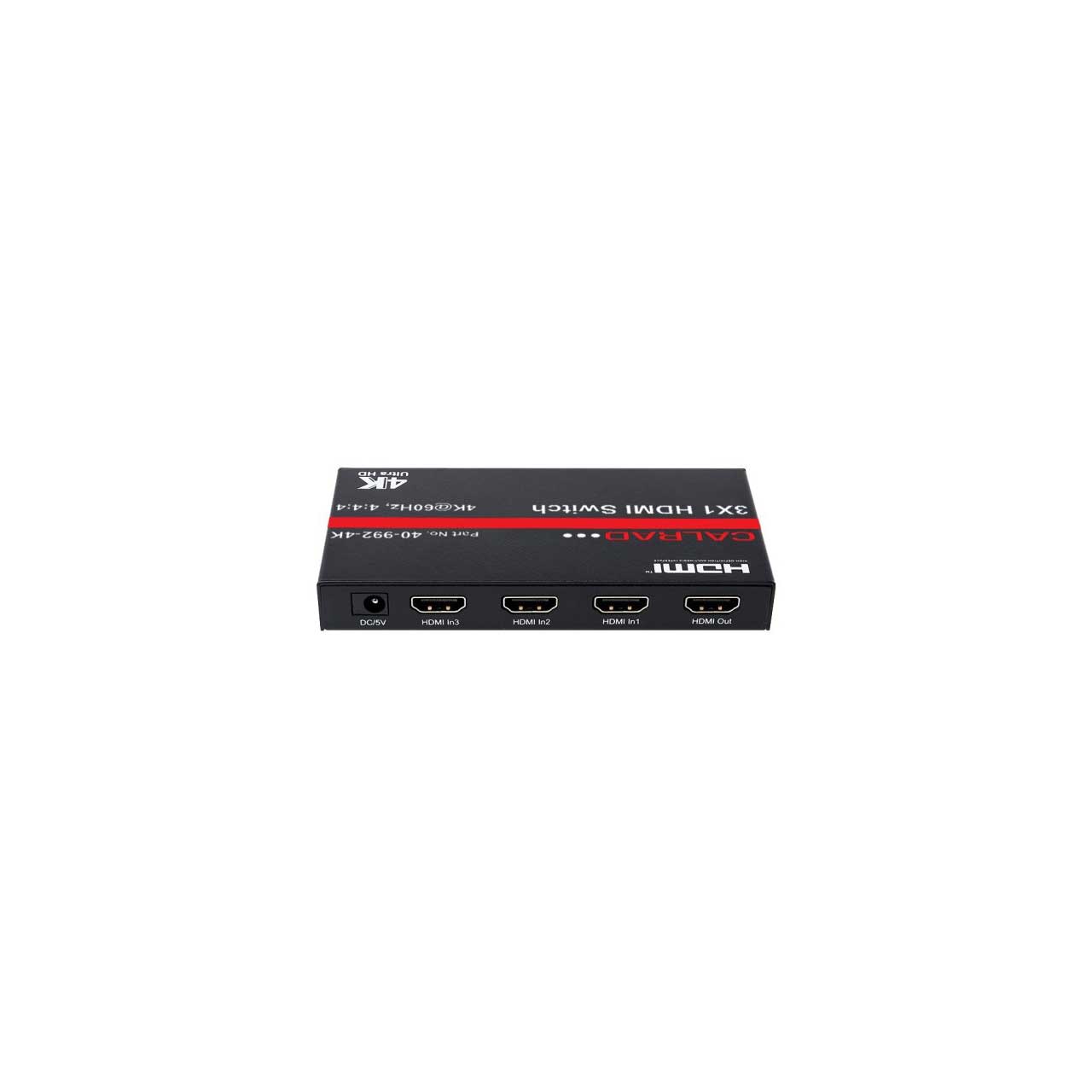

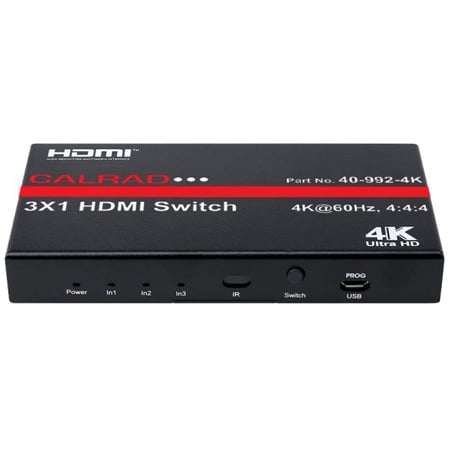

Calrad 40-992-4K 3 x 1 HDMI Switcher with IR Remote Control - HDCP 2.2 - 3D Compliant

ITEM #: CLRD-40-992-4K MFG #: 40-992-4K

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$107.95

Our Price:

$84.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    40-992-4K - Overview

    40-992-4K / 4K@60Hz 4:4:4, 3 x 1 HDMI Switcher with IR Remote Control, HDCP 2.2, 3D Compliant
    Calrads 3 x 1 HDMI switcher routes high definition video (in multiple resolutions up to 4K@60Hz) and digital audio from any one of the three HDMI sources to a single HDMI output. Three inputs accommodate connection of up to three high definition 4K@60Hz video sources, such as satellite systems and HD DVD players, streaming set top boxes. The output can deliver high definition audio/video signals to a high definition display directly or any other hardware such as A\V Receivers, etc.. Aside from the front panel manual switching, the 40-992-4K can also be controlled via the IR remote that is provided or the switcher. The compact design allows the unit to be easily mounted anywhere. The 40-992-4K also extends the range of HDMI compliant devices by equalizing and re-clocking the HDMI signal. Includes IR Remote control and DC power supply. The 40-992-4K will retain all settings if power is lost.

    • Specifications:

      • HDTV Resolutions: 4K@60Hz, 1080p, 1080i, 720p, 480p
      • Bandwidth: 18 Gbps (Maximum)
      • AV\V Connectors: Inputs 3 x HDMI, Output 1 x HDMI
      • Supports: 3D, HDCP2.2\HDCP1.4, 12bit per channel (36bit all channels) deep color

        Audio Support:
      • LPCM 7.1, DTS Digital, Dolby Digital,DTS-HD and Dolby True HD
      • Supports HDMI 2.0
      • Supports HDR10
      • Supports CEC Pass Through

      • Upgradable Firmware: (Front Panel Micro USB Port)
      • IR Remote: 7 Button (Credit Card Size), IR frequency: 38Khz, Battery CR2025 button cell
      • Operating Temperature: -41 to +95 ®F (-5 to +35 ®C)
      • Operating Humidity: 5 to 90% RH (No Condensation)
      • External Power Cable: 6 ft. USB Type `A' to 2.1mm coax plug
      • Chassis: Metal
      • Dimensions: L-4.93" x W-2.58" x H-0.68"
      • Weight: 7.34oz
      • Color: Black

    • Item Includes:

      • 1x 40-992-4K

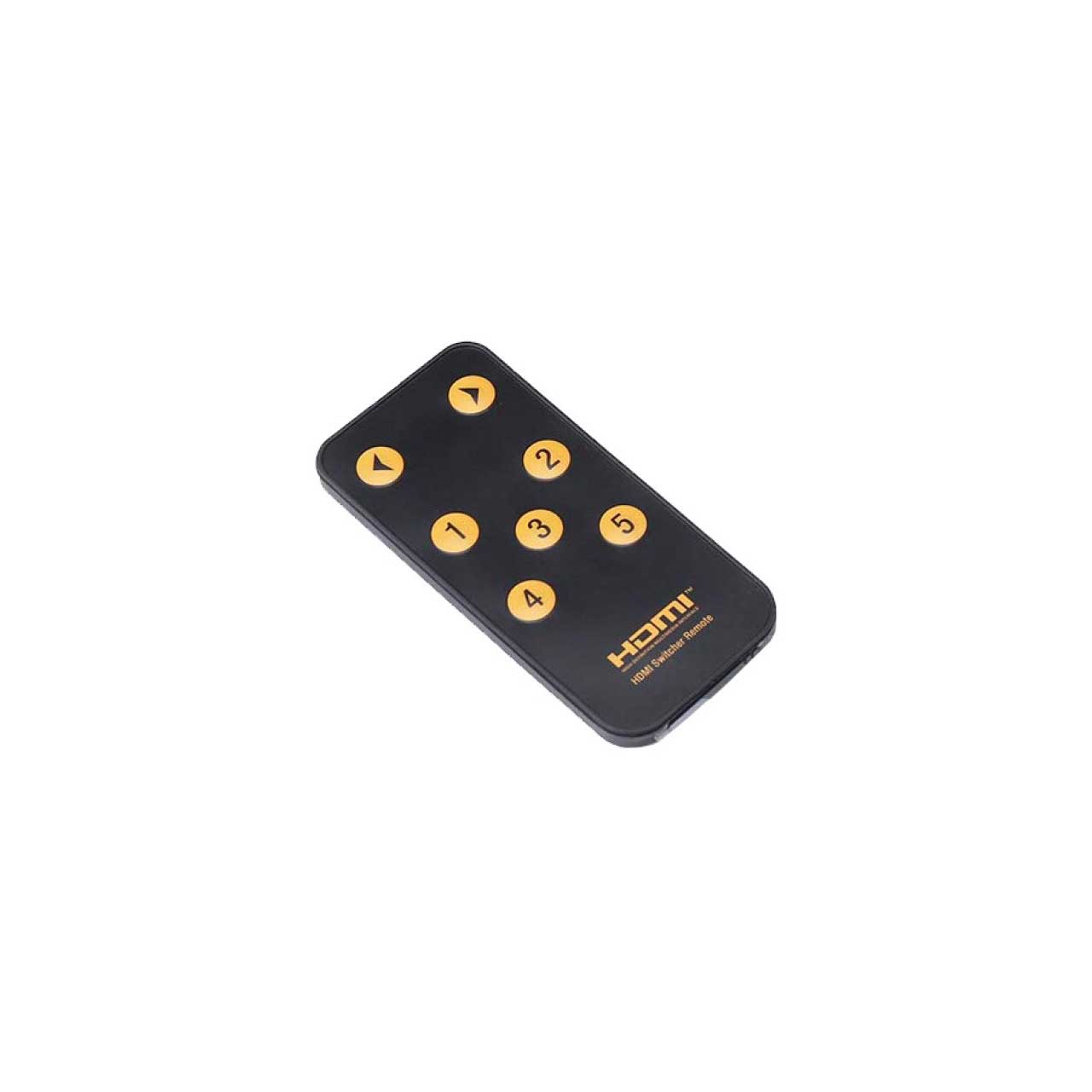

      • 1x IR Remote

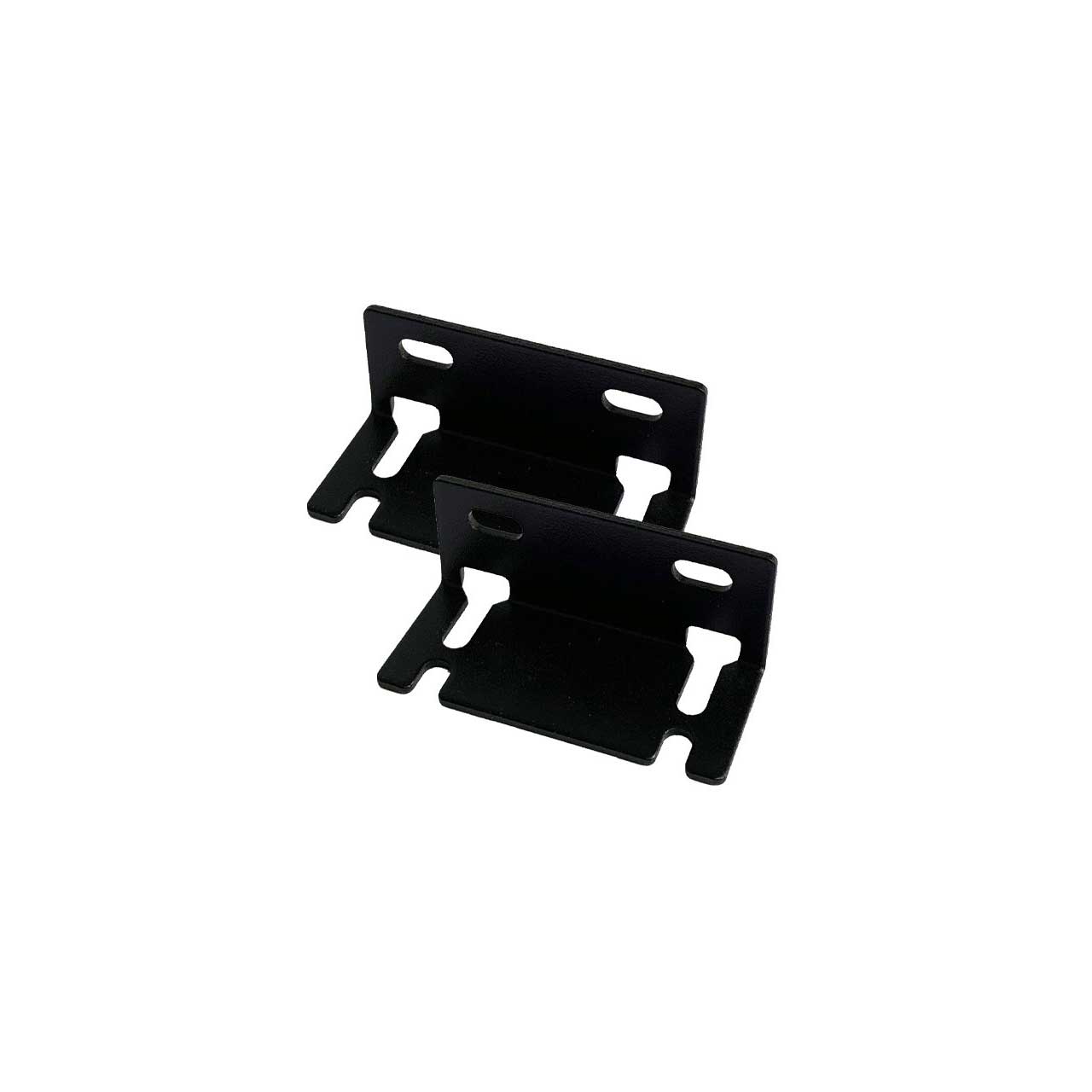

      • 1x Mounting Brackets

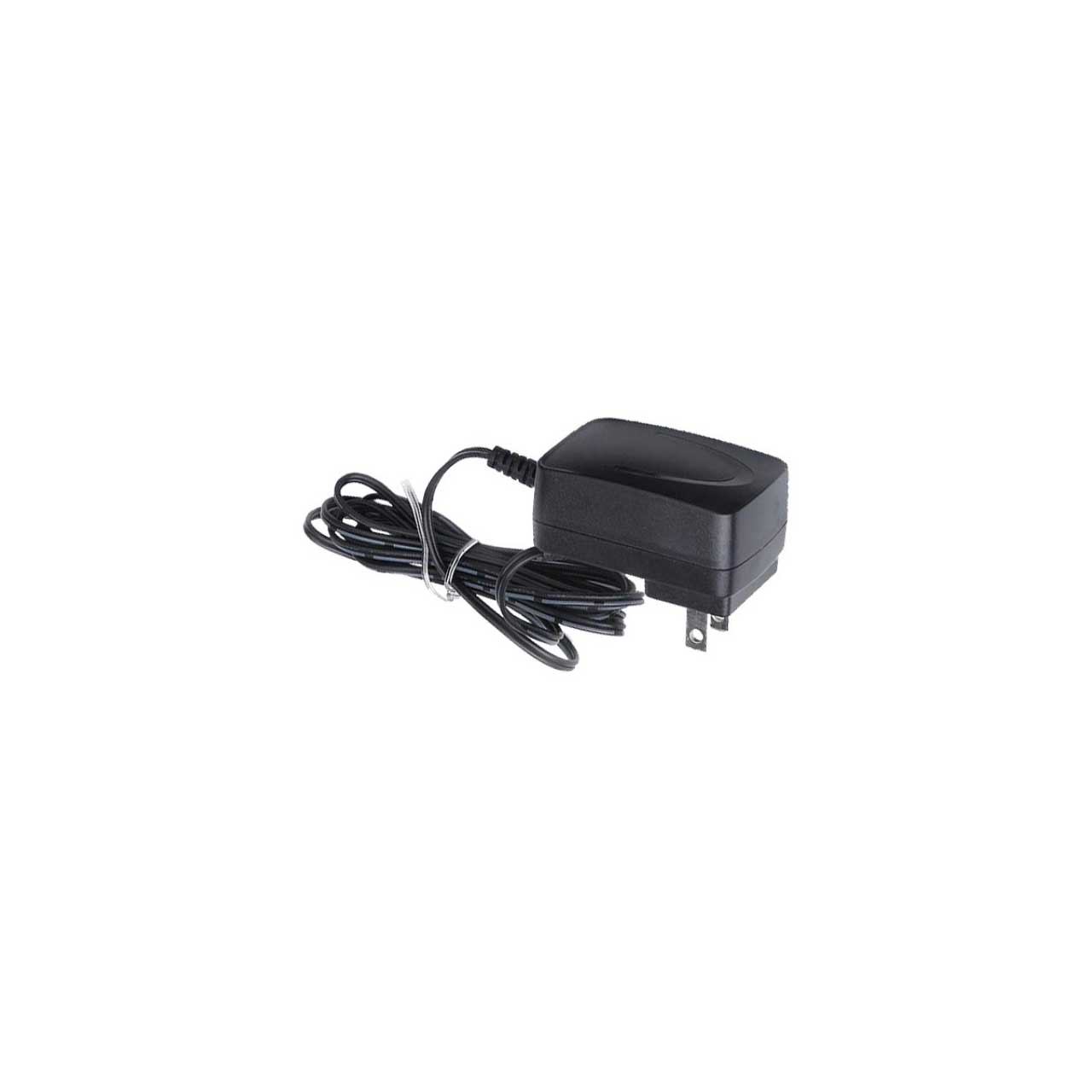

      • 1x DC Power Supply
      • 1x Owners Manual
