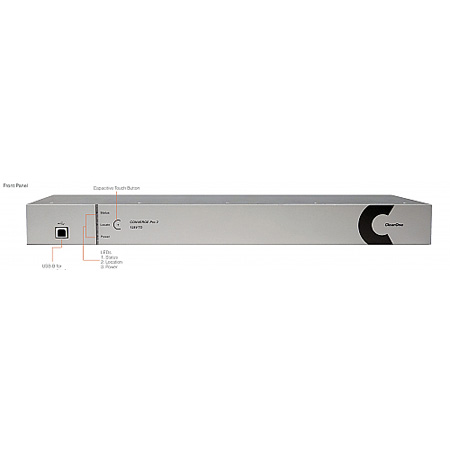

ClearOne 910-3200-009-D CONVERGE Pro 2 128VTD Advanced Multi-Channel Mic Automixer with Dante Audio

910-3200-009-D - Overview

910-3200-009-D - Overview

• Features:

  • 12 mic/line inputs and 8 mic/line outputs.
  • Support for SIP-based conferencing up to 5 lines and 5 calls based on line configuration.
  • 16 Dante inputs and 16 Dante outputs for audio networking.
  • Analog Telco interface.
  • Built-in Skype for Business client.
  • Built-in USB audio.
  • Built-in DARET algorithm for dynamic feedback elimination.
  • C-Link and P-Link enable easy addition of DSPs and peripherals.
  • Configure an entire system of C-linked DSPs with CONVERGE CONSOLEr AI software.
  • Flexible control options include Touch-Panel Controller, BYOD dialer apps or 3rd party control modules.
  • Reduced foot-print and power consumption.


• Specifications:

  • Mic/Line Inputs & Outputs
  • Inputs: Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on miniterminal block
  • Outputs: Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Frequency Response: 20Hz - 22kHz @ +4dBu, +/- 0.5dBu
  • EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs = 150Ω, -126dBu
  • THD + N (Total Harmonic Distortion + Noise):
    20Hz - 22kHz @ +4dBu, line level, 0.006%
    20Hz - 22kHz @ -56dBu, mic level, <0.04%
  • Dynamic Range: 20Hz - 20kHz @ 0dB, >105dB
  • Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB
  • Input Impedance: Balanced (line to ground), 2.2kΩ, 1%
  • Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
  • Maximum Input Level: -65dBu to 20dBu
  • Phantom Power: 48V, Impedance 6.81kΩ
  • Output Impedance: Balanced (line to ground), 95Ω, 1%
  • Output Level: 0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

    USB AUDIO
  • Port Type: USB-B connector
  • Audio: Digital Audio, 2 x 2 bidirectional channels
  • Sample Rate: 48kHz
  • Sample Bit Depth: 24-Bit
  • Compatible: USB 2.0, USB 3.0

    Telephone
  • Port Type: RJ11
  • Frequency Response:
  • Mic/Line Input to Telephone Out: 250Hz - 3.4kHz , +/- 2dB, 4dBu
  • Telephone In to Mic/Line Out: 250Hz - 3.4kHz, +/- 2dB, -15dBu
  • THD + N:
  • Mic/Line Input to Telephone Out: <0.1% @ 4dBu
  • Telephone In to Mic/Line Out: <0.3% @ -15dBu
  • Dynamic Range:
  • Mic/Line Input to Telephone Out: >67dBu
  • Telephone In to Mic/Line Out: >87dBu
  • REN: Ringer Equivalent Number 0.2
  • Transhybrid Balance: 30dB (1kHz, all AC terminations)

    Power & Thermal
  • Port Type: AC Inlet
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 50 Watts Typical
  • Thermal: 170 BTU/Hr Typical
  • Operating Temperature: 14° to 104°F (-10° to 40°C)

    Dimension & Weight
  • RU size: 1 RU
  • Without rack-ears WxDxH: 17 x 10.73 x 1.72" (43.2 x 27.3 x 4.4cm)
  • With rack-ears WxDxH: 19 x 10.73 x 1.72 (48.3 x 27.3 x 4.4cm)
  • Unit Weight: 9.3Lbs (4.2kg)
  • Shipping Weight: 13.8Lbs (6.3kg)

    Please Note: For a list of Full Specs please see the Attachments Tab.


• Item Includes:

  • 1x Power Cord: 6' (1.8M), Grounded
  • 12x Input Connectors: Terminal Block Connector, 4 Position (Orange)
  • 8x Output Connectors: Terminal Block Connector, 3 Position (Black)
  • 1x GPIO Connector: Terminal Block Connector, 6 Position (Green)
  • 1x C-Link Cable: RJ-45 To RJ-45 Cable, 18" (45.7cm)
  • 1x VoIP Cable: RJ-45 To RJ-45, 7' (2M)
  • 1x USB Cable: USB Type A to Type B, 6' (1.8M)
  • 2x Rack Ears: Pre-installed
  • 4x Screw/Washer Kit: Rack Decor


• Warranty:

  • 3
