Clear-Com CZ11462 DX121 2.4GHz Single Digital Wireless Intercom System w/ HS-15 Headset

ITEM #: CLCM-CZ11462 MFG #: CZ11462

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$3,305.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    CZ11462 - Overview

    Add wireless beltpacks to wired intercom systems!

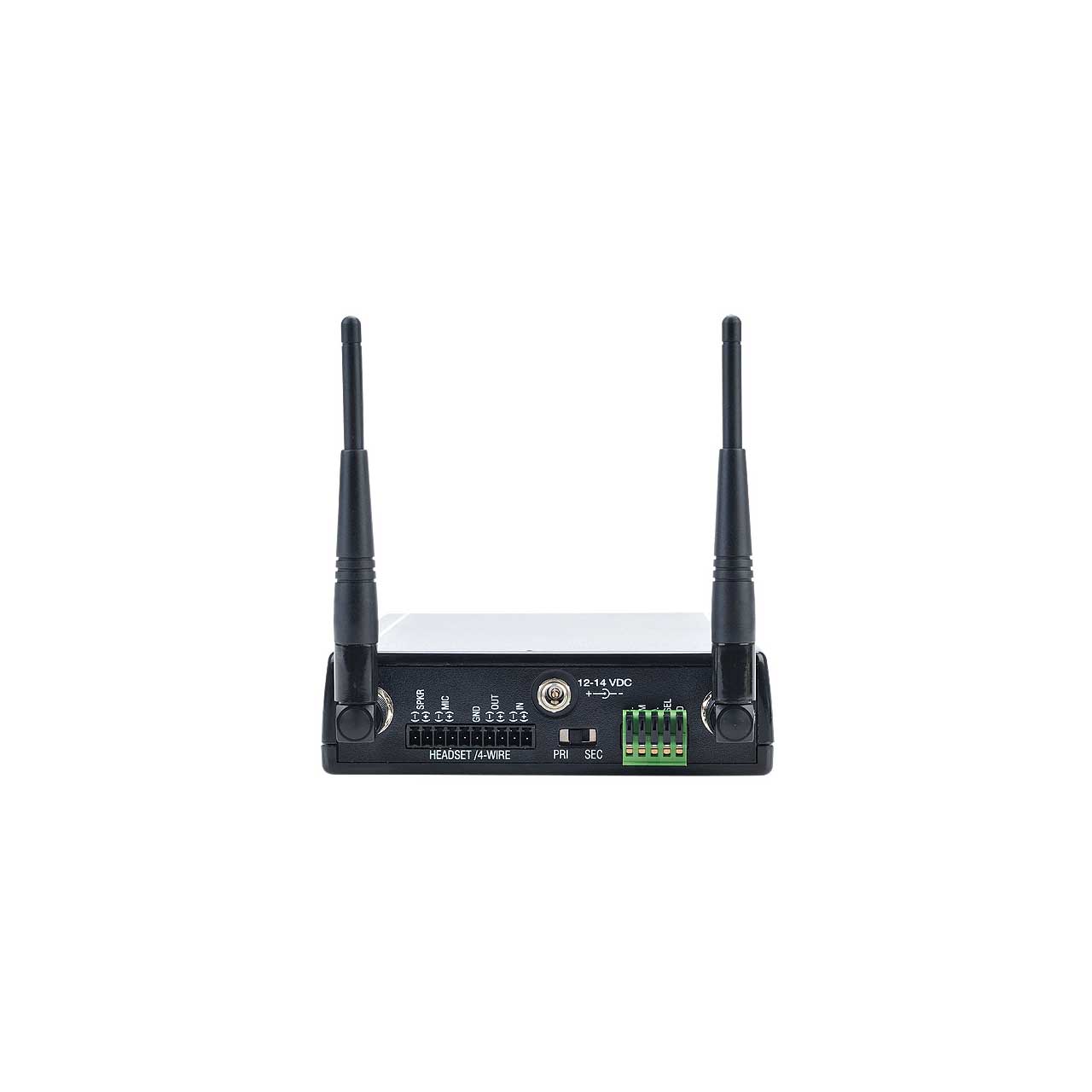

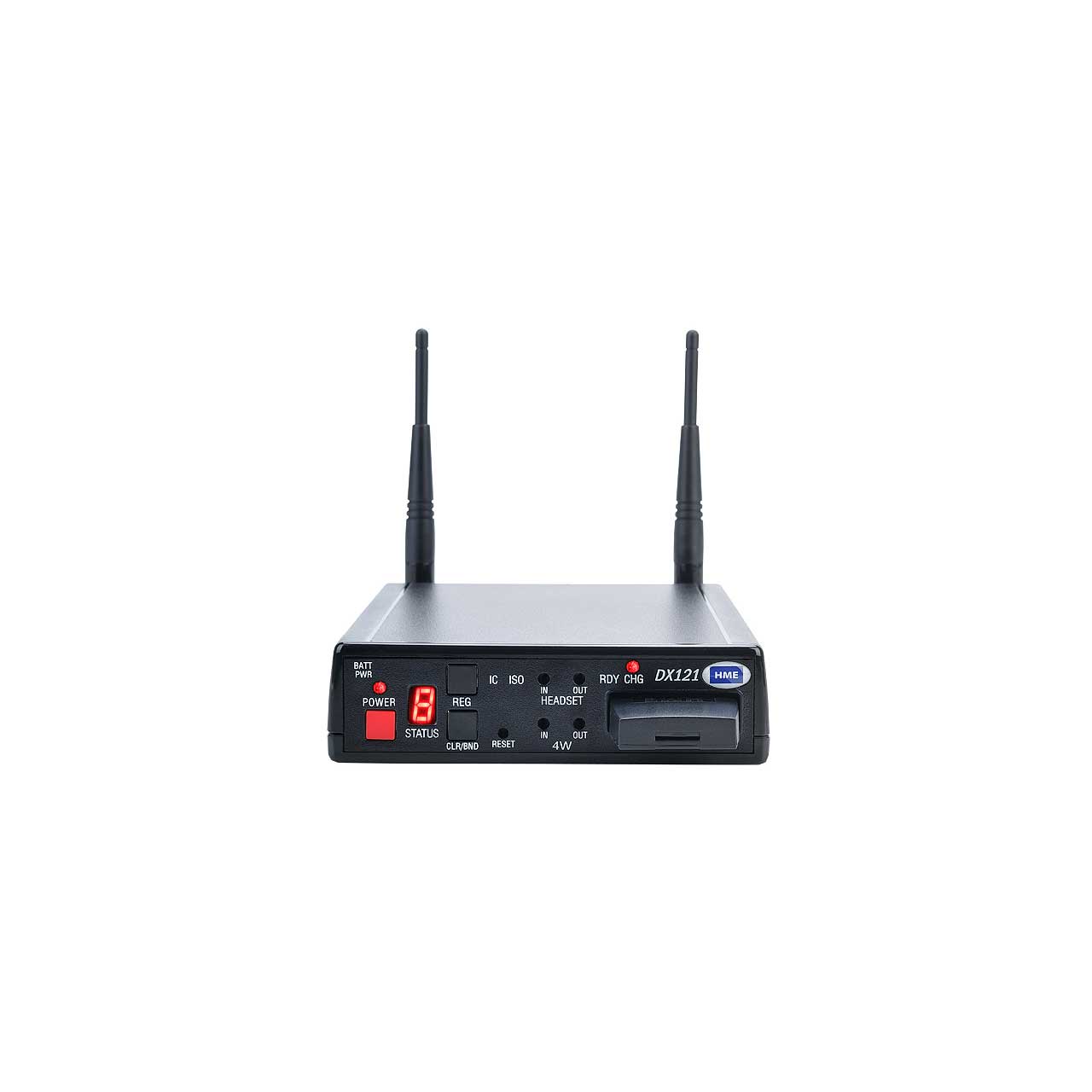

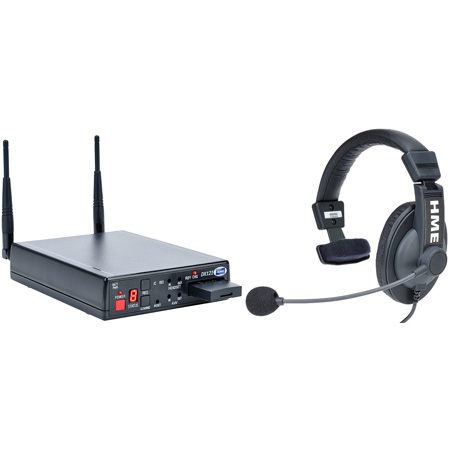

    The ClearCom DX121 is a Digital Wireless Intercom System with a BS121 2.4GHz Base Station, BP200 Wireless Beltpack and an HS15 headset. The DX121 is a highly versatile system that can be plugged directly into the headset jack of any popular intercom station or a four-wire device such as a digital matrix intercom. Up to four remote COMMUNICATORS ® can be used to support wireless intercom requirements on a DX121 system. Spectrum Friendly ™ technology allows up to eight DX121's to be used together to support multiple-channel applications. Its built-in remote COMMUNICATOR ®battery charger will cost-effectively support a one-to-one system and when required, will operate on the charged battery for power outages and glitches.

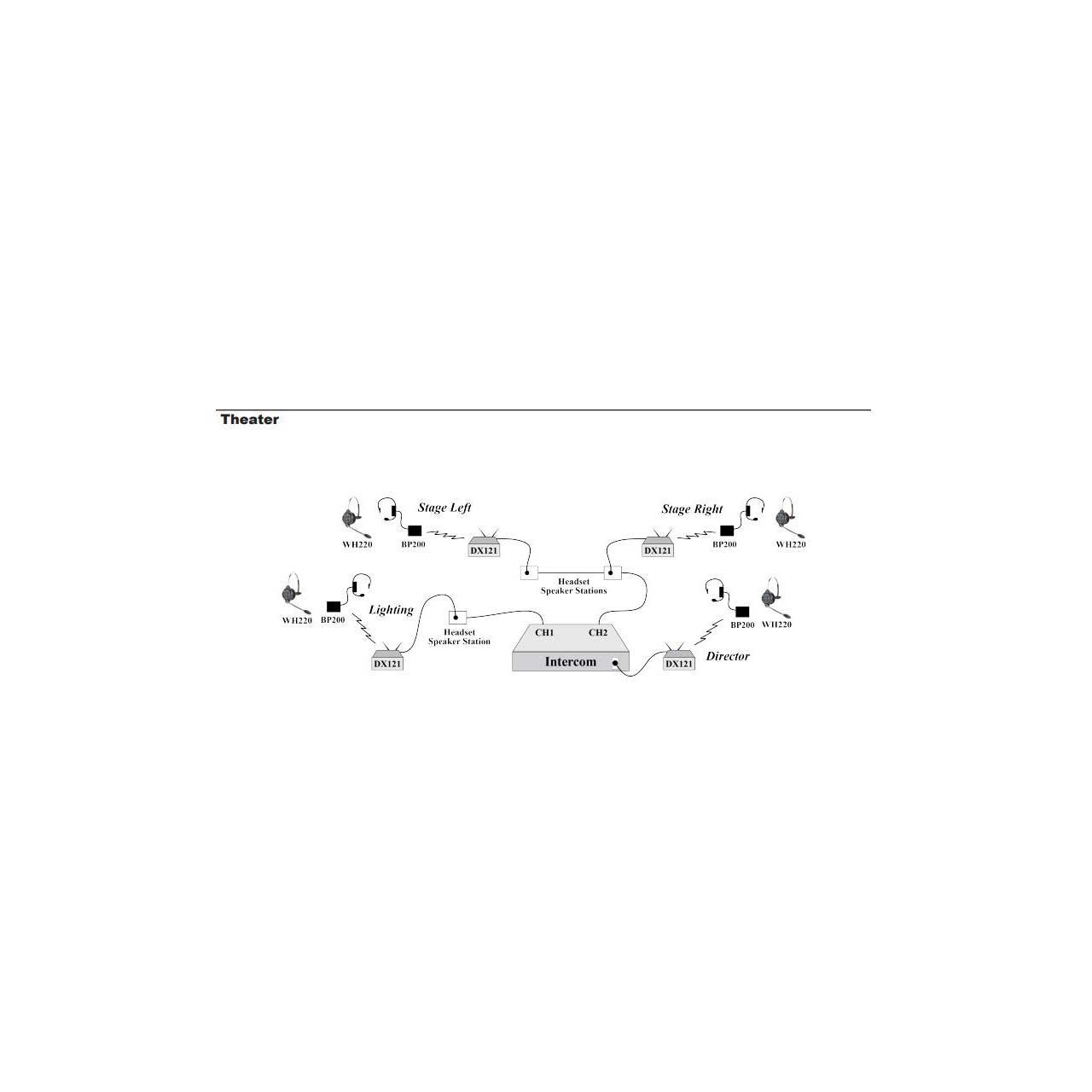

    The DX121 can be easily expanded and is compatible with the entire HME DX200 and DX100 series of digital wireless intercom products and accessories. The super compact design makes it convenient for travel and storage. The DX121 can be used to support wireless channels for theatrical and live crew events, broadcast control room operators, technical support crews and for connecting remote staff at large venues, as well as for tactical use by emergency responders.

    • Features:

      • The headset can be connected to most hardwired intercom headset jacks for instant wireless communication.
      • Four-Wire Connectivity Interfaces to four-wire/matrix intercoms and radio based communication systems. Assignable relay closure for advanced functionality.
      • Built-In Battery Charger One-port battery charger charges a remote Communicator® battery in under three hours.
      • Spectrum Friendly™ Frequency Range can be selected for low band only (2401.92 - 2439.936 MHz) high band only (2443.392 - 2481.408 MHz) or full band (2400-2483.5 MHz).
      • Digital Frequency-Hopping, Spread Spectrum (FHSS) Encryption Technology ensures confidential communication. Approved for worldwide use.
      • Power Backup Fully charged battery in the charger port acts as backup power source for up to 30 minutes.
      • Assignable Relay Closure Provides advanced functionality when used with matrix intercoms or radio based communication systems.
      • Expandable Compatible with the entire HME DX 200 and 100 series of digital wireless intercom products.
      • Four-Wire I/O Connection 600 Ω balanced, level adjustable.
      • Headset I/O Connection 200 Ω, level adjustable for interfacing to a Dynamic MIC headset connector

    • Specifications:

      • BS121 Base Station
      • Frequency Range: 2400-2483.5MHz
      • Frequency Response: 200Hz to 3.5kHz
      • Power Requirements: 100-240V AC, 50-60Hz or 12-14V DC
      • Temperature Range: -4-131°F (-20-55°C) Typ.
      • Size: 1.62 x 5.50 x 7.88in (4.1 x 14 x 20cm)
      • Weight: 1.2lbs (0.59kg) with battery
      • 4-Wire I/O: 600Ω balanced, level adjustment
      • Headset I/O: 200Ω balanced, level adjustment
      • Antenna Type: External, dual diversity ½-wave dipole (R-TNC connector)
      • System Distortion: <2%
      • Communication Security: 64-bit encryption dual slot diversity
      • Transmission Modes: Continuous (Latched) or Push-to-Talk (PTT)

        BP200 Beltpack
      • Battery Requirements: One Lithium-Ion Rechargeable
      • Battery Life: Latched (Hands-Free): Up to 14 Hours
      • PTT: Up to 20 Hours
      • Size: 3.4 x 2.6 x 1.5in (8.64 x 6.60 x 3.81cm)
      • Weight: 7.4oz (0.21kg) with Battery & Pouch
      • Headset Connector: Mini-DIN
      • Mic Input: Electret
      • Headset Output: 160 mW @ into 32Ω
      • Capable of Driving 16-32Ω
      • Controls:
      • Volume On/Off
      • Volume Up/Down
      • Talk Intercom
      • Talk ISO
      • Indicators: Power/Transmit/Low Battery LED & Voice Prompts

      • CC-15 Headsets
      • Specifications
      • Single Ear Headset
      • Enclosed Ear Phone
      • Leatherette Ear Pads
      • Electret Microphone
        Microphone Unit
      • Impedance: 2.2k Ohm +30%
      • Sensitivity: -51dB, +3dB (0dB - 1V/Pa, 1kHz)
        Speaker Unit
      • Impedance: 40 Ohms +15% (1kHz)
      • Max Power: 100mW (2.0V RMS)
      • Frequency Range: 20Hz - 20kHz (-15dB/1kHz)
      • Output SPL: 106dB = +2.0dB
      • Input: 1mW (0.2V RMS)

    • Item Includes:

      • One BS121 Base Station
      • One HS-XLR4F Interface cable
      • One BP200 Beltpacks
      • One Beltpack Pouches
      • One CC-15 Headset
      • Two BAT41 Li-ion Rechargeable Batteries
      • One 12VDC 60W Power Supply (100/240VAC Universal)
      • One 115VAC Power Cord

    • GTIN:

      0609385882524
