Clear-Com CC-28-X4 Single Ear Lightweight Headset with XLR-4F Connector

ITEM #: CC-28-X4 MFG #: CC-28-X4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$275.00

Availability: In Stock
iAvailability Description Popup


    CC-28-X4 - Overview

    Best in Class Audio!

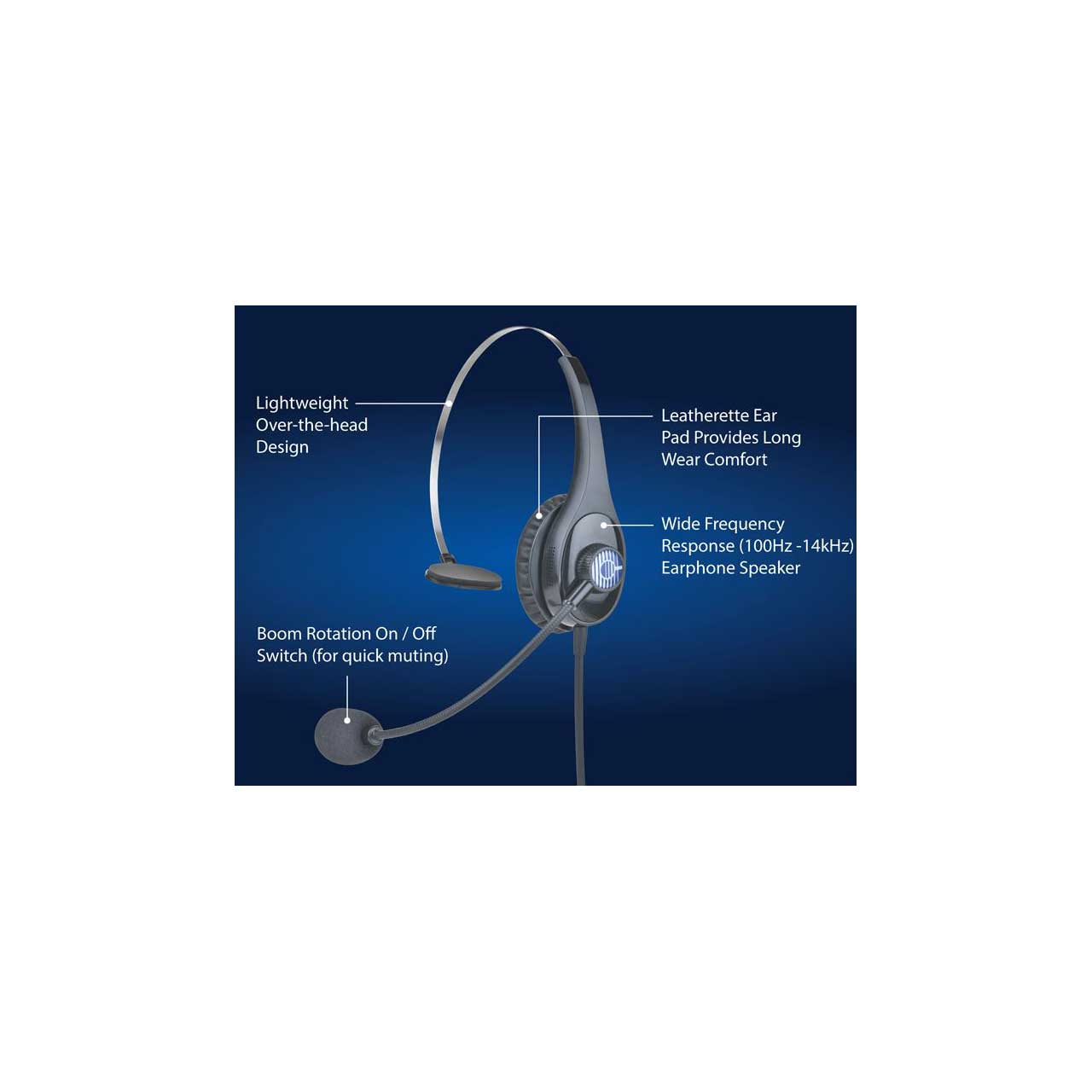

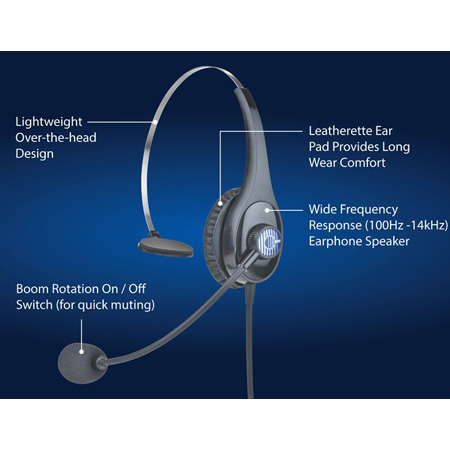

    The Clear-Com CC-28-X4 is an Over the Head, Single Ear, Closed Back, Lightweight, Flexible Intercom Headset with a 5-foot cable terminated with a Neutrik 4 Pin Female XLR Connector. The CC-28-X4 replaces and upgrades the CC-26-X4 and features excellent audio quality with a wide frequency response of 100hz to 14Khz. Light on the head it's designed to be worn comfortably for longer periods of time with a soft Leatherette Ear Pad, and adjustable boom. Easy to use the CC-28-X4 is ready for hours of action!

    The CC-28-X4 premium lightweight headset features a high performance cardioid dynamic microphone with a great Integrated Mute Switch in the flexible gooseneck boom. That means the CC-28 headset microphone can be turned on and off by moving the microphone boom up and down! To turn ON the microphone, pull the boom gently downwards (past the 10 o'clock/2 o'clock position). To quickly mute and turn the microphone OFF you simply push the boom gently upwards (above the 10 o'clock/2 o'clock position).

    The dynamic mic features a cardioid polar pattern to limit noise from behind the user, and the CC-28 has been upgraded to include a larger earcup that provides more ear coverage than the CC-26K-X4 it replaces. Ideally, the CC-28 suits environments where audio quality and comfort for long wear time are paramount, such as broadcast, theatre, and film/tv studio applications and where full noise cancellation and covered ear cuffs are not required.

    • Features:

      • Single closed back, lightweight headset
      • Over-the-head design
      • Flexible gooseneck microphone positioning
      • Leatherette earpad
      • Dynamic microphone
      • 100Hz to 14kHz earphone frequency response
      • Boom Rotation ON/OFF switch for quick microphone muting
      • Fully serviceable

    • Specifications:

      • Headphone
      • Type: Closed-back
      • Driver: 27mm diameter
      • Frequency response: 100Hz- 14kHz
      • Sensitivity: 114dB ±3dB SPL@ 1kHz
      • Impedance: 320 Ω ±20%; at 1kHz typical
      • Input Power: 100mW

        Microphone
      • Element: Dynamic
      • Polar Pattern: Cardioid
      • Frequency Response: 200Hz-10kHz
      • Sensitivity: -61±3dB at 0dB =1V/1Pa, at 1kHz
      • Impedance: 200Ω ±20%; at 1kHz typical

        Connector
      • XLR 4-pin female (Neutrik) Clear-Com wiring
      • Cabling: Screened and separately shielded microphone wires, cable not coiled
      • Cable length: 5ft (1.5m)

        Environmental
      • Temperature: -10 ±3°C (14° to 37°F) to 55 ±5°C
      • (131° to 41°F) for 48 hours
      • Humidity: 40 ±5°C (104° to 41°F) to 90-95°C
      • (194° to 203°F) relative humidity for 48 hours

        Dimensions
      • Dimensions Packaging: 6.3 x 8 x 2.4in (WxHxD)
      • (160 x 205 x 60mm)

        Weight
      • 3.1oz (88g) without connector
      • 3.5oz (99.2g)

    • Item Includes:

      • CC-28-X4 Headset terminated with XLR 4 Pin Female Connector
