Cleerline SHDLC12-MM 12 Fiber Duplex HD Splice Casette - LC/UPC - 50 Micrometer OM3 - 1 Meter/3.3 Foot Pigtails

ITEM #: CLT-SHDLC12-MM MFG #: SHDLC12-MM

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$245.85

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


SHDLC12-MM - Overview

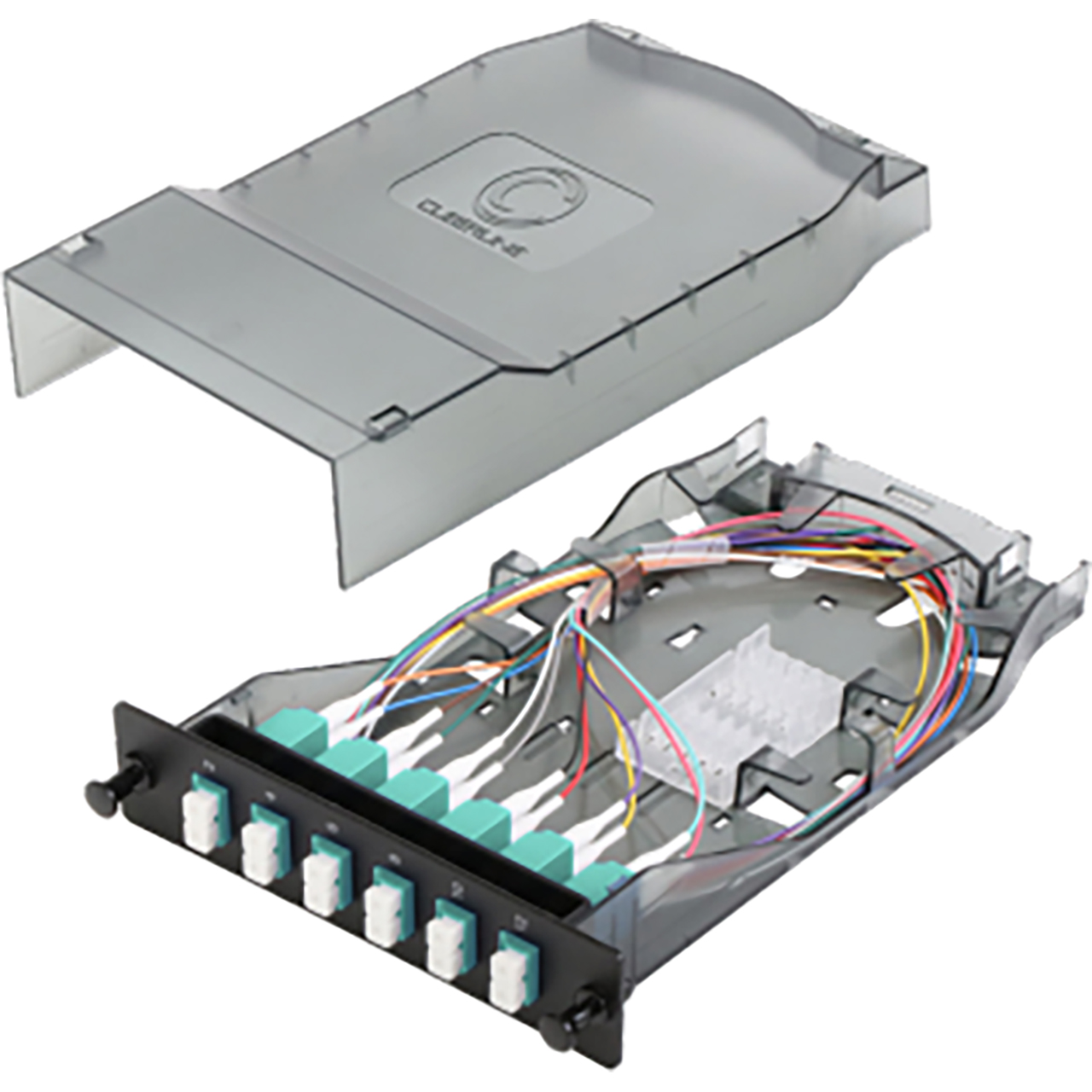

Cleerline SHDLC12-MM HD Splice Cassettes provide an efficient solution for managing fusion-spliced fibers. Each cassette comes preloaded with 6-24 x 900µm 1-meter-long fiber pigtails, eliminating the need for a separate splice tray. Inside the cassette, splice holders and a cable winding area allow cable management and organization. This not only allows managing splices but can also be utilized to separate network environments, (i.e. MDF, IDF1, and IDF2) for ease in troubleshooting without disrupting all other Cassettes or Fibers. Cleerline HD Splice Cassettes have a removable transparent cover to allow easy fiber verification. All cassettes include heat shrink tubes for splice protection and cable ties. Splice cassettes are available preloaded with OM3, OM4 (multimode) or OS2 (single-mode) fibers. OS2 APC (angled polish connector) configuration is also available.

  • Features:

    • Space-saving design (LGX compatible)
    • Transparent housing for easy fiber verification
    • Preloaded design with TIA color-coded pigtail
    • Pigtail design allows either both ribbon splice and individual fiber splice
    • No additional splice trays required
    • Cable winding area for fiber management

  • Specifications:

      Optical
    • Pigtail Return Loss: >50dB
    • Module Insertion Loss: = 0.3dB
    • Module Return Loss (UPC): >50dB
    • Module Return Loss (APC): >60dB

      Temperature Range
    • Operating: -4°F - 140°F (-20°C - 60°C)
    • Installation & Assembly: 23°F - 122°F (-5°C - 50°C)
    • Storage Temperature: -13°F - 158°F (-25°C - 70°C)

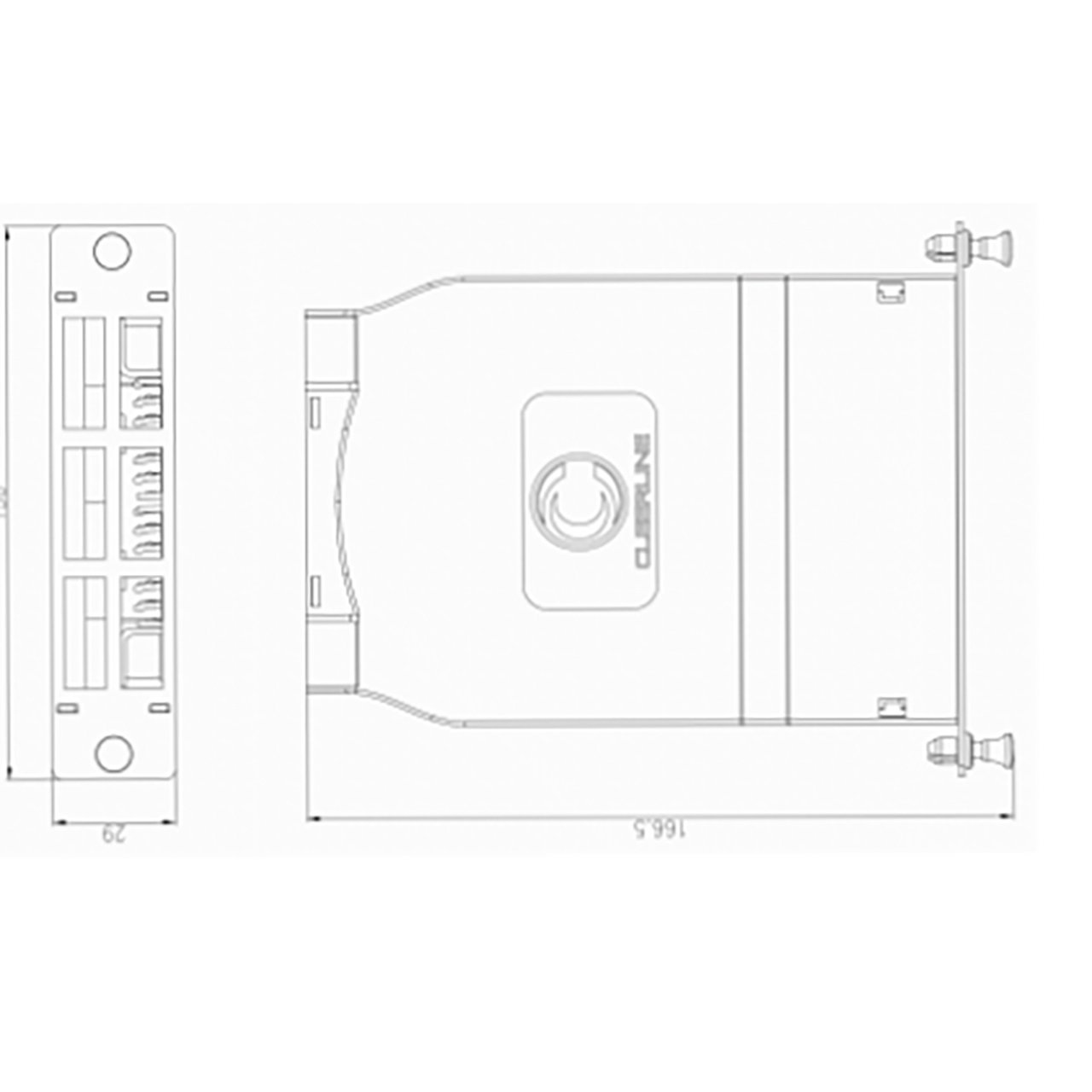

    • Dimensions: 5.1" x 6.6" x 1.1" (130mm x 166.5mm x 29mm)

      Cassette Hardware
    • Fibers: 6, 12, or 24
    • Pigtails: 6, 12, or 24
    • Adapter Type Front: LC or SC
    • Pigtail Type 900µm, TIA Color-Coded
    • Included Splice: Protectors 12 or 24
    • Adapter Color: According to Fiber Type
    • Removable Splice Holders: 2
    • Cable Management: Cable ties & velcro
    • Cable Entry Grommet: 2


SHDLC12-MM - Required Accessories
