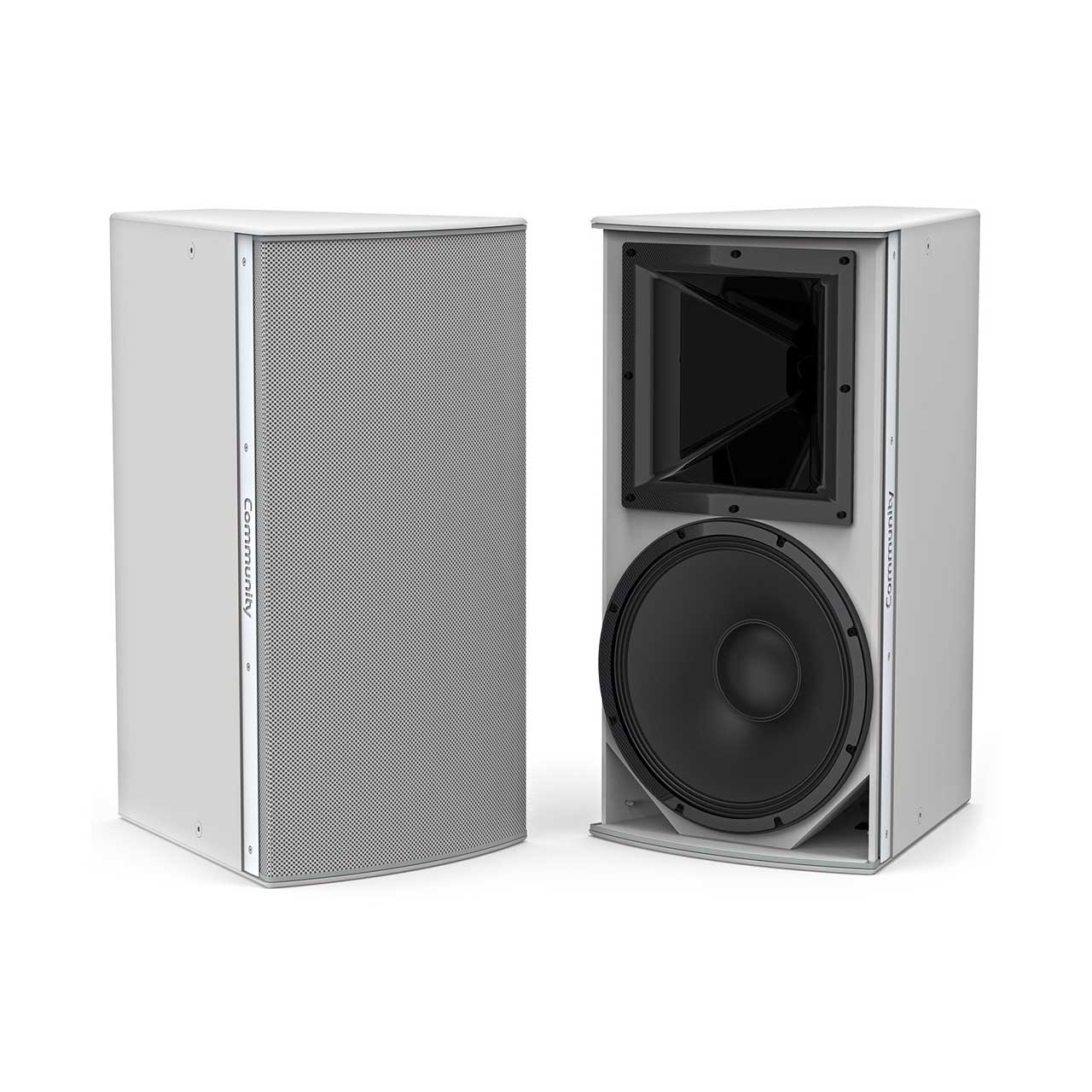

Community IP6-1152/64W Medium Power 15-inch Two-Way Installation Loudspeaker - 60x40 - White

ITEM #: CMTY-IP6-115264W MFG #: IP6-1152/64W

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$2,862.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


IP6-1152/64W - Overview

Trapezoidal enclosure, solid birch plywood cabinets with discreet styling. Medium power, 600W continuous power handling, 12-inch (305mm) ferrite woofer with 2.5-inch (64mm) voice coil, 1.4-inch exit, 3-inch (76mm) voice coil titanium diaphragm ferrite HF driver. Rotatable constant-directivity horns. User selectable passive or biamp operation. Easily configured low profile rigging hardware available for multiple applications (see Accessories).

Community Pro I SERIES Point Source 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of arrayable, rotatable coverage patterns and a comprehensive selection of modular bracket systems that accelerate system design and system commissioning. FEA-optimized ferrite motors, mechanically mirrored suspension and advanced cooling system combine to provide linear performance with minimal power compression. The custom long-excursion LF driver delivers deep bass response and a detailed midrange at maximum SPL levels. The HF driver delivers excellent sound quality from a hybrid diaphragm of deep drawn titanium and resonance absorbing polyimide, coupled to a patented low compression, low resonance phase plug for very low distortion performance with abundant headroom. The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Additionally, user selectable single-amp or biamp operating modes expand application flexibility.

Highlights!

  • Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension
  • 3-inch voice coil, 1.4" exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug
  • Lightweight and compact with deep LF extension
  • Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
  • Innovative low profile modular bracket systems create elegant arrays with simplified suspension
  • Also available in a weather-resistant PolyGlas enclosure
    • Features:

      • Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension.
      • 3-inch voice coil, 1.4" exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug.
      • Lightweight and compact with deep LF extension.
      • Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable.
      • Innovative low profile modular bracket systems create elegant arrays with simplified installation.

    • Specifications:

      • Operating Mode: Passive or Biamp with DSP.
      • Operating Environment: Indoor or Weather-Resistant Outdoor.Operating Range: 30 Hz to 18 kHz.
      • Nominal Beamwidth (H x V): 60° x 40°, rotatable waveguide.
      • Transducers:LF 1 x 15" (381mm) ferrite driver, 3" (76mm) voice coil, inherently weather-resistant cone, HF 1 x 1.4" (36mm) exit, 3" (76mm) voice coil, hybrid titanium/ polyimide diaphragm, ferrite compression driver.
      • Continuous Power Handling @ Nominal Impedance; Passive 69V 600W @ 8 ohms (2400W peak), LF 63V 500W @ 8 ohms (2000W peak), HF 24V 75W @ 8 ohms (300W peak).
      • Nominal Sensitivity: @ 1W, Passive 94 dB, LF 95 dB, HF 104 dB, @ 2.83V Passive 94 dB, LF 95 dB, HF 104 dB.
      • Nominal Maximum SPL: Passive Peak128 dB, Continuous 122 dB, LF Peak 128 dB, Continuous 122 dB, HF Peak 129 dB, Continuous 123 dB.
      • Equalized Sensitivity: System @ 1W 93 dB, @ 2.83V 93 dB.
      • Equalized Maximum SPL: System Peak127 dB, Continuous 121 dB.
      • Recommended Amplifiers: Passive 600W - 1200W @ 8 ohms, (69V - 98V), LF 500W - 1000W @ 8 ohms, (63V - 89V), HF 75W - 150W @ 8 ohms (24V - 35V).
      • Input Connection: Indoor: (2) Screw terminal blocks (6-position), Outdoor: Sealed Gland Nut with 12ft (3.6m) 14 Ga. SJOW cable.
      • Mounting Points: (15) M10 threaded rigging points.
      • Environmental Outdoor: IP55W per IEC 60529 , MIL-STD-810G.
      • Weight 79 lbs (35.8 kg) loudspeaker only
      • Dimensions H x W x D 30.80" x 16.50" x 20.07" (782 x 419 x 510 mm)

    • GTIN:

      0617174030728
