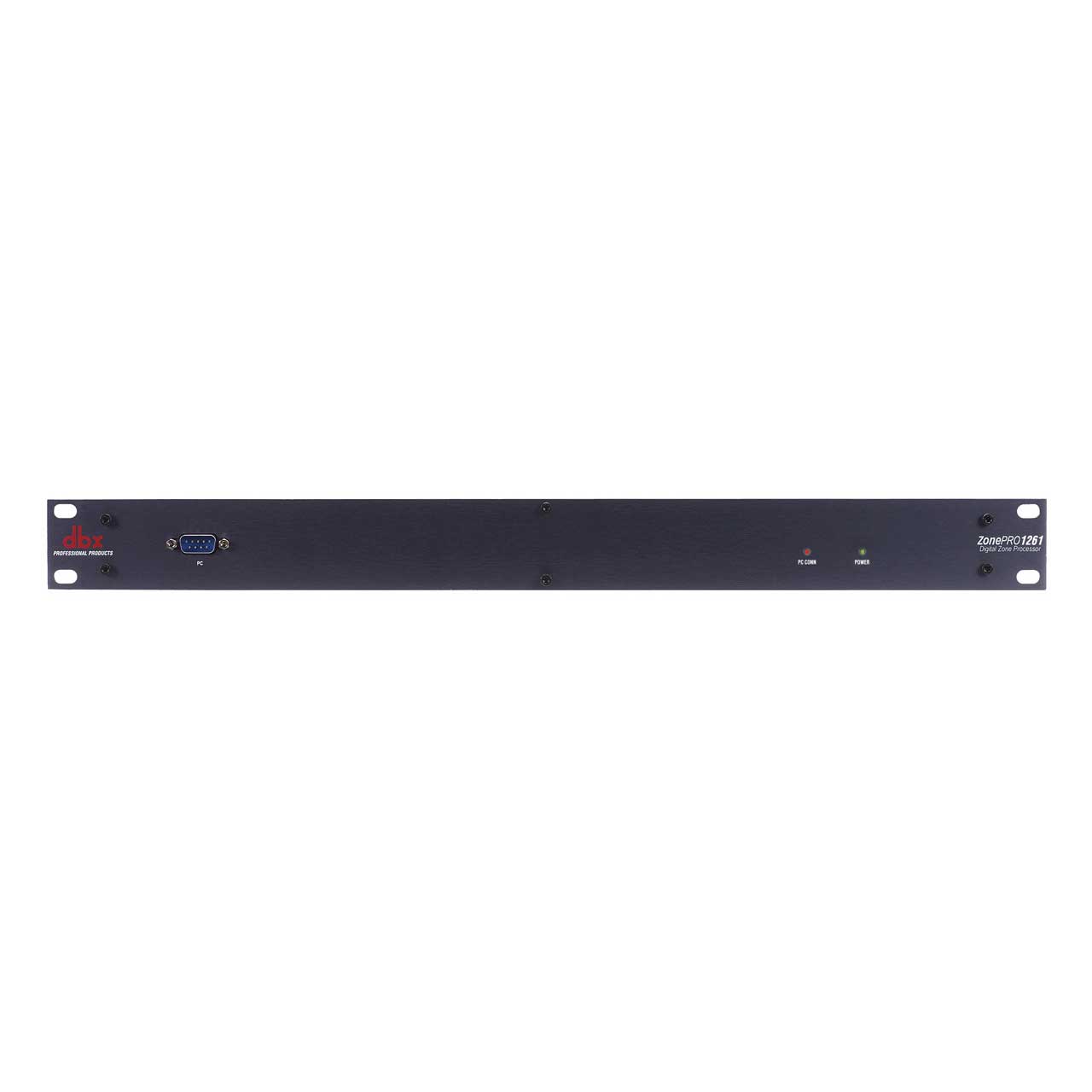

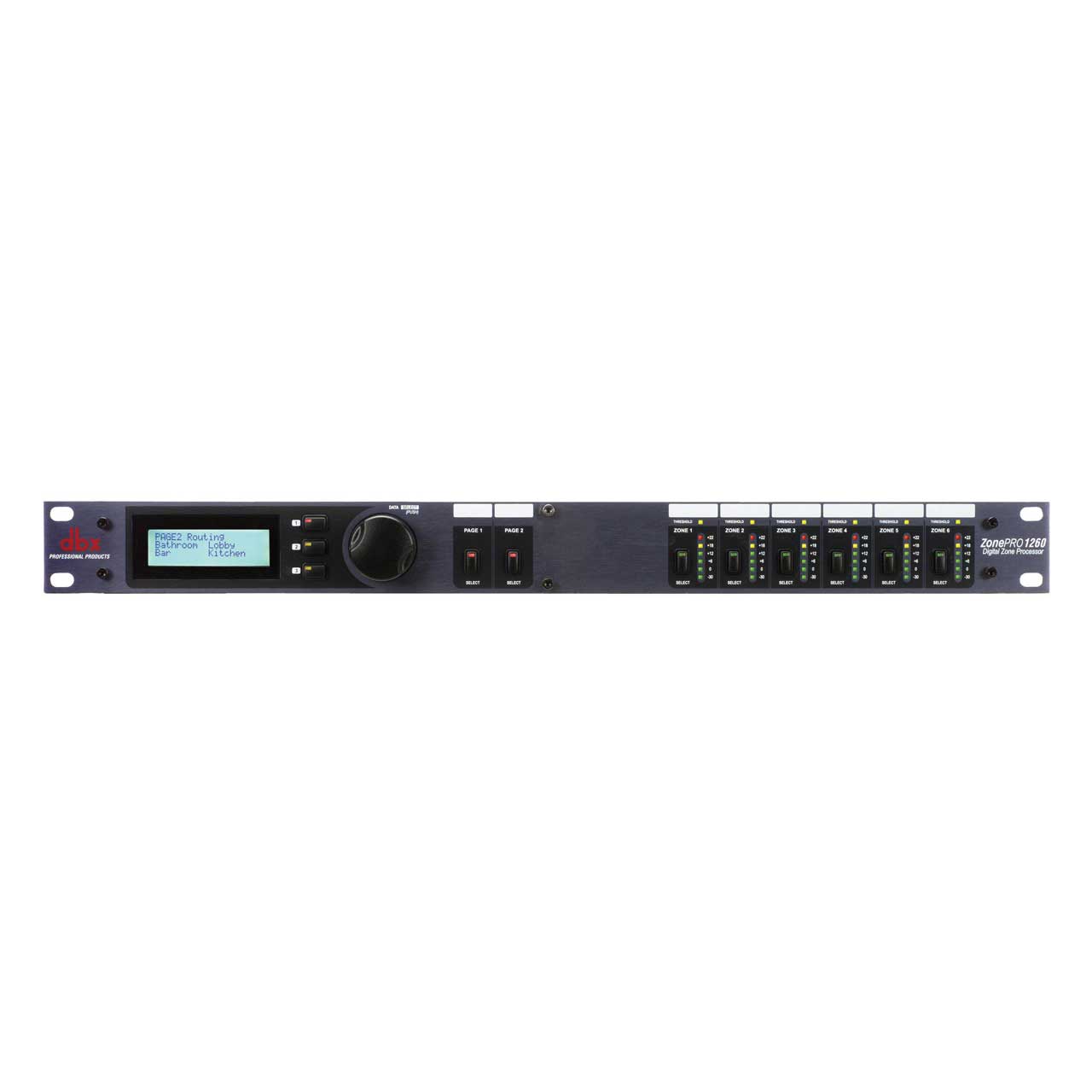

DBX ZonePro 1260 Digital Zone Processor

ITEM #: DBX-1260 MFG #: ZONEPRO 1260

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    ZONEPRO 1260 - Overview

    With 12 inputs and 6 outputs and Ethernet control the dbx ZonePRO 1260 and 1261 are the newest members of the ZonePRO family providing a complete suite of signal processing and control for Commercial Audio applications.

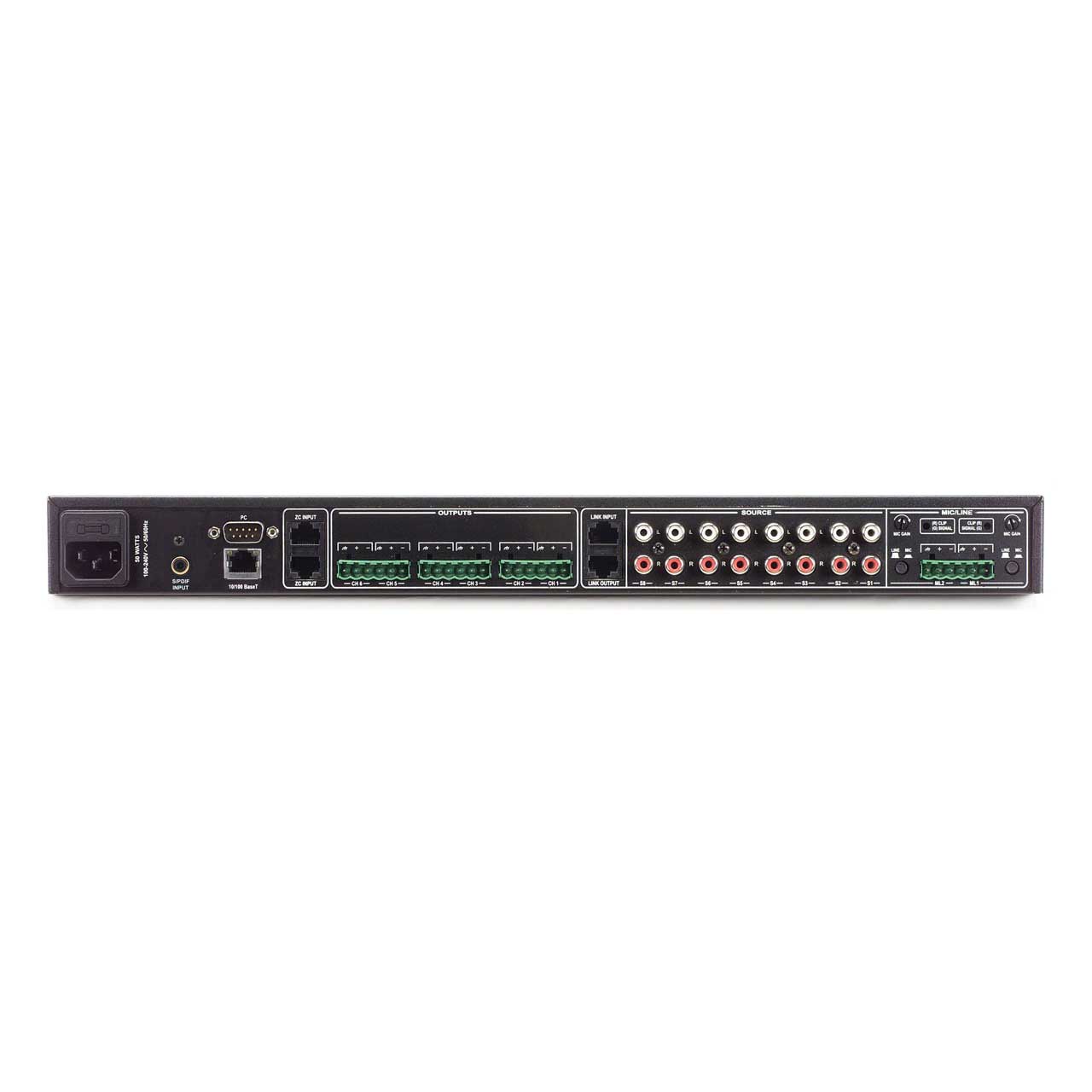

    Designed to offer superior system sonic performance and flexibility, the 1260/1261 deliver the highest quality tools available. Even the input and outputs connectors were chosen for their standard usage and reliability. The ZonePRO products offer Euroblock connectors for balanced signals and RCA connectors for interfacing with consumer equipment often used in commercial applications; there is also a simple analog input buss that allows inputs to be sent from one unit to the next for unit and job scalability. The 1260 and 1261 provide every necessary processing tool, from the input processing like gain control and EQ available on all inputs to highly sophisticated and specific functions such as selectable paging microphone processing including Gating, De-Essing, Auto Gain Control, Compression and Feedback Suppression. The heart of the ZonePRO products is the Routing module that provides of course Primary Source Selection but also Source Ducking for Paging and Priority Override. The outputs also offer a wealth of processing designed for commercial applications like our patent-pending AutoWarmth function that was co-developed with JBL to provide natural low frequency extension at any signal level. Each output also offers EQ, Bandpass and Crossover filters, Limiting and Delay for system optimization. With the ZonePRO every tool is at your disposal to maximize the response of your system.

    Beyond processing, the ZonePRO products offer multiple forms of control to further extend the versatility of your system. From easy-to-use wall panel Zone Controllers for standard end-user functions like source select and volume control to advanced system control including a built-in Real Time Clock that can provide programmable system changes throughout the day or week. For system setup and monitoring the ZonePRO Designer software provides an intuitive interface and a speedy setup Wizard for configuring and editing all system parameters. The addition of Ethernet control means that not only will it work with standard network equipment, but it can also be accessed from remote dialup locations or from wireless access points.

    The ZonePRO 1260 and 1261 will take your Commercial Audio system to the next level with advanced processing, versatility and control.

    • Features:

      • Advanced Feedback Suppression (AFST)
      • Autowarmth
      • Auto Gain Control
      • Compression
      • Limiting
      • Noise Gating
      • Notch Filtering
      • Bandpass and Crossover Filters
      • Parametric EQ
      • Security Lockout
      • Wall Panel Control
      • RS-232 Control
      • IEC, UL and CSA Approvals
