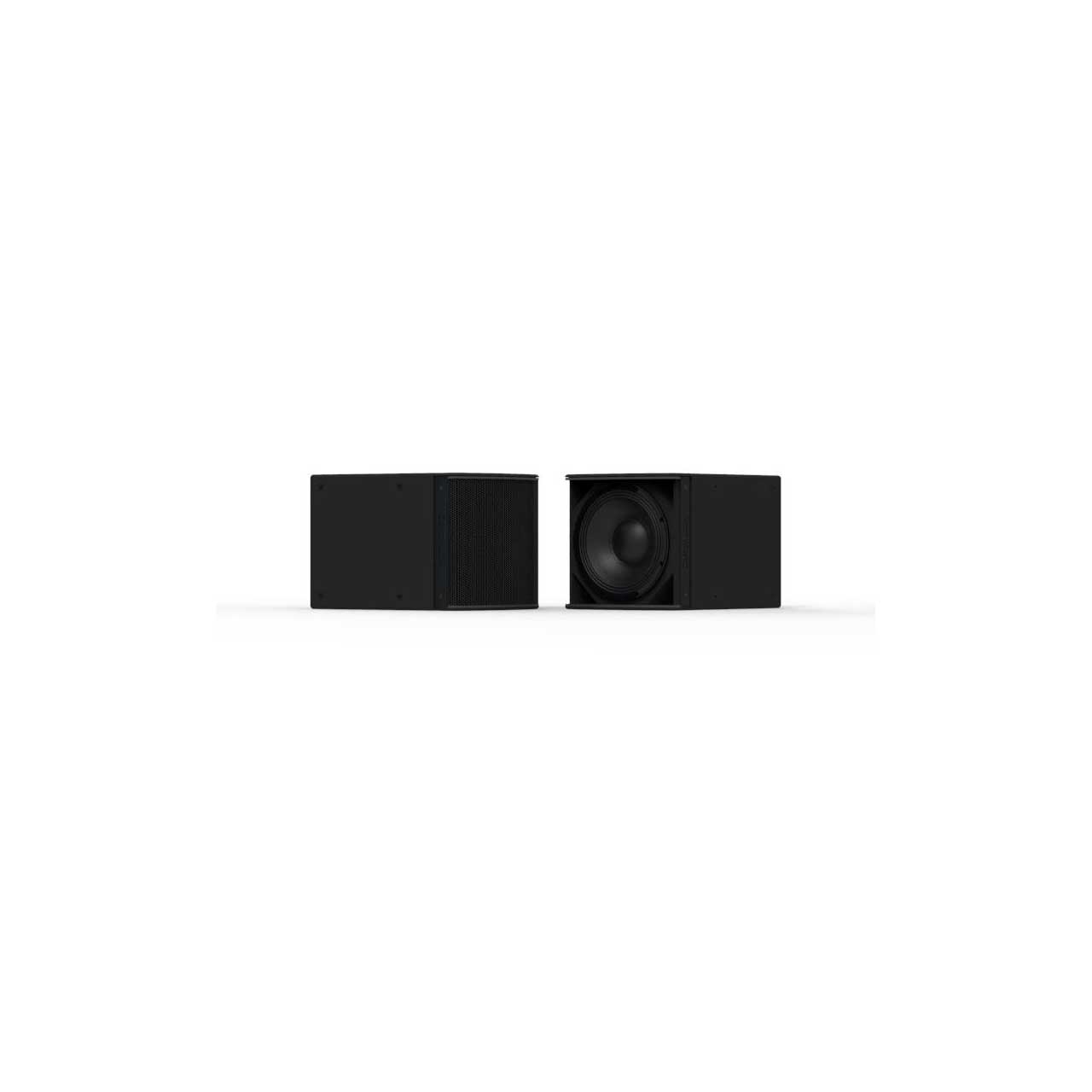

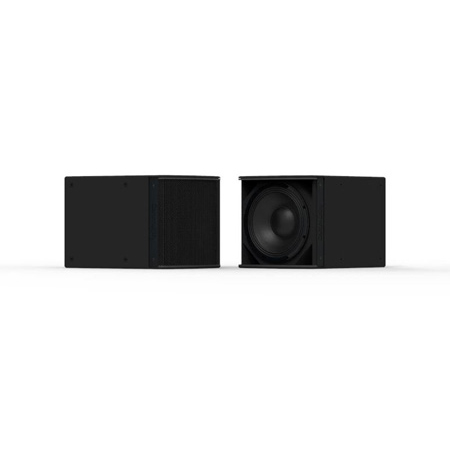

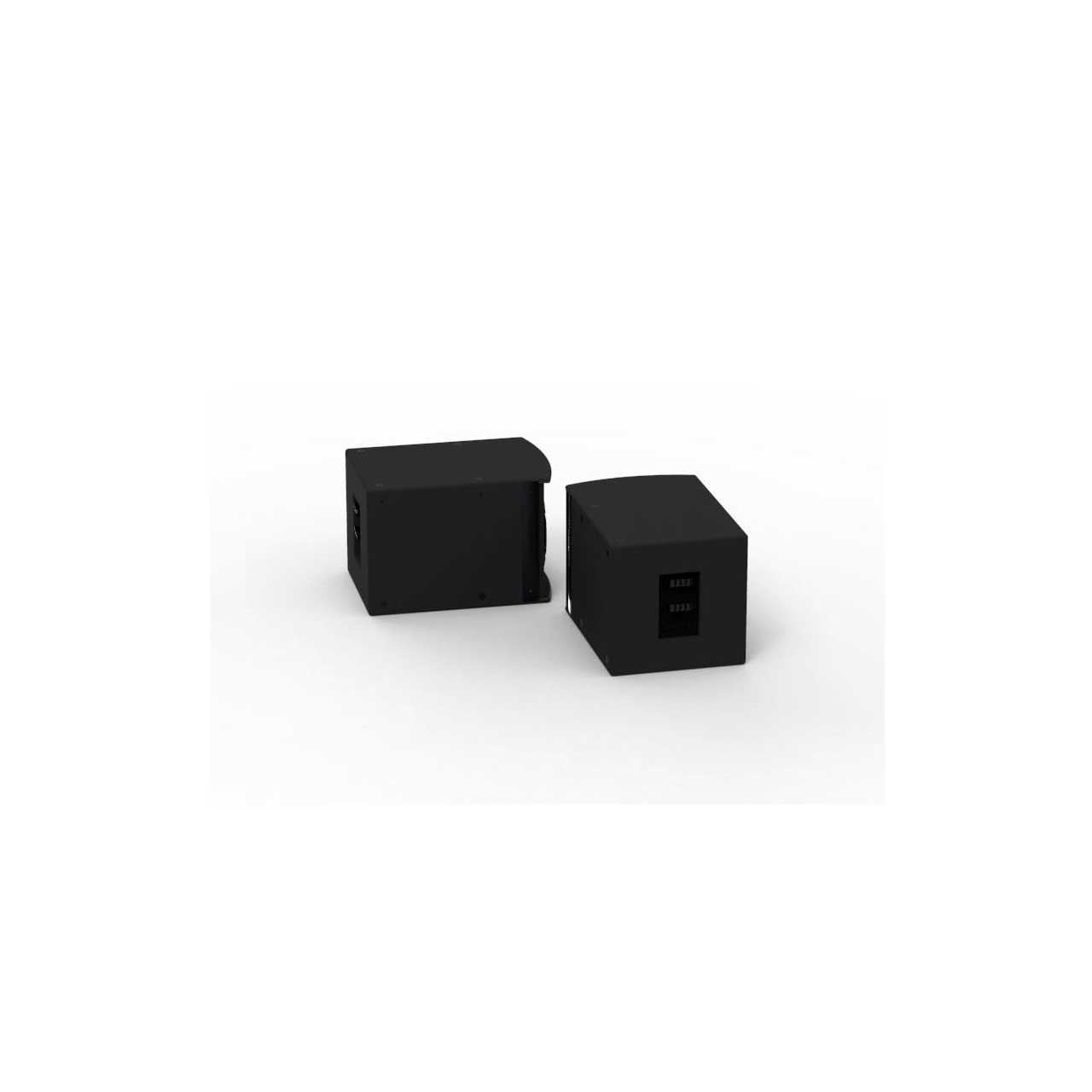

Community IS6-112B Medium Power 12 Inch Subwoofer Black

ITEM #: CMTY-IS6-112B MFG #: IS6-112B

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$1,982.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Shipped truck freight.


IS6-112B - Overview

Your Voice Is always Stronger When You Have A Community Backing It Up!

I SERIES similar-sized rectangular enclosures, construction, finish and aligned suspension points for seamless flown array integration. Medium power, 700W(+) continuous power handling, ferrite woofers. User selectable single amp or dual amp operation on the dual subwoofer models. Rubber feet included for floor installation. Easily configured low profile rigging hardware available for multiple applications (see Accessories).

I SERIES Subwoofer 600 loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I SERIES subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I SERIES full-range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS6-112 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimized ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure's diminutive size.

APPLICATIONS:
Houses of Worship
Auditoriums
Restaurants
Meeting Rooms
Theaters
Corporate A/V Systems
Arenas
Stadiums
Night Clubs
Theaters
Themed Entertainment/Amusement Parks

  • Features:

    • Long excursion ferrite LF driver with FEA-optimized motor and symmetric movement suspension.
    • Matched-size enclosure and aligned suspension point for seamless flown array integration.
    • 700W continuous power handling (2800W peak).
    • High sensitivity design minimizes power compression losses and required amplifier size.

  • Specifications:

    • Operating Mode: Single Amp
    • Operating Environment: Indoor or Weather-Resistant Outdoor.
    • Operating Range: 39 Hz to 150 Hz.
    • Transducers: 1 x 12" (305mm) double-treated cone with 4" (102mm) inner/outer wound voice coil, ferrite construction.
    • Continuous Power Handling @ Nominal Impedance; Single Amp 75V 700W @ 8 ohms (2800W peak).
    • Nominal Sensitivity: Half Space @ 1W 100 dB, @ 2.83V 100 dB, Whole Space @ 1W 94 dB, @ 2.83V 94 dB
    • Nominal Maximum SPL (Whole Space): @ 1W 90 dB, Continuous 90 dB, (Half Space) @ 1W 96 dB, @ 2.83V 96 dB.
    • Equalized Sensitivity: Half Space @ 1W 96 dB, @ 2.83V 96 dB, Whole Space: @ 1W 94 dB, @ 2.83V 94 dB.
    • Equalized Maximum SPL: Half Space Peak130 dB, Continuous 124 dB, Whole Space Peak 124 dB, Continuous 118 dB.
    • Recommended Amplifiers: Single Amp 700W - 1400W @ 8 ohms, (75V - 106V).
    • Input Connection: Indoor: (2) Screw terminal blocks (4-position),
    • Mounting Points: (24) M10 threaded rigging points, (22 in Outdoor model).
    • Environmental: Outdoor: IP55W per IEC 60529 , MIL-STD-810G
    • Weight 64 lbs (29.0kg) subwoofer only
    • Dimensions H x W x D 14.30" x 14.50" x 21.00" (363 x 368 x 533 mm).

  • GTIN:

    0617174031190
