Camplex Visual Fault Locator for ST/SC/FC/LC Fiber Connectors- 20mW Output Power 20km Max Distance

ITEM #: CMX-TL-1505 MFG #: CMX-TL-1505

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$176.49

Our Price:

$166.49

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    CMX-TL-1505 - Overview

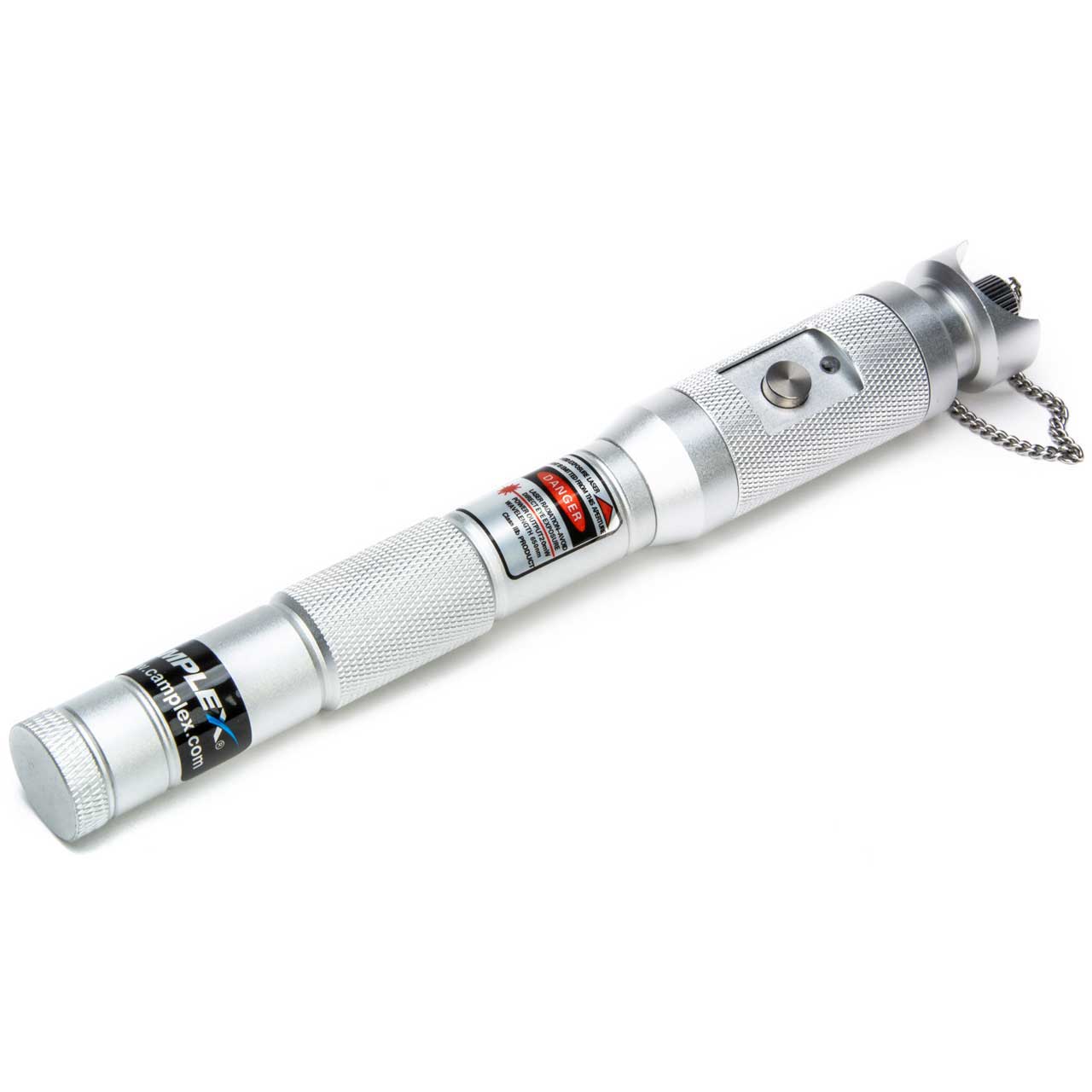

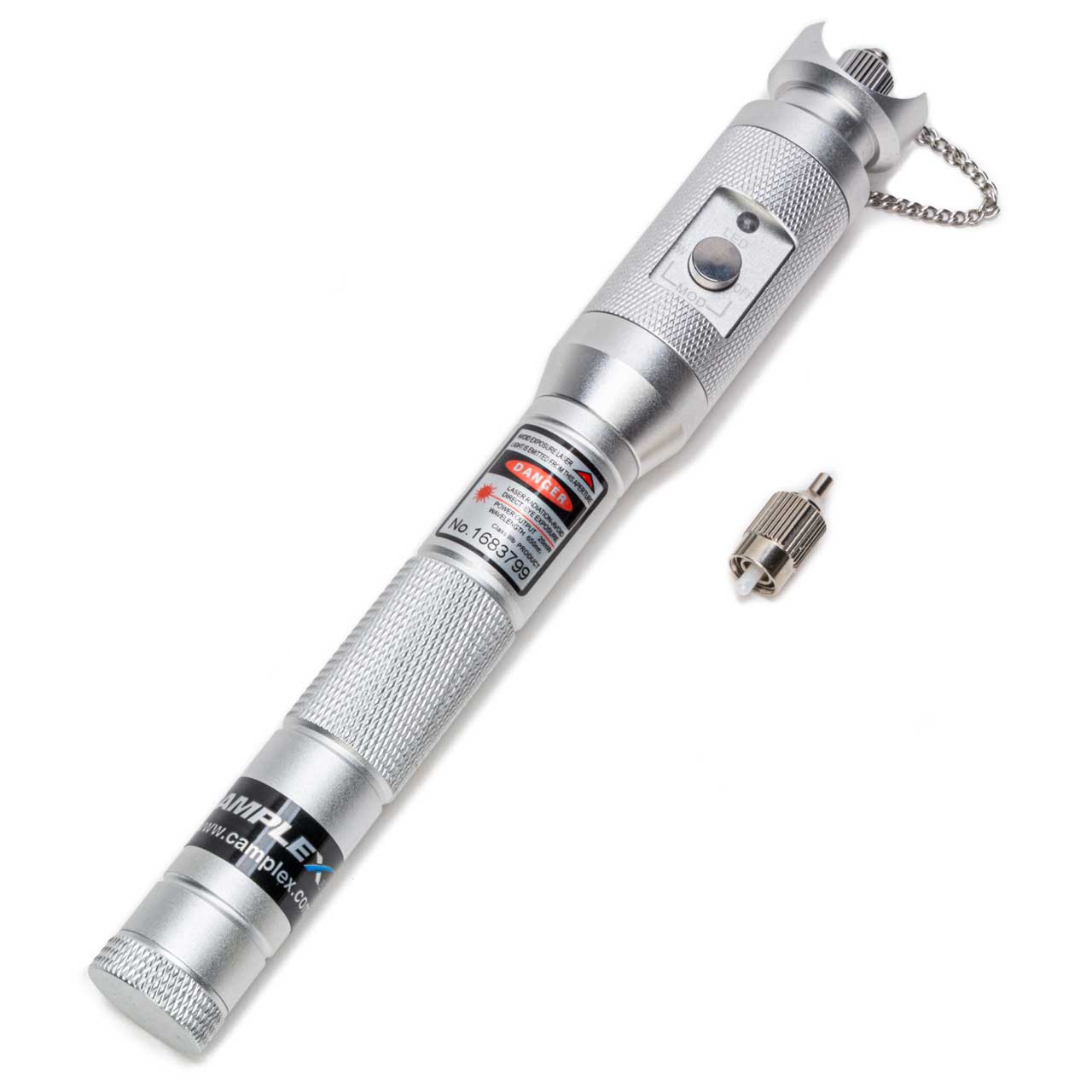

    Demystify the process of finding signal loss and breaks in your fiber cables with the Camplex TL-1505 Visual Fault Locator. The TL-1505 has two modes of operation and locates breaks and bends up to 20kM (output power of 20mW).
    The two operating modes consist of CW, continuous wave, for a steady fault illumination, or GLINT, a modulated output. The TL-1505 works with all standard fiber optic cables including LC, ST, FC and SC terminations.

    • Features:

      • Tests fiber cables with LC, ST, SC and FC connectors
      • Compact Unit with Two Operating Modes
      • Belt Holster with Velcro Closing & Dust Cap
      • Includes 2.5mm to 1.25mm adapter for use with LC connectors
      • Rugged Aluminum
      • LED Power Indicator

    • Specifications:

      • Output Power: 20mW
      • Maximum Distance: 20KM
      • Interface: 2.5 mm
      • Wavelength 650nm ± 10nm
      • Pulse Frequency: 3Hz and 9Hz
      • Battery life: >60 hrs
      • Dimensions (Length): 7.75in
      • Weight: 6.24 oz packaged

    • Item Includes:

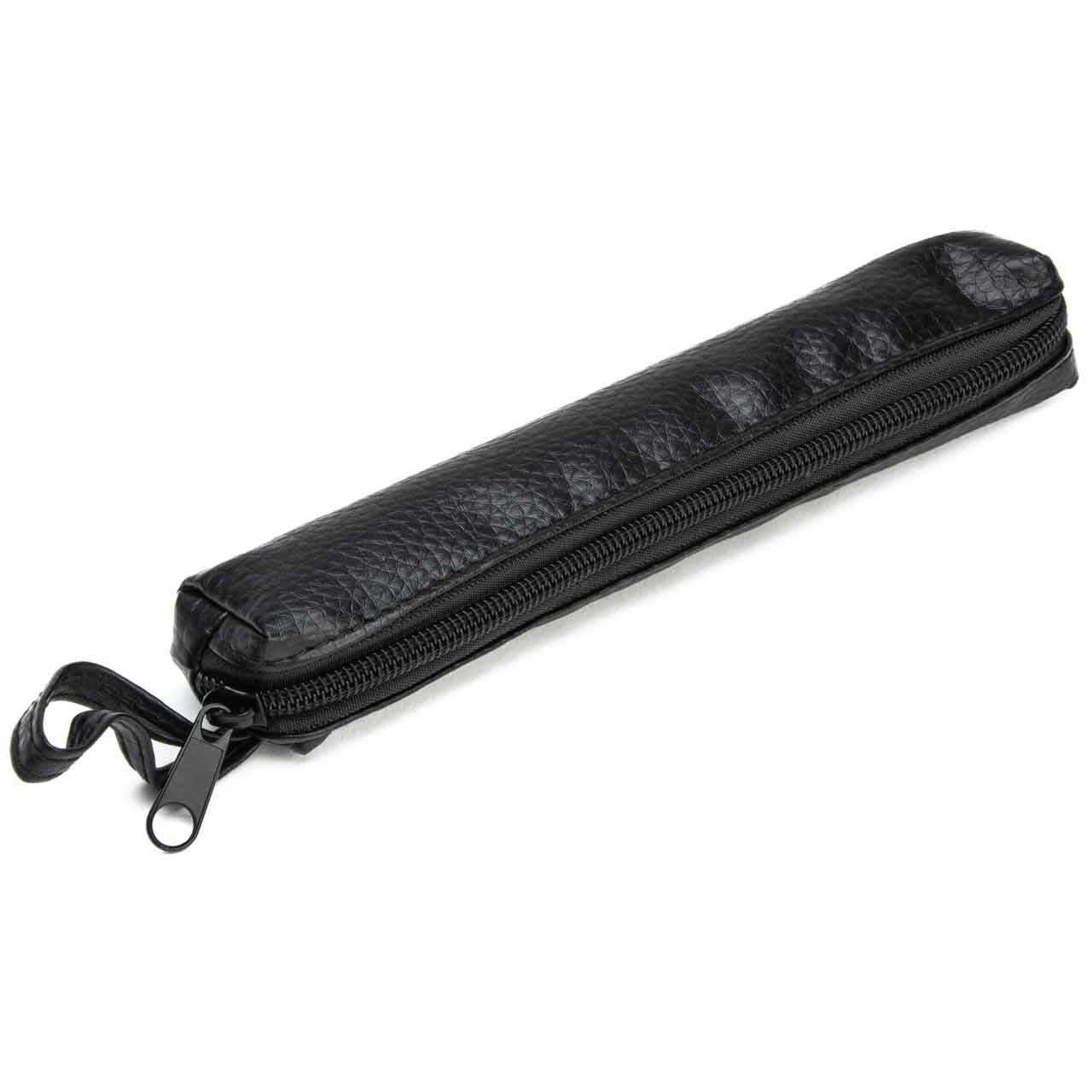

      • Zippered Carrying Case
      • 2 AA Batteries

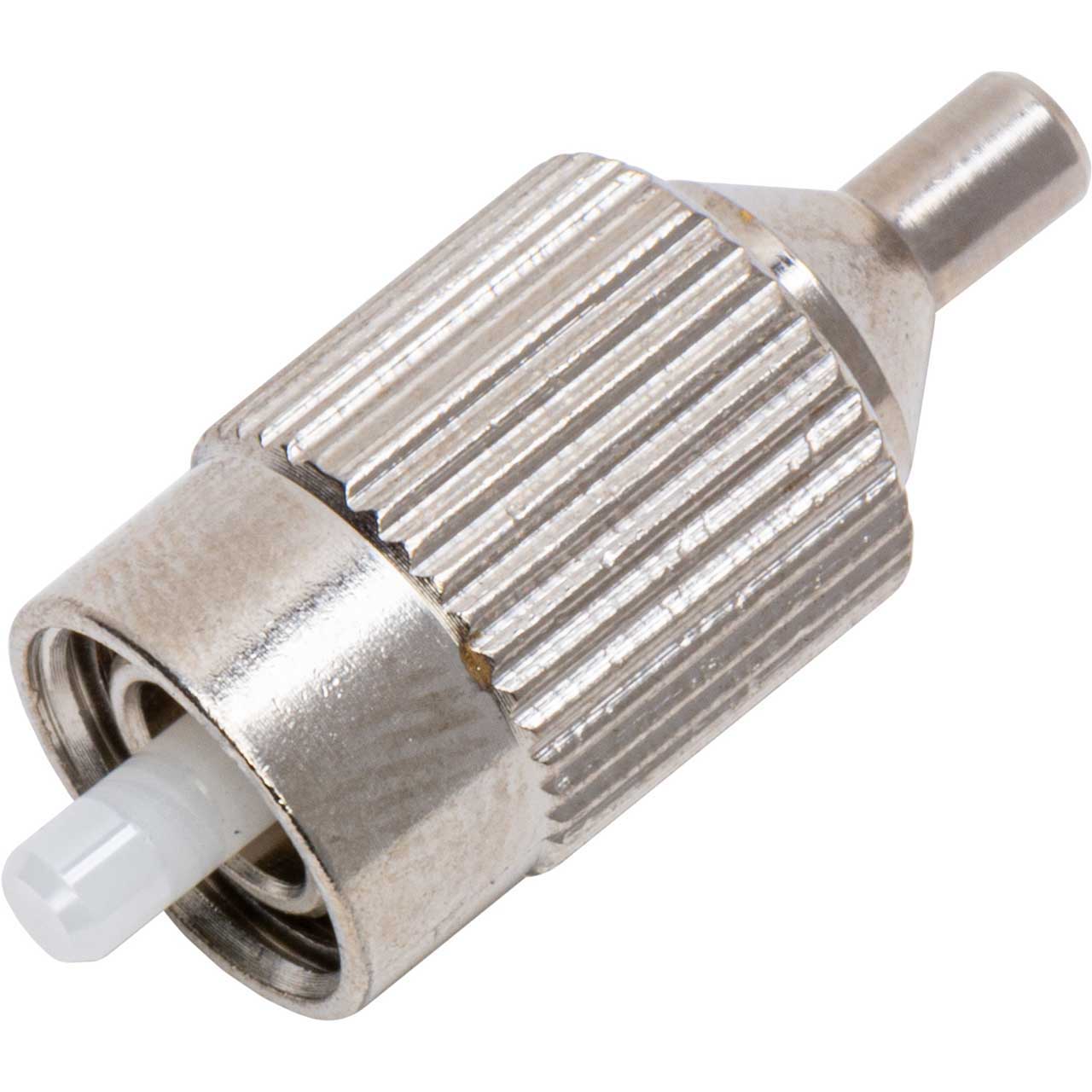

      • CMX-TL-1503 2.5mm to 1.24mm VFL LC Adapter
