Coax Connectors 52-005-B6-EF1 DIN 1.0/2.3 Crimp/Crimp Plug True 75 ohm/12G for Belden 1855A - 100 Pack

ITEM #: COA-52005B6EF1 MFG #: 52-005-B6-EF1-BULK

free ship

List Price:

$519.00

Our Price:

$439.00

Availability: In Stock
iAvailability Description Popup


    52-005-B6-EF1-BULK - Overview

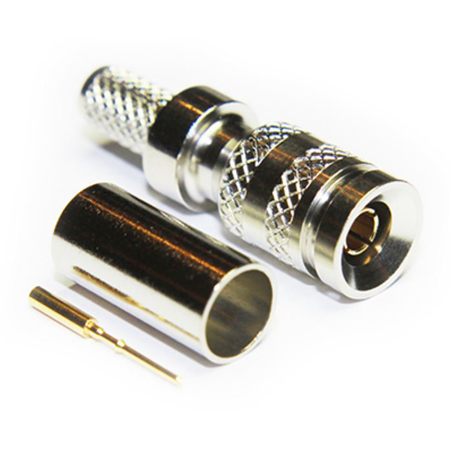

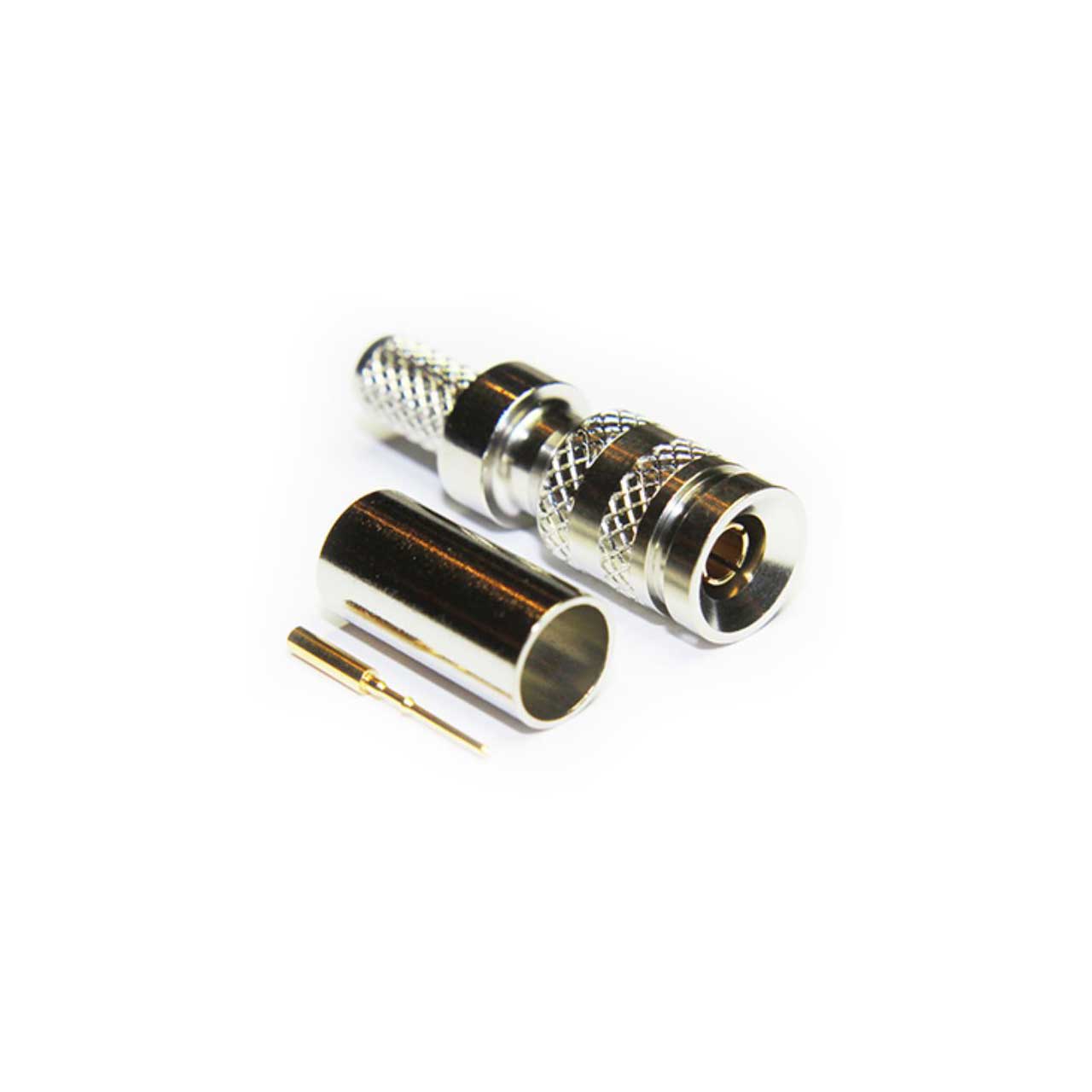

    Coax Connectors 52-005-B6-EF1 is a 1.0/2.3 straight full crimp plug using standard US crimp sizes, with gold plated center and outer contact. Center contact and crimp sleeve are annealed for enhanced performance. Suitable for use with cable in group EF.

    DIN 1.0/2.3 series of RF connectors are available in 50 ohm and 75 ohm versions. These micro miniature connectors are designed to meet the standards IEC 61169-29, CECC 22230 & DIN 47297 and feature a push-pull coupling. 1.0/2.3 are widely used for digital telecommunications and due to their small size, our true 75 ohm versions are increasingly being used in broadcast, as an alternative to BNC.

    • Specifications:

      • Electrical Specification
      • Impedance: 75 Ohm
      • Frequency Range: Up to 12GHz
      • Dielectric Withstand Voltage: 1000 Veff
      • Insulation Resistance: 5000 M-Ohm
      • Return Loss: -17 dB @ 12GHz

        Mechanical Specification
      • Design Standard: IEC 61169-29
      • RoHS3 Compliant: Yes
      • Center Contact Termination: Crimp
      • Outer Contact Termination: Crimp
      • Mating Cycles: 500
      • Contact Retention: 10N min
      • Cable Retention: 100N min
      • Weight: 0.01Lbs (4.55g)

        Environmental Specification
      • Operating Temperature: -67° to 311°F (-55° to 155°C)
      • IP Rating (Mated): IP40

        Materials
      • Center Contact: Beryllium Copper
      • Outer Contact: Beryllium Copper
      • Insulator: PTFE
      • Center Contact Plating: Gold
      • Outer Contact Plating: Gold
      • Pack Size: 1

        Compatible Cables:
      • Belden 1855A
      • Belden 1865A
      • Belden 4855ANH
      • Belden 4855P
      • Belden 4855R
      • Canare L-2.5CFB
      • Canare L-2.5CHD

    • Item Includes:

      • 1x 52-005-B6-EF1 1.0/2.3 Crimp/Crimp Plug True 75 ohm/12G for Belden 1855A - 100 Pack
