Pliant Technologies TMA-RTEXT-01 Tempest BaseStation to Transceiver Line Extender

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

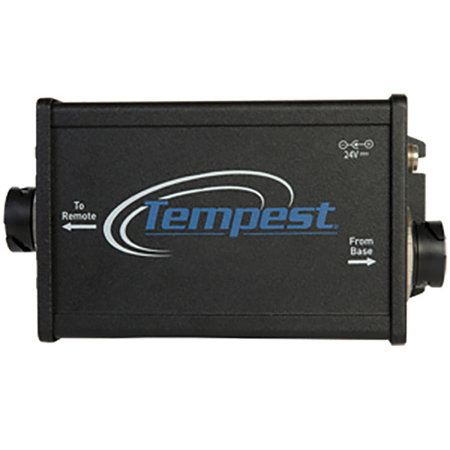

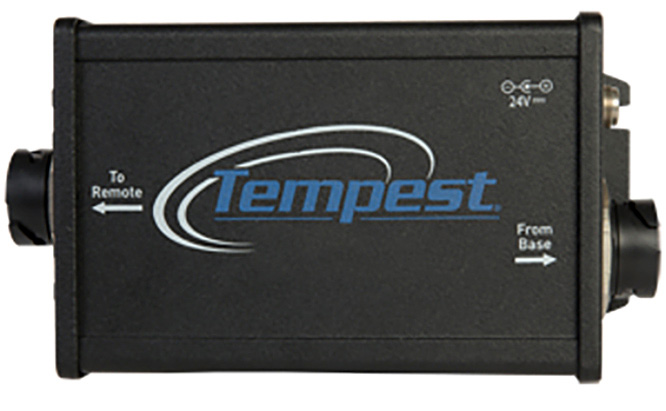

    Pliant Technologies TMA-RTEXT-01 Tempest BaseStation to Transceiver Line Extender

    Manufacturer: Pliant Technologies

    Item #: COA-TMA-RTEXT-01   •   MFG #: TMA-RTEXT-01



    List Price:$985.00
    Our Price:$929.30

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Externally powered Remote Transceiver Line Extender. Used in-line between single Tempest BaseStations and the Remote Transceivers to extend to distances up to 4500 ft. (1372 m)


      • Features

        • Used in applications that require a remote transceiver location over 1500 ft. (450 m) from a BaseStation
        • Increases your CAT-5 cable length by an additional 3000 ft. (914 m) for a total length of 4500 ft. (1372 m)
        • Using as many as 3 Line Extenders with the Remote Transceiver allows cable runs up to 7500 ft. (2286 m) in total length
        • Meets IP67 Standards

      • Specifications

        • Electrical
        • AC Input Voltage Range: 90- 264 AC
        • DC Input Voltage Range: 22.8-25.2 VDC Input Frequency Range 47-63 Hz
        • AC Input Current: 83mA max/45mA typ
        • Inrush Current: 30A max @ 115V/60A max @ 230V AC Power Consumption Min/Max 1.5W/6.7W
        • DC Power Consumption Min/Max 1.25W/5.6W

        • Safety and Compliance
        • Hi-Pot (10mA for 1min): 3000 VAC Safety Approvals CB
        • Power Supply: UL/cUL, GS RCM, CCC, PSE
        • EMI standard: CE, FCC Class B
        • Power Supply: CE, FCC Class B, VCCI Class II
        • RoHS Compliant: Yes
        • Leakage Current: 0.25mA

        • Physical
        • Unit Weight: 12.4 oz.
        • Dimensions: 6.22 in x 3.42 in x 1.85 in (L x W x H)

      • Item Includes

        • External power supply, interchangeable AC blades, and Quick Start Guide

      • Warranty

        • Two Year Parts and Labor
