Contemporary Research  QIP-HDMI 2  IPTV Encoder with H.264 -  HDMI/Composite/Analog Stereo/SPDIF Inputs
  • Contemporary Research  QIP-HDMI 2  IPTV Encoder with H.264 -  HDMI/Composite/Analog Stereo/SPDIF Inputs
  • Contemporary Research  QIP-HDMI 2  IPTV Encoder with H.264 -  HDMI/Composite/Analog Stereo/SPDIF Inputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Contemporary Research QIP-HDMI 2 IPTV Encoder with H.264 - HDMI/Composite/Analog Stereo/SPDIF Inputs

Item #: CRC-QIP-HDMI2   •   MFG #: QIP-HDMI2



List Price:$2,150.00
Our Price:$1,828.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The dual-program QIP-HDMI 2, with two HDMI input, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Encoding as MPEG2 or H.264, the QMOD-HDMI 2 can output the content as two SPST Multicast or Unicast IPTV streams. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, and NTSC video sources.

This unit includes a universal rack mount kit, which is a combination of the RK1 & RK2EZ that will allow you to mount the unit into a 1RU or 2RU slot in your Rack right out of the box.


  • Features

    • Sources
    • Two HDMI inputs (non-encrypted), 480p to 1080p, embedded PCM audio, pass-through AAC and AC-3
    • Two Composite/CC video inputs for encoding, captioning, or EAS use
    • Two analog Stereo and two SPDIF coax audio inputs

    • Encoding
    • Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
    • Converts stereo and PCM to stereo AAC or MP12, passes through or AC-3 and AAC
    • Can create SAP dual-language audio for each program
    • Accepts 608.708 embedded captioning, decodes Line 21 captioning from composite video inputs
    • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution
    • Dual-program operation is standard

    • Operation
    • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
    • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
    • Updates firmware via USB and Ethernet
    • Fan cooled, with adjustable speed
    • Saves power and rack space using efficient design
    • Includes compact switching power supply
    • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
    • Meets RoHS safety and California energy standards

  • Specifications

    • Physical
    • 8.5" [216mm] wide x 1.73" [62mm] height (1RU) x 6.0" [153mm] deep
    • 1.5 lbs [0.68kg]
    • +32° to 122° F operating temperature, convection cooled
    • Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
    • For HRF Half-Racks, use the RK2EZ kit to mount each tuner
    • Fan cooled, with adjustable speed

    • Scaling
    • Dual hardware scalers
    • Accepts 1080p - 480i and VGA resolutions, 29.97 - 60 Hz US and PAL refresh rates
    • Edge to edge presentation with zoom, shrink and X/Y axis positioning
    • Auto-sync or sales to fixed output resolution, 1080p scaled to 1080i

    • Encoding
    • H.264 or MPEG2 for HD, [email protected] for SD, 1080i, 720p, 480p, and 480i output resolution
    • MPEG 2 Video Encoding bitrate 10-25 Mbps, HD, 5-6 Mps 480i, or variable bitrate
    • H.264 Video Encoding bitrate 5-12 Mbps, HD, 2-3 Mps 480i, or variable bitrate
    • PCM or analog audio output s MPEG1 Layer2 or AAC
    • Pass-through AAC and AC-3 aud

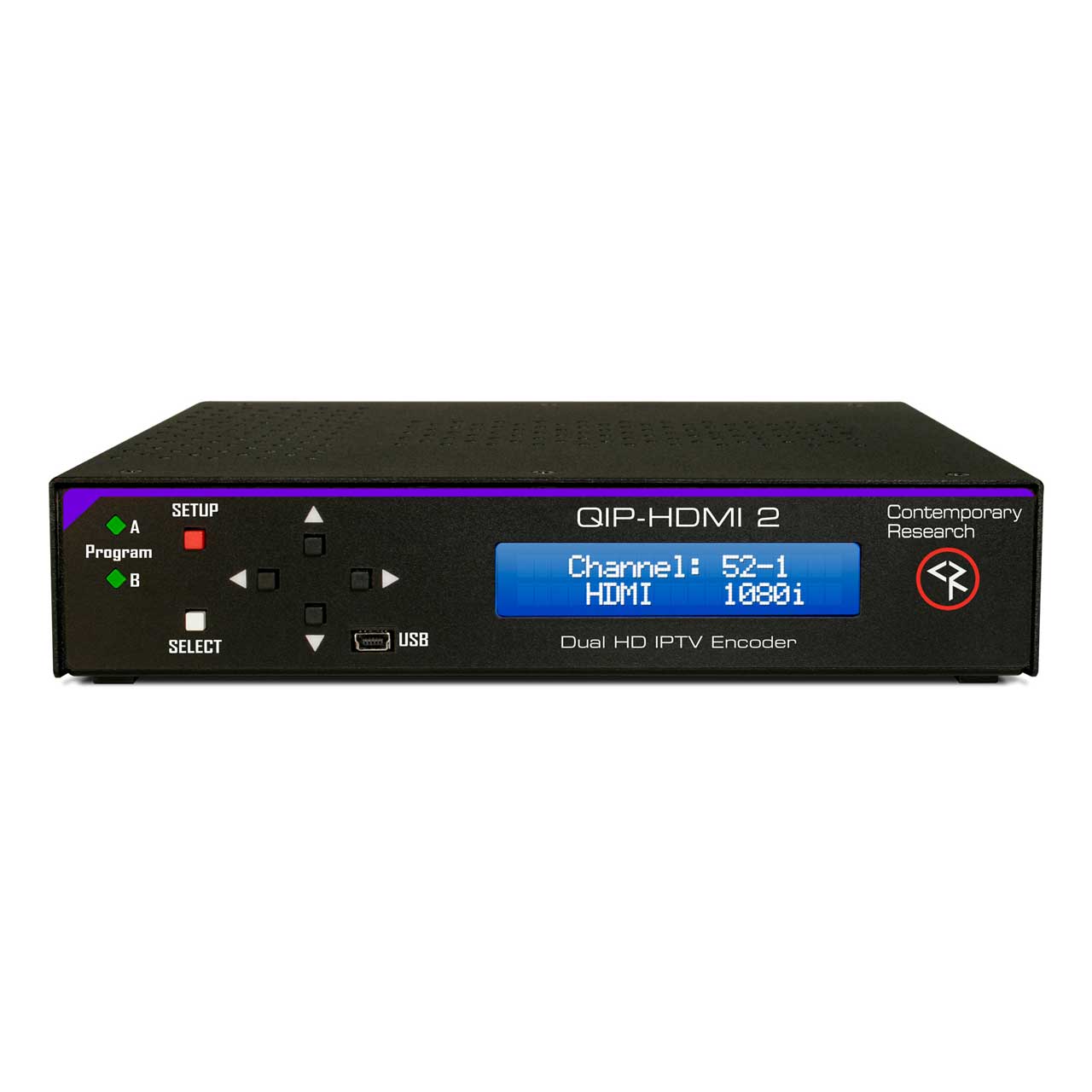

    • Front Panel
    • Select and directional buttons for menu setup
    • Menu LCD, Blue with 2 lines of 20 white characters each

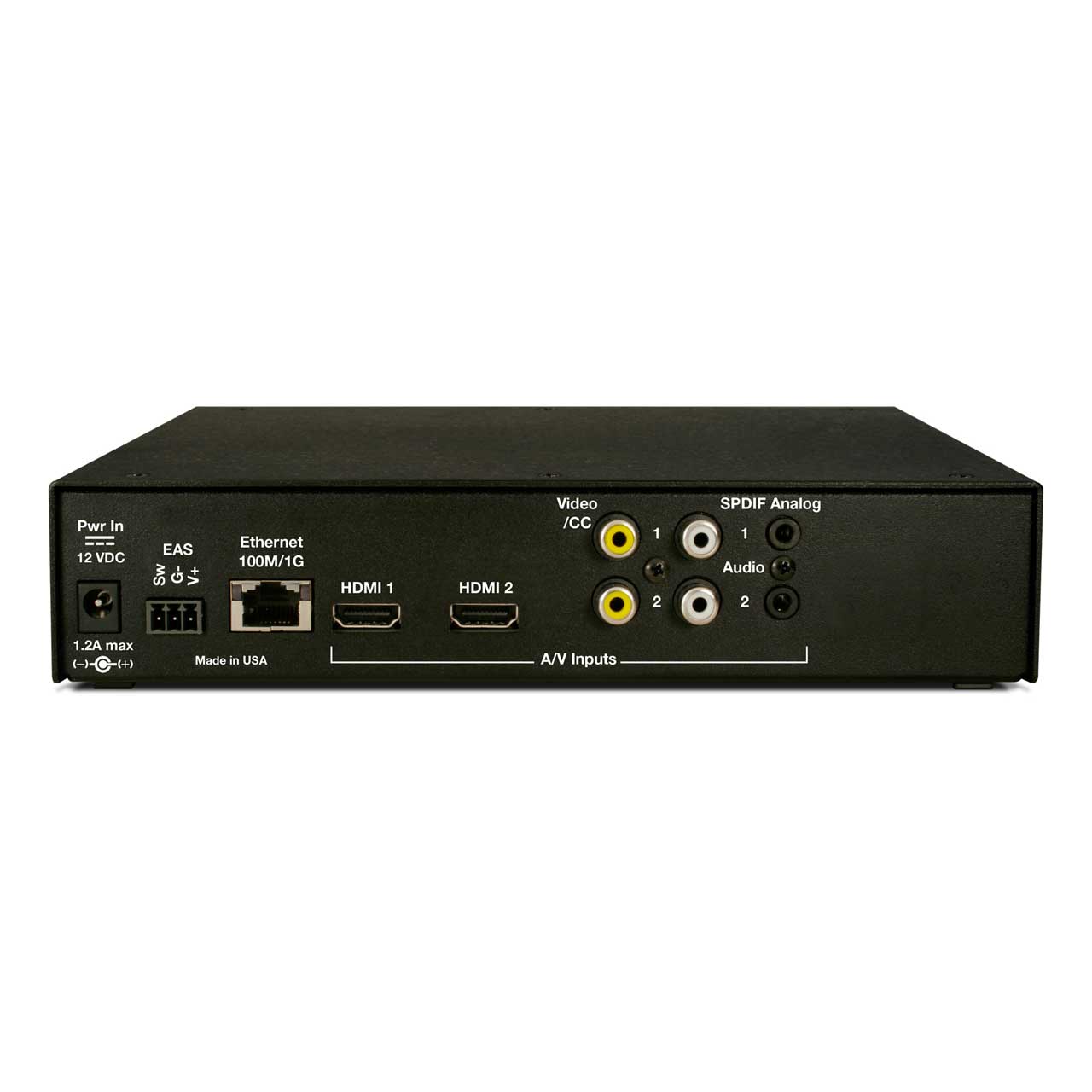

    • Back Panel
    • Power: 2.1mm coaxial jack (inside center conductor positive)
    • 1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
    • EAS: 3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
    • Ethernet: RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTV and internal Web page

    • HDMI: Two (non-HDCP), up to 1080p, embedded PCM and AC-3 audio
    • Composite Video/CC Inputs: RCA female (480i), 29.97 Hz, supplies line 21 Captioning

    • Audio Inputs: Two coax SPDIF digital audio inputs
    • Analog L and R: 2 stereo mini jacks
    • Inputs assignable to video inputs

  • Item Includes

    • QIP-HDMI 2 unit
    • PS12-2 Switching power supply, 2A 12 VDC, standard AC cord for power strips

    • Free option to include PS12-8Y power supply with every 2-4 modulators when ordered
