Comrex VH2 Dual Line VoIP Studio Telephone Interface

ITEM #: CREX-9500-1400 MFG #: 9500-1400

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    9500-1400 - Overview

    Any studio that processes phone calls needs hardware to interface with phone lines. This device, traditionally called a Hybrid, filters, separates and provides gain adjustment and call control to more easily allow for recording or broadcasting "phoners". As telephone companies are shifting from traditional phone lines to Voice-over-IP (VoIP) systems, the devices that performed this job in the past are becoming outmoded. Broadcasters need a VoIP hybrid to ensure on-air and recorded phone calls sound as good as possible. A dual-line hybrid, VH2 connects two VoIP lines to a studio for individual broadcast or flawless conferencing. VH2 prevents echo and distortion, and automatically adjusts caller audio to a uniform level, leaving you with a result that’s clean and clear. Plus, VH2 uses only VoIP phone lines, saving you money and increasing functionality. VH2 can even connect to many VoIP PBX systems.

    • Features:

      • Prevents echo and other artifacts
      • Supports normal phone calls (G.711) and wideband phone calls (G.722)
      • Allows for caller ID, outgoing calls, screening, and post-air management using companion VoIP phone set
      • Set up via easy-to-use web based configuration page
      • Easy Hookup
      • On-Hold Inputs
      • Consistent Audio Levels
      • Companion Phone
      • Status Indication
    • Specifications:

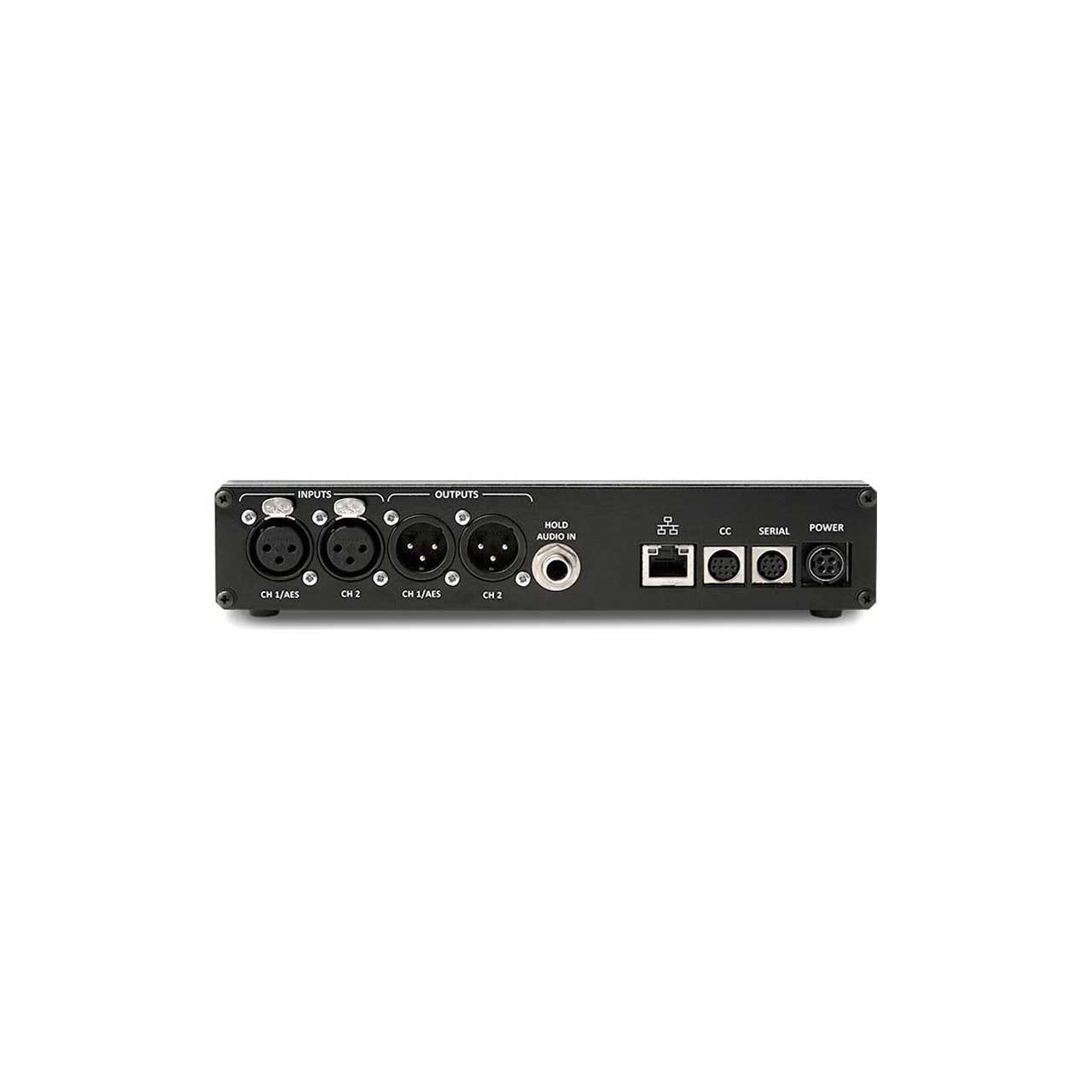

      • Audio Connections: Caller audio out on balanced XLR-M output ; send audio in on balanced XLR-F input (clip +20dBu). Switchable to AES3 I/O (48KHz sampling rate only for AES3). On-hold audio in on ¼” TRS jack input (clip +20dBu)
      • Other Connections: 10/1000 Ethernet port, contact closures 9 pin mini DIN, serial port on 8 pin mini DIN, Power in on 4 pin mini DIN
      • Universal external power supply +24VDC
      • Compliant with worldwide regulations, including FCC, CSA, and CE
