Core SWX NANO-V150K Compact V-mount Battery Kit with 2x NANOV150 and 1x GPMX2S Hard Bundle

ITEM #: CSW-NANO-V150K MFG #: NANO-V150K

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$891.45

Our Price:

$846.88

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


NANO-V150K - Overview

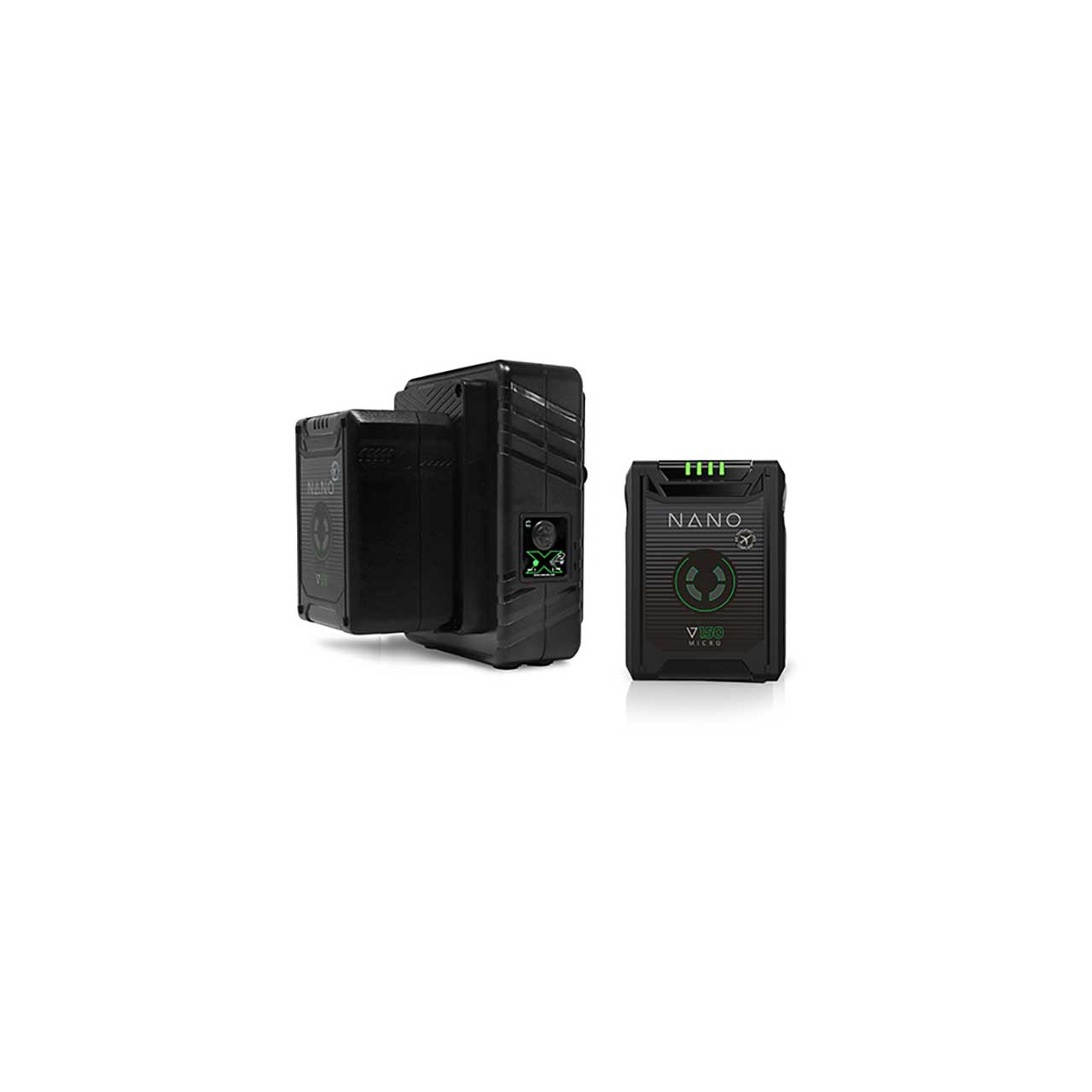

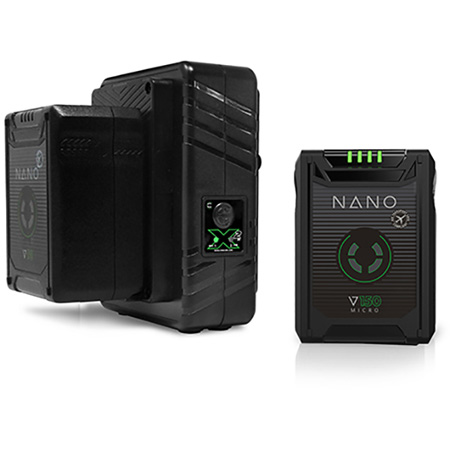

The X2 Mini charger and Nano Micro kit with V-mount is an all-in-one compact power kit.

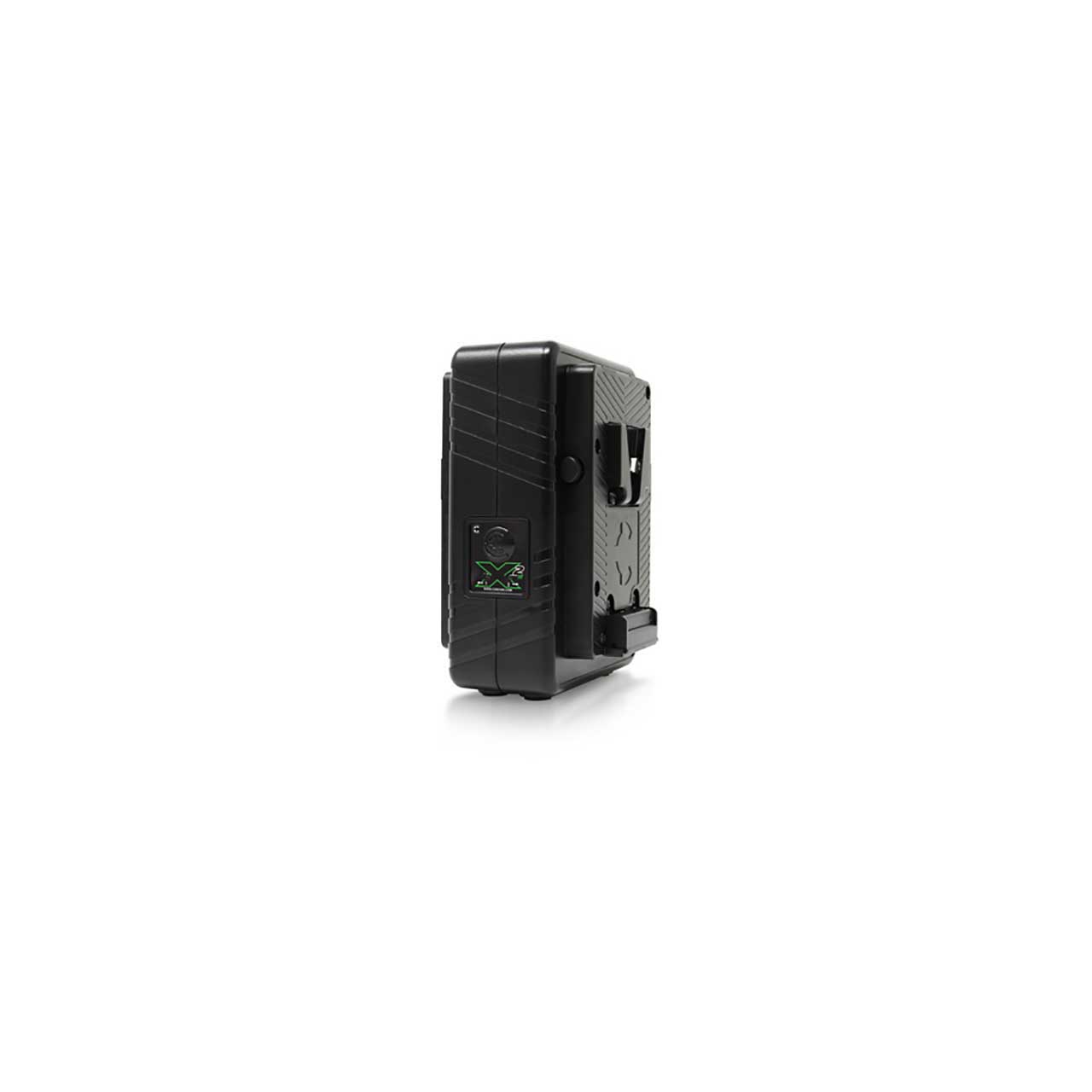

The X2 Mini offers a simultaneous 1.5A charging as well a "Fleet Rapid Charge" bay. When only needing to charge one battery pack, place it on the rapid charge channel for a 3A charge, and take advantage of the Fleet series charge time (one 98wh pack in under 2.5hrs.) Trickle charge maintenance program ensures the batteries are always at maximum capacity.

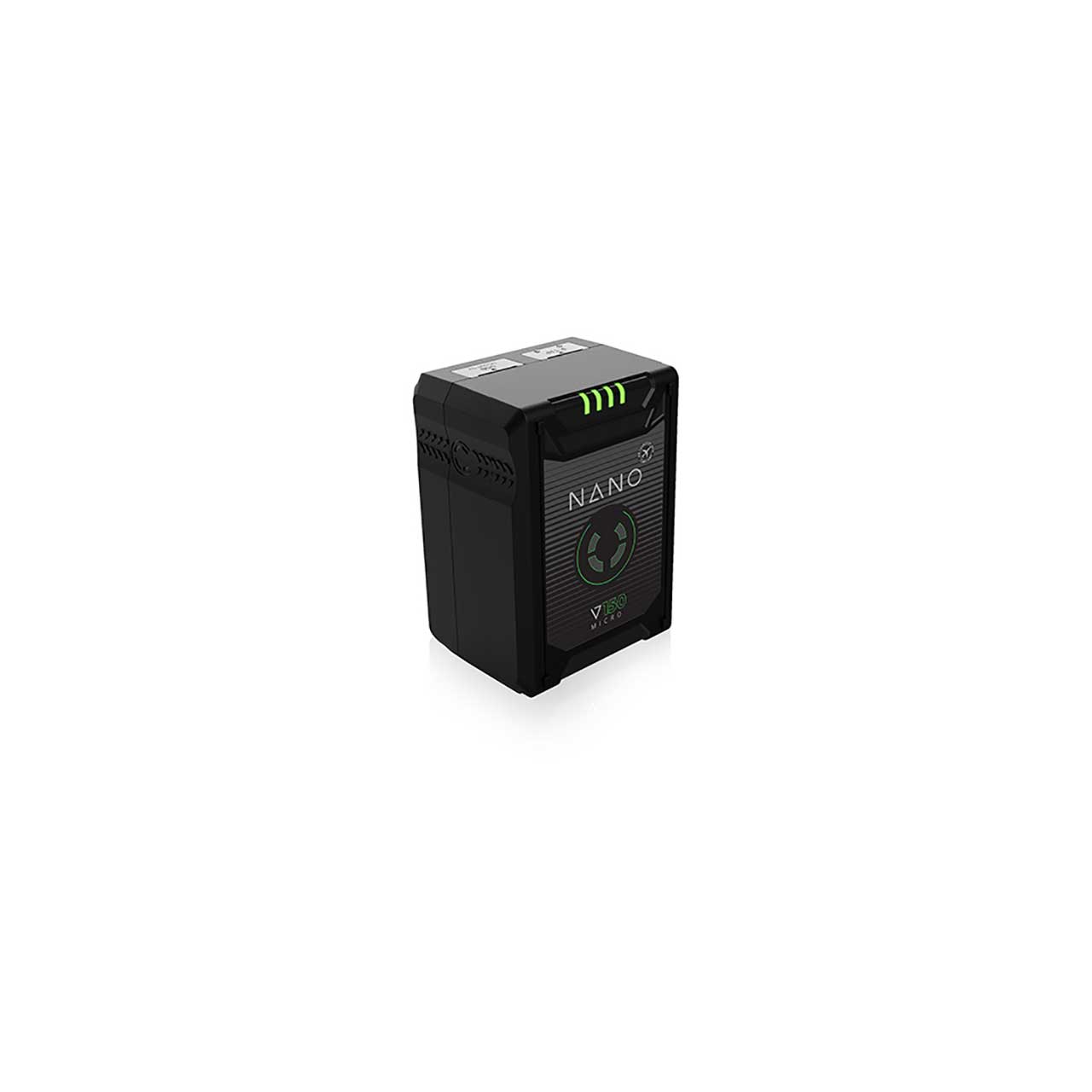

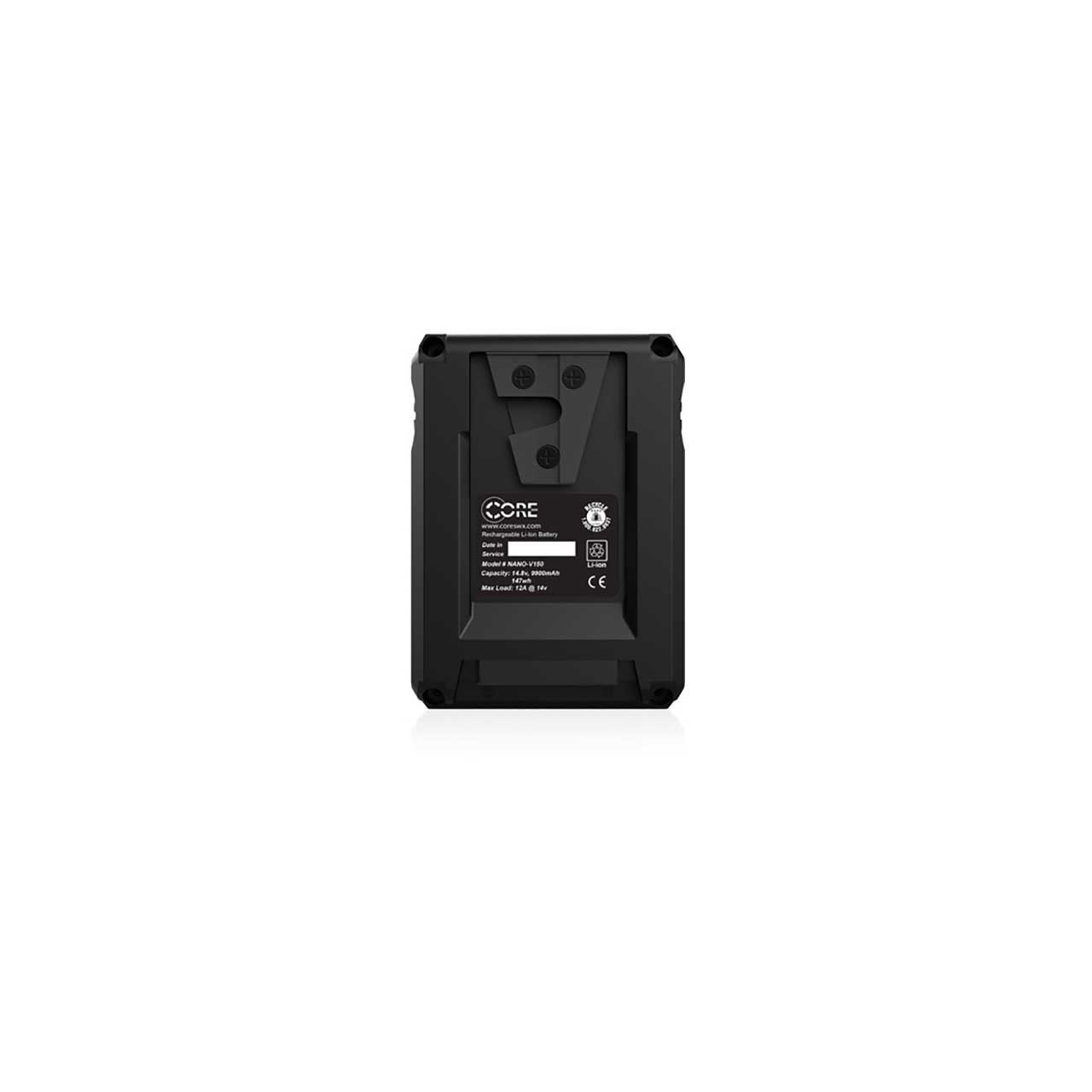

To accompany the X2 Mini charger are the Nano Micro packs which are quite possibly the smallest style pack on the market today. The Nano Micro 150 measures in at less than 4" in height and 3" in depth, while weighing a feathery 1.55 lbs., making it a perfect "grab and go" pack. Capable of handling up to a 12A continuous load, consider these packs for the majority of powering applications.

The packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices and a 5V, 3A USB, and a 4-stage LED gauge. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.

  • Specifications:

    • X2 Mini
    • Input: 100V-240VAC 50/60Hz
    • Charge current: One battery 3A, 2 batteries simultaneous 1.5A
    • Size: 4.5" x 5.5." x 3"
    • Weight: 1lb.

      NANO-V150:
    • Capacity: 147Wh (14.8v, 9.9Ah)
    • Operational Voltage: DC 12v-16.8v
    • Size: 3.93" x 2.83" x 2.63"
    • Weight: 1.55 lbs.
    • Normal Runtime (25W): 5.9 hours
    • Load: 16A peak/12A continuous

  • Item Includes:

    • 1x Core SWX NANO-V150K Compact V-mount Battery Kit with 2x NANOV150 and 1x GPMX2S Hard Bundle

  • GTIN:

    0184323005789
