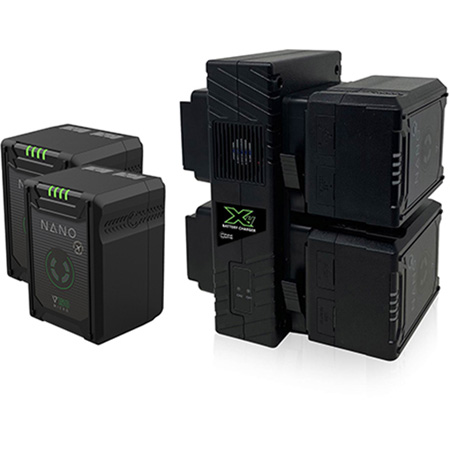

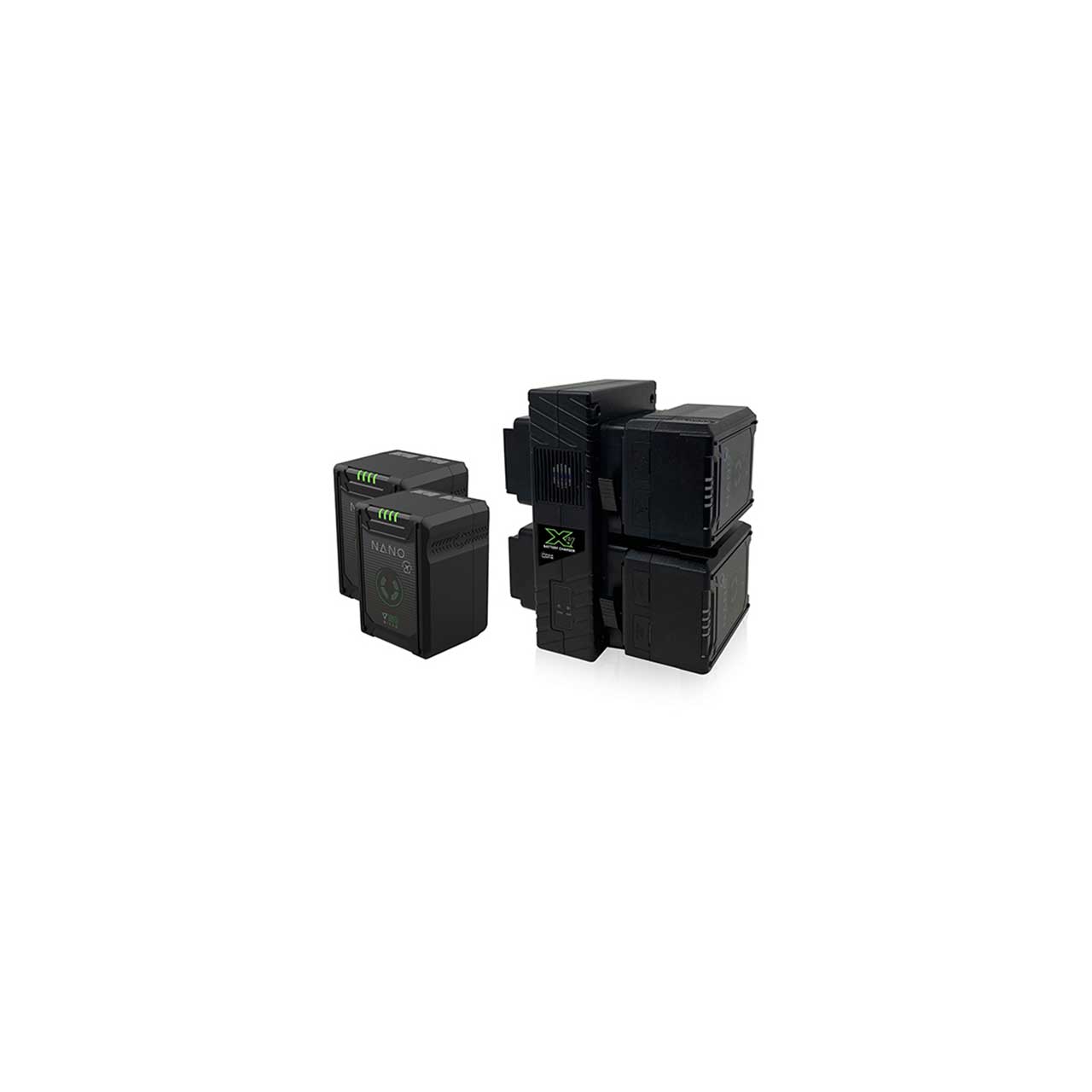

Core SWX NANO-V150K4 Compact V-mount Battery Kit with x4 NANOV150 and x1 GPX4S Hard Bundle

ITEM #: CSW-NANO-V150K4 MFG #: NANO-V150K4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,769.25

Our Price:

$1,680.79

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


NANO-V150K4 - Overview

The Core SWX X4 charger and Nano Micro kit with V-Mount is the perfect all-in-one compact power kit if you're looking for a micro style option. The X4 charger is a compact charger with an upright design and a lightweight, plastic housing. It offers a simultaneous 2.6A charging as well a single bay per side fast charge. When only needing to charge one battery pack on each side, the rapid charge will charge the pack at 3A (one 98wh pack in under 2.5hrs). When two packs are placed on either side, the charge will charge the lesser charged pack up to the same level as the other, then charge both at 2.6A current combined.

To accompany the X4 charger are the Nano Micro packs which are quite possibly the smallest style pack on the market today. The Nano Micro 150 measures in at less than 4" in height and 3" in depth, while weighing a feathery 1.55 lbs., making it a perfect "grab and go" pack. Capable of handling up to a 12A continuous load, consider these packs for the majority of powering applications.

The packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices and a 5V, 3A USB, and a 4-stage LED gauge. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.

  • Specifications:

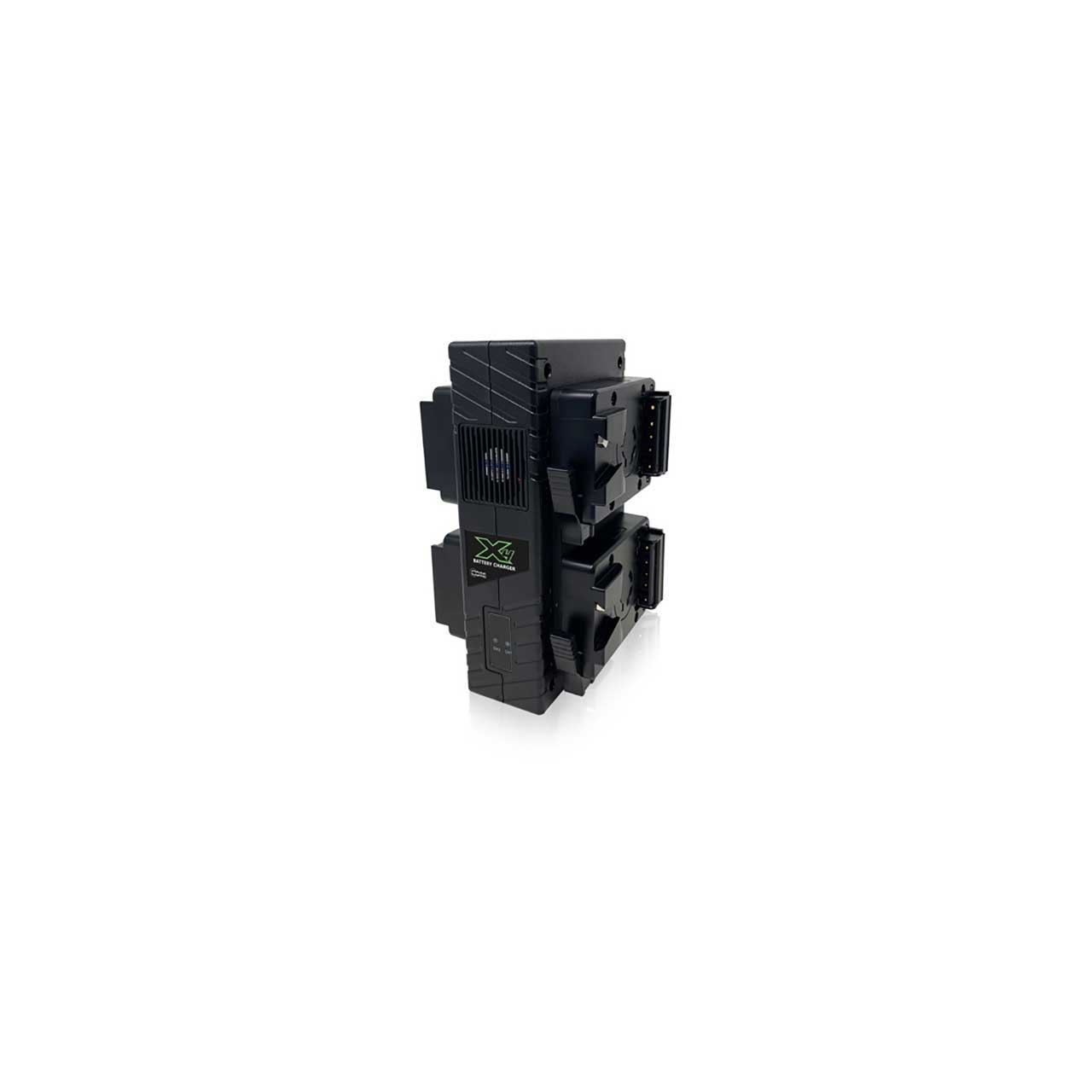

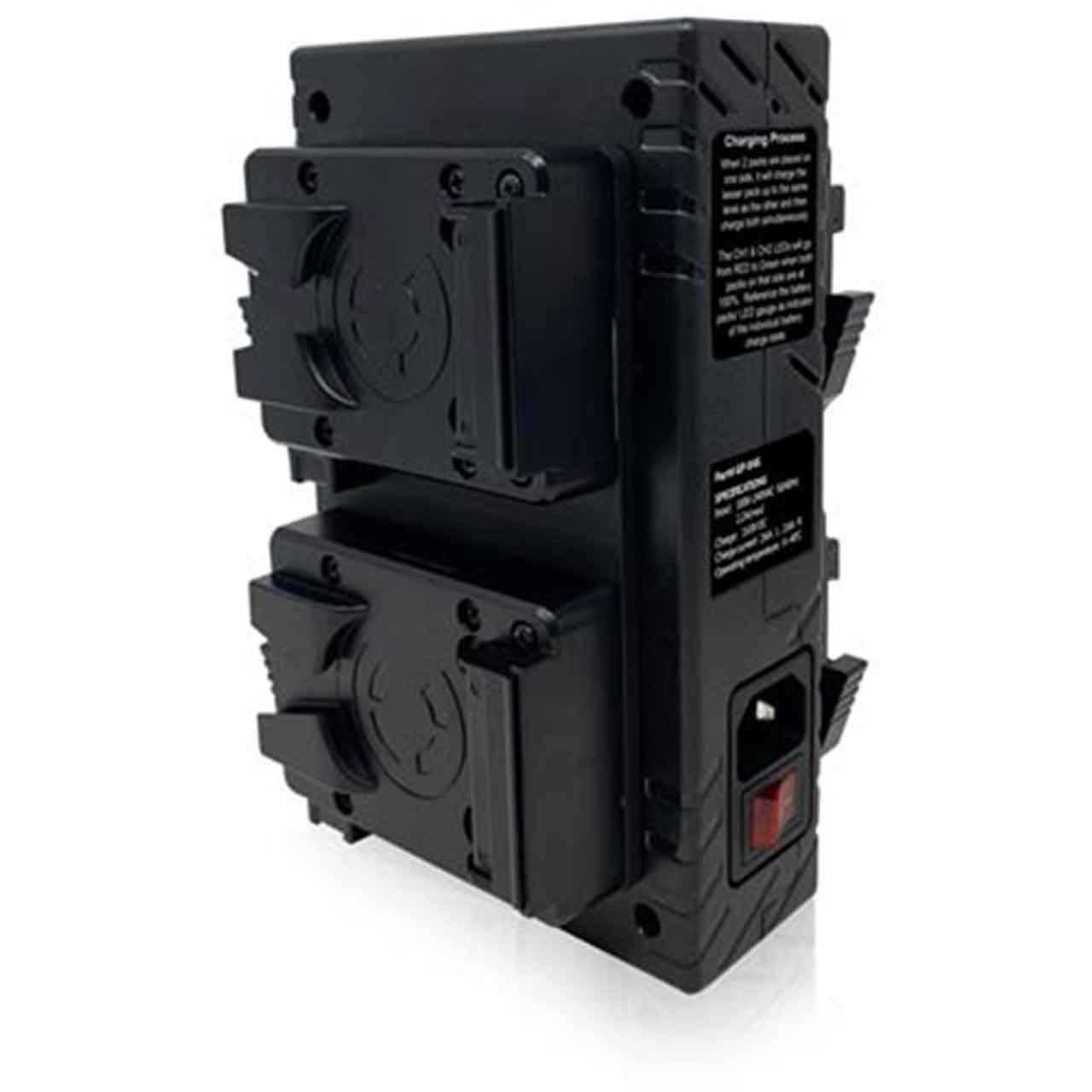

    • X4 Charger
    • Quick Charge Current: 2.6A Simultaneous
    • Size: 4.5" x 7.1" x 3.4"
    • Weight: 2.4lbs.
    • Input Voltage: 90-240VAC 50/60Hz

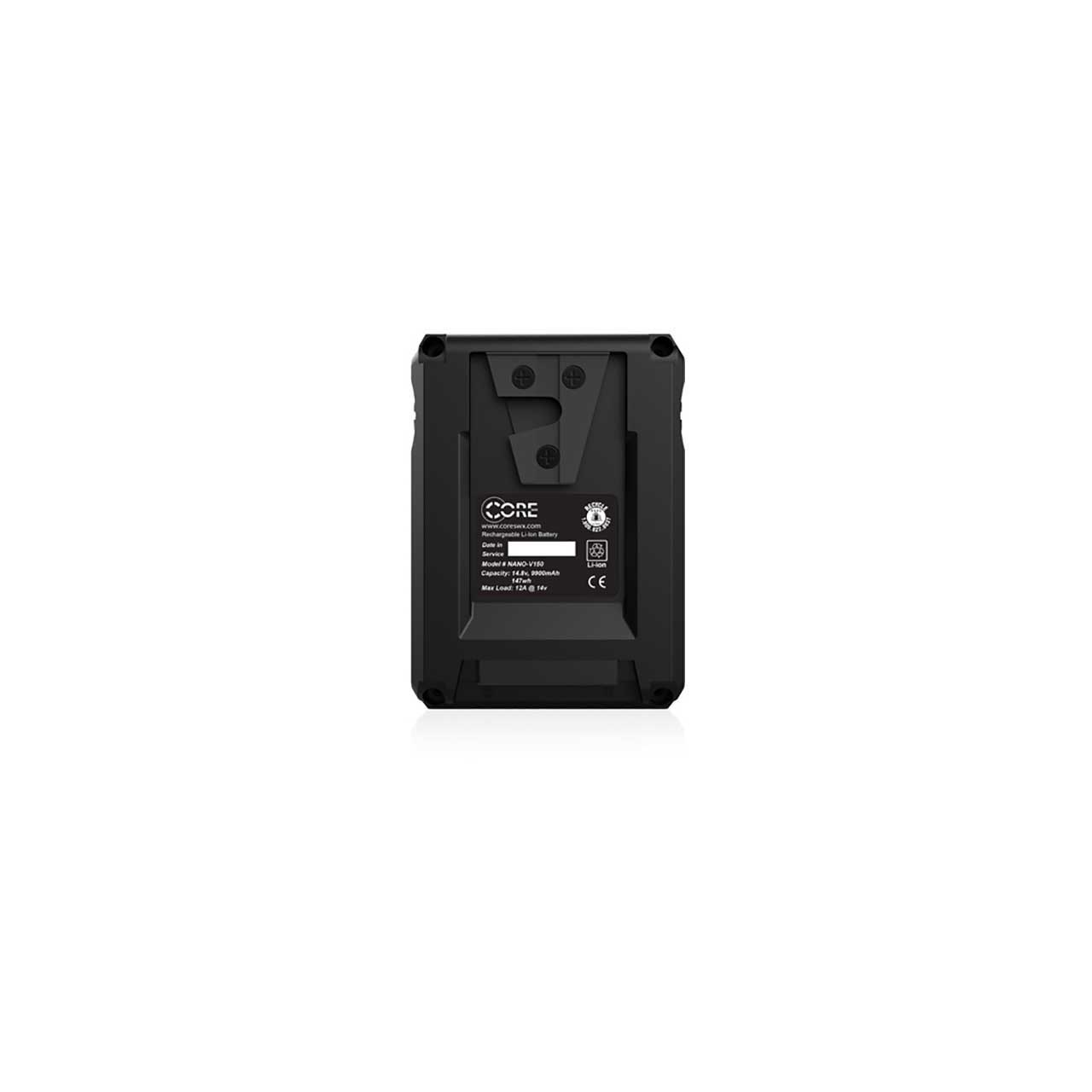

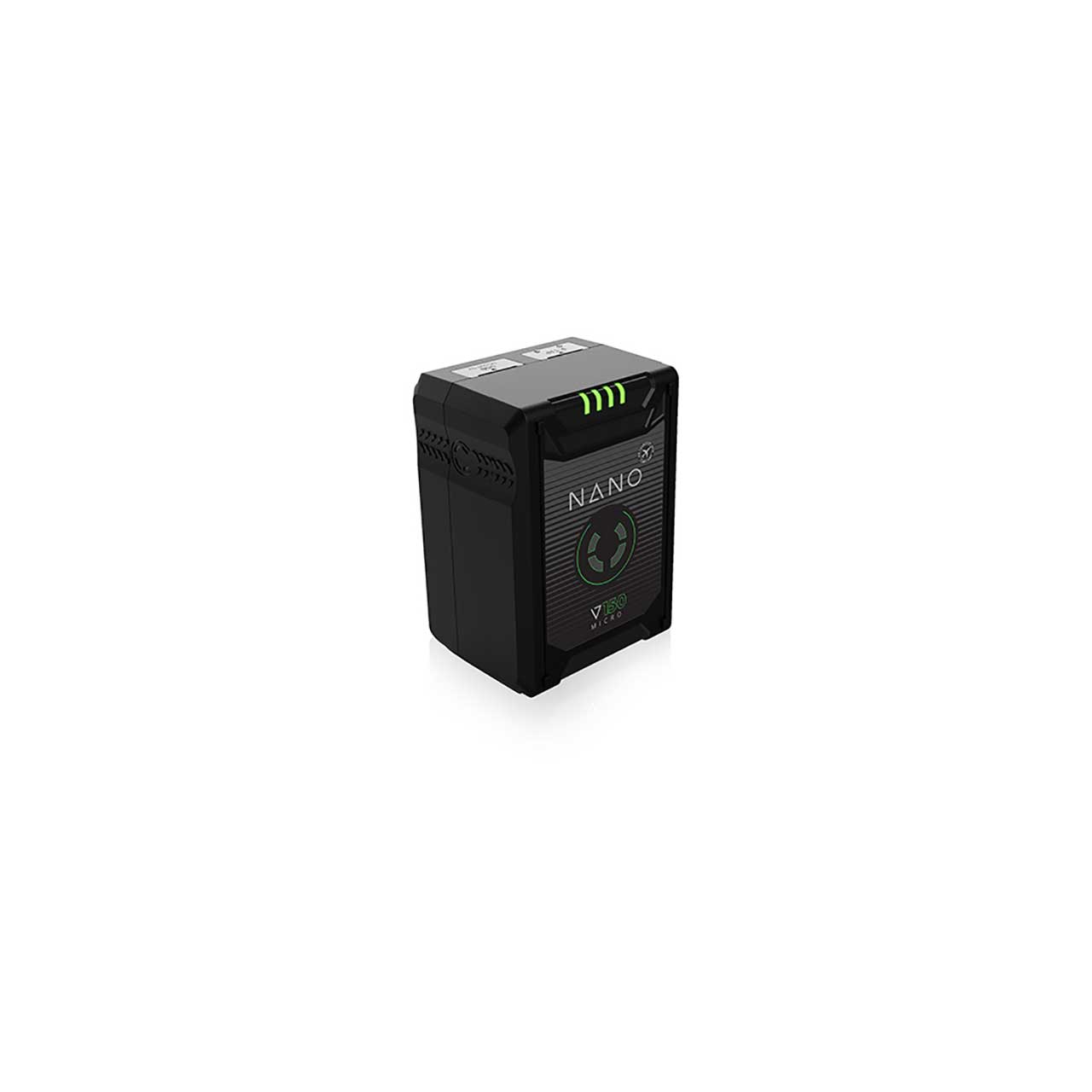

      NANO-V150
    • Capacity: 147Wh (14.8v, 9.9Ah)
    • Operational Voltage: DC 12v-16.8v
    • Size: 3.93" x 2.83" x 2.63"
    • Weight: 1.55 lbs.
    • Normal Runtime (25W): 5.9 hours
    • Load: 16A peak/12A continuous

  • Item Includes:

    • 1x Core SWX NANO-V150K4 Compact V-mount Battery Kit with x4 NANOV150 and x1 GPX4S Hard Bundle

  • GTIN:

    0184323005802
