Core SWX NANO-XLAG 178wh / 14.8v / 12Ah V-Mount Mini Li-ion Camera Battery Pack

ITEM #: CSW-NANO-XLAG MFG #: NANOXLAG

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$460.95

Our Price:

$437.90

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


NANOXLAG - Overview

The Core Nano NANO-XLAG series of Lithium ion battery packs offer the first economical solution that is "smart," allowing SMBUS/AN % data to present on the EVFs and cameras LCDs of most industry cameras, and the AG packs are Anton/Bauer charger compatible.

The 14.8v, 178wh capacity and 10A load capability makes the NANO XL packs the perfect go-to for long runtimes even on power hungry applications such as LED panels.

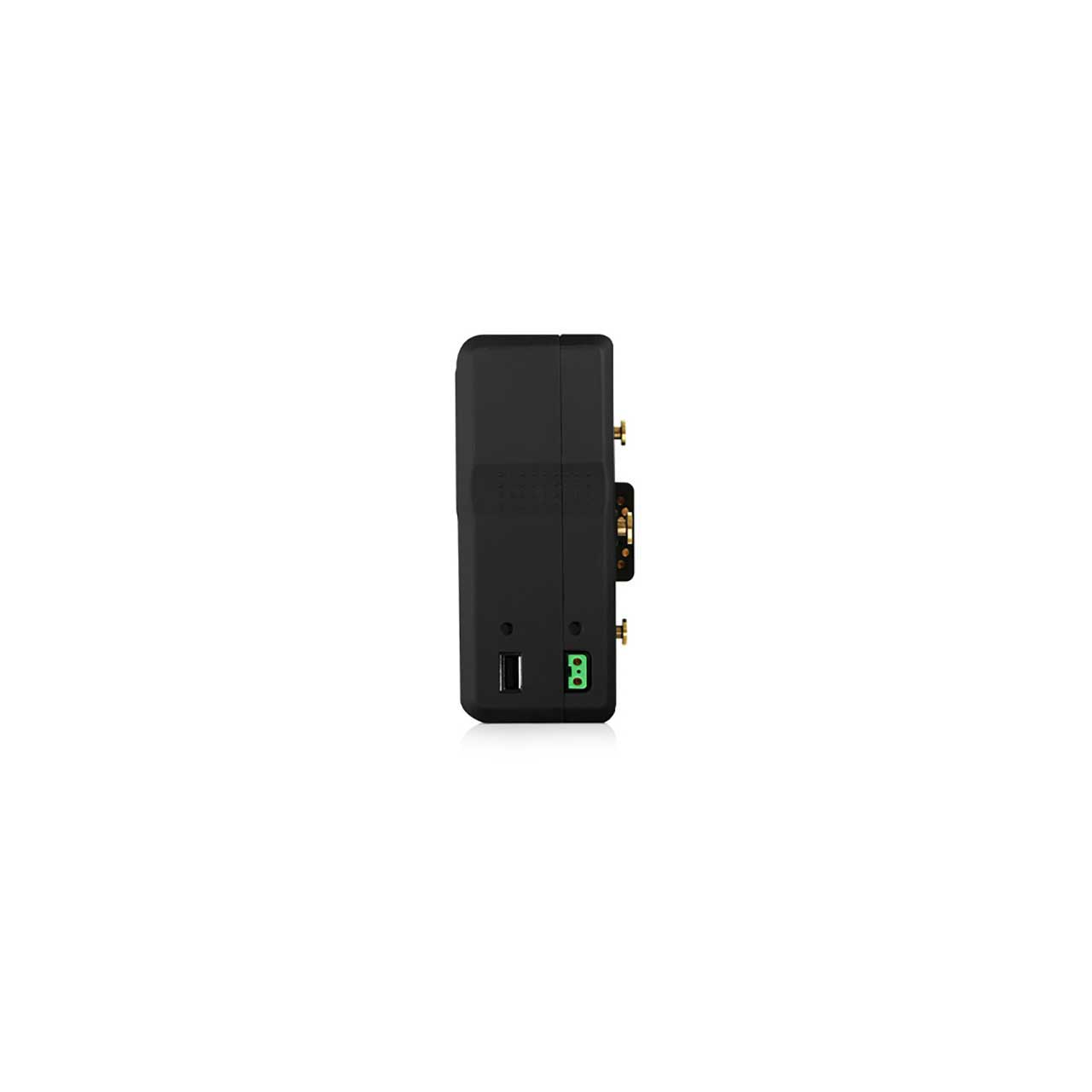

They feature an on-board unregulated P-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-LED power gauge to simply glance at remaining runtime on the battery.

A rubberized, shock absorbent shell casing is used to provide the lightweight pack with greater protection against the rigors of everyday production.

PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 10amp Draw
    • LED Fuel Gauge
    • SMART with Camera/Charger Communication
    • Intergtrated Ptap Port
    • USB 5V Output
    • Firmware Upgradeable via USB
    • A/B Charge Compatible

  • Specifications:

    • Capacity: 178Wh (14.8V, 12 Ah)
    • Size: 3.8 x 5.87"x2.44"
    • Weight: 2.4 lbs.
    • Normal Runtime: (25W): 7.1Hrs
    • Max Load: 10A

  • GTIN:

    0184323005604
