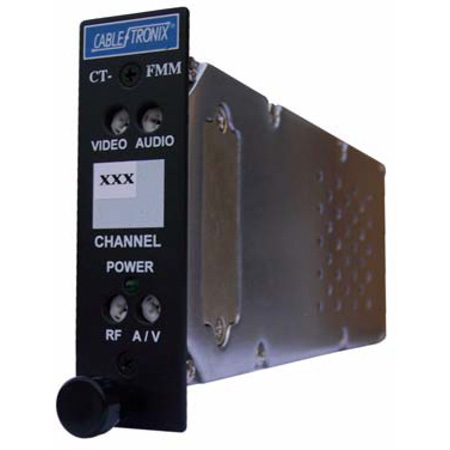

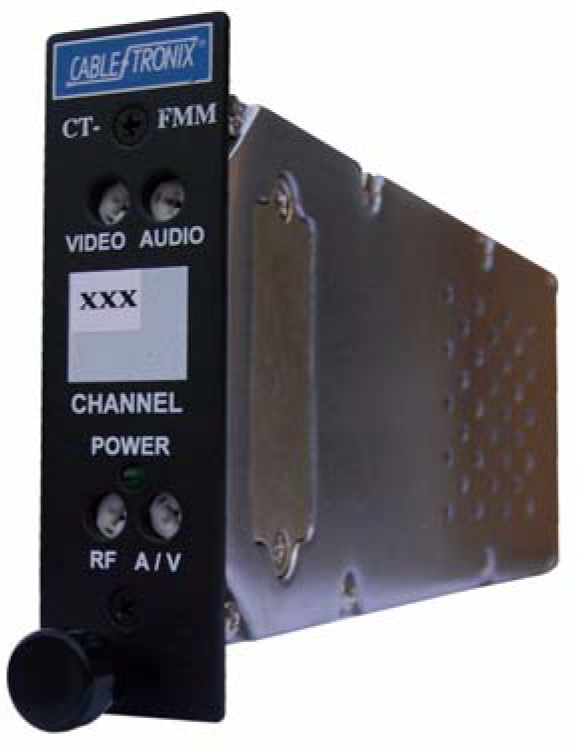

Cabletronix CT-FMM-77 Micro Commercial SAW Modulator - Ch 77

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cabletronix CT-FMM-77 Micro Commercial SAW Modulator - Ch 77

    Manufacturer: Cabletronix

    Item #: CT-FMM-77   •   MFG #: CT-FMM-77




    Our Price:$89.99

    no free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The CableTronix CT-FMM is a professional quality fixed channel micro modulator providing an audio and video modulated RF carrier from 54 to 806 MHz on any CATV channel from 2 to 125. Any standard video source
      can be used, including satellite receivers, demodulators, VCRs, laser/DVD players, and TV/security cameras.

      The CT-FMM employs highly stable synthesized frequency control. Setup and adjustments are easy and straightforward taking advantage of the unit's front panel access to all level controls. Channel frequency information with FCC offsets is programmed into each unit at the factory.

      The CT-FMM meets or exceeds government regulatory requirements, including FCC group delay pre-distortion for color transmission, and FCC Docket 21006 aeronautical offset requirements


      • Features

        • Output frequency of 54 to 806 MHz supports all CATV channel assignments, Chs. 2-125 CATV
        • Now featuring a cast housing
        • Rapid headend design and deployment
        • Reduced costs associated with higher priced units with same specifications
        • Excellent broadband noise performance at - 78dBc
        • Recessed front panel access to all level controls and indicators
        • Use with Cabletronix CTPS-12 power supply and CTRC-12 rack chassis or with 3rd party power
          supplies and/or chassis depending upon configuration
        • 1 year warranty with a 1 year loaner guarantee
        • 3 year extended warranty available

      • Specifications

        • RF
        • Output Frequency: 54 ~ 806 MHz. CATV Channels 2 to 125
        • Output Level: +50 dBmV typical, 20 dB Adjustable
        • Spurious Output: > 60 dB
        • C/N Ratio: 60 dB typical
        • Broadband Noise: -78 dBc
        • Frequency Accuracy: ±5 kHz
        • Output Impedance: 75 Ohms
        • Output Return Loss: 12 dB
        • A/V Ratio: -18 to -12 dB ( ±2 dB ) , Adjustable

          Video
        • Input Level: 0.7 V p-p (Min.) for 87.5 % Modulation
        • Input Impedance: 75 Ohms
        • Input Return Loss: 20 dB
        • Flatness: ±1 dB
        • Video Signal-to-Noise Ratio: 62 dB
        • Differential Gain: 4.5 %
        • Differential Phase: 4.5°
        • Group Delay Response: meets FCC group delay pre-distortion requirements for color transmission

          Audio
        • Input Level: 0.35V ~1V peak to peak for 50 kHz Deviation
        • Input Impedance: > 10 k Ohms
        • Flatness: ±1 dB, 50 Hz ~ 15 kHz
        • Harmonic Distortion: <1 %, 50 Hz ~ 15 kHz

          General
        • DC Power Input: 5V ( 400 mA ) , 12V ( 150 mA )
        • Weight: 14 oz.
        • Dimensions: 1in W x 3.5in H x 7.5in D
        • Operating Temperature Range: 32°F to 122°F
