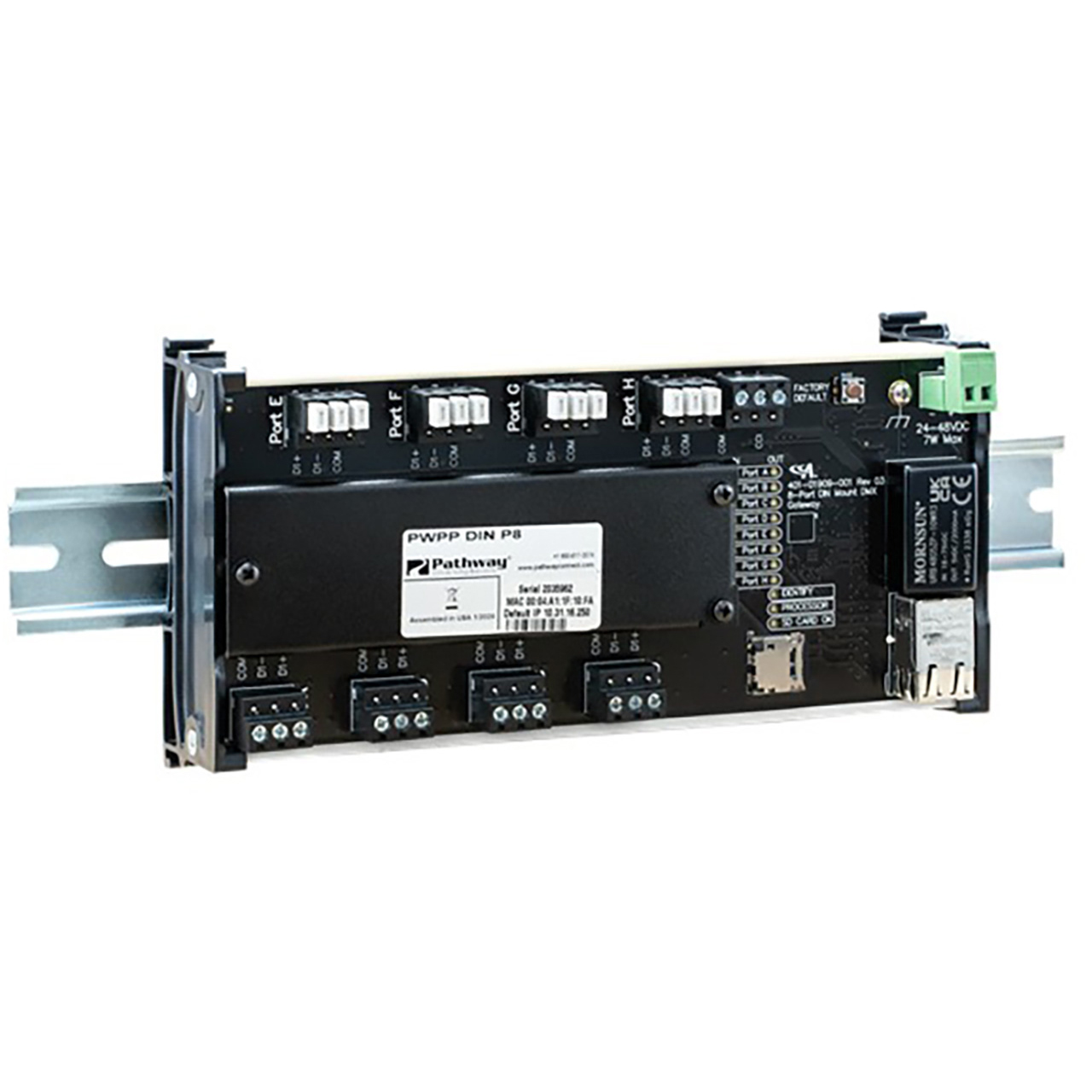

Pathway Connectivity PWPP-DIN-P8 8-Port IN-Mount DMX/RDM Ethernet Gateway

ITEM #: CTYTH-PWPP-DINP8 MFG #: PWPP-DIN-P8

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Pathway Connectivity Solutions
Free Shipping with $49 Minimum Order

List Price:

$2,100.00

Our Price:

$1,470.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PWPP-DIN-P8 - Overview

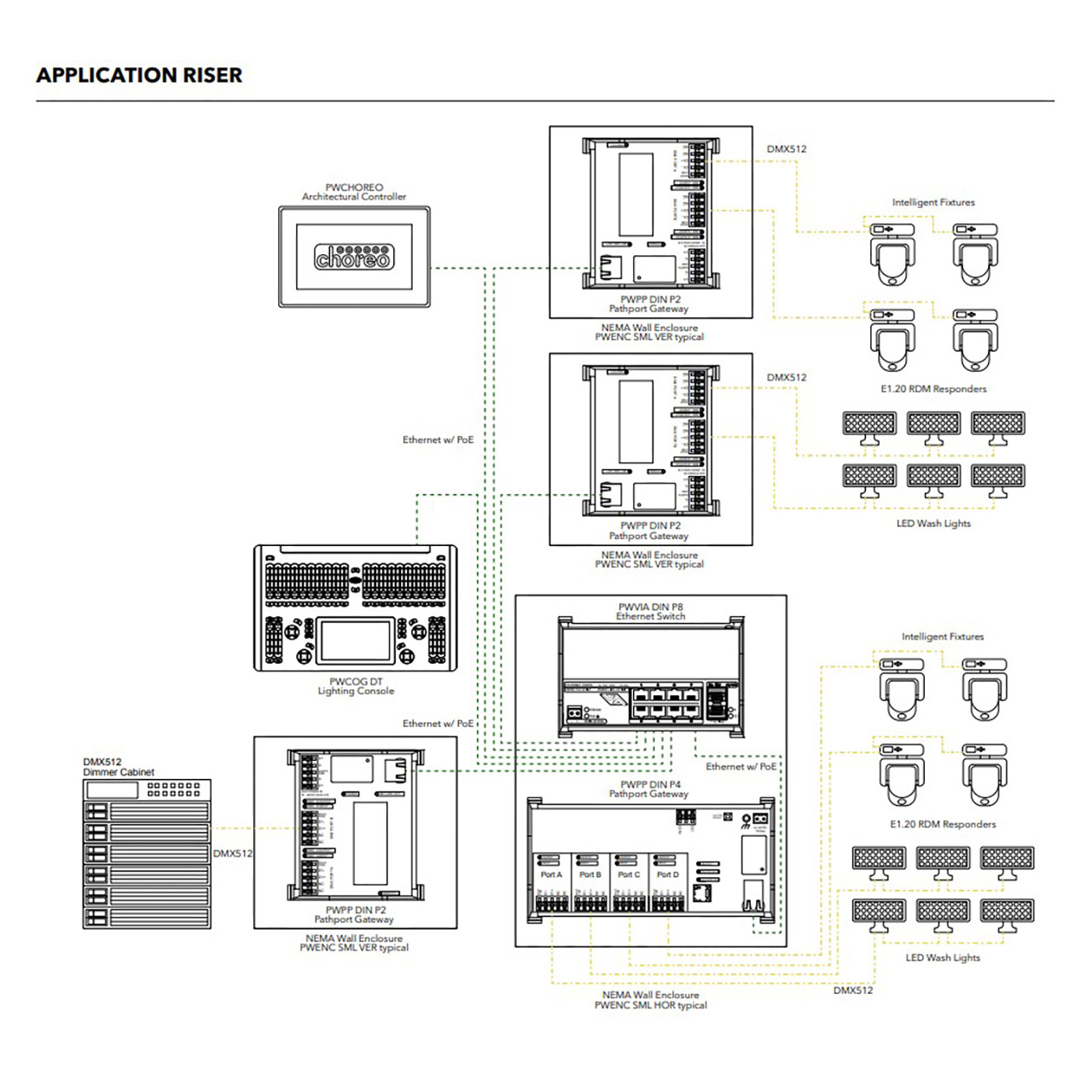

The Pathport series of DMX/RDM Ethernet Gateways are the heart of DMX distribution.Connect DMX512 control devices and send data over an Ethernet network to DMX512-capable end-devices such as intelligent lighting fixtures, LEDs, dimmers, and more. Each port can be configured as an Input or Output as needed. The compact Pathport DIN-mount Gateways are designed for permanent installation and available in two, four, and eight port counts. They are configured using the free downloadable software, Pathscape.

Advanced features include extensive protocol support, slot-by-slot patching using multiple sources, cross-fading on priority change, and signal loss behavior. Different Ethernet protocols may be merged together and prioritized. Status LEDs provide instant confirmation of port activity.

  • Features:

    • Convert DMX512 to Ethernet protocol for distribution
    • Convert Ethernet protocol to DMX512 for end-devices
    • Two, Four, or Eight DMX512 ports, individually configurable
    • LED Indicators for Port Direction,Power, Ethernet link activity, and Identify.
    • DMX output configured as whole universes or custom slot-by-slot patch.
    • Map up to eight control sources to each output slot, with merge and/or priority options for each source.
    • Acts as E1.20 RDM controller, when used with free Pathscape configuration software or ANSI E1.33 RDMnet compliant controllers.
    • User-configurable DMX output speed and signal loss behavior.
    • Supports the following Ethernet sending and receiving protocols: Pathway ssACN (Secure sACN) - E1.31 streaming ACN (sACN) - Art-Net - Pathport Protocol - ShowNet.
    • Operates on Power-over-Ethernet (PoE) or auxiliary 24-48VDC input.
    • Mounts to standard 35mm DIN rail.
    • Contact closure input configurable per port to Pause RDM or DMX Force Hold (P4 or P8).
    • microSD card slot allows backup or restore of device configuration (P4 or P8).


  • Specifications:

    • Input Ratings: PoE Class 2 device, 24-48VDC auxiliary power input, 7W maximum power consumption, Dry Contact Closure.
    • Isolation & Fault Protection: 1500V isolation between DMX ports, 60V fault protection on DMX ports.
    • Operating Temperature 14°F to 113°F (-10°C to 45°C).
    • Relative Humidity 5-95%, non-condensing.
    • Standard Compliance RoHS 2011/65/EU + A1 2015/863.

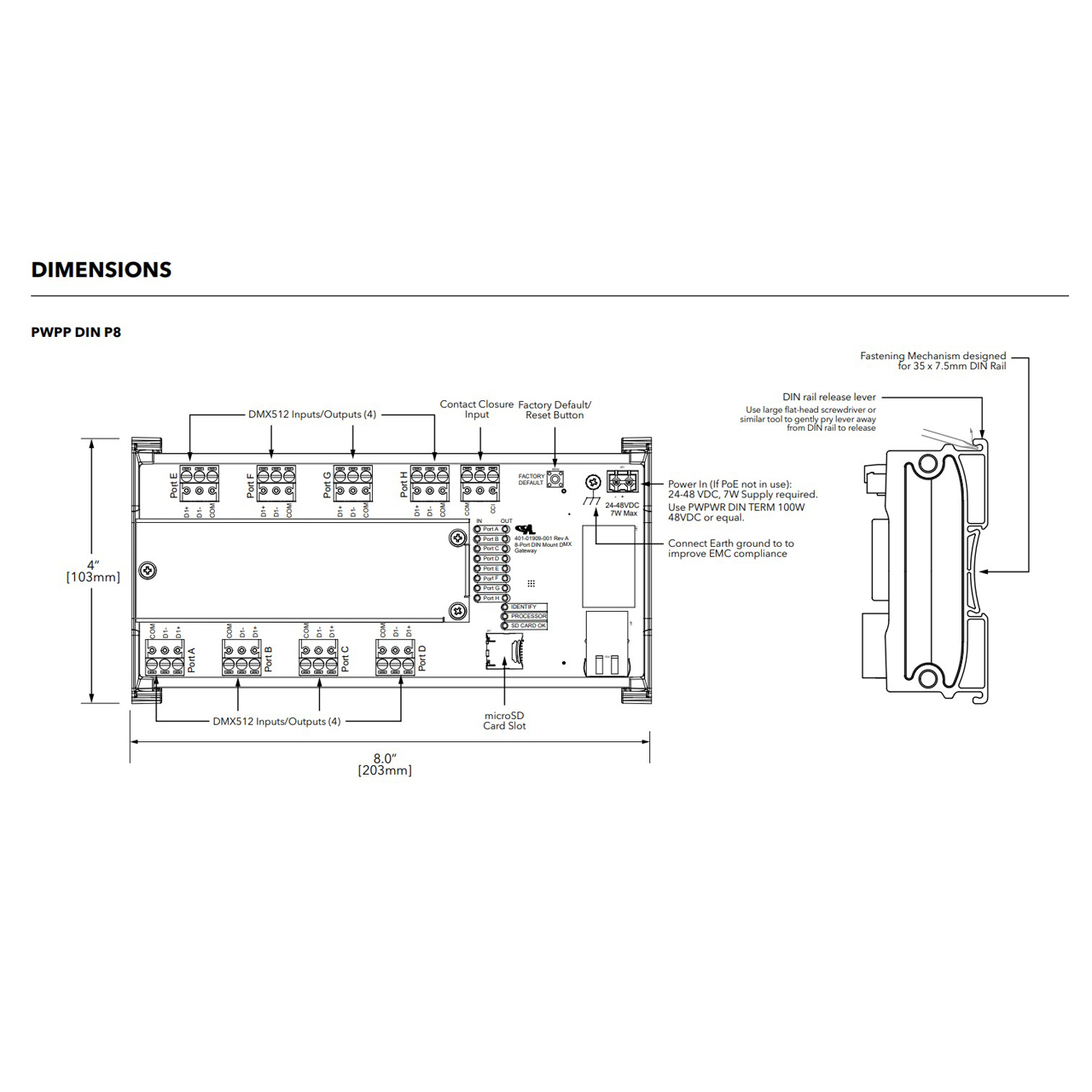

    • Dimensions:8.0" W x 4" H x 1.9" D (203mm W x 103mm H x 48mm D).
    • Weight: 0.4 lbs (0.18 kg).
